How Gravitational Equilibrium Points Dictate Deep Space Architecture

A spacecraft's ability to hold a fixed position relative to the Earth and the Sun is determined the moment the gravitational pull of those two massive bodies exactly equals the centripetal force required for a smaller object to move with them. At five specific coordinates in the orbital plane, these competing physical forces cancel each other out. These coordinates transform empty space into a structural foundation, allowing spacecraft to remain in a fixed relative position with minimal fuel consumption.[1][2]

Known as Lagrange points, these invisible nodes dictate where modern space agencies park their most valuable infrastructure. The Earth-Sun system contains five such points, labeled L1 through L5. The first three sit on the direct line connecting the Earth and the Sun, while the remaining two lead and trail the Earth in its orbit by exactly 60 degrees.[3][4]

The mathematical foundation for these coordinates was laid long before human spaceflight. Swiss mathematician Leonhard Euler identified the first three collinear points in the mid-18th century. In 1772, Italian-French mathematician Joseph-Louis Lagrange published an essay on the three-body problem that identified the remaining two stable points, cementing his name to the phenomenon.[4]

The mechanics of these points rely on the interaction of mass and orbital velocity. As the NASA Science directorate explains, "Lagrange Points are positions in space where the gravitational forces of a two body system like the Sun and the Earth produce enhanced regions of attraction and repulsion." This dynamic creates regions where a spacecraft can essentially hover, locked in a synchronous orbit with the Earth as it travels around the Sun.[1]

Not all five points offer the same type of equilibrium. L1, L2, and L3 are considered metastable, functioning much like a saddle. A spacecraft placed exactly at the center can theoretically remain there, but any slight drift pushes it down the slope, requiring active propulsion to correct and maintain its position.[3]

Despite this instability, L1 and L2 serve as the workhorses of modern astrophysics. L1 sits approximately 1.5 million kilometers (about 1 million miles) inside Earth's orbit, providing an uninterrupted view of the Sun. This makes it the premier location for solar observatories like the Solar and Heliospheric Observatory (SOHO) and the Deep Space Climate Observatory (DSCOVR), which monitor space weather and solar flares.[1][2]

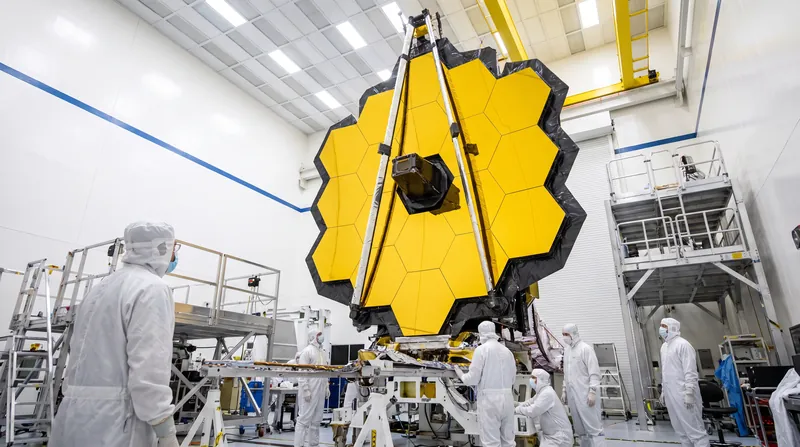

Conversely, L2 is located 1.5 million kilometers outside Earth's orbit, keeping the Earth, Moon, and Sun behind the spacecraft. This orientation is critical for deep-space infrared observatories that require extreme cold and a clear view of the outer universe. The James Webb Space Telescope and the European Space Agency's Euclid mission both operate here.[2][7]

Because L1 and L2 are metastable, spacecraft do not sit stationary at the exact coordinate. Instead, they enter what are known as halo orbits—wide, looping paths around the infinitesimal point itself. As noted during the 2023 deployment of the Euclid telescope, these large halo orbits require periodic station-keeping maneuvers, consuming a small but steady supply of propellant that ultimately dictates the mission's lifespan.[7][9]

The third collinear point, L3, remains hidden directly behind the Sun at all times. While it has served as a popular trope in science fiction for a hidden counter-Earth, the gravitational perturbations from other planets like Venus and Jupiter make it highly unstable. Currently, no space agency utilizes L3 for active infrastructure.[3][4]

The true stability in the system is found at L4 and L5. Because these points form equilateral triangles with the Earth and the Sun, the Coriolis effect generated by the orbital rotation balances the gravitational forces perfectly. A spacecraft placed at L4 or L5 will naturally orbit the point itself without requiring any station-keeping fuel, even if nudged by outside forces.[1][6]

This natural stability makes L4 and L5 accumulation zones for interplanetary debris. Objects that drift into these regions tend to stay there, forming clusters of asteroids known as Trojans. While Jupiter's massive Trojan asteroids are the most famous, Earth also possesses a small number of these co-orbital companions trapped in its L4 and L5 regions.[3][4]

As the space economy expands, these coordinates are transitioning from scientific outposts to strategic territory. A 2021 analysis published in Zenodo characterized Lagrange points and geostationary orbits as "Orbital Chokepoints," highlighting their finite capacity and immense value for future space logistics and security.[5]

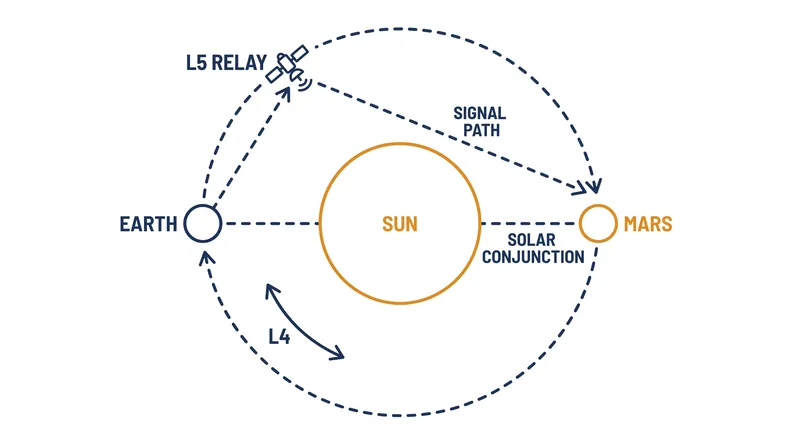

Beyond observation, Lagrange points offer solutions to fundamental communication challenges in deep space. During solar superior conjunctions—when the Sun sits directly between Earth and Mars—direct communication with Martian rovers and orbiters is severed. A 2021 NASA study evaluated using Lagrange-based relay satellites to eliminate these multi-week communication blackouts, ensuring continuous contact with future crewed missions.[8]

The architecture of the next century in space relies entirely on these five nodes. Whether serving as staging grounds for lunar operations, fuel depots for Mars transits, or permanent homes for next-generation telescopes, Lagrange points provide the necessary gravitational scaffolding for deep-space infrastructure.[6][9]

The deciding factor for the next phase of interplanetary expansion is no longer just propulsion technology, but the allocation of these finite equilibrium zones. The deployment of dedicated communication relays at L4 and L5 will mark the moment these coordinates shift from solitary observation posts to an integrated, permanent deep-space network.[5][8]
