Decoding a 10-Watt Whisper at 24 Billion Kilometers: The Math and Hardware Sustaining the Deep Space Network

At a distance of 24 billion kilometers from Earth, Voyager 1 transmits its telemetry using a radio operating at roughly 22 watts—equivalent to the power of a refrigerator light bulb. By the time that signal reaches the Deep Space Network complex in Madrid, Spain, the inverse square law has reduced it to a fraction of an attowatt.[4]

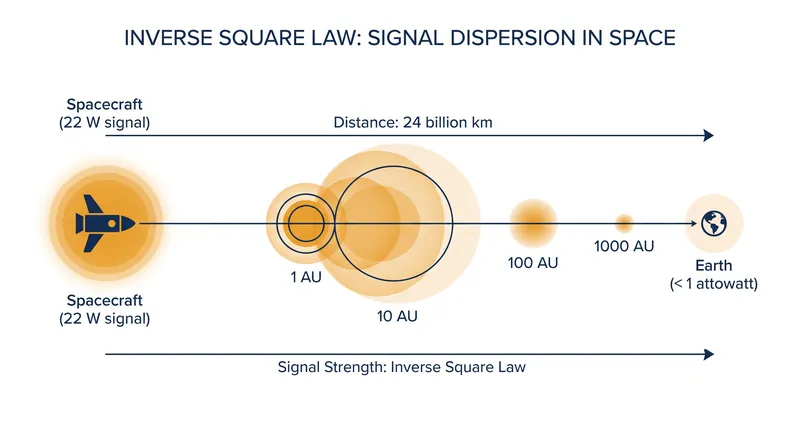

The physics governing this attenuation are absolute. As electromagnetic waves propagate outward from a spacecraft's high-gain antenna, their energy disperses across the surface area of an ever-expanding sphere. Doubling the distance to the receiver quarters the signal strength, creating an exponential decay that quickly buries the transmission beneath the ambient microwave background of the universe.

For deep space missions, this geometric reality means ground stations must capture a signal that is almost incomprehensibly faint. As one industry report notes, "NASA's Deep Space Network can detect a signal as weak as a billionth of a billionth of a watt from spacecraft billions of kilometres away," relying on massive infrastructure to pull this technological whisper out of the cosmic noise.[4]

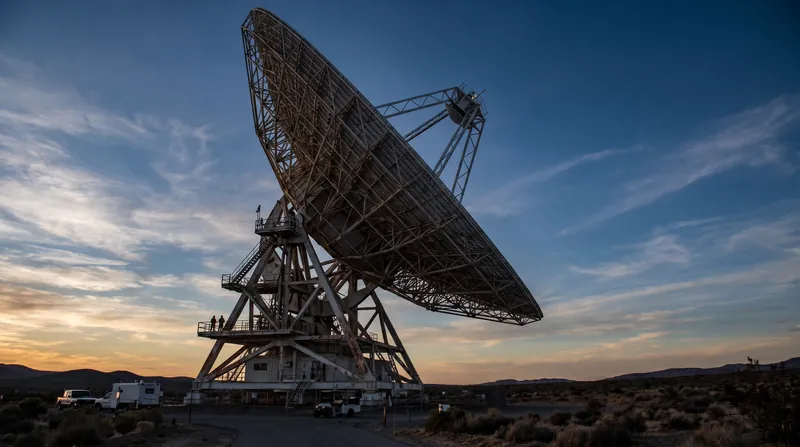

The first half of the solution is brute-force hardware. The Deep Space Network operates three primary facilities spaced roughly 120 degrees apart around the globe—in Goldstone, California; Madrid, Spain; and Canberra, Australia. Each site features a 70-meter parabolic dish, a structure weighing nearly 3,000 tons that provides the immense physical aperture necessary to collect the scattered photons of a distant transmission.[1]

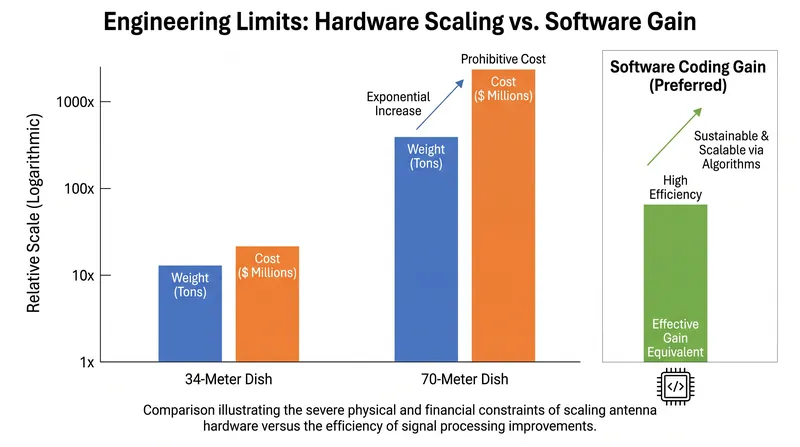

However, hardware alone cannot scale infinitely. Building dishes larger than 70 meters introduces prohibitive engineering challenges, from structural deformation under the antenna's own gravity to the sheer mechanical limits of steering such massive reflectors with the precision required to track a fast-moving probe across the sky.

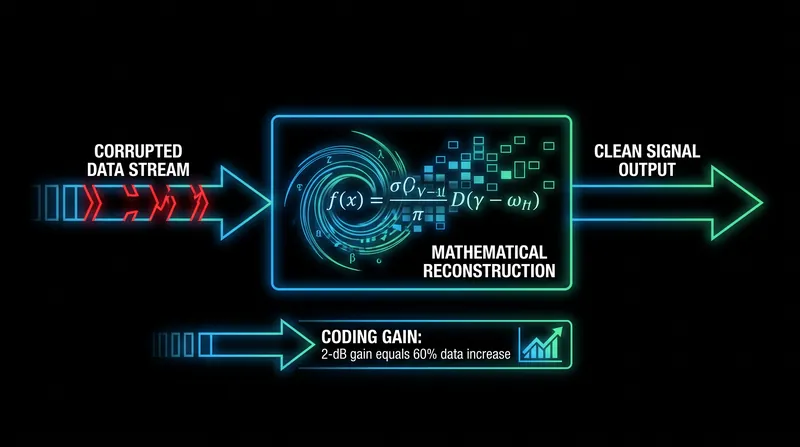

When physical aperture reaches its practical limit, engineers turn to mathematics. The concept of coding gain allows the network to extract usable data from a signal that is technically buried beneath the thermal noise floor of the receiver. This is achieved through forward error correction, a method of adding structured redundancy to the transmitted data stream.[2]

Channel coding, pioneered in the mid-20th century, applies specific mathematical algorithms before the data leaves the spacecraft. By transmitting these calculated extra bits alongside the actual scientific data, the ground station can reconstruct bits that were corrupted or lost during the 22-hour interplanetary journey, effectively repairing the signal on the fly.[5]

The evolution of these codes has defined deep space exploration. Early missions utilized relatively simple convolutional codes. A 1967 NASA technical report detailed an "efficient coding system for deep space probes with specific application to Pioneer missions," which established the foundation for telemetry error correction and allowed those early probes to return data from the outer solar system.[3]

Over the decades, the network transitioned to more complex schemes, including Reed-Solomon and Turbo codes. A seemingly minor mathematical improvement—such as achieving a 2-decibel coding gain—yields massive operational dividends. In a power-constrained environment, a 2-decibel gain allows a spacecraft to transmit 60 percent more data at the same power level, or maintain its existing 160-bit-per-second data rate while operating significantly further from Earth.[2]

This mathematical leverage is paired with extreme thermal management at the receiver end. The feed horns of the 70-meter dishes are cryogenically cooled to just a few degrees above absolute zero using liquid helium. This suppresses the random thermal motion of electrons in the amplifier circuits, lowering the internal noise floor so the error-correcting algorithms have a cleaner baseline to process.[1]

The interplay between hardware and software is what keeps legacy missions alive. Voyager 1, launched in 1977, relies entirely on these ground-side upgrades. Because the spacecraft's hardware is frozen in time, the network must continually refine its receiver sensitivity and decoding algorithms to compensate for the probe's increasing distance and decaying power supply.[5]

While the space industry frequently hypes optical communications—using lasers to achieve gigabit data rates—the reality of deep space operations remains tethered to radio frequencies. Optical links require extreme pointing accuracy and are highly susceptible to atmospheric interference, such as cloud cover over the ground station, making them unsuitable as a sole lifeline.

AI

The network's X-band and Ka-band radio systems, fortified by decades of coding theory, bypass these atmospheric limitations. They provide the all-weather reliability necessary for critical mission phases, such as orbital insertion or planetary landing, where a dropped signal could mean the loss of a billion-dollar asset.[1]

The ultimate limit of this system is not distance, but the spacecraft's onboard power. As the plutonium-238 powering the farthest probes continues to decay, their transmitters will eventually drop below the threshold where even a 70-meter dish and advanced Turbo codes can reconstruct the telemetry. Until that threshold is crossed, the network will continue to translate mathematical redundancy into scientific discovery.[4][6]
