Thin Sacrificial Bumpers Shock Hypervelocity Debris Into Expanding Vapor Clouds to Shield Spacecraft Hulls

When designing armor to stop a ballistic threat, the intuitive engineering solution is simply to add mass. The heavier and thicker the steel plate, the more kinetic energy it can absorb before yielding to the projectile. But in low Earth orbit, where the closing speeds of micrometeoroids and artificial debris routinely exceed 7 kilometers per second, that terrestrial intuition becomes a fatal liability.[2][5]

At hypervelocity, a striking particle behaves less like a bullet and more like a bomb, delivering energy far faster than the molecular bonds of the target material can respond. If a spacecraft relies on a thick, monolithic aluminum wall for defense, a millimeter-sized paint fleck traveling at 10 kilometers per second will not just dent the surface.[5]

The impact shockwave will blast a crater into the exterior and cause the interior face to spall, sending high-speed metal shrapnel ricocheting through the pressurized cabin. To survive the orbital debris environment, aerospace engineers had to abandon the brute-force approach of tank armor and embrace a paradox: a thin wall, placed in exactly the right position, offers vastly superior protection.[1][5]

The Physics of Sacrificial Bumpers

The solution, conceived by American astronomer Fred Whipple in the 1940s before a single satellite had ever flown, is known as the Whipple shield. Instead of a single thick hull, the design places a sacrificial bumper sheet—often just 1 to 2 millimeters of aluminum—at a standoff distance from the main spacecraft wall.[5]

The bumper is not designed to stop the incoming debris, nor is it meant to absorb the bulk of the kinetic energy. Its sole purpose is to destroy the projectile. When a hypervelocity particle strikes the thin outer bumper, the immense kinetic energy triggers an instantaneous shockwave that propagates through both materials.[1][3]

The projectile and a small plug of the bumper material are subjected to pressures and temperatures so extreme that they melt, fragment, and partially vaporize. What was once a solid, lethal bullet is instantly converted into an expanding cloud of liquid droplets and metallic gas.[2][4]

"The shields are composed of an external, thin bumper shield that is exposed to the debris flux and causes the impactors to completely disintegrate during impact," notes the European Space Agency's Space Debris Office in a 2018 technical overview.[2]

"The resulting cloud of liquified projectile and target material that forms behind the bumper leads to a much wider spatial and temporal distribution of momentum," the agency concluded.[2]

Using Empty Space as Armor

The true genius of the Whipple shield lies in the empty space behind the bumper. As the vapor and debris cloud crosses the standoff gap—typically ranging from 10 to 30 centimeters deep—it expands outward into a wide cone.[2]

By the time this cloud reaches the rear pressure wall, its kinetic energy has been diluted over an area hundreds of times larger than the original impact point. Instead of a concentrated punch that drills through the hull, the rear wall receives a distributed, survivable sandblasting.[1][5]

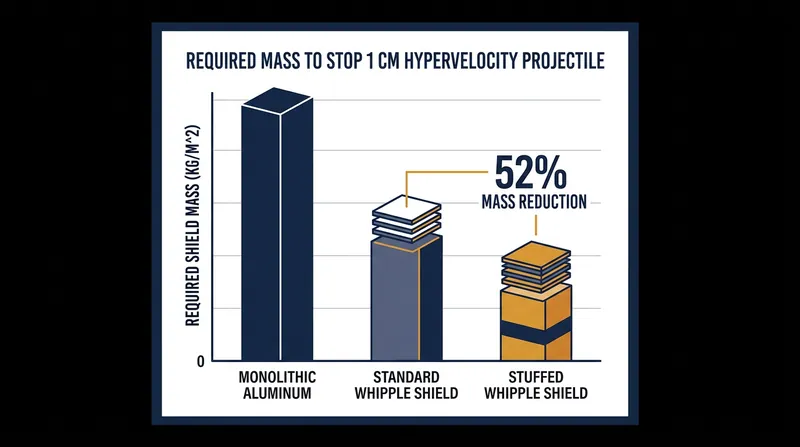

This geometric expansion allows spacecraft designers to achieve the same level of protection as a solid block of aluminum while reducing the total armor mass by over 50 percent. In the strict economics of spaceflight, where every kilogram launched to orbit costs thousands of dollars, that mass reduction is the difference between a viable mission and a grounded one.[4]

The effectiveness of this gap is dictated by the speed of the impact. At lower velocities, around 3 kilometers per second, the projectile may only shatter into solid fragments, which can still penetrate the rear wall. But as velocities push past 7 kilometers per second, the energy is sufficient to ensure complete vaporization.[2]

Stuffing the Gap for the ISS

As the orbital debris environment worsened throughout the 1990s, engineers realized that a simple two-wall system was no longer sufficient for long-duration habitats. The International Space Station, which features over 100 different shield configurations across its modules, heavily employs an advanced variant known as the stuffed Whipple shield.[1][5]

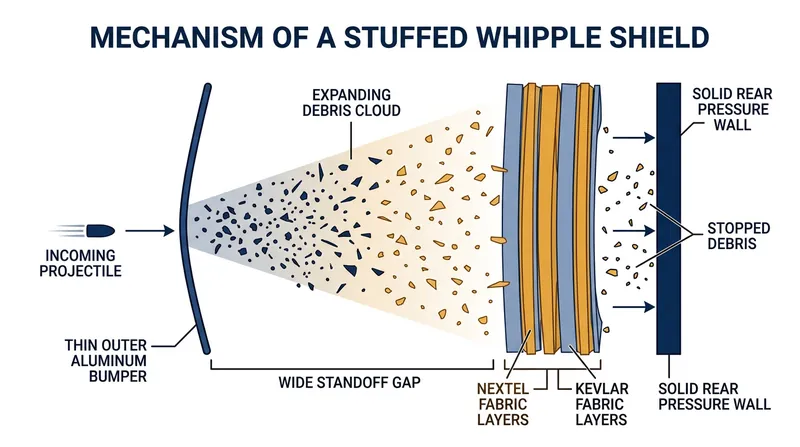

This design inserts additional layers of high-performance ballistic fabrics into the standoff gap to further degrade the debris cloud before it can reach the pressure shell. Behind the initial 2-millimeter aluminum bumper, the standard NASA shield interleaves six layers of Nextel—a ceramic fiber woven from alumina-boria-silica—and six layers of Kevlar.[5]

When the initial debris cloud hits the Nextel, the brittle ceramic fibers repeatedly shock and pulverize the molten fragments, grinding the spray even finer. The Kevlar layers then act as a final catcher's mitt, slowing the microscopic remnants so the 4.8-millimeter aluminum rear wall remains unbreached.[5]

Other space agencies utilize similar configurations tailored to their specific modules. The Japanese Aerospace Exploration Agency employs a 1.3-millimeter aluminum bumper followed by three layers of Nextel and four layers of Kevlar. Meanwhile, the European Space Agency utilizes a 2.5-millimeter bumper, four layers of Nextel, and a Kevlar-epoxy composite layer.[5]

Testing at the Ballistic Limit

Validating these designs requires specialized facilities capable of replicating orbital velocities on Earth. Researchers rely on two-stage light-gas guns, which use compressed hydrogen or helium to fire small aluminum spheres at targets.[2][4]

At Germany's Fraunhofer Institute for High-Speed Dynamics, engineers routinely fire 2.8-millimeter bullets at 7 kilometers per second to capture the exact moment of vaporization on high-speed cameras.[2]

"We used a gas gun at Germany's Fraunhofer Institute for High-Speed Dynamics to test a novel material being considered for shielding spacecraft against space debris," explained ESA researcher Benoit Bonvoisin during a 2018 testing campaign.[2]

These tests help engineers develop ballistic limit equations, mathematical models that predict whether a specific shield configuration will be perforated by a given projectile mass and velocity. By refining these equations, researchers can optimize the thickness and spacing of the layers, shaving precious grams off the spacecraft's dry mass.[3][4]

The Threat Environment in Low Earth Orbit

The necessity for such specialized armor stems from the dual nature of the orbital threat environment. Spacecraft face bombardment from two distinct sources: natural micrometeoroids and artificial space debris. Micrometeoroids, remnants of comets and asteroids, travel at staggering velocities, often striking spacecraft at speeds between 15 and 20 kilometers per second.[4]

However, the more pressing and rapidly growing threat comes from human activity. Artificial orbital debris—ranging from defunct satellites to fragments generated by accidental collisions—clutters low Earth orbit. Because this debris is concentrated in the most heavily trafficked orbital planes, the probability of a catastrophic strike increases with every new launch.[4]

Evolution From Monolithic to Multi-Shock

The transition from monolithic armor to advanced spaced shielding did not happen overnight. Early satellites in the 1950s and 1960s relied primarily on their structural hulls for protection, as the artificial debris environment was still in its infancy. But as the sheer volume of material in orbit expanded, the limitations of single-wall defenses became glaringly apparent.[1]

One notable advancement is the multi-shock shield, utilized on NASA's Stardust probe, which launched in 1999 to collect samples from a comet. Instead of a single bumper, the multi-shock shield employs four or more ultra-thin ceramic fabric bumpers spaced evenly apart.[1]

Each successive bumper repeatedly shocks the projectile, raising its internal thermal energy until it completely melts and vaporizes, long before it reaches the spacecraft's primary structure. This repeated shocking mechanism proved highly effective for Stardust, allowing the spacecraft to survive passage through a dense cloud of cometary dust.[1]

Next-Generation Reactive and Smart Shields

As the mass of objects in Earth's orbit continues to climb—surpassing 9,000 metric tons by recent estimates—researchers are exploring next-generation materials to enhance the Whipple shield's efficiency. Recent studies have investigated the use of reactive material bumpers, which incorporate energetic compounds that detonate upon impact.[4]

Other experimental designs focus on deployable and adaptable structures. A 2003 NASA technical report detailed improved shields incorporating sparsely distributed wires made of shape memory metals. These materials can be compactly stored during launch and thermally activated upon arrival in orbit, expanding to form a rigid, pre-determined shield geometry.[1]

Furthermore, engineers are testing metallic foams and aerogel composites as lightweight stuffing materials. In a 2021 study published in Defence Technology, researchers found that aerogel and fiberglass composites absorbed debris impact energy more effectively than standard aluminum plates of the same areal density.[3]

The Limits of Passive Shielding

Despite their ingenuity, Whipple shields cannot protect against everything. Ground-based testing confirms that stuffed shields easily defeat particles up to 1 centimeter in diameter. However, scaling the shield to stop larger objects requires exponentially thicker bumpers and wider standoff gaps, quickly becoming too heavy to launch.[5]

For debris larger than 10 centimeters, which is actively tracked by ground-based radar systems, the only defense is an active avoidance maneuver. The ISS routinely fires its thrusters to alter its orbit when conjunction assessments indicate a high probability of collision with a tracked object.[2]

The Whipple shield exists strictly to manage the invisible, untrackable middle band of the threat spectrum. By forcing the environment's kinetic energy to defeat itself, these sacrificial bumpers ensure that the constant microscopic bombardment of low Earth orbit does not depressurize the modules keeping astronauts alive.[5]
