Why Gravity Gradients and Thermal Snap Cause Attitude Drift in Low-Earth Orbit Satellites

Satellites in low Earth orbit drift from their intended orientation because Earth's gravity pulls unevenly across their length, while rapid temperature swings during eclipse transitions cause their solar panels to violently warp. Together, these two invisible forces constantly twist the spacecraft off its axis.[3][4]

In the vacuum of space, there is no air friction to hold a vehicle steady. A satellite is a free-floating mass, meaning even the slightest external force will cause it to slowly tumble. For spacecraft tasked with pointing high-resolution cameras at the ground or aiming narrow communication beams at a receiver, this drift is a critical failure mode.[4]

Engineers refer to a spacecraft's orientation as its attitude. Maintaining that attitude requires a constant battle against the orbital environment. While aerodynamic drag and magnetic fields play a role, gravity gradients and thermal snap represent the most persistent mechanical and thermodynamic challenges to low Earth orbit stability.[3][4]

The Mechanics of the Gravity Gradient

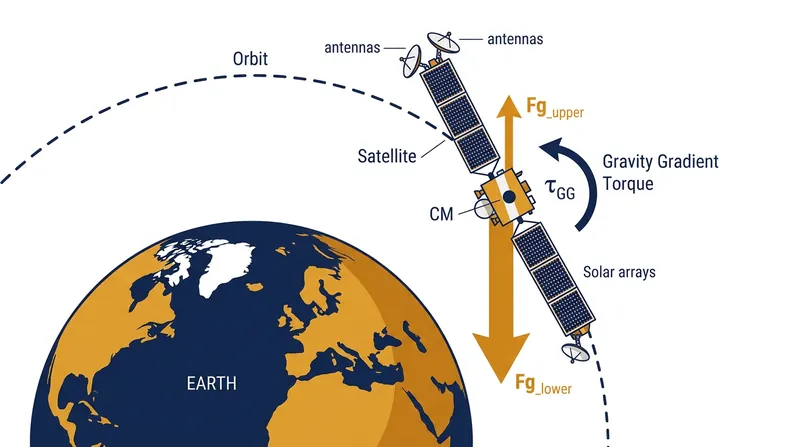

Gravity is not uniform; its strength decays with the square of the distance from the mass generating it. For a satellite orbiting 400 kilometers above the Earth, the side of the spacecraft facing the planet is slightly closer to the center of gravity than the side facing deep space.[3]

This microscopic difference in distance means the lower half of the satellite experiences a marginally stronger gravitational pull than the upper half. If the spacecraft is elongated or asymmetric, this differential pull creates a lever arm around the vehicle's center of mass.[3]

The resulting force is known as a gravity gradient torque. It acts as a constant, subtle twisting motion that attempts to align the satellite's axis of minimum inertia—usually its longest physical dimension—directly with the local vertical, or nadir.[3]

If left uncorrected, a satellite oriented horizontally relative to the Earth will slowly swing downward like a pendulum. The magnitude of this torque is inversely proportional to the cube of the orbital radius, making it a dominant disturbance in low Earth orbit but largely negligible for geostationary satellites 35,000 kilometers away.[3]

Some early spacecraft actually used this phenomenon to their advantage. By deploying a long boom with a mass at the end, engineers could passively stabilize the satellite, forcing it to remain pointed at the Earth without expending fuel. Modern high-agility satellites, however, view this torque purely as a disturbance that must be actively fought.[3]

Entering the Eclipse

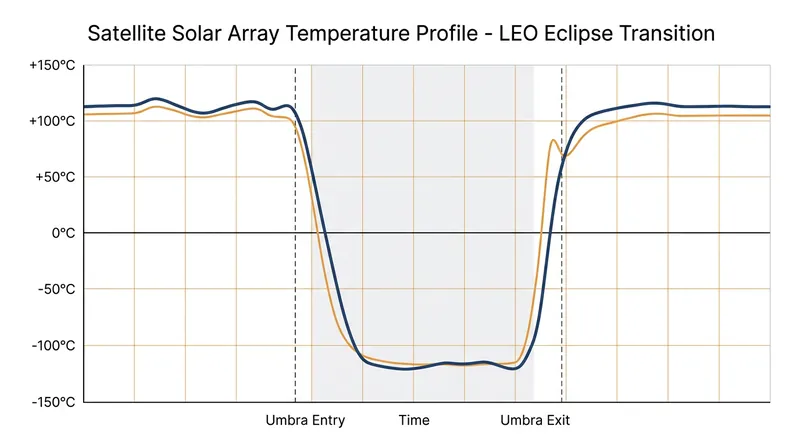

While gravity provides a constant, predictable pull, the thermal environment in low Earth orbit introduces violent, sudden shocks. A satellite at this altitude completes an orbit roughly every 90 minutes, spending about 60 minutes in direct sunlight and 30 minutes in the Earth's shadow.[2]

During the sunlight phase, surface temperatures on the spacecraft can soar to +150 degrees Celsius. The moment the vehicle crosses the terminator line into the umbra, it is plunged into the freezing darkness of space, where temperatures plummet to -150 degrees Celsius.[2]

This extreme thermal cycling happens thousands of times a year. The core of the satellite is heavily insulated to protect sensitive electronics, but external appendages like solar arrays and communication antennas are fully exposed to the harsh environment.[2]

These appendages are designed to be as lightweight and thin as possible to minimize launch costs. Consequently, they possess very little thermal mass, meaning they heat up and cool down almost instantaneously when the solar flux changes.[2]

The Thermal Snap Phenomenon

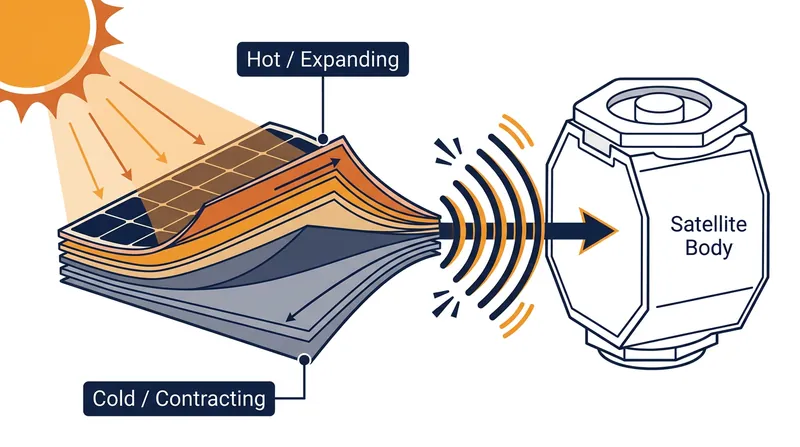

When a thin solar panel enters or exits the eclipse, the side facing the sun changes temperature faster than the shadowed side. This creates a severe temperature gradient across the millimeter-thick cross-section of the panel.[2]

Materials expand when heated and contract when cooled. Because one side of the panel is expanding while the other is contracting, the entire structure suddenly cups or bends. As noted in a foundational NASA technical report on the phenomenon, "Due to the sudden nature of the attitude discontinuity, the effect has been termed thermal snap."[1][2]

According to NASA telemetry data from the Upper Atmosphere Research Satellite, this sudden bending motion acts like a diving board springing back into place. The physical snap of the panel transfers a sharp, impulsive torque directly into the rigid hub of the spacecraft.[1]

Unlike the slow, predictable drift of the gravity gradient, thermal snap induces a high-frequency jitter. This vibration ripples through the satellite's chassis, instantly degrading the pointing accuracy of any onboard optical instruments or laser communication terminals.[1][2]

The disturbance is notoriously difficult to model because it involves rigid-flexible coupling. The flexible vibration of the panel alters the rigid body attitude of the satellite, which in turn changes the angle of the panel relative to the sun, creating a complex feedback loop.[2]

The Impact on Modern Spacecraft

Historically, thermal snap was a niche problem for massive, monolithic observatories like the Hubble Space Telescope. When Hubble first launched in 1990, the thermal flutter of its original solar arrays caused the telescope to jitter so badly that it could not maintain its required 0.007 arcsecond pointing stability.[2]

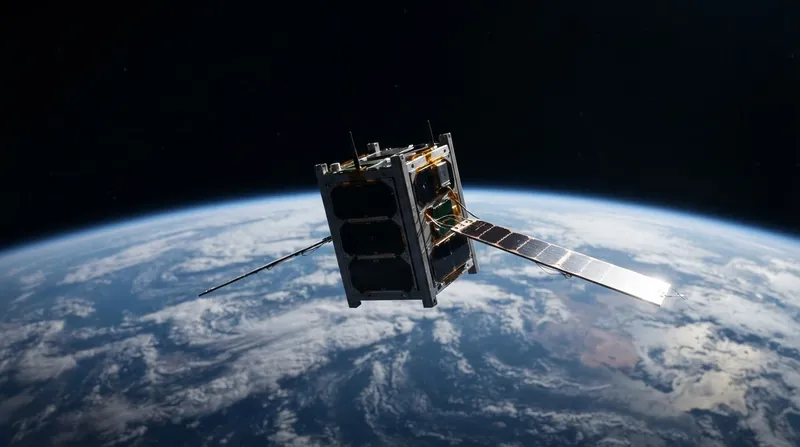

Today, the problem has migrated to the other end of the size spectrum. The aerospace industry is increasingly reliant on CubeSats and smallsats, which are constrained by strict volume limits during launch.[5]

To generate enough power for advanced radar and communication payloads, these small satellites must deploy massive, ultra-thin solar arrays once in orbit. These highly flexible structures are exceptionally vulnerable to thermally induced vibrations.[5]

Because a CubeSat has very little mass, it lacks the inertia to absorb the shock of a thermal snap. A minor panel flutter that would barely register on a three-ton satellite can send a 10-kilogram CubeSat tumbling out of its designated attitude deadband.[5]

Modeling the Unseen Forces

Predicting these disturbances requires immense computational power. Engineers cannot simply test thermal snap in a vacuum chamber on Earth, because planetary gravity sags the delicate panels and alters their natural vibrational frequencies.[5]

Instead, dynamicists rely on absolute nodal coordinate formulations—complex mathematical models that simulate how heat conducts through a moving, flexible structure in zero gravity. These simulations must account for the exact material properties of the carbon fiber and Kapton used in the arrays.[5]

The models reveal that the worst-case scenario occurs during the penumbra transition. This is the brief, seconds-long window where the satellite is partially shaded by the Earth's atmosphere, causing the solar flux to flicker and induce chaotic, multi-axis thermal flutter.[1][2]

To mitigate this, modern solar arrays are often designed with symmetrical layups. By carefully layering the composite materials so that the thermal expansion coefficients cancel each other out, engineers can reduce the severity of the snap, though they can never eliminate it entirely.[5]

Countering the Disturbance

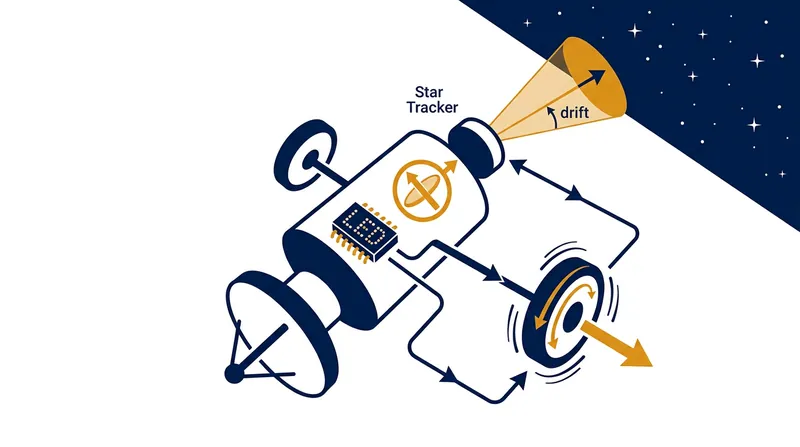

To maintain a stable attitude, spacecraft rely on an active Attitude Determination and Control System. This system uses star trackers and gyroscopes to detect the onset of drift, whether from a gravity gradient or a thermal snap.[4]

Once drift is detected, the control system commands internal spinning flywheels, known as reaction wheels, to accelerate or decelerate. By changing the speed of the wheels, the system absorbs the unwanted angular momentum, keeping the main spacecraft body perfectly still.[4]

However, reaction wheels have a maximum speed limit. The constant, secular torque from the gravity gradient continually adds momentum to the wheels in one direction. Eventually, the wheels become saturated and can no longer spin any faster.[4]

To solve this, low Earth orbit satellites use magnetic torquers—electromagnetic coils that push against the Earth's magnetic field. By pulsing these coils, the satellite can dump its stored momentum into the planetary magnetic field, allowing the reaction wheels to spin back down to a safe speed.[4]

Together, these control systems work continuously to mask the violent physics of low Earth orbit. The seamless satellite imagery and uninterrupted data streams we rely on are only possible because onboard computers are fighting a never-ending war against gravity and temperature.[4][5]
