Bulbous Bows Trade Added Wetted Skin Friction for a Wave-Canceling Trough That Cuts Hull Drag by Up to 15 Percent

When fleet operators and naval architects commission a new vessel or schedule a drydock retrofit, they must decide whether to append a bulbous bow to the hull. They are weighing a strict hydrodynamic trade-off. They must accept a permanent increase in the ship's wetted surface area in exchange for a wave-canceling effect that can cut fuel consumption by up to 15 percent.[1]

While maritime marketing often presents the bulbous bow as a universal efficiency device, the reality is far more constrained. It functions strictly as a hydrodynamic threshold mechanism. The ship must maintain a specific velocity simply to overcome the friction penalty introduced by the massive steel protrusion.[4]

If the vessel operates too slowly, the bulb becomes a liability rather than an asset. The added skin friction from the submerged structure drags against the water, burning more fuel than a conventional straight bow. The physics dictate that the ship must generate a substantial bow wave before the bulb has anything to cancel.[4]

"The method takes the full scale measured shaft power of a vessel with a bulbous bow, and compares this to a calculated calm water shaft power of the same vessel without a bulb," writes Dominic Hudson, Shell Professor of Ship Safety and Efficiency at the University of Southampton. His research established a framework for isolating these exact power changes.[3]

Understanding this delicate balance requires looking at the two distinct forces that oppose a ship's forward motion. Naval architects divide total hull resistance into wave-making drag and viscous pressure resistance, commonly known as skin friction. The bulbous bow manipulates the former at the direct expense of the latter.[4]

The Physics of Wave-Making Resistance

As a ship moves through the ocean, it displaces a massive volume of water. This displacement energizes the surrounding water particles, creating the characteristic Kelvin wave pattern visible in the vessel's wake. These waves represent propulsion energy bleeding away from the ship into the surrounding environment.[4]

At the exact centerline of the bow, the water reaches a stagnation point where pressure spikes. This pressure builds a steep bow wave that the ship must continuously climb over. At higher speeds, this wave-making resistance becomes the dominant force impeding the vessel's forward progress.[4]

The energy required to push water aside scales exponentially with velocity. For a large commercial vessel operating at its design speed, overcoming this wave drag consumes a massive percentage of the engine's total output. Reducing the height of that bow wave translates directly into bunker fuel savings.[4]

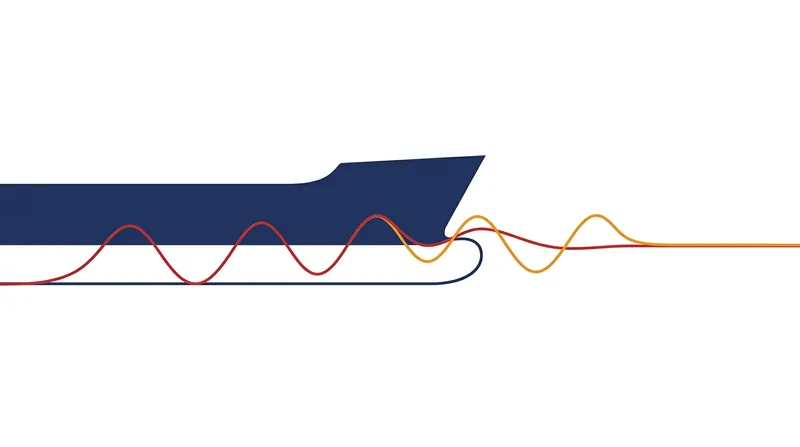

This is where the bulbous bow intervenes. By protruding ahead of the main stem, the bulb introduces a second discontinuity into the water flow. It forces the water to part before it strikes the main hull, generating a secondary wave system ahead of the primary bow wave.[4]

The bulb is precisely engineered so that its wave aligns out of phase with the hull's natural wave. When the crest of the bulb's wave drops into the trough of the main bow wave, the two forces destructively interfere. The resulting wave profile is significantly flatter, requiring far less energy to push through.[4]

The Skin Friction Penalty

However, this destructive interference does not come for free. Adding a large, submerged bulb to the front of a ship inherently increases its total wetted surface area. Every square meter of steel in contact with the water generates viscous drag as the fluid shears against the hull.[4]

The International Towing Tank Conference (ITTC) utilizes empirical formulas to calculate this skin friction coefficient. Their models demonstrate that friction scales with the wetted area and the square of the vessel's speed. The boundary layer of turbulent water clinging to the bulb constantly pulls backward against the ship's thrust.[4]

At low speeds, wave-making resistance is minimal because the ship lacks the kinetic energy to build a substantial bow wave. During these slow transits, the destructive interference promised by the bulb is mathematically negligible. The vessel is left paying the skin friction penalty without reaping the wave-canceling reward.[3]

A 2021 study published in the MDPI journal quantified this dynamic. Researchers found that at a low Froude number of less than 0.16, the resistance acting on a ship with a bulbous bow was significantly higher than on a blunt-bowed vessel. The added wetted surface area increased calm-water drag by roughly 6 percent.[1]

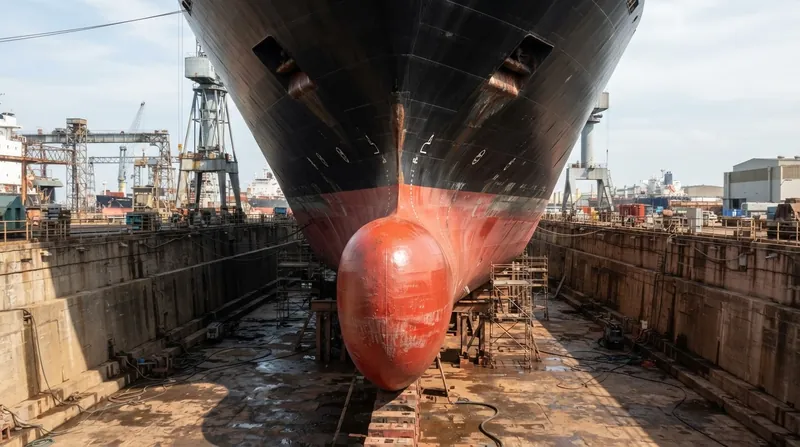

Therefore, a bulbous bow is entirely unsuitable for vessels that spend their operational lives at low speeds. Harbor tugs, small fishing trawlers, and slow-moving barges typically feature conventional bows. Their operational profiles simply do not generate the wave-making resistance necessary to justify the friction penalty.[4]

The Froude Number Threshold

Naval architects rely on a dimensionless metric called the Froude number to determine when a bulbous bow becomes viable. The Froude number characterizes the ratio of a vessel's inertial forces to gravitational forces. It effectively measures the importance of wave-making drag relative to the ship's length and speed.[4]

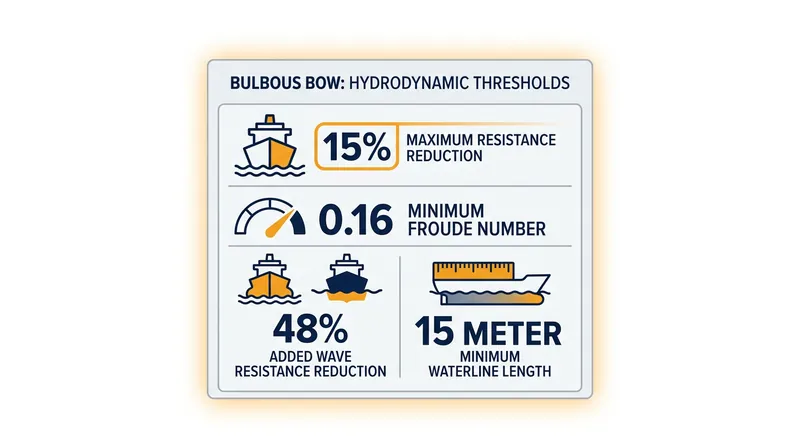

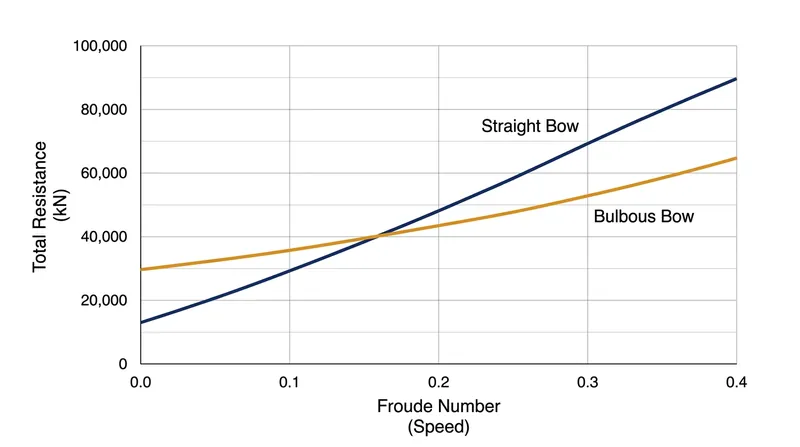

Hydrodynamic research indicates that bulbous bows only begin to provide a net efficiency gain when a vessel exceeds a Froude number of approximately 0.16. Below this threshold, the skin friction from the bulb outpaces the wave-canceling benefits. The ship burns more fuel simply dragging the extra steel through the water.[1]

As the Froude number climbs higher, the wave-making resistance grows exponentially, and the bulb's destructive interference becomes highly lucrative. Within this optimal speed window, the wave-canceling effect easily overwhelms the added viscous drag. The ship achieves a net reduction in total resistance.[3]

For large displacement vessels like Panamax container ships and oil tankers, this translates to massive operational savings. When operating at their design speeds of 15 to 24 knots, these ships routinely see fuel efficiency improvements of 12 to 15 percent. Over a year of continuous operation, that equates to thousands of tons of conserved bunker fuel.[4]

The savings scale directly with the vessel's operational profile. A ship that spends 85 percent of its time cruising at a high Froude number will recoup the cost of a bulb retrofit within a few years. Conversely, a vessel that constantly throttles up and down to navigate congested coastal waters will never see the advertised efficiency gains.[4]

The MDPI researchers demonstrated that an optimized bulb shape could reduce total resistance by up to 15 percent in calm water. When navigating regular head waves with a height of 0.02 meters, the bulb reduced added wave resistance by nearly 48 percent, proving its value in varied sea states.[1]

Design Constraints and Retrofits

Achieving these numbers requires precise engineering tailored to the specific hull. The longitudinal position of the bulb determines the phase difference between the two wave systems. If the bulb is placed too far forward or aft, its wave will amplify the main bow wave rather than cancel it.[4]

The volume of the bulb dictates the amplitude of the secondary wave. A larger bulb creates a deeper trough for cancellation but incurs a steeper skin friction penalty. Designers must strike a delicate balance, maximizing the destructive interference while minimizing the wetted surface area.[4]

The vessel's size also dictates the bulb's viability. According to standard naval architecture guidelines, a ship generally needs a waterline length exceeding 15 meters to benefit from a bulbous bow. Vessels under 4,000 deadweight tons rarely generate enough wave-making drag to offset the friction.[2]

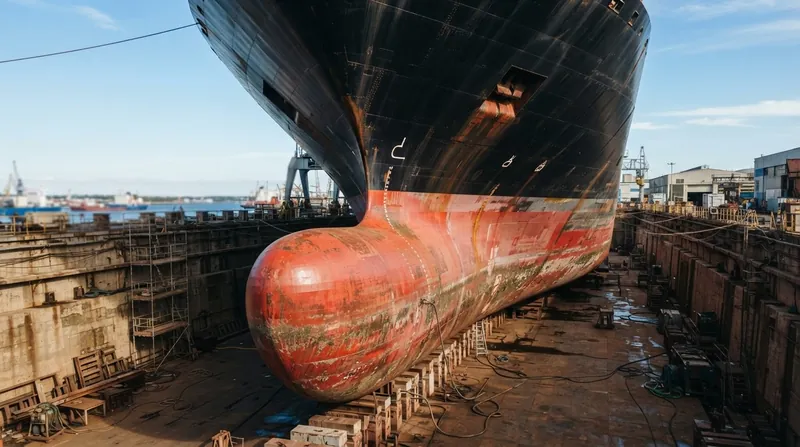

Draft variations further complicate the design. A bulk carrier rides much higher in the water when traveling empty in a ballast condition than when fully loaded. The bulb must be positioned vertically so that it remains just below the surface at the vessel's most common operating draft.[3]

If the bulb emerges above the waterline, it loses its wave-canceling properties and simply slams into oncoming swells. If it dives too deeply, the secondary wave fails to interact properly with the surface bow wave. Modern designs often compromise, optimizing the bulb for the draft where the ship spends the majority of its transit time.[4]

To mitigate this, some modern hull designs incorporate a goose-neck bulb shape that attempts to widen the effective draft range. However, even these advanced geometries cannot cheat the fundamental physics of wetted surface area. The operator must still commit to a primary cruising speed and draft to extract the maximum wave-canceling benefit.[4]

Despite these constraints, the economic incentives remain powerful. Fleet operators frequently retrofit older vessels with custom-designed bulbs during scheduled drydock maintenance. By carefully matching the new geometry to the ship's historical Froude numbers, they permanently alter the hull's hydrodynamic profile, locking in fuel savings for the remainder of the vessel's operational life.[4]
