Swept Wings Delay Transonic Drag Divergence by Reducing Chordwise Airflow

Aerospace engineers laying out a new commercial airframe must balance the demand for high-speed cruise against the physics of air compression. Their primary tool to resolve this conflict is the sweep angle of the wing. This geometric decision is locked in during the initial design phase and dictates the aircraft's entire aerodynamic envelope.[1]

As an aircraft approaches the speed of sound, the air accelerating over the curved upper surface of the wing moves faster than the plane itself. If a jetliner cruises at Mach 0.85, the localized airflow over the thickest part of the wing can easily exceed Mach 1.0.

This localized supersonic flow eventually slows back down, creating a shockwave on the wing surface. The shockwave strips energy from the airflow and causes a massive spike in aerodynamic resistance known as drag divergence. Pushing through this barrier requires an impractical amount of engine thrust.[4]

To prevent this wave drag, designers must keep the localized airflow strictly subsonic. Rather than thinning the wing to the point where it cannot hold fuel or support the fuselage, engineers alter the angle at which the wing meets the air.

"The swept wing proved manifestly superior for airplanes flying faster than about 70 percent of the speed of sound," notes Flying Magazine. By angling the leading edge backward, the wing effectively tricks the air into behaving as though the aircraft is flying slower.

The Mathematics of Vector Decomposition

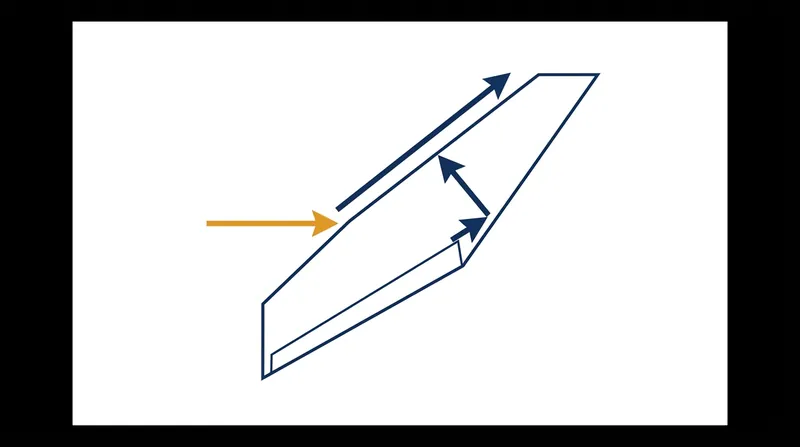

The mechanism behind this delay relies on vector decomposition. When freestream air strikes a swept leading edge, the flow is split into two distinct directional components. One component travels parallel to the leading edge, while the other travels perpendicular to it.[1]

The parallel component, known as spanwise flow, travels outward toward the wingtip. Because it does not cross the cambered cross-section of the airfoil, it does not accelerate and does not contribute to the pressure distribution that causes shockwaves.

The perpendicular component, known as chordwise flow, is the only air that actually accelerates over the curve of the wing. The velocity of this chordwise flow is equal to the freestream velocity multiplied by the cosine of the sweep angle.[1]

Because the cosine of any angle between zero and 90 degrees is less than one, the chordwise velocity is always lower than the actual speed of the aircraft. A 35-degree sweep angle yields a cosine of 0.819, reducing the effective chordwise speed by roughly 18 percent.

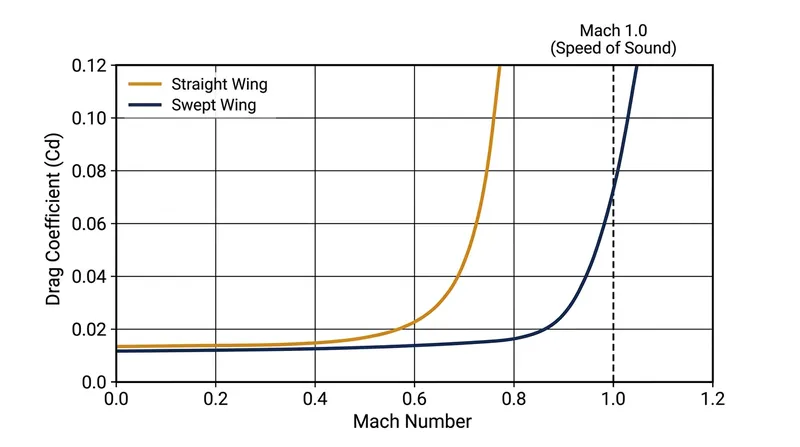

If that hypothetical aircraft flies at Mach 0.80, the wing's chordwise cross-section only experiences an airflow of Mach 0.65. This mathematical reduction keeps the localized flow well below the critical Mach number, postponing the formation of drag-inducing shockwaves.

Commercial Implementation and Supercritical Airfoils

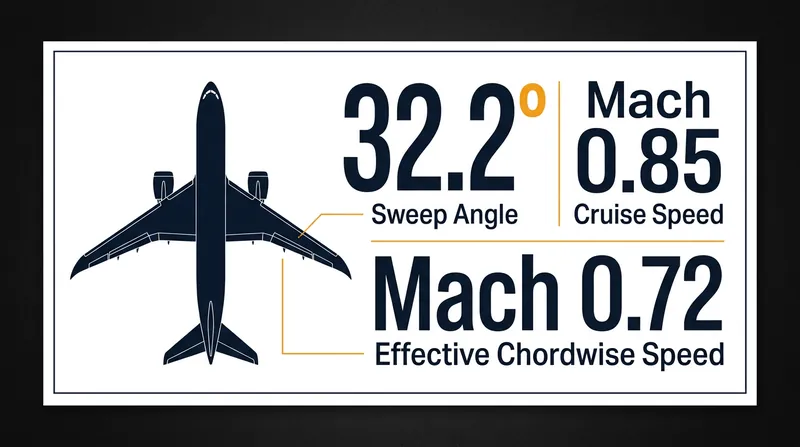

Modern jetliners rely heavily on this cosine projection to maintain efficient schedules. The Boeing 787 Dreamliner, which entered commercial service in 2011, utilizes a wing sweep angle of 32.2 degrees.[6]

When the 787 cruises at its typical speed of Mach 0.85, the cosine of 32.2 degrees reduces the freestream velocity to an effective chordwise Mach number of 0.719. This allows the airframe to operate efficiently in the transonic regime without suffering wave drag.[5][6]

While marketing materials often emphasize the sleek, futuristic look of swept wings, the geometry is a strict mathematical necessity. Without the cosine reduction, modern jetliners would be forced to either cruise significantly slower or burn vastly more fuel.[5]

Sweep is not the only tool used to manage transonic airflow. Modern civil aircraft extensively employ supercritical wings, which feature a flattened upper surface to minimize airflow acceleration.[1][4]

"Modern civil aircraft extensively employ supercritical wings to reduce cruise drag and enhance flight efficiency," notes a 2026 aerodynamic study published in MDPI. The combination of a supercritical airfoil and a swept planform pushes the drag divergence boundary as close to Mach 1.0 as physically possible.[4]

Structural Penalties and Aeroelasticity

The aerodynamic benefits of sweep come with significant structural penalties. A swept wing is physically longer than a straight wing of the same span, requiring longer internal spars to carry the aerodynamic loads back to the fuselage.[1]

These longer spars act as extended lever arms, increasing the bending moments applied to the wing root. To prevent the wing from failing under load, the internal structure must be heavily reinforced, which adds considerable weight to the airframe.[1][3]

Swept wings also suffer from aeroelastic twisting. As aerodynamic loads bend the wing upward during flight, the backward sweep causes the leading edge to twist downward, reducing the local angle of attack at the wingtips.[1][3]

"Comparison with experiment indicates that the analysis developed in the present report is satisfactory for giving the main effects of sweep, at least for nearly uniform cantilever wings," wrote researchers J.G. Barmby, H.J. Cunningham, and I.E. Garrick in a 1950 NACA technical note on wing flutter.[3]

To counteract these twisting forces, modern composite wings are manufactured using aeroelastic tailoring. Carbon fiber layers are laid down at specific angles so that the wing naturally resists torsional deformation as it bends under flight loads.[5][6]

Low-Speed Handling and Spanwise Flow

The same geometry that enables high-speed cruise actively degrades performance during takeoff and landing. Because the chordwise velocity is reduced, a swept wing generates less lift at a given airspeed than an equivalent straight wing.[1]

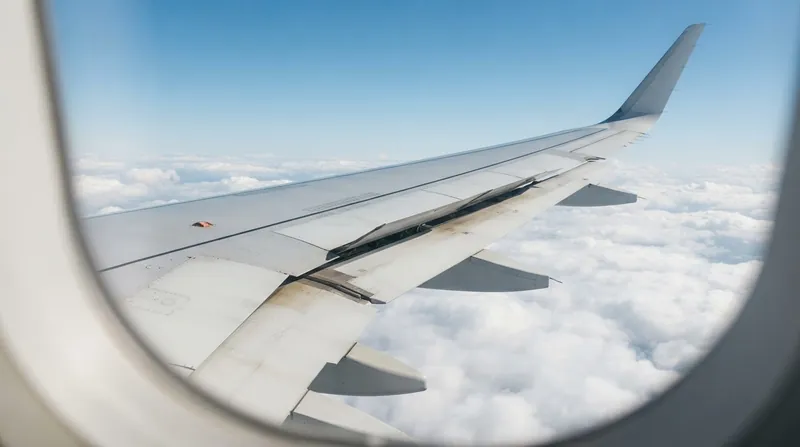

To compensate for this loss of lift, swept-wing aircraft must approach the runway at higher speeds and steeper angles of attack. They also require extensive high-lift devices, including leading-edge slats and massive Fowler flaps, to maintain controlled flight at low speeds.

The spanwise flow created by the sweep angle also introduces dangerous stall characteristics. The outward-flowing air thickens the boundary layer as it moves toward the wingtips, causing the outer sections of the wing to stall before the root.

Because the ailerons are located near the wingtips, a tip stall deprives the pilots of roll control precisely when they need it most. Engineers mitigate this by twisting the wing so the tips fly at a lower angle of attack, a design feature known as washout.[5]

Decades after German aerodynamicist Adolph Busemann first proposed the concept in 1935, the swept wing remains the foundational compromise of high-speed aviation. It is a permanent balancing act between the mathematical elegance of the cosine rule and the harsh realities of low-speed physics.[1]

The Forward Sweep Alternative

The mathematical benefits of the cosine rule apply regardless of whether the wing is swept backward or forward. A forward-swept wing provides the exact same reduction in chordwise Mach number, but reverses the direction of the spanwise flow.[1]

On a forward-swept design, the spanwise flow moves inward toward the wing root rather than outward toward the tips. This prevents the dangerous tip-stall behavior associated with aft-swept wings, allowing the aircraft to maintain aileron control at extreme angles of attack.[1]

Despite these aerodynamic advantages, forward sweep is almost never used on commercial aircraft. The geometry causes structural divergence: as the wing bends upward, the leading edge twists further upward, increasing lift and bending the wing even more until it fails.[1][3]

NASA explored this concept extensively with the X-29 experimental aircraft in the 1980s. The aircraft relied on custom-woven composite materials to prevent the wings from tearing themselves apart under aerodynamic load, proving the concept viable but structurally impractical for heavy jetliners.[1]

For the foreseeable future, commercial aviation will remain tethered to the aft-swept planform. The simple trigonometric trick of vectorizing the airflow continues to save airlines billions of dollars in fuel while keeping global travel schedules intact.[5]
