Why High-Speed Trains Lower Overhead Catenary Voltage Sag With Aerodynamic Contact Strips

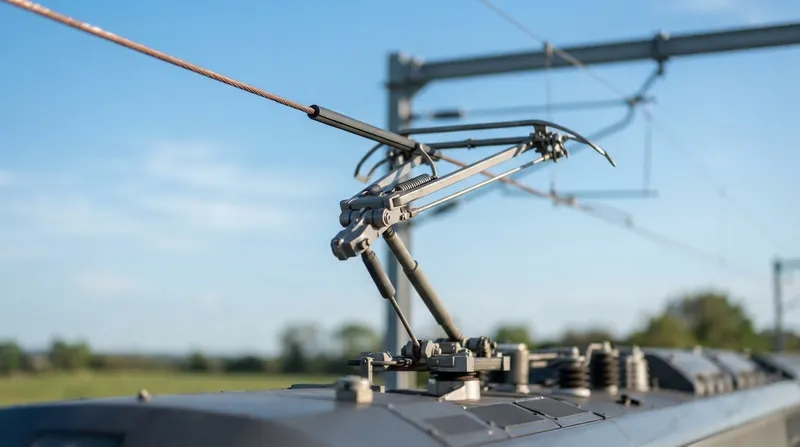

When a commuter train accelerates out of a station, the mechanical connection between its roof and the power grid is relatively simple: a spring pushes a carbon strip up against a copper wire. But when a high-speed train crosses the 300 km/h threshold, that same connection becomes a fluid dynamics problem. The pantograph—the folding arm that draws power—is no longer just sliding along a wire; it is flying through a hurricane of its own making.[2][3]

At those speeds, the aerodynamic lift generated by the pantograph's shape forces the contact strip upward with increasing violence. If the upward force is too weak, the strip bounces off the wire, breaking the electrical circuit. This gap creates an electrical arc—a spark that can reach 5,000 degrees Celsius, instantly vaporizing the copper wire and the carbon strip.[2]

The Catenary Wave Problem

If the upward force is too strong, the pantograph pushes the overhead catenary wire into a wave, much like snapping a garden hose. This wave travels down the wire ahead of the train. If the train catches up to the wave, the contact strip slams into the trough, causing massive mechanical wear and triggering voltage sags that can trip the train's traction motors.[2][3]

“The dynamic interaction between the pantograph and the catenary is the single most limiting factor in high-speed rail operation,” notes a 2018 analysis in the IEEE Transactions on Vehicular Technology. “Above 320 km/h, the aerodynamic forces on the pantograph head can exceed the static spring force by a factor of three, leading to unacceptable contact loss and wire degradation.”[2]

To solve this, engineers turned the problem into the solution. Instead of trying to build stiffer springs or heavier wires, they redesigned the contact strips to act as inverted wings. These aerodynamic contact strips use the 300 km/h slipstream to generate a precise amount of downforce, counteracting the natural lift of the pantograph structure.[3]

Harnessing the Slipstream

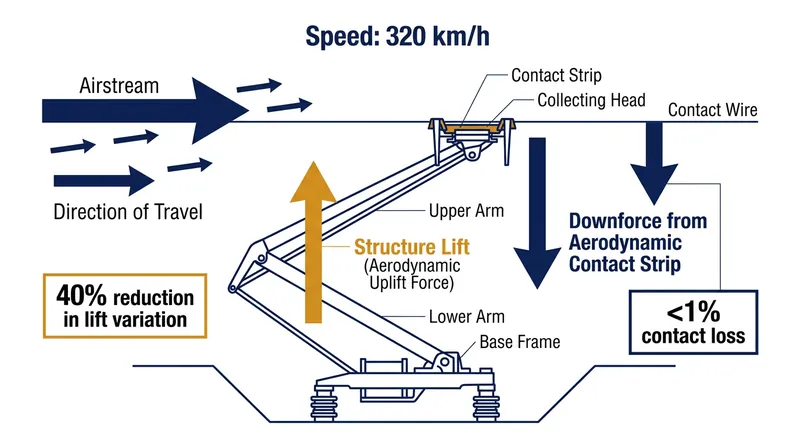

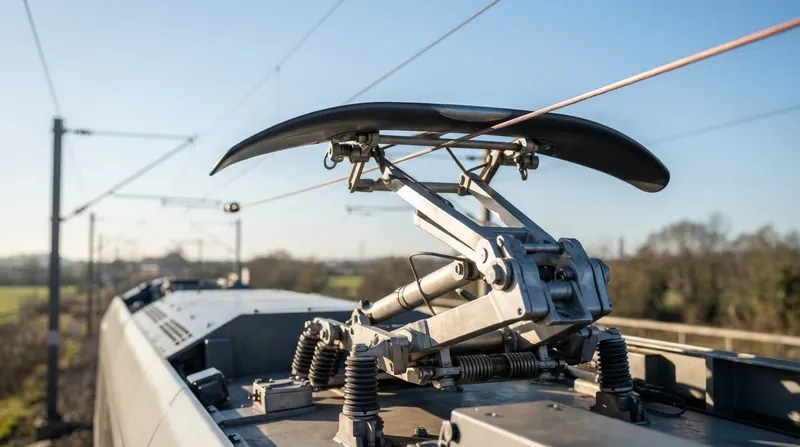

By shaping the leading edge of the contact strip to deflect air upward, the design creates a low-pressure zone beneath the strip. This aerodynamic downforce increases exponentially with speed, exactly matching the exponential increase in structural lift. The result is a contact force that remains nearly constant, regardless of how fast the train is moving.[1]

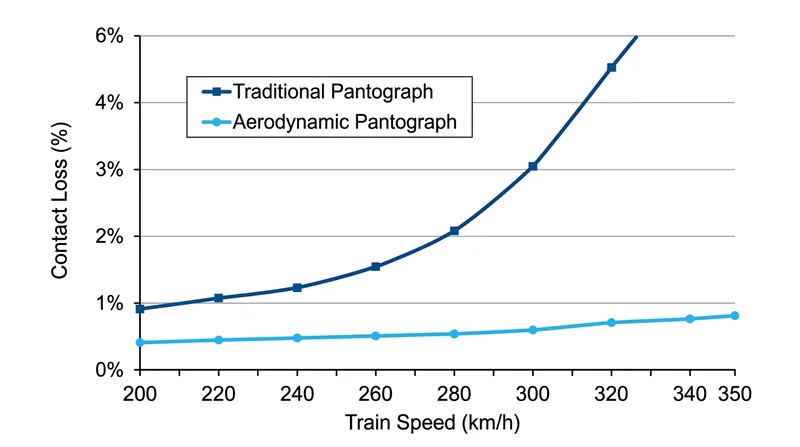

The Railway Technical Research Institute in Japan pioneered this approach for the Shinkansen network. Their low-noise pantograph design, introduced in 2013, reduced the aerodynamic lift variation by 40 percent compared to traditional models. This stabilization cut the rate of contact loss—the moments when the strip bounces off the wire—from 5 percent to less than 1 percent at 320 km/h.

That reduction in bouncing directly translates to less sparking. Without the 5,000-degree arcs vaporizing the materials, the lifespan of the carbon contact strips doubled, and the wear on the overhead copper wire was reduced by 30 percent. This extends the maintenance intervals for the catenary system, saving millions in infrastructure costs.[3]

Quieting the Roar

The aerodynamic shaping also solves a secondary problem: noise. At 300 km/h, the roar of the air rushing through the pantograph's struts is often louder than the rolling noise of the wheels on the track. A 2015 study in the Journal of Sound and Vibration found that smoothing the airflow over the contact strips reduced the aerodynamic noise by 3 decibels—a 50 percent reduction in sound energy.[1]

This noise reduction is critical for high-speed rail networks operating in densely populated areas, where strict environmental regulations govern the maximum decibel level a train can emit as it passes through a neighborhood. By managing the airflow at the point of contact, the trains can run faster without violating noise ordinances.[1][3]

The implementation of aerodynamic contact strips represents a shift in railway engineering. Rather than fighting the extreme forces generated at high speeds with brute mechanical strength, modern pantographs use those very forces to stabilize themselves. It is a delicate balancing act, played out at 300 km/h, ensuring that the power keeps flowing without tearing the system apart.[3]
