Why Baseband Processors Run a Separate Real-Time Operating System Isolated From iOS and Android

The glass rectangle in your pocket is not a single computer. It is a distributed system masquerading as one. When you tap an icon, the Application Processor—the highly visible chip running iOS or Android—renders the interface and executes the code.

But hidden beneath that primary brain is a second, completely isolated computer. The Baseband Processor is a dedicated microchip that manages every radio frequency transmission leaving the device. It operates entirely outside the jurisdiction of the main operating system.

This secondary chip runs its own proprietary Real-Time Operating System, or RTOS. Whether it is Qualcomm’s QuRT, MediaTek’s Nucleus, or Samsung’s Shannon, this hidden software stack controls the antennas, routes microphone audio during calls, and negotiates with cell towers.

The relationship between these two processors is strictly master and slave, but not in the direction most users assume. The baseband processor is the master of the radio hardware. The Application Processor simply sends requests across a shared memory interface, asking the baseband to transmit data.

This dual-brain architecture was cemented with the 2007 launch of the modern smartphone. Despite the immense computing power of modern Application Processors, manufacturers continue to physically isolate the cellular stack. The reason for this separation is not a lack of processing power, but a fundamental problem with time.

The Physics of Cellular Deadlines

Cellular networks operate on unforgiving mathematical deadlines. To maintain a connection, a smartphone must synchronize with a cell tower using precise microsecond intervals. If the device misses a scheduled transmission window, the network assumes the signal is lost and drops the connection.

This timing pressure is most evident in the error-correction protocols that keep mobile data reliable. In 4G and 5G networks, this is handled by the Hybrid Automatic Repeat Request, or HARQ, protocol. It is a mechanism designed to catch and correct transmission errors instantly.

When a cell tower transmits a packet of data, the smartphone must receive it, decode the signal, and check for mathematical errors. This is handled by a protocol designed to catch and correct transmission errors instantly.

"Hybrid automatic repeat request is a combination of high-rate forward error correction and automatic repeat request error-control," notes the protocol's technical specification.[2]

If the packet is corrupted by interference, the phone cannot simply wait. It must immediately transmit a negative acknowledgment, or NACK, back to the tower. The tower then retransmits the missing data, often using a different redundancy version to ensure the packet can be reconstructed.

In early LTE networks, this HARQ round-trip time was fixed at exactly eight milliseconds. But as networks evolved to 5G New Radio, the deadlines became drastically shorter. The introduction of Ultra-Reliable Low Latency Communications pushed the physical limits of radio hardware.[4]

At 5G millimeter-wave frequencies, which use a 120-kilohertz subcarrier spacing, the duration of a single transmission slot is just 0.125 milliseconds. The entire HARQ process—receiving, decoding, checking, and acknowledging—can complete in as few as four slots, or 0.5 milliseconds.

Why General-Purpose Systems Fail at Time

A half-millisecond deadline is an eternity for a processor executing billions of instructions per second, provided that processor is paying attention. But general-purpose operating systems like Android and iOS are not designed to pay attention to any single task indefinitely.

Android relies on the Linux kernel, which manages tasks using the Completely Fair Scheduler. It achieves this by rapidly switching the processor between dozens of active threads to prevent any single application from monopolizing the hardware.

"Its goal is simple: to fairly divide a CPU evenly among all competing processes," the Linux kernel documentation explains.[3]

This constant juggling creates scheduling latency. For a general-purpose operating system, fairness and overall throughput are more important than strict deadlines, meaning a background thread might be paused so the system can render a complex web page.

The Android Open Source Project defines this latency as "the time between when a thread becomes ready to run and when the resulting context switch completes so that the thread actually runs on a CPU."

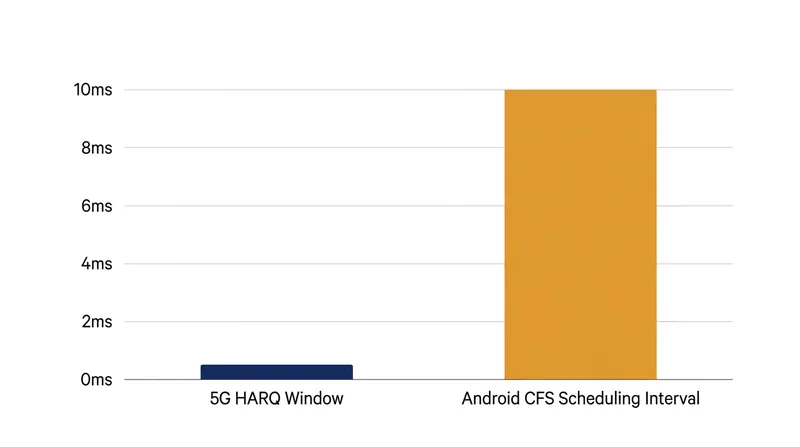

The default scheduling interval in the Linux kernel is often set to 10 milliseconds. When a user opens a heavy application, the operating system might trigger a page fault, initiate garbage collection to free up memory, or adjust the CPU clock frequency to manage heat.

These routine operations cause latency spikes that can freeze a thread for tens of milliseconds. If the cellular protocol stack were running on Android, a sudden latency spike caused by a user scrolling through a social feed would be catastrophic.

The processor would be too busy rendering pixels to send the HARQ acknowledgment, causing the phone to miss its 0.5-millisecond window. Missing that window by a factor of twenty would force the cell tower to assume the device had vanished, destroying the connection.

The Real-Time Guarantee

This is why the baseband processor requires a Real-Time Operating System. An RTOS does not care about fairness, and it does not care about overall throughput. It is designed to guarantee that a specific task will execute within a strict, predefined time limit.

When a radio signal arrives at the antenna, the baseband RTOS triggers a hardware interrupt. The operating system immediately halts whatever background task it was performing, saves the state of the processor, and switches to the cellular decoding thread.

This context switch happens in less than ten microseconds. Because the baseband processor is isolated from the chaotic, unpredictable workloads of user applications, it can guarantee that the HARQ acknowledgment will be transmitted exactly when the cell tower expects it.

Hardware engineers consider this isolation non-negotiable. The mathematical realities of radio frequency modulation dictate the architecture. But while this separation solves the physics problem of cellular communication, it creates a massive, opaque vulnerability in the security posture of every mobile device.

The Pre-Authentication Attack Surface

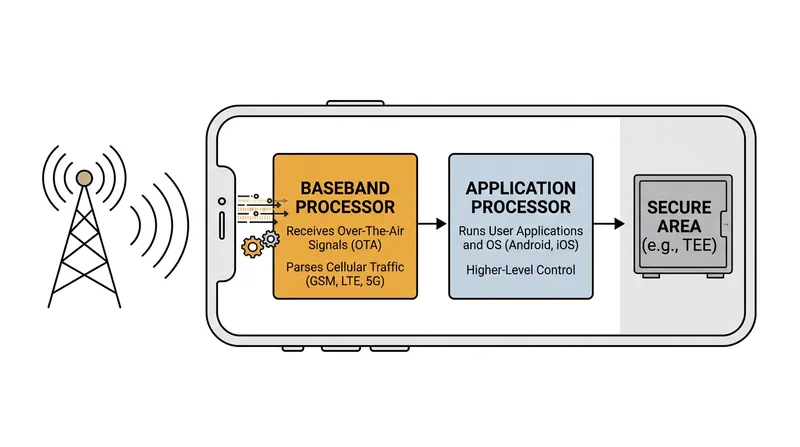

Because the baseband processor sits between the antenna and the Application Processor, it acts as the device's first line of defense. It must process untrusted, over-the-air messages from cell towers before any cryptographic authentication is established.

When a smartphone enters a new area, it listens for broadcast signals and attempts to attach to the strongest tower. The baseband RTOS parses complex Radio Resource Control messages to negotiate the connection. At this stage, the phone does not yet know if the tower is legitimate.

This creates a vast pre-authentication attack surface. The baseband firmware, which is entirely proprietary and closed-source, is tasked with parsing complex, attacker-controlled data before the operating system can intervene.

"Since the software which runs on baseband processors is usually proprietary, it is impossible to perform an independent code audit," security researchers note.[1]

Baseband Exploitation and the Pivot

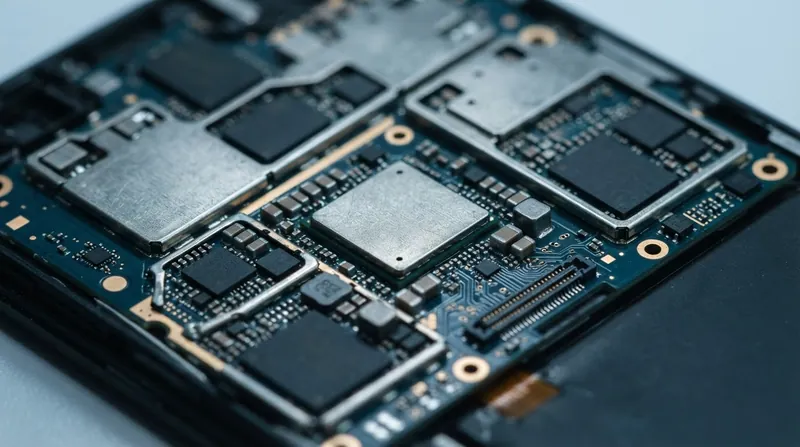

Offensive security researchers view the baseband as the ultimate target. By deploying a rogue cell tower, an attacker can broadcast a strong signal that forces nearby phones to connect. The rogue tower then sends malformed network packets designed to exploit the baseband.

If the baseband RTOS contains a memory corruption vulnerability in its protocol parser, the malformed packet can overwrite the execution stack. This grants the attacker remote code execution on the baseband processor without the user ever touching their device.

Once compromised, the baseband becomes a surveillance tool. An attacker can silently intercept voice calls, read incoming SMS messages, and track the device's physical location. Because the baseband operates independently, these actions leave no trace on the Application Processor's screen.

The most sophisticated attacks do not stop at the radio. After securing the baseband, attackers attempt to pivot across the shared memory interface that connects the two chips. By exploiting vulnerabilities in the communication bridge, they can escalate their privileges to compromise the main operating system.

Despite these profound security risks, the architecture of the modern smartphone is unlikely to change. As the telecommunications industry moves toward 6G networks, the timing constraints for radio transmissions will only become tighter. The isolated, real-time brain in your pocket is a permanent physical necessity.
