How Microscopic ePTFE Membranes Waterproof Smartphone Microphones

Smartphone hardware engineers face a strict physics problem every product cycle. They must hermetically seal a device against water intrusion while intentionally leaving gaping holes in the chassis for microphones and speakers. The decision of how deep a phone can survive underwater is made by acoustic designers, not chassis sculptors.

When these engineering teams specify components for a new flagship device, they cannot rely on solid glass or metal to protect the audio ports. Sound requires a medium to travel through, meaning air must freely enter and exit the device. To achieve this, designers deploy microscopic acoustic vents.

These vents rely on a specialized material known as expanded polytetrafluoroethylene, or ePTFE. Consumers know the underlying polymer by its brand name, Teflon, but the expanded version possesses entirely different mechanical properties. It acts as a selective barrier for the smartphone's internal acoustic chambers.

Marketing departments frequently boast about IP68 water resistance as if the entire phone is a submarine. In reality, the device's survival hinges on these fragile, sub-millimeter membranes glued over the microphone capsules. If the membrane fails, the phone drowns.

The Architecture of Expanded PTFE

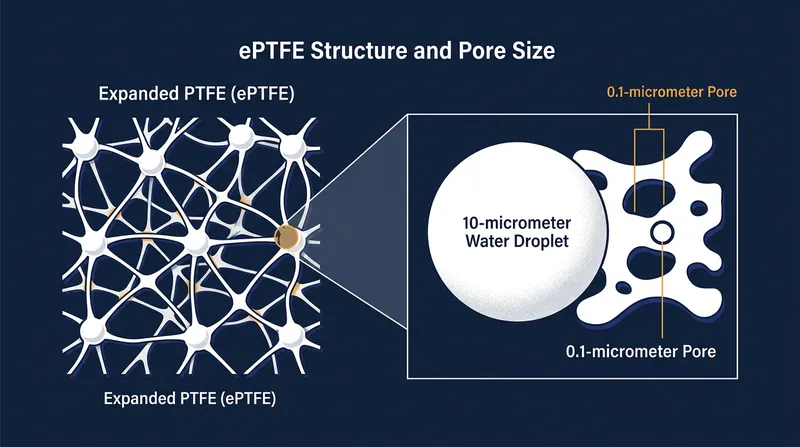

The manufacturing process for ePTFE involves rapidly stretching solid polytetrafluoroethylene under precisely controlled thermal conditions. This violent expansion fractures the solid polymer into a complex, three-dimensional microporous structure. Under an electron microscope, it resembles a chaotic web of interconnected nodes and fibrils.[2]

This stretching process creates millions of microscopic pores across the membrane's surface. The pore sizes are tightly controlled during manufacturing, typically ranging from 0.1 to 20 micrometers in diameter. This specific sizing is the foundational mechanism that allows the membrane to discriminate between different types of matter.

Because the membrane is mostly empty space, it remains incredibly thin and lightweight. Standard smartphone acoustic vents measure less than 0.3 millimeters in thickness, allowing them to fit within the microscopic vertical budgets of modern mobile devices. They are typically backed by a thin ring of acrylic adhesive.

Despite their fragile appearance, these membranes are chemically inert and highly resilient to temperature fluctuations. Unlike traditional venting materials that become brittle in freezing conditions, ePTFE remains flexible down to minus 200 degrees Celsius. This durability ensures the acoustic port does not crack during rapid environmental changes.[2]

The Physics of Surface Tension

The membrane's ability to block water relies entirely on the physics of liquid surface tension. Water molecules are highly cohesive, meaning they prefer to stick to one another rather than spreading out across a hydrophobic surface. ePTFE is inherently hydrophobic, possessing a very low surface energy.

When liquid water encounters the ePTFE membrane, the cohesive forces within the water droplet are stronger than the adhesive forces pulling it toward the polymer. The water droplet bridges the microscopic pores rather than flowing into them. It effectively forms a liquid dome over the microscopic holes.[3]

Engineers measure the membrane's resistance to water penetration using a metric called water entry pressure. This represents the maximum hydrostatic pressure the membrane can withstand before the water's physical force overcomes its surface tension and pushes liquid through the pores. Higher water entry pressure equates to deeper immersion survival.

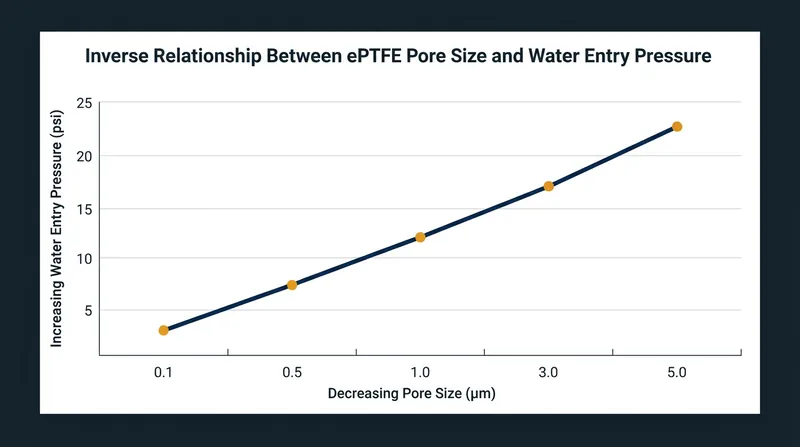

The relationship between pore size and water entry pressure is inversely proportional. Smaller pores provide a higher resistance to liquid penetration, allowing the device to survive greater depths. However, these smaller pores also restrict the volume of air that can pass through, complicating the acoustic equation.[3]

Furthermore, the membrane must facilitate pressure equalization. When a smartphone heats up during heavy processing, the internal air expands. If the acoustic vents were entirely impermeable to air, this internal pressure would eventually blow out the device's adhesive seals. The ePTFE membrane allows this expanded air to slowly vent outward.

For a standard IP68 rating, which typically requires surviving 1.5 to 2 meters of submersion for 30 minutes, the membrane must resist a specific baseline pressure. Specialized deep-immersion membranes can withstand water entry pressures equivalent to 50 meters of depth. However, achieving this requires altering the pore structure.[1]

If the water pressure exceeds the membrane's rated limit, the surface tension breaks. The liquid is forcefully extruded through the microporous web, flooding the acoustic chamber and destroying the sensitive micro-electromechanical systems microphone. The device's waterproof rating is strictly bound by this physical threshold.[3]

The Acoustic Trade-Off

While the membrane blocks liquid water, it must simultaneously allow acoustic energy to pass through. Sound waves are simply pressure fluctuations traveling through the air. Because the ePTFE membrane's pores are filled with air, these pressure waves can propagate through the microscopic channels.

However, the physical presence of the polymer web still obstructs the sound waves to some degree. This obstruction is measured as acoustic insertion loss, typically expressed in decibels. Acoustic designers must carefully balance the membrane's water entry pressure against its insertion loss.

Smartphone manufacturers cannot simply maximize waterproof ratings without degrading microphone sensitivity. A standard shallow-immersion membrane, like the Gore GAW334 rated for 2 meters, exhibits an insertion loss of less than 2 decibels at 1 kilohertz. This minimal attenuation preserves clear voice quality for phone calls.

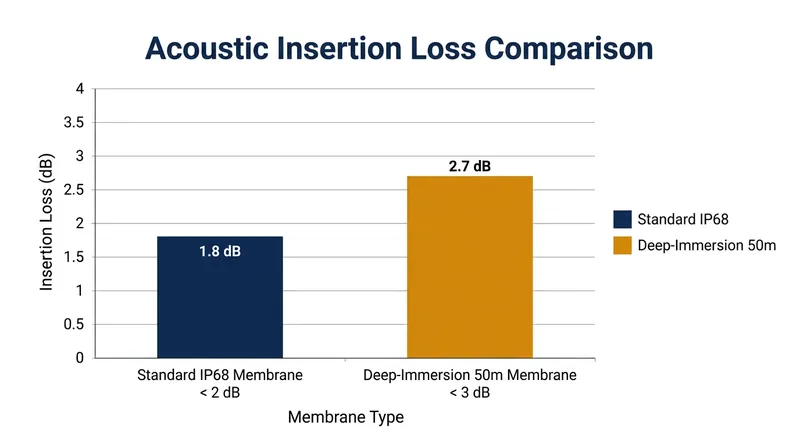

Conversely, membranes engineered for extreme deep-immersion protection require a denser fibril structure to resist higher water pressures. A membrane rated for 50 meters of depth exhibits an insertion loss approaching 3 decibels. This represents a nearly 50 percent increase in acoustic signal loss.[1][3]

This physical trade-off explains why flagship smartphones rarely offer dive-watch levels of water resistance. If engineers deployed 50-meter membranes across all audio ports, the device's microphones would struggle to isolate human speech from background noise. The marketing appeal of extreme waterproofing is vetoed by the functional requirement of making a phone call.[3]

Contamination and Oleophobic Treatments

Pure water is not the only threat to a smartphone's internal components. Consumers routinely expose their devices to sweat, cosmetics, soapy water, and cooking oils. These substances possess significantly lower surface tensions than pure water, making them far more likely to penetrate a standard hydrophobic membrane.

To combat low-surface-tension liquids, membrane manufacturers apply specialized oleophobic surface treatments. These fluorochemical coatings further reduce the membrane's surface energy, forcing even oils and detergents to bead up rather than wetting out the polymer web. This prevents the pores from becoming clogged with daily grime.

If an acoustic vent becomes saturated with oil or sweat, the air pathways are blocked. Even if the liquid does not penetrate the device, the blocked pores will severely muffle the microphone and speaker. Oleophobic treatments ensure the membrane sheds contaminants and maintains its acoustic transparency over time.[1]

These chemical treatments must be applied uniformly across the entire microscopic web. A single untreated patch creates a weak point where low-surface-tension liquids can breach the barrier. The precision required for this coating process is a major differentiator between premium membrane suppliers and budget alternatives.

Supply Chain Realities

The global supply chain for these specialized acoustic membranes is highly concentrated. While standard polyester films are commoditized, the high-purity ePTFE formulations required for flagship smartphones are dominated by a handful of specialized chemical companies. W. L. Gore and Associates, the inventors of ePTFE, remains a primary supplier.

Chinese domestic suppliers currently meet roughly 60 percent of the volume demand for standard consumer electronics membranes. However, premium acoustic-grade films are still heavily imported from the United States, Japan, and South Korea. This creates a two-tier market where smartphone manufacturers face significant cost-quality decisions.

Standard ePTFE membranes trade for roughly 15 to 35 Chinese yuan per square meter. In contrast, advanced multi-layer acoustic-grade films command up to 120 yuan per square meter. For a device manufacturer producing tens of millions of handsets, these microscopic components represent a substantial line-item expense.

The transition toward true wireless stereo earbuds has further complicated the membrane market. Earbuds face direct, prolonged contact with human sweat and earwax, requiring even more robust oleophobic coatings than smartphone microphones. The acoustic vents in these wearables must perform flawlessly while occupying a fraction of the surface area.

Quality control remains a significant bottleneck for emerging membrane manufacturers. Producing a uniform pore structure across thousands of meters of ePTFE film requires immense precision. A single microscopic tear or inconsistent stretching phase can compromise the waterproof integrity of an entire production batch.

As the industry pushes toward tighter IP68 requirements and smaller audio ports, the demand for thinner, higher-performance membranes is accelerating. The physical limits of ePTFE are being tested by the relentless miniaturization of consumer electronics. Engineers are constantly searching for ways to stretch the polymer thinner without compromising the surface tension barrier.

The waterproof smartphone is an illusion maintained by microscopic physics. The device is not a sealed vault, but a carefully engineered sieve. It relies entirely on the cohesive forces of water and the precise geometry of stretched Teflon to keep the digital world dry.[3]
