Atmospheric Drag as Propulsion: How Aerocapture and Aerobraking Cut Planetary Transit Mass

The critical node in any interplanetary transit is the orbital insertion phase—the brief, unforgiving window where a spacecraft must shed up to 7 kilometers per second of velocity or risk flying past its target into deep space. Traditionally, this deceleration requires a massive chemical propulsion burn, meaning the vehicle must carry thousands of kilograms of propellant across the solar system solely to fire its brakes at the end of the journey. Because every kilogram of fuel displaces a kilogram of scientific payload, mission planners are increasingly outsourcing this deceleration to the destination itself, utilizing the friction of a planet's atmosphere to capture the vehicle.

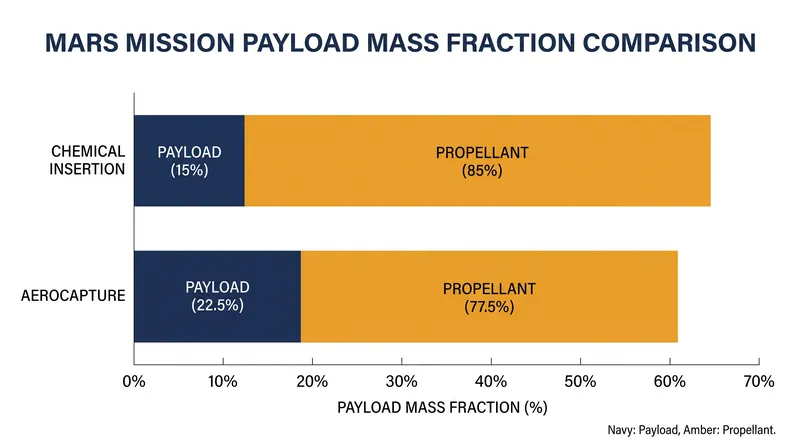

This reliance on atmospheric drag divides into three distinct operational profiles: aerobraking, aerocapture, and aerogravity-assist (or aeropass). While they share the same underlying physics of converting kinetic energy into thermal energy through aerodynamic friction, their mission applications differ drastically. According to a 2020 analysis published by IntechOpen, these techniques can reduce the required initial mass in low Earth orbit by up to 50 percent for a Mars mission, fundamentally altering the economics and architecture of planetary exploration.[1]

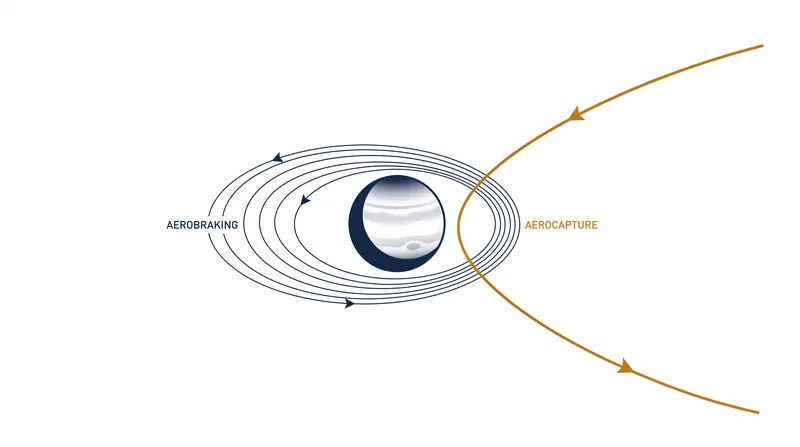

Aerobraking is the most conservative and widely utilized of the three methods. Upon arriving at a target like Mars or Venus, the spacecraft performs a small conventional engine burn to enter a highly elliptical initial orbit. Over the subsequent 3 to 6 months, the vehicle repeatedly dips into the upper fringes of the atmosphere at the lowest point of its orbit, known as the periapsis.

Each pass through the tenuous upper atmosphere generates a small amount of drag, incrementally lowering the highest point of the orbit (the apoapsis) until the desired circular trajectory is achieved. The gradual nature of the process keeps thermal and mechanical loads well within the limits of standard spacecraft materials. As aerospace researcher Ye Lu detailed in the 2020 IntechOpen analysis, "Aerobraking maneuver was first successfully demonstrated at Venus with Magellan mission in 1993 after completing its prime mission."[1]

Aerocapture, by contrast, attempts to achieve the entire orbital insertion in a single, aggressive plunge. Instead of entering an initial elliptical orbit via a chemical burn, the spacecraft hits the target atmosphere directly from its interplanetary transfer trajectory. The vehicle dives deep into the atmospheric envelope, utilizing intense aerodynamic drag to bleed off the excess hyperbolic velocity in a matter of 3 to 5 minutes.

Once the spacecraft has slowed enough to be captured by the planet's gravity well, it pitches up and exits the atmosphere. A brief, small corrective burn is then required at the new apoapsis to raise the periapsis back out of the atmosphere, stabilizing the orbit. As Universe Today described the maneuver in a 2023 analysis, aerocapture represents a "free lunch in space exploration," theoretically enabling heavy payloads to reach orbit without the massive fuel penalties of chemical insertion.[5]

However, the margins for error in aerocapture are razor-thin. The spacecraft must hit a precise entry corridor—often just 2 to 5 kilometers wide. If the entry angle is too shallow, the vehicle will not generate enough drag and will skip off the atmosphere, lost to deep space. If the angle is too steep, the thermal and structural loads will exceed the capacity of the heat shield, incinerating the probe.

Despite these risks, aerocapture is becoming critical for the deployment of planetary constellations. A study published in MDPI Aerospace evaluated the use of aerocapture for small spacecraft, concluding that it enables "direct access to low-circular orbits" that would otherwise be impossible for secondary payloads under 500 kilograms lacking large propulsion systems. By equipping smallsats with deployable drag skirts or rigid aeroshells, engineers can deliver entire networks of communication and observation satellites to Mars.[2]

The primary engineering constraint for both aerocapture and high-speed atmospheric entry is thermal management. The kinetic energy shed during deceleration is converted directly into a superheated plasma shockwave reaching over 10,000 degrees Celsius ahead of the vehicle. A 2019 NASA technical report detailed the development of a "Plasma Aerocapture and Entry System," which utilizes magnetic fields to deflect the ionized plasma away from the spacecraft body, potentially reducing the required thickness and mass of traditional ablative heat shields.[3]

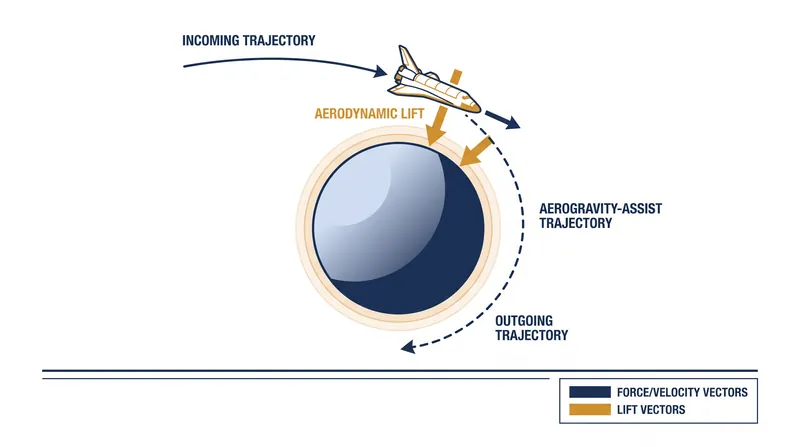

Beyond orbital insertion, atmospheric drag can be combined with gravitational slingshots to accelerate spacecraft toward the outer solar system. This maneuver, known as an aerogravity-assist or aeropass, involves flying a lifting body through a planet's atmosphere to bend the trajectory more sharply than gravity alone would permit.

By generating aerodynamic lift directed toward the planet's surface, the spacecraft artificially increases the effective gravitational pull, allowing for a tighter turn and a greater velocity boost from the planet's orbital momentum. Research published in the Journal of Spacecraft and Rockets, alongside AIAA studies on optimal powered trajectories, highlights that optimizing the vehicle's shape for high lift-to-drag ratios is essential for these maneuvers, which could drastically cut transit times to destinations like Jupiter or Pluto by years or even decades.[4][8]

The Journal of Astronautics further explored these trajectories in 2005, demonstrating that an aerogravity assist at Mars or Venus can significantly expand the launch windows and payload capacities for deep space missions. However, the aerodynamic heating during such a high-speed maneuver requires advanced thermal protection systems that push the boundaries of current materials science.[7]

As space agencies pivot from isolated flagship missions to sustained infrastructure, the reliance on atmospheric maneuvers will only increase. Astronomy Magazine reported in October 2023 that upcoming missions to the ice giants, Uranus and Neptune, will likely require aerocapture to enter orbit, as the decades-long transit times make carrying chemical insertion propellant practically impossible.[6]

The transition from chemical deceleration to aerodynamic capture represents a fundamental shift in interplanetary logistics. The ultimate viability of these aggressive maneuvers now depends on the next generation of deployable heat shields and autonomous guidance systems, which must execute these high-stakes atmospheric plunges with zero real-time intervention from Earth.
