Airflow Apertures Govern Flywheel Deceleration Rather Than Resistance: Why Setting an Indoor Rower to 10 Alters Stroke Gearing Instead of Workout Intensity

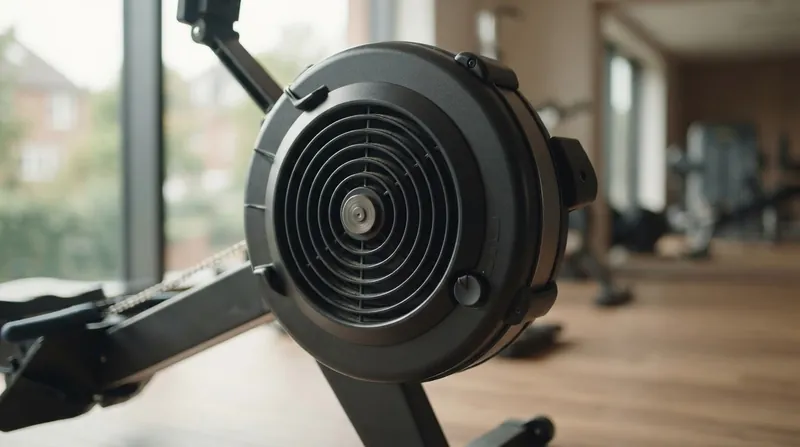

Walk into any commercial gym in 2026, and you will see two entirely different approaches to the indoor rowing machine. The casual fitness enthusiast sits down, reaches for the plastic lever on the side of the fan cage, and immediately cranks it up to 10. [1][1]

Meanwhile, an elite collegiate rower sits on the exact same Concept2 ergometer, drops that lever down to a 3 or a 4, and proceeds to generate 350 watts of power. The first group treats the dial like a weight stack; the second group understands it is a gearing mechanism. [4][4]

"Many people confuse damper setting with intensity," states the official Concept2 training manual, which has guided indoor rowing standards for decades. "The damper setting is like bicycle gearing. It affects how rowing feels but does not directly determine the resistance." [1][1]

The Mechanics of Airflow

The confusion stems from a fundamental misunderstanding of what that lever actually does. It is not a brake pad, a magnetic resistance dial, or a physical weight. It is simply a plastic door that controls how much air enters the flywheel housing. [1, 5][1][5]

To understand the machine, you have to look at the fan. An indoor rower uses air resistance to simulate the drag of a boat hull moving through water. When you pull the handle, you spin the fan; when you recover, the fan continues to spin, gradually slowing down due to the air it displaces. [2][2]

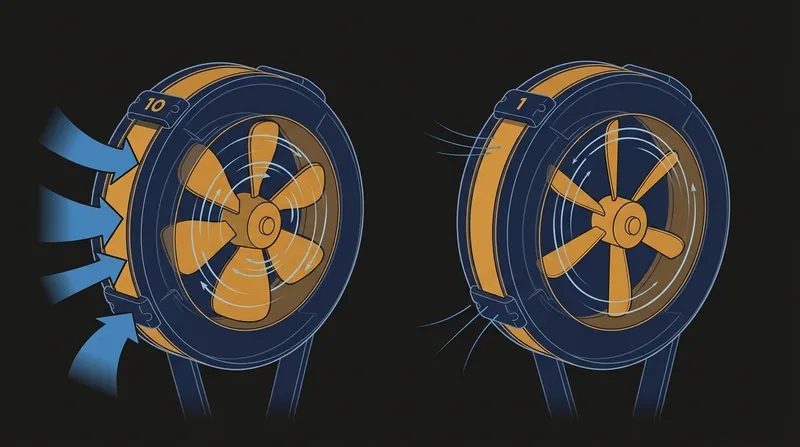

The lever on the side—the damper—controls an aperture. Setting it to 10 opens the vents completely, allowing maximum air into the cage. This massive volume of air interacts with the spinning fan blades, creating immense drag and forcing the flywheel to decelerate rapidly the moment you stop pulling. [1, 5][1][5]

Setting it to 1 closes the vents. Very little air enters the housing, meaning the fan blades meet almost no air resistance. As a result, the flywheel continues spinning freely for a much longer time during your recovery phase, maintaining its momentum until your next stroke begins. [1][1]

The Bicycle Gear Analogy

Because the flywheel slows down faster at a setting of 10, you have to apply a massive amount of force at the very beginning of the next stroke just to get it accelerating again. It feels heavy because you are fighting a stalled fan, not because the machine has increased its absolute resistance. [2, 6][2][6]

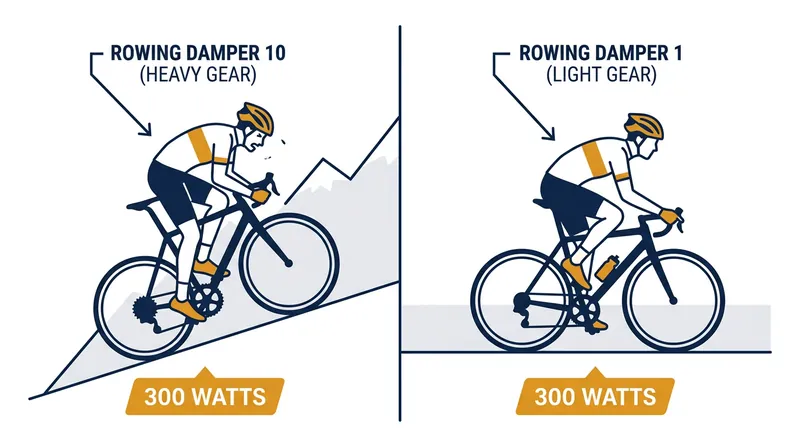

This is why the damper is a gearing mechanism, not a resistance dial. Think of a 21-speed bicycle. Setting 10 is like shifting into the heaviest gear on a steep hill. Every pedal stroke requires immense muscular force, but your cadence is slow and grinding. [1, 4][1][4]

Setting 1 is like shifting into the lightest gear on a flat road. You can pedal incredibly fast with very little muscular strain per stroke. Crucially, a cyclist can generate 300 watts of power in the heavy gear or 300 watts in the light gear. The total work is identical. [4, 5][4][5]

The rowing machine calculates your effort based on how fast the flywheel is spinning, utilizing a formula where power equals a constant multiplied by the velocity cubed. If you pull a setting of 3 with explosive speed, the machine will register a much higher wattage than if you slowly heave against a setting of 10. [2, 3][2][3]

The Mathematics of Power

The performance monitor on an ergometer does not measure how hard you pull the handle; it measures the acceleration of the flywheel. During the drive phase, optical sensors track the fan's rotational velocity, calculating the kinetic energy you are adding to the system. [2][2]

During the recovery phase, the monitor measures the deceleration coefficient—how quickly the fan slows down. By comparing the acceleration during the drive to the deceleration during the recovery, the computer calculates your exact mechanical power output in watts, regardless of the damper setting. [1, 2][1][2]

Because the resistance is dynamic, the machine infinitely scales to the user. An Olympian and a novice can use the exact same damper setting, and the machine will simply provide more resistance to the Olympian because they are spinning the fan faster. [4, 6][4][6]

The Drag Factor Metric

The true measure of the machine's gearing is a hidden metric called the drag factor. Because air density changes with altitude, temperature, and even the amount of dust trapped inside the fan cage, a damper setting of 5 in Denver feels fundamentally different than a 5 in sea-level Miami. [1, 4][1][4]

The machine's internal computer measures exactly how fast the flywheel decelerates between strokes and assigns it a drag factor number, typically ranging from 90 to 210. This number is absolute. A drag factor of 130 requires the exact same biomechanical force profile regardless of where the physical lever sits. [1, 3][1][3]

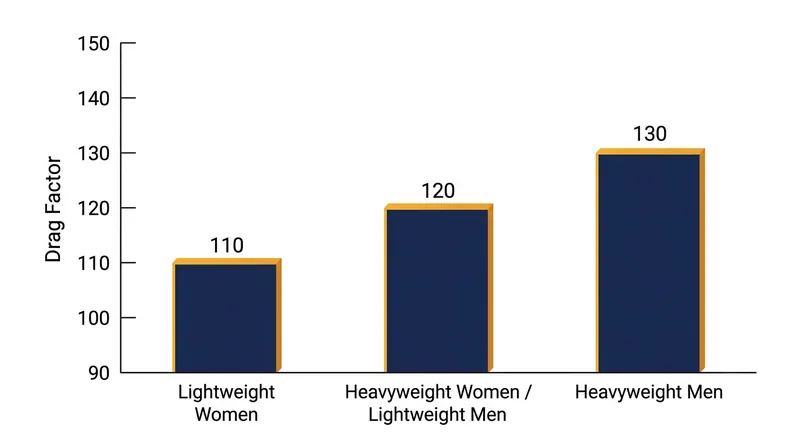

Most elite heavyweight rowers train and test at a drag factor between 120 and 130, which usually corresponds to a damper setting of 3 or 4 on a clean machine. Lightweight rowers and women often train between 110 and 120 to optimize their stroke mechanics. [4, 6][4][6]

Why Setting 10 Fails Most Users

When a casual user cranks the damper to 10, they push the drag factor up toward 200. Because the flywheel dies so quickly between strokes, the user is forced into a slow, grinding muscular contraction that heavily taxes the lower back and arms before the cardiovascular system is fully engaged. [2, 5][2][5]

This heavy gearing fundamentally alters the rowing stroke. Instead of a rapid, elastic drive driven by the legs, the stroke becomes a slow-motion heave. The user tires out muscularly long before they reach their aerobic limit, defeating the primary purpose of the cardiovascular exercise. [5, 6][5][6]

Furthermore, the heavy load at the catch—the front of the stroke—places immense shear force on the lumbar spine. A 2023 biomechanical analysis found that rowing at excessively high drag factors significantly altered kinematics, raising injury risk for untrained users who lack the core stability to support the load. [2][2]

Finding the Right Setup

For practical training, the goal is to find a gearing that allows for a quick, powerful leg drive while maintaining a stroke rate of 20 to 26 strokes per minute during steady-state work. For most adults, this means ignoring the painted numbers on the plastic lever entirely. [4, 6][4][6]

Instead, navigate to the monitor's drag factor screen and take a few test pulls. Adjust the lever until the screen reads roughly 115 for smaller individuals or 130 for larger, stronger individuals. Once set, leave the lever alone for the duration of the session. [1, 4][1][4]

From that point on, if you want the workout to be harder, you do not change the machine. You change yourself. You push harder with your legs, spin the flywheel faster, and let the machine's internal mathematics reward your increased power output with a faster split time. [1, 3][1][3]
