How Movable Pulleys Halve Weight Stack Resistance and Double Cable Travel on Functional Trainers

A gym-goer sets the selector pin into the 100-pound slot on a functional trainer, deciding the exact resistance for their next set of cable crossovers. When they grasp the handle and step forward, they are actually able to move the weight with surprising ease, pulling the cable smoothly across their chest.[1]

By the time they next adjust the pin, they might wonder why 100 pounds on this machine feels drastically lighter than 100 pounds on a barbell. The discrepancy is not a calibration error or a marketing trick. It is the direct result of a movable pulley hidden inside the machine's steel frame.[1][3]

Functional trainers utilize a block-and-tackle mechanism to alter the physics of the weight stack. This design intentionally sacrifices force to gain distance, fundamentally changing how the resistance interacts with the human body during exercise.[3]

"The inclusion of a movable pulley in the resistance path divides the load's displacement by the number of supporting cable segments," notes a 2024 analysis in the journal Sports Biomechanics. "This fundamentally alters the machine's kinetic profile compared to direct-drive systems."[2]

The Mechanics of the Two-to-One Ratio

On a standard lat pulldown machine, the cable connects directly from the handle to the top of the weight stack. Pulling the handle downward by one foot raises the cast-iron plates by exactly one foot. Engineers classify this direct-drive configuration as a 1:1 mechanical ratio.

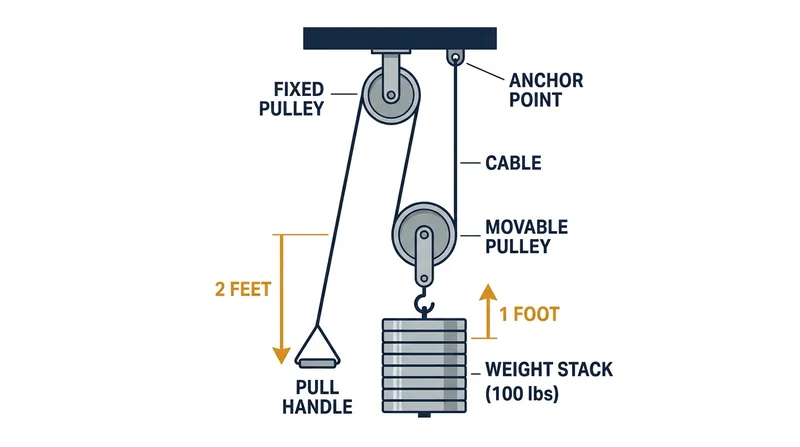

A functional trainer routes the cable differently. The cable anchors to the top of the machine's frame, travels down to loop around a pulley attached directly to the weight stack, and then travels back up to the adjustable carriage.[1]

Because the weight stack hangs on a loop of cable, pulling the handle two feet only shortens the loop by one foot on each side. The weight stack rises just one foot for every two feet the handle moves.[3]

The work-energy theorem dictates that work equals force multiplied by distance. Because the machine halves the vertical distance the weight stack travels, it also halves the force required from the user to lift it. A 100-pound stack requires only 50 pounds of force to move.[1][2]

This 2:1 ratio also applies to the weight increments. Moving the pin down by a 10-pound plate only adds five pounds of effective resistance at the handle. This allows for micro-progressions that direct-drive machines cannot easily accommodate.

Doubling the Distance for Athletic Training

Halving the resistance might seem counterproductive in a gym setting, but the primary goal of a functional trainer is not absolute load. The design exists to solve a spatial limitation inherent to indoor exercise equipment.[3]

A typical commercial weight stack operates on guide rods that are roughly 60 to 70 inches tall. On a 1:1 direct-drive machine, a user performing a walking lunge or a rotational baseball swing would quickly pull the stack all the way to the top, slamming the plates into the upper housing.

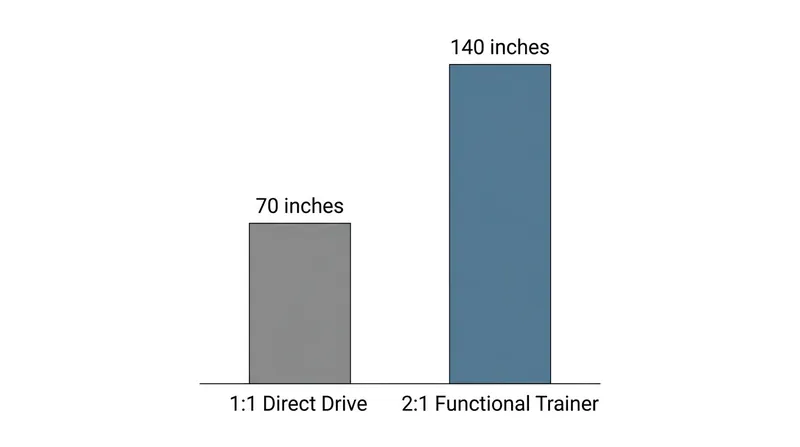

By halving the stack's vertical movement, the 2:1 pulley ratio doubles the available cable travel at the handle. A 70-inch guide rod suddenly provides 140 inches of usable cable for the athlete.[1]

This extended range allows athletes to perform dynamic, multi-joint movements that traverse several feet of gym floor. Sprinters can perform resisted bounds, and tennis players can execute full-swing simulations without the equipment restricting their natural biomechanics.[3]

Mitigating Inertia During Explosive Movement

The most significant biomechanical advantage of the movable pulley is invisible to the user. It involves the management of inertia during high-speed, explosive exercises where the weight must change direction rapidly.[2]

Force equals mass times acceleration. When an athlete performs a rapid cable punch, they must accelerate the mass of the weight stack from a dead stop. On a direct-drive machine, the stack accelerates at the exact same rate as the athlete's fist.

"Rapid acceleration of a 1:1 weight stack generates massive inertial spikes at the beginning of the concentric phase, followed by a sudden loss of cable tension as the plates gain momentum," reports the National Strength and Conditioning Association.[3]

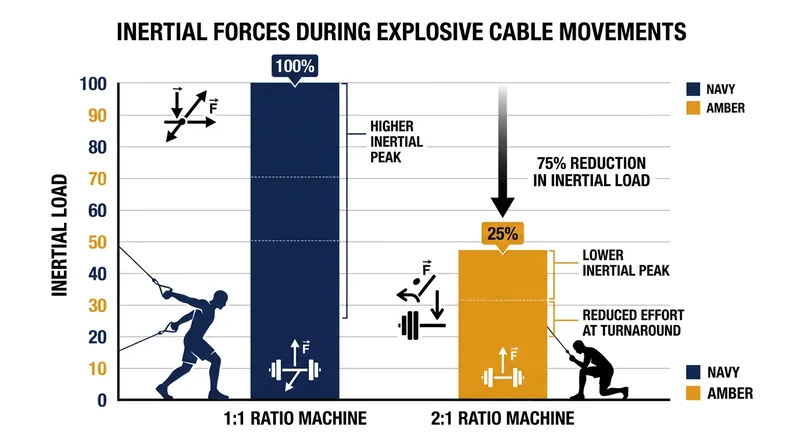

The 2:1 functional trainer solves this by accelerating the weight stack at only half the speed of the handle. Because kinetic energy scales with the square of velocity, halving the stack's speed reduces its inertial energy by 75 percent.[2]

This dramatic reduction in inertia prevents the cable from going slack during fast movements. It provides a smooth, continuous resistance curve that protects the joints from sudden shearing forces when the weight changes direction.

Tracking Progress on the Gym Floor

Understanding this mechanical advantage changes how gym-goers should track their workouts. A 60-pound cable curl on a functional trainer cannot be directly compared to a 60-pound barbell curl, as the true resistance of the former is roughly 30 pounds.[1][3]

Furthermore, internal friction within the pulley bearings and cable drag add variable resistance that changes based on the machine's maintenance schedule. A poorly lubricated functional trainer will feel heavier than a brand-new model, even with the pin in the same slot.

Fitness professionals recommend recording the exact weight listed on the stack and noting the specific machine used in the gym. Consistency in tracking the pin position matters far more than calculating the exact mathematical equivalent of the load.[1][3]
