Constant-Load, Constant-Speed, and Variable-Load: The Three Mechanical Principles Governing Resistance Exercise Equipment

For a muscle to grow stronger, one non-negotiable condition must be met: it must contract against a mechanical tension that exceeds its current capacity. If that tension drops off or disappears at any point during a movement, the adaptation stimulus is compromised. Currently, the vast majority of recreational lifters rely on equipment that fundamentally fails to maintain this tension, leaving significant portions of their muscular range of motion under-loaded and unchallenged.[6]

The mismatch stems from a basic law of physics colliding with human biomechanics. Muscles do not pull with equal force across a joint's entire rotation; they operate on a "strength curve," typically generating the most force in the middle or end of a movement and the least at the beginning. Yet, a 50-pound dumbbell weighs exactly 50 pounds at the bottom of a bicep curl and 50 pounds at the top.[6]

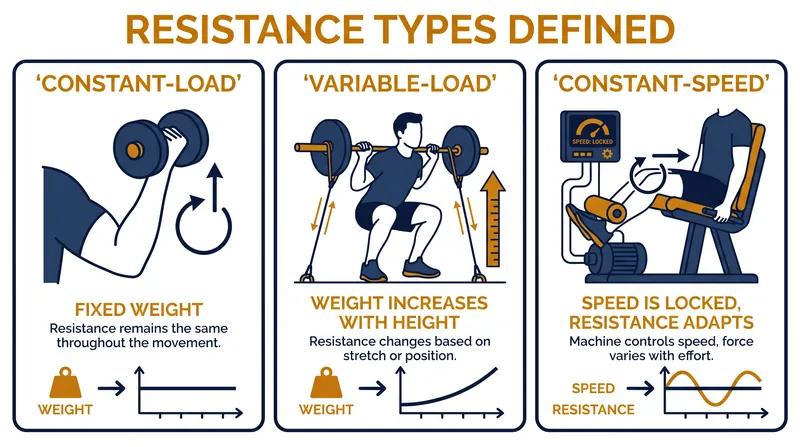

This discrepancy has driven decades of engineering in exercise equipment, resulting in three distinct mechanical principles that govern how machines apply force to the human body: constant-load, variable-load, and constant-speed. Understanding how each interacts with the nervous system is the difference between simply moving a weight and actually stimulating tissue adaptation.[6]

Constant-load equipment, often referred to clinically as isotonic resistance, is the most ubiquitous form of training. It includes free weights, standard cable pulleys, and basic plate-loaded machines. As outlined by the National Strength and Conditioning Association (NSCA), the defining characteristic of constant-load training is that the external mass remains unchanged throughout the exercise execution.[2]

The primary limitation of constant-load training is the "sticking point." Because the weight does not change, the maximum load a person can lift is entirely dictated by their weakest joint angle. In a 2000 study published in Medicine and Science in Sports and Exercise, researchers examining knee extension training noted that constant resistance forces the muscle to work sub-maximally through its strongest ranges just to survive its weakest.[4]

"The external torque provided by constant resistance equipment does not match the human torque curve," the MSSE researchers wrote, highlighting that a lifter might only experience true maximal tension for a fraction of a second during a full three-second repetition. The rest of the movement is effectively coasting on momentum or operating far below the muscle's actual capacity.[4]

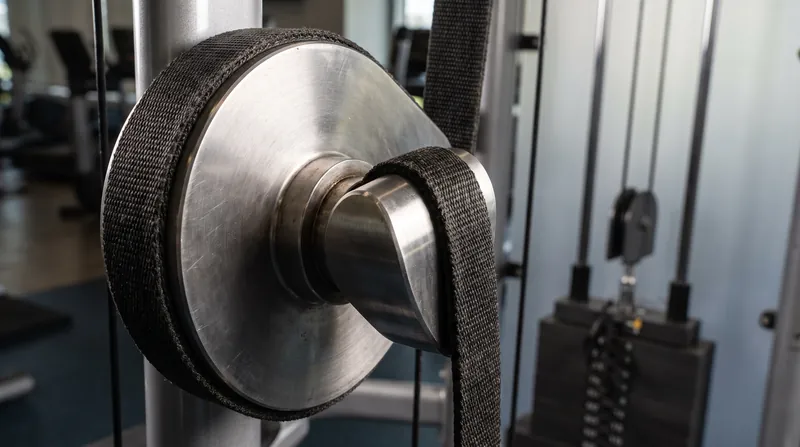

To solve this mechanical mismatch, engineers developed variable-load equipment. First popularized in the 1970s with the invention of the Nautilus cam—a kidney-shaped pulley—variable resistance alters the mechanical advantage of the machine as the user moves through the range of motion.[6]

When the muscle is in its weakest position, the cam provides a mechanical advantage, effectively reducing the load. As the joint extends into its strongest position, the cam's radius changes, increasing the resistance. This ensures the muscle experiences near-maximal tension from the first degree of flexion to the last.[6]

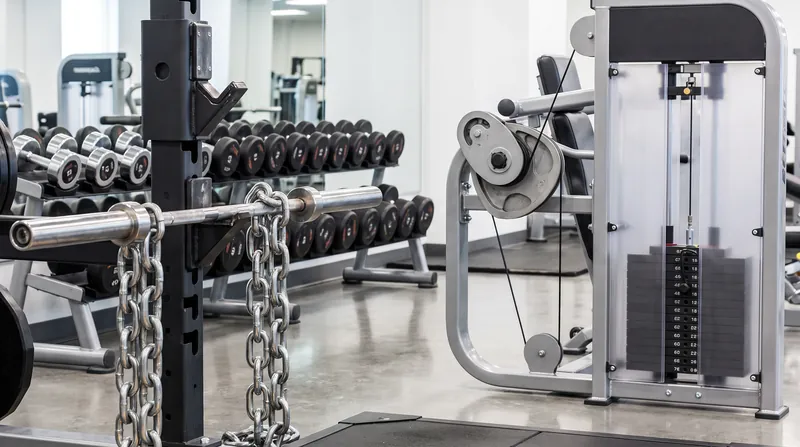

Modern variable-load training extends beyond complex machines to include accommodating resistance tools like heavy elastic bands and heavy steel chains attached to standard barbells. As a lifter stands up during a barbell squat, the bands stretch tighter or the chains lift off the floor, adding physical weight exactly as the lifter's leverage improves.[2]

The clinical outcomes of this matching process are significant. A 2022 systematic review and meta-analysis published in MDPI analyzed the effects of variable-resistance training versus constant-resistance training on maximum strength. The researchers aggregated data across multiple controlled trials to determine which mechanical principle yielded superior adaptations.[3]

The MDPI analysis concluded that variable-resistance training produced statistically superior gains in peak strength, particularly in trained athletes. By forcing the nervous system to recruit higher-threshold motor units during the strongest phases of the lift—phases that would normally be under-loaded by a constant weight—variable loads drive greater overall neuromuscular adaptation.[3]

However, neither constant-load nor variable-load systems can completely eliminate the role of momentum. If a lifter pushes a weight fast enough, inertia takes over, and the muscle briefly stops working while the weight floats upward. To eliminate momentum entirely, clinical rehabilitation relies on the third mechanical principle: constant-speed, or isokinetic resistance.[6]

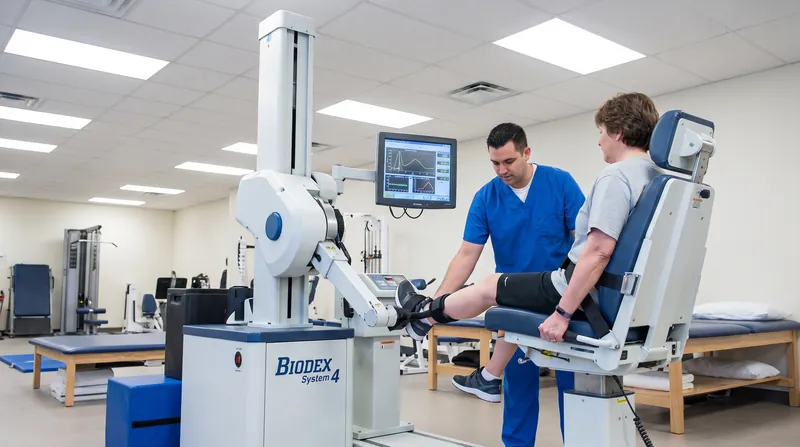

Isokinetic equipment, such as the Biodex dynamometers found in physical therapy clinics, does not use a physical weight stack. Instead, it uses a motorized or hydraulic brake that restricts the speed of movement to a pre-set velocity—for example, 60 degrees per second.[6]

No matter how hard the user pushes against the lever, it will not move faster than that set speed. Instead, the machine pushes back with an exactly equal amount of force. If the user pushes with 100 pounds of force, the machine resists with 100 pounds; if fatigue sets in and the user can only push with 20 pounds, the machine instantly drops its resistance to 20 pounds.[6]

This creates a unique physiological environment: 100 percent maximal tension at every single degree of the joint's rotation, with zero momentum. A foundational 1981 study in the American Journal of Sports Medicine compared isokinetic and isotonic training, establishing the baseline understanding of how these differing tensions affect muscle architecture.[1]

The researchers found that isokinetic training is unparalleled for isolating specific muscle groups and safely rehabilitating injuries, because the machine inherently prevents the user from pushing beyond their structural capacity. If pain occurs and the user stops pushing, the resistance instantly drops to zero, eliminating the risk of being crushed by a falling weight.[1]

Despite its clinical superiority for targeted tension, isokinetic equipment remains rare in commercial gyms. The machines are prohibitively expensive, often costing tens of thousands of dollars, and they lock the user into a fixed, single-joint path that does not mimic the complex, multi-joint movements required in daily life or athletic competition.[6]

A 2020 thesis published in DigitalCommons@CSP explored the mechanisms of hypertrophy and exercise execution methods across these modalities. The research emphasized that while isokinetic training maximizes localized tension, isotonic (constant-load) training using free weights remains essential for developing the stabilizing muscles and neuromuscular coordination required to balance a three-dimensional load.[5]

For the practical gym-goer, translating these clinical findings means abandoning the idea of a single "best" piece of equipment. Instead, a structured training program should utilize constant-load free weights to build neurological coordination, and variable-load machines or banded barbells to maximize mechanical tension through the full strength curve.[6]

As digital, motor-driven resistance systems begin to migrate from clinical rehabilitation into commercial and home gyms, the boundary between these three principles is blurring. The next generation of equipment can digitally simulate a constant load, instantly switch to a variable cam profile, or lock into an isokinetic speed constraint, allowing users to manipulate mechanical tension with a precision previously reserved for laboratory science.[6]
