How Eddy-Current Magnetic Braking Eliminates Wear in Exercise Bikes

Eddy-current magnetic braking eliminates wear on exercise bikes by using a magnetic field to induce opposing electrical currents inside a spinning aluminum flywheel. This creates drag without physical contact. The kinetic energy generated by pedaling is completely dissipated as heat within the metal, meaning there are no brake pads to degrade over time.[1]

For decades, the fitness industry relied on mechanical friction to create resistance, pressing felt or leather pads directly against the edge of a heavy metal wheel. That constant physical contact caused inevitable wear, requiring regular lubrication and frequent pad replacements to maintain a smooth ride.[2]

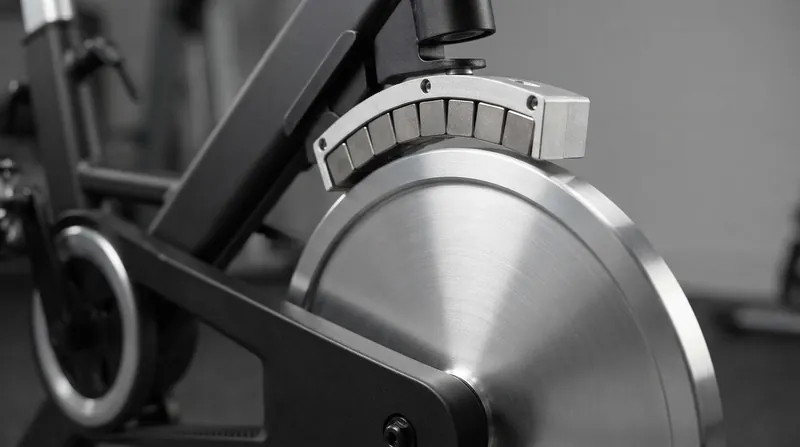

Modern sports engineering replaced those consumable pads with high-intensity magnets that hover millimeters away from the conductive flywheel. This shift to an invisible electromagnetic drag field fundamentally changes how the bike ages and performs under heavy loads.[2]

"Complete absence of mechanical friction means zero percent parts wear," notes the engineering team at Athletic Vision Fitness. "The operation is 100 percent silent, free of felt dust, and results in zero post-sale service calls related to braking wear."[2]

The Physics of Electromagnetic Drag

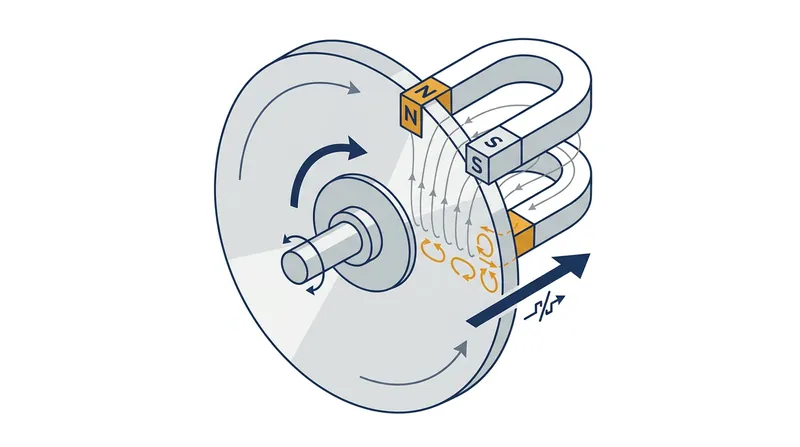

The underlying mechanism relies on Faraday’s law of induction. When a cyclist pedals, they set the conductive aluminum flywheel in motion, forcing it to cut through the static magnetic lines of force established by the stationary magnets.[1][4]

This interaction between the moving metal and the magnetic field generates circular electric currents, known as eddy currents, inside the flywheel. By Lenz’s law, these newly formed currents immediately create their own magnetic field that actively opposes the original stationary magnets.[4]

The resulting counter-force is what the rider feels as pedaling resistance. Because the magnets never actually touch the spinning disc, the system avoids the grinding friction that degrades traditional bikes, translating the rider's kinetic energy entirely into thermal energy.[4]

As the eddy currents flow through the electrical resistance of the aluminum, the metal warms up under the magnets. Industrial testing shows that the braking force is directly proportional to the electrical conductivity of the rotor material, making pure aluminum or 6061-T6 alloys critical for performance.

If manufacturers substitute cheaper, high-silicon aluminum alloys, the lower electrical conductivity can instantly degrade the braking force by over 30 percent. Heat also plays a factor; as the rotor's temperature rises, its electrical resistance increases, which can weaken the induced currents and cause thermal fade.

Exponential Resistance and Sprint Dynamics

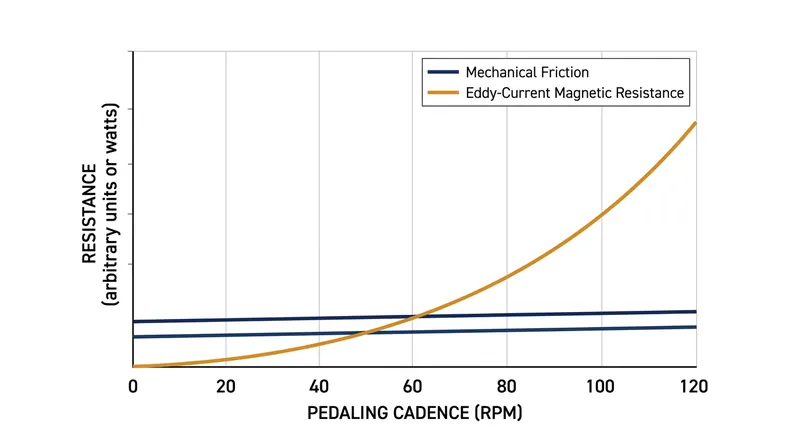

Unlike mechanical friction, which applies a constant, linear drag regardless of how fast the wheel turns, eddy-current braking is highly dynamic. The strength of the opposing magnetic field scales exponentially with the relative velocity of the flywheel.[2]

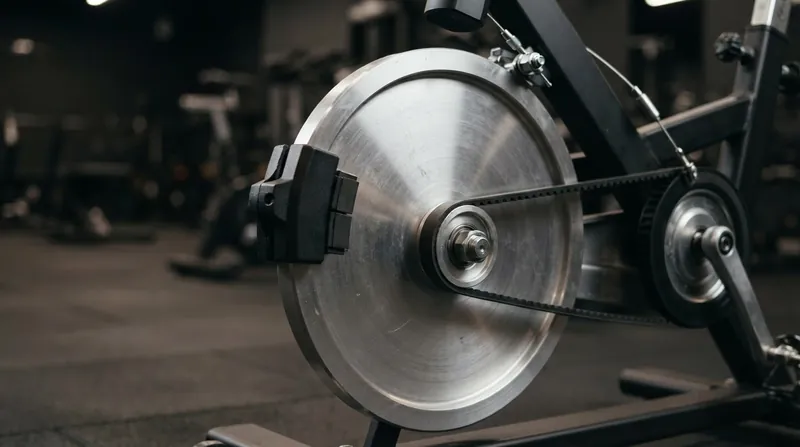

This means that the faster a user pedals, the denser the magnetic drag field becomes. During high-cadence sprints, the system actively opposes the acceleration, forcing the rider to generate significantly higher wattage to maintain their speed than they would on a friction-based bike.[2][3]

To adjust the baseline difficulty, the bike physically alters the magnetic field's intensity. A manual knob or an electronic motor moves the magnet housing closer to the flywheel to increase the drag, or pulls it further away to drop the resistance almost instantly.[1]

Advanced indoor trainers, such as the Wattbike Atom, harness this electronic control to automatically adjust resistance based on virtual terrain. This "ergo mode" allows connected training apps to simulate the exact wattage demands of a real-world climb by shifting the magnetic field in real time.

The Zero-Speed Limitation

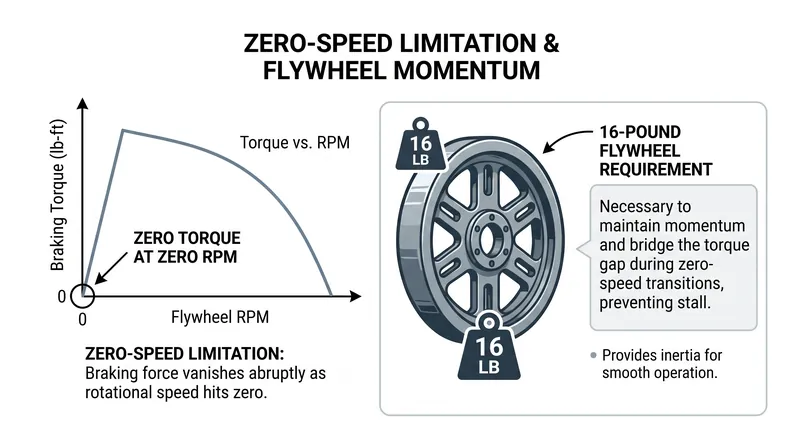

While magnetic resistance excels at high speeds, it possesses a unique mechanical quirk: it cannot hold the wheel still. Because torque generation strictly requires relative motion between the magnetic field and the conductor, the braking force disappears when the wheel stops.[4]

"Torque generation strictly requires relative motion between the stationary magnetic field and the rotating conductor," explains the engineering documentation from Lanling Test. "As the RPM approaches zero, the induced eddy currents dissipate entirely."

Without a changing magnetic flux, the system provides zero static holding torque, meaning an eddy-current brake cannot function as a parking brake. This speed-dependent torque curve fundamentally changes how a stationary bike feels during slow, heavy pedal strokes.[4]

To compensate for the lack of low-speed drag, quality magnetic spin bikes still utilize a heavy flywheel, often weighing 16 pounds or more, to store rotational momentum. That stored momentum smooths out the pedal stroke, preventing the resistance from feeling choppy.

Translating Physics into Training

For riders, the shift to magnetic braking means a more predictable and measurable training environment. Because the resistance does not rely on the unpredictable grip of a wearing felt pad, the wattage output remains consistent from the first ride to the thousandth.[2]

This consistency is crucial for structured endurance training, where athletes need to hold precise power zones for extended intervals. The frictionless design ensures that a specific resistance setting demands the exact same metabolic output every time the rider clips in.[3]

The elimination of mechanical friction also removes the fine dust and debris that traditional pads shed onto the gym floor. Facility managers report that magnetic systems drastically reduce long-term maintenance overhead, keeping fleets operational year-round.[2]

Ultimately, eddy-current braking transforms the stationary bike from a simple friction machine into a precise electromagnetic ergometer. By converting kinetic energy into heat through magnetic induction, it delivers a smoother, quieter, and infinitely more durable ride.[1][3]

Thermal Management and Heat Dissipation

Because all the kinetic energy from a grueling workout is converted into thermal energy, the flywheel must act as its own heat sink. The continuous rotation of the aluminum disc through the ambient air provides necessary cooling, preventing the metal from reaching critical temperatures.[4]

In commercial settings where bikes endure back-to-back classes, this heat dissipation is vital. If the flywheel cannot shed heat fast enough, the rising temperature increases the metal's electrical resistance, which in turn weakens the eddy currents and causes a noticeable drop in braking torque.

To combat this thermal fade, engineers design the flywheels with specific surface areas and aerodynamic profiles that maximize airflow. This ensures the magnetic drag remains perfectly consistent, even during a 60-minute high-intensity interval session where the rider is consistently pushing over 300 watts.[3]

By mastering these electromagnetic principles, modern fitness equipment has effectively eliminated the mechanical limitations of indoor cycling. The result is a training tool that responds dynamically to human effort, translating raw physical exertion into invisible, frictionless heat.[3]
