Adiabatic Compression, Not Friction: How Hypersonic Bow Shocks Superheat Spacecraft During Atmospheric Entry

When a spacecraft slams into the Earth's atmosphere at 17,500 miles per hour, it is not friction that generates the 3,000-degree inferno outside the window. The true culprit is adiabatic compression. The physics of atmospheric entry rely on violently crushing the air, not rubbing against it.

The vehicle is moving so fast that the air molecules ahead of it simply cannot get out of the way. They are compressed together in a fraction of a second, packing their existing thermal energy into a microscopic space. This rapid squeezing transforms kinetic energy into immense heat.

This extreme compression strips electrons from their parent atoms, creating a glowing envelope of superheated plasma. It is the exact same thermodynamic principle that causes a bicycle pump to heat up in your hand, scaled up to cosmic proportions.

For decades, popular culture and even some textbooks have incorrectly attributed this fiery reentry to the spacecraft rubbing against the atmosphere. In reality, aerodynamic friction accounts for only a tiny fraction of the total thermal load.[4]

The Physics of the Bow Shock

At hypersonic speeds—generally defined as anything above Mach 5—the rules of fluid dynamics change completely. The spacecraft outruns its own sound waves, meaning the air ahead receives absolutely no warning of the impending collision.

When the vehicle strikes this undisturbed air, it creates a nearly discontinuous boundary known as a bow shock. Across this infinitesimally thin layer, the pressure, density, and temperature of the gas jump to ferocious levels almost instantaneously.

"The air gets violently compressed as it passes through the shock, causing its pressure, density, and temperature to jump," notes aerodynamic research on hypersonic flow. This compression transforms the kinetic energy of the spacecraft directly into thermal energy.[1]

If this superheated plasma were to make direct contact with the hull, the spacecraft would incinerate in seconds. The survival of the astronauts inside depends entirely on manipulating the geometry of this shockwave to keep the heat at bay.

The Counterintuitive Blunt Body

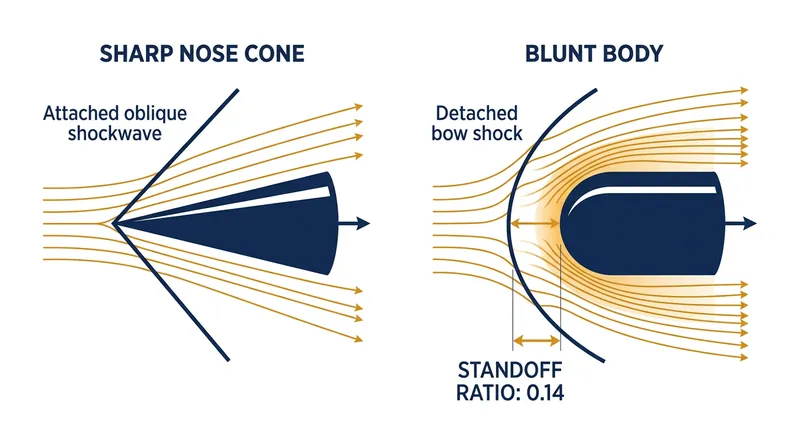

In 1951, engineers Julian Allen and A.J. Eggers made a counterintuitive discovery: a sharp, aerodynamic nose cone is actually the worst possible shape for surviving atmospheric entry. A sleek design allows the superheated shockwave to attach directly to the vehicle's leading edges.[4]

Instead, spacecraft are intentionally designed as blunt bodies. By presenting a wide, flat surface to the oncoming atmosphere, the vehicle forces the bow shock to detach and stand off at a safe distance from the heat shield.[1]

This geometry creates a critical thermal buffer known as the shock layer. The vast majority of the kinetic energy converted into thermal energy at the shockwave never actually reaches the vehicle, flowing harmlessly around it into the wake.[4]

As a general aerodynamic rule, the distance from the shock wave to the stagnation point on the vehicle's leading edge is roughly 0.14 times the radius of the nose. For a capsule with a one-meter radius, that provides a 14-centimeter cushion of life-saving space.[3]

Chemical Dissociation and Real Gas Effects

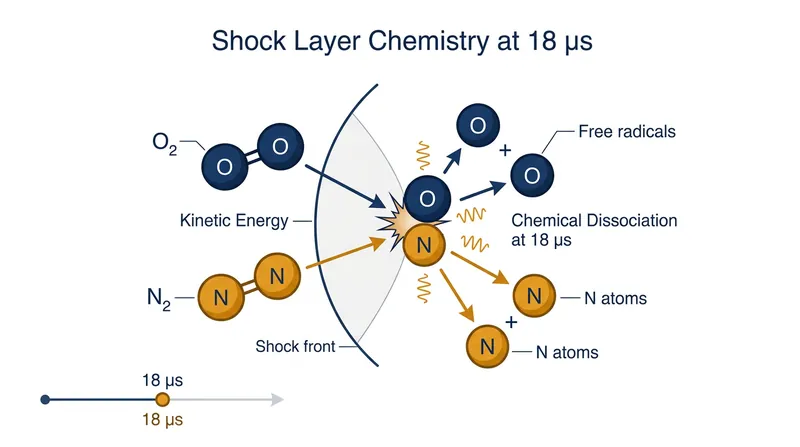

Inside that narrow shock layer, the physics become remarkably complex. The heat is so intense that diatomic oxygen and nitrogen molecules literally break apart into single atoms, a process known as chemical dissociation.

"When air is processed by a shock wave, it is superheated by compression and chemically dissociates through many different reactions," explains NASA's atmospheric entry documentation. These free radicals drastically alter the fluid properties of the gas.[3]

At an entry speed of 7.8 kilometers per second, a gas molecule takes approximately 18 microseconds to travel from the shock wave to the stagnation point. This brief window is just enough time for the violent chemical reactions to reach thermodynamic equilibrium.[3]

Managing these real gas effects is a massive computational challenge. If engineers miscalculate the pitching moments caused by the dissociated plasma, the spacecraft could tumble out of control, as nearly happened during the maiden flight of the Space Shuttle Columbia.[3]

The Plasma Sheath and Radio Blackout

The extreme temperatures inside the shock layer do more than just break molecular bonds; they strip electrons entirely, creating a dense plasma. This ionized gas wraps around the descending spacecraft like a glowing, superheated cocoon.

Because plasma is highly conductive, it acts as an electromagnetic shield, blocking all radio frequencies from passing through. This creates the infamous radio blackout period that isolates astronauts from mission control during the most dangerous phase of the flight.

For Apollo capsules, this communications blackout lasted roughly three to five minutes. The Space Shuttle endured even longer periods of silence, sometimes up to 30 minutes, before NASA deployed specialized relay satellites to communicate through a hole in the plasma wake.[5]

The plasma sheath also radiates intense thermal energy directly onto the spacecraft's heat shield. Even with the bow shock detached, this radiant heating—much like the warmth felt from a distant bonfire—requires robust thermal protection to ensure crew survival.

The Role of the Heat Shield

Capsules like Apollo and modern commercial crew vehicles use ablative heat shields to manage this radiant energy. These shields are coated in a specialized resin that intentionally burns and chars away during the descent.

As the ablative material vaporizes, it carries the absorbed heat off into the slipstream through a process called pyrolysis. The outgassing also thickens the boundary layer, pushing the superheated shockwave even further away from the hull.[1]

The Space Shuttle, by contrast, utilized a reusable system of silica tiles. These tiles were such poor conductors of heat that an engineer could hold one by the edges mere seconds after it was pulled from a 2,000-degree oven.

In both designs, the goal is the same: prevent the residual thermal radiation of the compressed air from penetrating the crew cabin. The shield handles the fraction of heat that the bow shock fails to deflect.

Instabilities and Planetary Atmospheres

As humanity looks toward heavier payloads and faster returns from deep space, the margins for error in reentry physics are shrinking. Advanced simulations are revealing new, chaotic behaviors within the plasma cushion that surrounds the spacecraft.

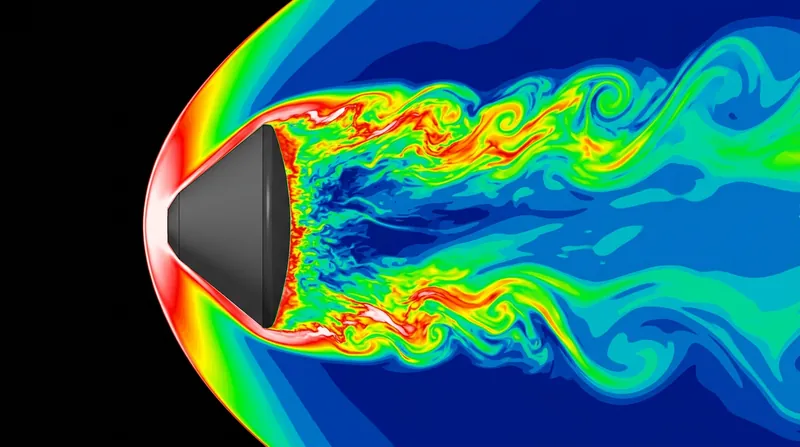

A recent study from the Massachusetts Institute of Technology identified a novel instability in the bow shockwave during hypersonic planetary entry. When the density ratio across the shock exceeds a factor of 13, it generates an intense layer of vorticity.[2]

This turbulence can cause violent streaks of plasma to impinge directly on the capsule's surface. Such instabilities create localized heat loads far higher than those predicted by conventional laminar flow models, complicating the design of future heat shields.[2]

"This phenomenon drastically changes the heat load requirements during the design of the heat shield and might be extremely relevant when exploring new planets," the MIT researchers concluded in their 2025 analysis.[2]

Entering different atmospheres changes the thermodynamic math entirely. A probe plunging into Saturn's hydrogen-helium envelope faces entirely different dissociation rates and specific heat ratios than a capsule returning to Earth, requiring entirely new aerodynamic models.

The Final Descent

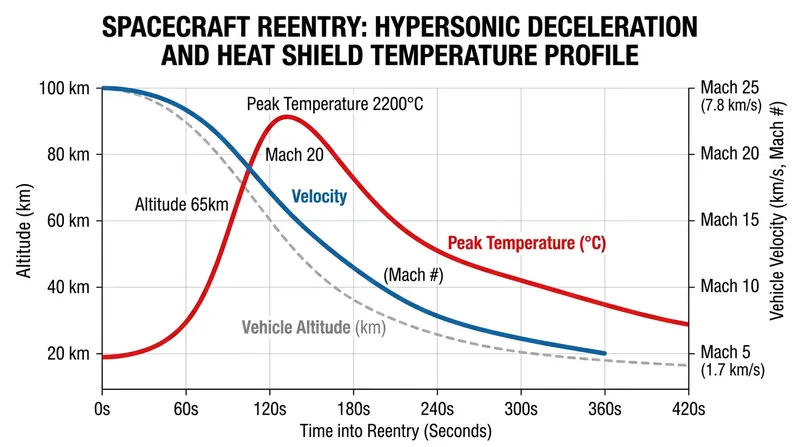

As the spacecraft plunges deeper into the atmosphere, the dense air acts as a massive brake. The immense drag generated by the blunt body bleeds off thousands of miles per hour of velocity in a matter of minutes.

Eventually, the vehicle slows below hypersonic speeds. The glowing plasma trail fades, the radio blackout ends, and the brutal adiabatic compression gives way to standard aerodynamic friction in the lower, cooler atmosphere.[5]

By the time the parachutes deploy, the fiery physics of the bow shock are entirely behind the crew. They have survived the drop not by cutting smoothly through the air, but by violently crushing it out of their way.
