InSight Data Reveals Mars' Valles Marineris Canyon System Remains Tectonically Active Today

The horizontal slipping of crustal blocks 20 to 40 kilometers beneath the Martian surface dictates whether the planet's crust is actively deforming. When rock masses grind past each other along a deeply rooted fault, they release seismic waves that travel through the planet's interior. This deep strike-slip movement is the definitive signature of a living tectonic system.[1]

On August 25, 2021, NASA's InSight lander recorded exactly this type of energy release. The seismic event, cataloged as S0976a, sent low-frequency waves rippling across the Martian globe. It was the only marsquake detected during the mission's four-year run that originated in the planet's western hemisphere.[1][2]

A new analysis published October 15 in Nature Communications traces that specific waveform directly to the western edge of Valles Marineris. The findings confirm that the largest canyon system in the solar system is still tectonically active today.[1][3]

"Valles Marineris was previously assumed to be a 'dead' fossil landscape, but the study proves its faults can still slip and generate marsquakes," stated Jung-Hun Song, the study's lead author from Imperial College London. The research upends long-held assumptions about Martian geology.[2]

Decoding the Farside Marsquake

The S0976a event was highly unusual because of its extreme distance from the seismic station. The InSight lander sat thousands of kilometers away in Elysium Planitia, requiring researchers to rely on advanced waveform modeling to reconstruct the fault's geometry from a single vantage point.[1][4]

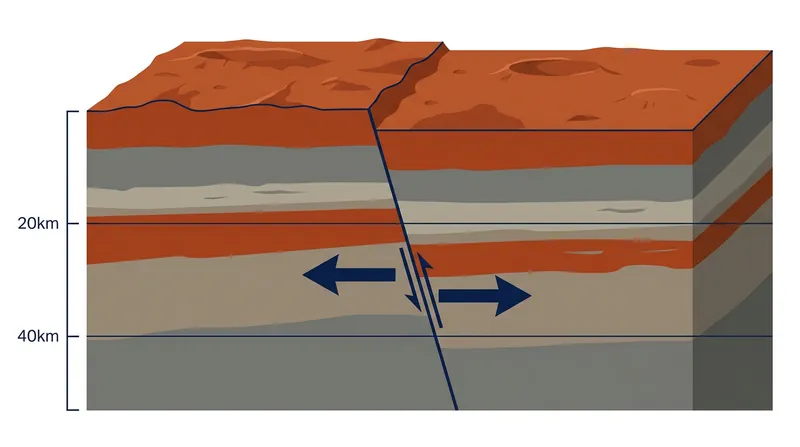

Researchers from Columbia University and Imperial College London analyzed the polarization and arrival times of the seismic waves to pinpoint the epicenter. The data revealed a strike-slip mechanism, meaning the ground moved laterally rather than vertically along the fault plane.[1][3]

The rupture occurred at a depth of 20 to 40 kilometers, placing it firmly within the deep Martian crust. This deep origin indicated structural tectonic movement rather than shallow thermal contraction, which typically occurs much closer to the surface.[1][5]

To ensure the signal was genuinely tectonic, the team systematically ruled out alternative surface explanations. They examined high-resolution satellite imagery of the epicentral region for any fresh craters that would indicate a recent meteoroid impact.[1][2]

They also searched for large-scale landslides or rockfalls along the steep canyon walls that could mimic a seismic signature. The imagery showed no new mass movements, confirming the deep fault slip as the only viable source for the August 2021 event.[1][6]

Rethinking a Frozen Landscape

Standard planetary models have long assumed Mars had cooled into permanent geological dormancy. Because the planet lacks a fragmented crust of moving tectonic plates like Earth, its massive features were viewed as frozen relics of a highly energetic early history.[2][3]

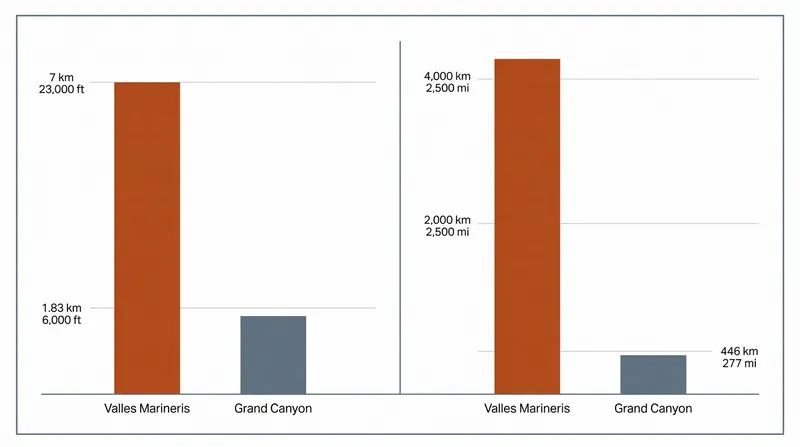

Valles Marineris stretches over 4,000 kilometers across the Martian equator and plunges up to seven kilometers deep. It dwarfs the Grand Canyon and was thought to have formed billions of years ago as the nearby Tharsis volcanic region swelled and tore the crust apart.[4][5]

The prevailing consensus held that once the Tharsis bulge stopped growing, the extensional forces ceased, leaving the canyon system locked in place. The new seismic data directly contradicts this assumption of a permanently locked crust.[1][2]

Instead, the Martian lithosphere is still straining under inherited stresses. The immense weight of the Tharsis volcanic plateau continues to exert pressure on the surrounding crust, providing the mechanical energy needed to reactivate pre-existing fault systems deep underground.[1][3]

Implications for Martian Evolution

The discovery that Valles Marineris remains active forces a revision of how planetary scientists model Mars' thermal and mechanical evolution. A planet capable of generating deep, strike-slip faulting must retain more internal energy than previously calculated.[2][4]

While Mars is undoubtedly less active than Earth, the S0976a event demonstrates that the deep crustal blocks are still adjusting to regional stress fields. They continue to release accumulated strain through episodic quakes, proving the planet is not entirely dormant.[1][5]

The findings also highlight the limitations of relying solely on orbital imagery to date geological activity. A fault may appear ancient and unmodified from orbit, yet still host active slip at depths of 30 kilometers where surface erosion cannot erase the evidence.[1][3]

Because InSight's seismometer was permanently retired in December 2022 when dust covered the lander's solar panels, scientists cannot wait for new marsquakes to confirm these patterns. They are instead applying these new analytical techniques to the existing 1,319-quake mission catalog.[2][4]

Targeting Active Fault Zones

The confirmation of active faulting in Valles Marineris fundamentally shifts how future missions might target landing sites. Active tectonic zones provide unique windows into a planet's subsurface environment and thermal state, making them high-priority targets for exploration.[3][5]

Deep faulting can create pathways for subsurface fluids or gases to migrate toward the surface. While there is no direct evidence of liquid water in the canyon today, active fractures are critical targets in the search for habitable subsurface niches.[1][2]

Researchers are now cross-referencing the S0976a epicenter with orbital data to look for subtle surface deformations. They aim to identify exactly which fault segments within the massive canyon system are accommodating the current tectonic strain.[1][6]

The study, co-authored by Doyeon Kim and F. Kolawole, establishes a new baseline for Martian geophysics. It proves that even a single seismic station can unlock the deep structural dynamics of a world once thought to be entirely still.[1][2]
