World-First Photonic Time Crystal Built, Enabling New Era of Light Control

An international research consortium has successfully engineered the world’s first all-optical photonic time crystal, a breakthrough that fundamentally rewrites the rules of how engineered materials interact with electromagnetic waves. Published in the journal Nature on July 31, 2026, the achievement demonstrates a specialized metamaterial whose optical properties change dynamically at picosecond speeds—roughly one trillionth of a second. Led by researchers from École Polytechnique, Collège de France, and the Helmholtz-Zentrum Dresden-Rossendorf (HZDR), the experiment marks the first time scientists have achieved order-unity modulation of a material's optical properties on timescales comparable to the oscillation cycle of light itself. By introducing a repeating pattern in time rather than across physical space, the team has unlocked a new temporal dimension for light control, paving the way for technologies that can manipulate photons with unprecedented speed and precision.[1][2][6]

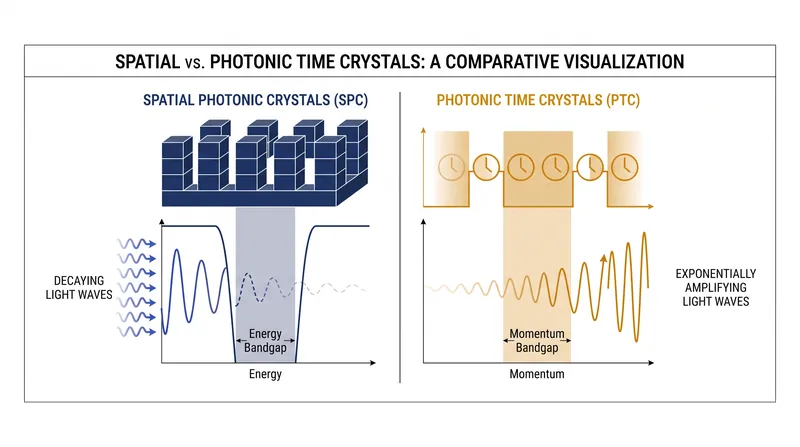

To fully grasp the magnitude of this development, it is necessary to contrast the new time-varying materials with conventional optical engineering. Traditional spatial photonic crystals (SPCs) control light through repeating physical patterns of materials with different refractive indexes, much like how silicon semiconductors control the flow of electrons. In these spatial crystals, the periodic physical structure creates what physicists call "energy bandgaps"—specific frequency ranges where light is strictly forbidden from propagating. When light hits these bandgaps, the waves are forced to decay exponentially, which allows engineers to block, guide, or trap specific wavelengths. However, because these structures are built in physical space, their optical behavior is permanently fixed the moment they are manufactured. They are inherently static, energy-conserving systems that cannot adapt dynamically to changing computational or telecommunications needs.[1][2][3]

A photonic time crystal (PTC), however, operates on an entirely different dimensional axis, discarding spatial constraints in favor of temporal periodicity. Instead of varying its structure across physical space, the material remains spatially uniform but rapidly and repeatedly modulates its optical properties over time. This temporal modulation creates "momentum bandgaps." Unlike the energy bandgaps of spatial crystals, momentum bandgaps allow for the existence of non-equilibrium states where light waves do not decay. Because the system is actively driven by an external energy source, it becomes non-Hermitian—meaning it does not conserve energy in the traditional sense. Consequently, light waves trapped within a momentum bandgap can actually grow exponentially in energy as they pass through the material, extracting power directly from the temporal modulation itself to achieve massive optical amplification.[2][4]

Harnessing this temporal phenomenon at optical frequencies has long been considered a monumental experimental challenge, bordering on the impossible. While previous research teams had successfully demonstrated rudimentary photonic time crystals operating at much lower microwave frequencies, scaling the concept up to the optical or terahertz domains required a massive leap in material science. It demands modulating a material's optical properties with extreme depth and at blistering speeds that match the ultrafast oscillation cycle of light. To cross this threshold, the research team had to design and construct a highly specialized plasmonic metamaterial capable of withstanding and responding to intense electromagnetic driving without breaking down or losing its structural integrity.[2][5]

The resulting device is a marvel of nanoscale engineering. It consists of micrometer-scale gold crenellated structures deposited over a precisely calibrated insulating layer, which in turn sits atop a semiconductor substrate made of a specialized indium and antimony mixture. These microscopic gold crenellations act as highly efficient optical cavities that trap photons of light between the metal surface and the underlying semiconductor. When the surface of this semiconductor is excited, it generates "surface plasmons"—collective, wave-like oscillations of electrons that are highly sensitive to external electromagnetic fields. This plasmonic architecture provided the exact environment needed to capture light and sustain its oscillations long enough for the temporal modulation to take effect.[3][4]

The critical catalyst for the experiment was the deployment of HZDR’s TELBE superradiant terahertz source in Germany. This massive facility is uniquely capable of generating intense, phase-stable terahertz laser pulses that can be tuned to specific frequencies. By exposing their gold-and-semiconductor metamaterial to these powerful terahertz pulses, the researchers were able to drive the system into a completely new regime of light-matter interaction. The terahertz field induced a violent, dynamical modulation of the semiconductor carriers' kinetic energy and effective mass. Remarkably, the researchers observed the effective mass of the carriers fluctuating by up to 80% of their rest mass—an exceptionally high value that provided the massive parametric modulation required to realize a true time crystal.[1][2][3]

Direct spectroscopic measurements confirmed that this intense temporal modulation successfully forced the material into the active photonic time crystal regime. The transition was marked by the coalescence of two Floquet-driven optical eigenmodes, a complex quantum phenomenon that signifies the opening of the momentum bandgap. Once inside this regime, the results were dramatic: the temporal modulation cut photon dissipation and energy loss within the material by more than 50%. By extracting energy from the terahertz driving field, the system achieved a state of emergent plasmonic gain, effectively amplifying the trapped light and proving that temporal metamaterials can overcome the steep optical losses that typically plague plasmonic devices.[2][4]

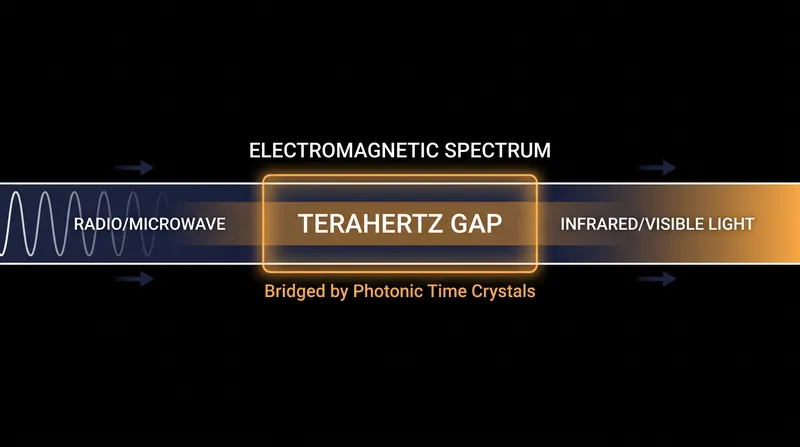

The implications of this capability extend far beyond fundamental theoretical physics, particularly because the device operates natively in the terahertz frequency range. This specific band of the electromagnetic spectrum sits squarely between the gigahertz frequencies used by conventional everyday electronics and the much higher frequencies utilized by traditional optical photonics. Historically, this "terahertz gap" has been a frustrating dead zone for technological development. Standard electronic components simply cannot switch fast enough to operate at terahertz speeds, while conventional optical devices are too bulky and inefficient to scale down to this regime.[1][3]

Photonic time crystals provide a robust, proven new platform to finally bridge this terahertz divide. By enabling technologies that combine the processing versatility and miniaturization of modern electronics with the sheer, unadulterated speed of photonics, the breakthrough opens the door to a new era of device engineering. For the global telecommunications sector, the ability to alter light on extremely short timescales could unlock highly adaptable, ultrafast communication networks. These future networks would be capable of handling exponentially larger data loads with significantly lower signal degradation, fundamentally upgrading the backbone of the global internet.[1][4][5]

In the realm of advanced computing, the realization of all-optical photonic time crystals lays the essential groundwork for ultrafast optical processors. Modern silicon-based computers are rapidly approaching their physical limits, constrained by the immense heat generated by electrical resistance and the hard speed limits of electron mobility. Optical computers, which use photons instead of electrons to process information, promise to bypass these thermal and speed limitations entirely. The ability to dynamically tune a material's optical properties in trillionths of a second provides the rapid switching mechanism necessary to make practical optical logic gates a reality.[1][2][4]

Furthermore, the researchers predict that if the emergent plasmonic amplification can be scaled up and refined, these time-varying metamaterials could serve as the foundation for an entirely new generation of highly tunable lasers. Unlike conventional lasers, which rely on static gain media and bulky physical mirrors that are susceptible to thermal damage at high power, a photonic time crystal laser would be driven dynamically. Such devices could adjust their emission color, frequency, and intensity almost instantly on demand, without the need for moving parts or slow mechanical tuning.[1][2][6]

This level of instantaneous, on-demand light control would revolutionize both industrial manufacturing and high-precision medical imaging. In medical diagnostics, tunable terahertz lasers could provide unprecedented, non-invasive imaging capabilities, allowing doctors to scan tissues with molecular precision without the ionizing radiation risks associated with X-rays. In industrial settings, the ability to rapidly shift laser profiles could lead to highly versatile cutting and scanning tools that adapt to different materials in real-time, drastically improving manufacturing efficiency and precision.[1][4]

The journey from theoretical concept to experimental reality highlights the rapid acceleration of modern metamaterials research. The fundamental concept of time crystals was first proposed by Nobel laureate Frank Wilczek in 2012, initially sparking intense debate over whether such structures could exist without violating the laws of thermodynamics. While quantum time crystals were eventually realized in isolated atomic systems, extending the concept to classical electromagnetic waves and photonics required a completely different approach. The success of the École Polytechnique and HZDR collaboration proves that time-varying systems are not just mathematical curiosities, but practical engineering platforms capable of delivering tangible technological advantages.[2][5]

Looking ahead, the research consortium is already planning the next phase of experimental development. The immediate goal is to reduce photon dissipation even further and increase the absolute number of photons that can be held and amplified within the crystal's momentum bandgap. While the current iteration requires the massive infrastructure of the TELBE facility to provide the driving terahertz field, future iterations will focus on miniaturizing the modulation source. If engineers can successfully integrate the driving mechanism directly onto a commercial chip, photonic time crystals will transition from groundbreaking laboratory experiments into ubiquitous components of our daily technological infrastructure.[1][2][6]
