Sharpest-Ever Solar Images Reveal 20km Plasma Vortices, Offering Key to Coronal Heating Mystery

The Daniel K. Inouye Solar Telescope (DKIST) in Hawaii has captured the highest-resolution images of the Sun's surface ever recorded, revealing a microscopic phenomenon that has eluded direct observation for decades. Operating near the absolute theoretical limit of its four-meter primary mirror, the observatory resolved swirling whirlpools of superheated plasma measuring as little as 20 kilometers across. To put that scale in perspective, the telescope successfully identified structures roughly the length of Manhattan on a star located 150 million kilometers away. These tiny, ubiquitous structures, scattered across the solar photosphere, provide the first direct visual proof of Kelvin-Helmholtz instabilities (KHIs) occurring on the surface of a star. The observations, published in the journal Nature, mark a watershed moment in astrophysics, transitioning decades of theoretical mathematical models into directly observable empirical data.[1][2][3]

The mechanism driving these structures is a well-understood principle of fluid dynamics known as the Kelvin-Helmholtz instability. The phenomenon occurs whenever two adjacent layers of fluid or gas move past one another at different velocities. The resulting friction, or shear, causes the boundary between the two layers to roll into spiraling, wave-like vortices. While scientists have long observed KHIs shaping cloud formations in Earth's atmosphere and driving the banded storm systems of Jupiter and Saturn, confirming their existence in the 5,500-degree Celsius magnetized plasma of the Sun required unprecedented optical precision. The new images reveal that the Sun's constantly bubbling convection cells interact with intense magnetic structures to create the exact shear conditions necessary to trigger these microscopic whirlpools.[3]

The evidence supporting this discovery is exceptionally robust, anchored by a direct comparison between the telescope's optical data and advanced magnetohydrodynamic computer simulations. The research team, led by astronomers at the National Solar Observatory and the Max Planck Institute, demonstrated that the observed 20-kilometer vortices aligned perfectly with the physics-based models. The imagery shows dozens of these vortex-like structures lining up precisely along the edges of magnetic regions, confirming that the Sun's surface is a highly turbulent environment where plasma mixing occurs continuously at microscopic scales. This alignment between simulation and observation provides high confidence that the structures are indeed KHIs, rather than optical artifacts or unrelated solar phenomena.[1][3]

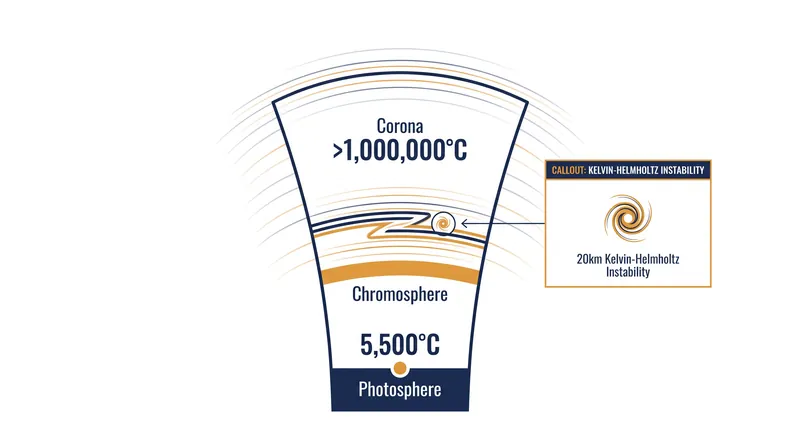

The primary claim emerging from this data offers a compelling mechanical solution to the "coronal heating problem"—one of the oldest and most stubborn mysteries in astrophysics. Since 1939, scientists have struggled to explain a massive thermodynamic contradiction: why the Sun's outer atmosphere, the corona, burns at temperatures exceeding one million degrees Celsius, while the visible surface below it is hundreds of times cooler. In a standard thermodynamic system, temperatures drop as distance from the heat source increases. The newly observed vortices act as millions of tiny engines, continuously twisting and braiding the Sun's magnetic field lines at the granular level.[2][3]

The mechanism for heat transfer relies on the sudden release of magnetic tension. When these braided magnetic lines are twisted too tightly by the swirling plasma, they inevitably snap and reconnect, releasing pent-up energy in the form of "nanoflares." Because the high-resolution images reveal that these 20-kilometer KHIs are completely ubiquitous across the solar surface, researchers propose that their collective, continuous energy dissipation is sufficient to cascade heat upward. This constant barrage of microscopic magnetic explosions acts as a distributed heating system, turning the thin plasma of the corona into a superheated furnace.[1][3]

Despite the strength of the visual evidence, the researchers maintain transparent uncertainty regarding the ultimate energy budget. While the existence of the vortices is now an established observational fact, proving that they are the dominant driver of coronal heating requires measuring the exact energy flux they transport into the upper atmosphere. The current observations confirm the mechanical trigger—the twisting of the magnetic fields—but calculating whether the resulting nanoflares generate enough total wattage to account for the entirety of the corona's heat remains an active area of investigation. Other mechanisms, such as acoustic waves traveling up from the interior, may still play a supplementary role in the overall heating process.[1][3]

Beyond solving a century-old astrophysical mystery, understanding these small-scale plasma dynamics carries immediate practical implications for Earth. The exact same magnetic twisting and tension that heats the corona also builds the immense energy behind massive solar flares and coronal mass ejections. When those larger magnetic structures rupture, they hurl vast clouds of charged particles across the solar system. By resolving the fundamental physics of magnetic braiding at the 20-kilometer scale, scientists can significantly refine the space weather models used to protect satellites, GPS networks, and terrestrial power grids from sudden, disruptive solar storms.[2]

The technological leap required to make this observation cannot be overstated. The Daniel K. Inouye Solar Telescope, perched near the summit of the Haleakalā volcano in Maui, represents two decades of international engineering. Its four-meter mirror is four times larger than those of previous solar telescopes, allowing it to gather enough light to freeze the rapid motion of the Sun's plasma in high-definition. As the observatory continues its mission, physicists expect these unprecedented views to rewrite textbooks on stellar mechanics, proving that the largest forces in the solar system are often driven by its smallest visible components.[2]
