Why Single-Channel Soldered Memory Halves Laptop Graphics Performance

The physical routing of copper traces between the processor and the memory modules dictates a laptop's graphics capabilities before the silicon is ever powered on. When engineers design a motherboard, they decide how many data lanes connect the memory to the system on a chip. That trace layout permanently caps the machine's performance.[1]

If they route a 128-bit pathway, the integrated graphics processor receives enough data to render complex workloads. If they route a 64-bit pathway to save space, the memory operates in single-channel mode. This invisible trace layout halves the maximum memory bandwidth, regardless of the processor's theoretical speed.[1]

The outcome matters because modern thin-and-light laptops rely entirely on integrated graphics processors, or iGPUs. Unlike dedicated graphics cards, an iGPU possesses no dedicated video memory of its own. It must pull every texture, frame, and video asset directly from the system's shared memory pool.[2]

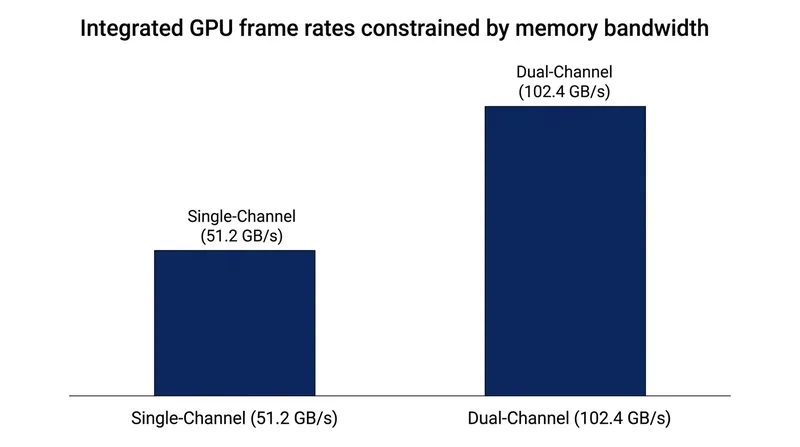

When that shared pool sits behind a single-channel bottleneck, the iGPU starves. A processor capable of pushing 60 frames per second in a 1080p render might output only 30 frames simply because the data cannot travel across the motherboard fast enough to feed the compute cores.[2]

The Illusion of Capacity

Most consumers evaluate laptop memory purely by capacity, looking for 16 or 32 gigabytes on the specification sheet. Capacity only dictates how many applications can remain open simultaneously without the system swapping data to the storage drive. It does not measure how quickly the processor can access that data.

Bandwidth, measured in gigabytes per second, determines the speed of that access. "You can have a massive warehouse of data, but if you only have a single-lane dirt road leading to it, your delivery trucks will back up," says Dr. Ian Cutress, an independent semiconductor analyst.[2]

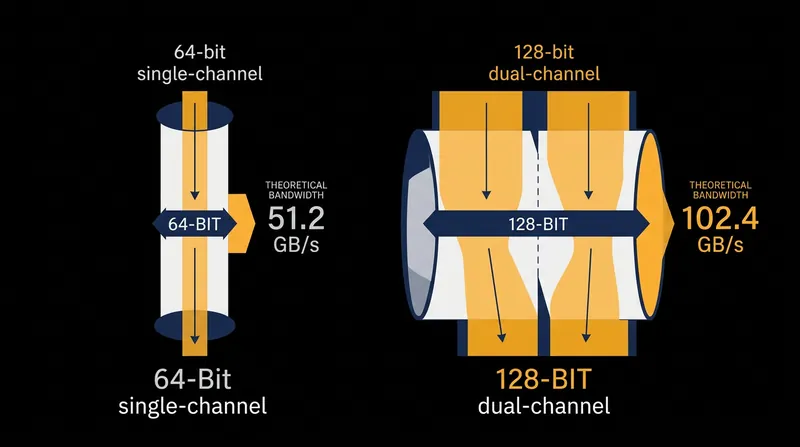

"Integrated graphics are incredibly bandwidth-hungry, and a 64-bit bus chokes them completely," Cutress notes. A standard LPDDR5-6400 module operating on a 64-bit single-channel bus delivers a maximum theoretical bandwidth of 51.2 gigabytes per second.[1][2]

When wired in a 128-bit dual-channel configuration, that identical LPDDR5-6400 memory delivers 102.4 gigabytes per second. The capacity remains exactly the same, but the processor can pull twice as much data in the same clock cycle, keeping the graphics cores fully saturated.[1]

Why Soldered Memory Hides the Layout

In traditional laptops using socketed DDR5 memory, the channel configuration is physically obvious. If a user installs one memory stick, the system runs in single-channel mode. If they install two matching sticks into the SO-DIMM slots, the system activates dual-channel mode.

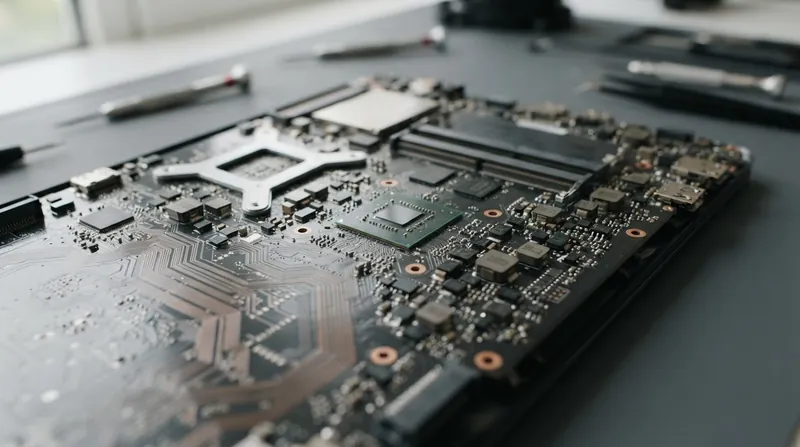

Low Power Double Data Rate, or LPDDR, abandons sockets entirely. To achieve higher frequencies and lower power consumption, LPDDR chips are soldered directly onto the motherboard within millimeters of the processor. This permanent mounting improves signal integrity but obscures the underlying wiring.[1]

A manufacturer can solder four LPDDR memory chips to a board but only route 64 active data traces to the processor to save manufacturing costs. The operating system will still report the full memory capacity, and the specification sheet will proudly advertise high-speed LPDDR5.

"The spec sheet rarely discloses the bus width for soldered configurations," reports Notebookcheck hardware reviewer Allen Ngo. "We routinely test premium laptops that perform like budget machines in graphics workloads simply because the manufacturer quietly implemented a single-channel trace layout."

Starving the Compute Cores

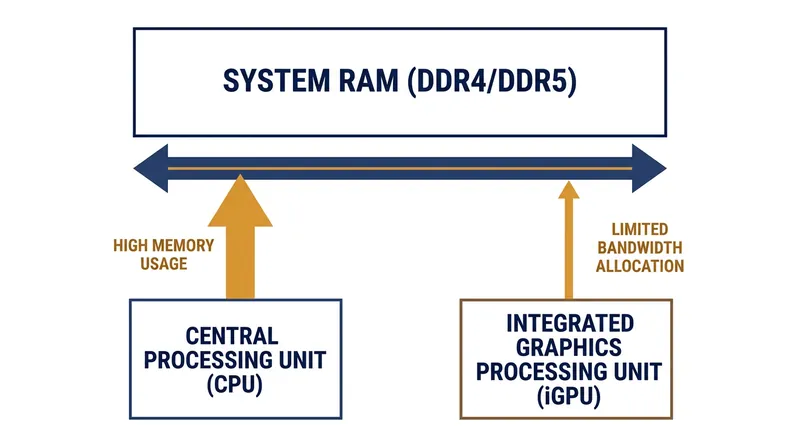

The bandwidth deficit becomes critical because the central processing unit and the integrated graphics processor must share the same data pathway. During a heavy workload, the CPU cores demand continuous data to calculate physics, background tasks, and operating system instructions.[2]

The CPU takes priority on the memory bus, claiming the bandwidth it needs first. If the system only provides 51.2 gigabytes per second through a single channel, the CPU might consume 30 gigabytes per second just to keep the application running.[2][3]

That leaves a meager 21.2 gigabytes per second for the integrated graphics processor. Modern 1080p video rendering and gaming workloads generally require a minimum sustained bandwidth of 70 to 80 gigabytes per second to prevent frame stutter and texture pop-in.[2][3]

The graphics cores sit idle, waiting for data to arrive across the congested copper traces. The silicon is fully capable of rendering the scene, but the physical motherboard layout prevents the necessary textures from reaching the processor in time for the next frame.[2]

The Engineering Trade-Offs

Motherboard designers do not restrict memory bandwidth out of malice. Routing a 128-bit memory bus requires drawing 128 individual copper traces between the processor and the memory modules. Each trace must be perfectly length-matched to prevent data signals from arriving out of sync.[1]

In ultra-thin laptops, physical space on the printed circuit board is severely limited. Routing 128 traces often requires adding additional layers to the motherboard, increasing the thickness of the logic board and raising the manufacturing cost by several dollars per unit.

"Every millimeter of board space is contested territory," explains a 2021 whitepaper from the JEDEC Solid State Technology Association. "Reducing the memory bus to 64 bits allows engineers to shrink the logic board and allocate that physical volume to a larger battery."[1]

For users who only browse the web and edit text documents, this trade-off makes sense. Standard CPU tasks rarely saturate a 51.2-gigabyte-per-second connection, meaning the user enjoys a lighter laptop and longer battery life without noticing the graphics bottleneck.[2]

Verifying the Configuration

Because manufacturers rarely list the bus width on retail packaging, buyers must rely on independent verification. Hardware teardowns and detailed technical reviews remain the only reliable methods to confirm whether a soldered LPDDR laptop utilizes a 64-bit or 128-bit pathway.

Diagnostic software can reveal the truth once the machine is powered on. Utilities like HWiNFO or CPU-Z read the memory controller's active configuration, displaying the bus width and the active channel count directly to the user.[2]

If the diagnostic tool reports a 64-bit bus on an LPDDR5 system, the machine is physically capped. No software update, driver installation, or operating system tweak can widen the copper traces printed into the fiberglass motherboard.

Buyers requiring strong integrated graphics performance for video editing, 3D modeling, or light gaming must verify the memory channel configuration before purchasing. A processor is only as fast as the data pathway feeding it, and a single-channel layout leaves half of that potential stranded.[2][3]
