The 140W TGP Limit: Why a Fully Powered RTX 4060 Outperforms a Throttled RTX 4070

A buyer purchasing a laptop with an Nvidia RTX 4070 graphics card often receives less gaming performance than someone who bought a cheaper RTX 4060 model. The determining factor is not the silicon on the motherboard, but the wattage the laptop manufacturer allows that silicon to draw.[1][3]

This power budget is called Total Graphics Power, and it dictates the actual tier hierarchy of modern mobile graphics. Because thin-and-light chassis cannot dissipate the heat of a fully powered chip, manufacturers throttle the GPU to fit the thermal constraints of the case.[1][2]

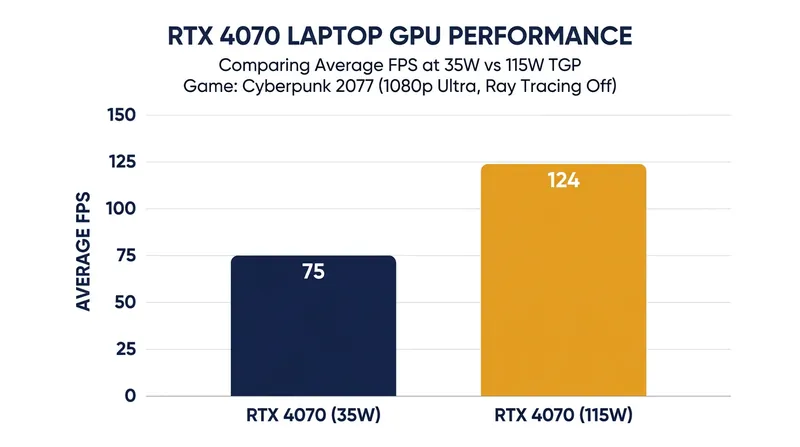

The resulting performance gap between two identical chips is massive. An RTX 4070 configured at a 35W limit delivers roughly 75 frames per second in demanding titles at 1080p, while the exact same chip given 115W pushes 124 frames per second.

That 65 percent performance delta means the name on the box no longer guarantees a specific tier of speed. A lower-tier GPU running at its maximum wattage will consistently outperform a higher-tier chip starved of power.[3]

The mechanics of mobile power scaling

Modern laptop GPUs operate on a sliding scale of power consumption. Nvidia’s RTX 4060 and RTX 4070 mobile chips share a configurable TGP range spanning from 35W at the ultrabook floor up to 115W in thick gaming chassis.[1]

When a manufacturer builds a 16-millimeter thin laptop, they must restrict the GPU to the lower end of that range, typically between 35W and 60W. If they allow the chip to draw more power, the cooling system cannot exhaust the generated heat, leading to thermal throttling and hardware damage.[2][3]

Conversely, a 26-millimeter gaming laptop with vapor chambers and multiple heavy-duty fans can sustain the full 115W load indefinitely. These thicker machines also utilize Nvidia's Dynamic Boost, which shifts an additional 15W to 25W from the processor to the GPU when thermal headroom allows, pushing the total to 140W.[1]

The RTX 4070 features 4,608 CUDA cores compared to the 3,072 cores in the RTX 4060, giving it a 50 percent advantage in raw processing potential. However, those extra cores require electricity to hit their target clock speeds.[4]

When restricted to 50W, the RTX 4070 must drastically reduce its operating frequency to stay within budget. Meanwhile, an RTX 4060 given 115W can run its fewer cores at maximum boost clocks, processing frames faster than the throttled 4070.[3]

Identifying the actual performance tier

Retailers frequently omit the TGP figure from shelf tags and product listings, advertising only the GPU model name. This omission obscures the most critical performance metric, leaving buyers to guess whether they are purchasing a 45W ultrabook chip or a 140W desktop replacement.[1][3]

To find the true capability of a machine, buyers must check the detailed specification sheet on the manufacturer's website. Nvidia mandates that laptop makers disclose the maximum graphics power and boost clock speeds for their RTX 30-series and 40-series configurations.[3]

The physical dimensions of the laptop provide a reliable secondary indicator of its power limit. A machine weighing under four pounds and measuring less than 20 millimeters thick physically cannot sustain a 140W thermal load, regardless of what the marketing materials imply.[1][2]

Buyers seeking maximum frame rates should target 16-inch or 18-inch chassis designs weighing over five pounds. These larger footprints accommodate the heat pipes and fan assemblies required to keep a 115W or 140W GPU running at peak frequencies during extended sessions.[1]

The performance scaling curve does eventually flatten out. Benchmark data shows that the RTX 4070 laptop GPU gains massive frame rate increases as power scales from 35W to 100W, but sees diminishing returns beyond 105W in most titles.

The cost of maximum wattage

Purchasing a maximum-TGP laptop introduces immediate trade-offs in portability and acoustics. Dissipating 140W of graphics heat requires aggressive fan curves, resulting in operating noise that often exceeds 50 decibels under heavy gaming loads, making headphones mandatory for most users.[2]

Battery life also suffers dramatically in high-wattage configurations. Even when not gaming, the larger cooling assemblies and high-refresh-rate panels associated with 140W laptops drain standard 90-watt-hour batteries in just a few hours of basic web browsing.[1][2]

For students and traveling professionals, a 65W or 80W configuration often represents the ideal compromise. These mid-range power limits deliver enough graphical performance for 1080p gaming while allowing the laptop to remain thin enough for daily backpack transport.[1]

The power adapter itself scales with the TGP rating. A 140W graphics configuration typically requires a massive 280W or 330W power brick, adding another two pounds to the travel weight and taking up significant space in a bag.[2]

USB-C charging standards cap out at 240W, and most current implementations only support 100W. This means a fully powered gaming laptop cannot run at maximum performance while plugged into a standard USB-C travel charger; it requires the proprietary barrel plug.[4]

Thermal throttling and longevity

Pushing a graphics card to its maximum TGP limit requires constant thermal management. If the laptop's cooling system degrades over time due to dust buildup in the heatsink fins, the GPU will hit its thermal ceiling much faster.[2]

When the silicon reaches its maximum safe operating temperature, usually around 87 degrees Celsius, it triggers thermal throttling. The system automatically slashes the TGP and clock speeds to prevent physical damage, causing severe frame rate drops and stuttering during gameplay.[2][4]

Maintaining a high-TGP laptop requires regular maintenance to preserve its performance advantage. Users must clean the intake vents and fans every few months, and eventually replace the thermal paste or liquid metal interface between the die and the heatsink.[2]

Navigating the specification sheet

When comparing two laptops at the same price point, a 140W RTX 4060 is universally a better purchase for gaming than a 60W RTX 4070. The cheaper silicon with adequate power and cooling will deliver higher average frame rates and better one-percent lows.[3]

Buyers should also look for a hardware MUX switch or Advanced Optimus in the specification list. These technologies allow the dedicated GPU to bypass the integrated graphics and connect directly to the display, adding an additional 10 percent performance boost on top of the TGP advantage.[1]

The GPU badge on the palm rest only indicates the architecture and core count. The TGP rating dictates the actual speed, making it the single most important number to verify before finalizing a laptop purchase.[1][3]
