Laptop Panels Rated at 45% NTSC Omit 38 Percent of the Standard sRGB Color Palette

Millions of budget laptop buyers have already paid for screens that physically cannot display the internet's true colors. By equipping entry-level machines with panels rated at 45% NTSC, manufacturers have locked users out of 38% of the standard web color palette. This hardware limitation turns vibrant streaming media and photographs into washed-out approximations.

The deficit stems from a mismatch between the screen's physical capabilities and the digital media it attempts to render. Modern operating systems, web browsers, and streaming platforms all assume a display can output the full standard Red Green Blue (sRGB) color space. When a panel falls short, the software must compress the intended colors into the narrower range the hardware can actually produce.

"A standard low-gamut panel may show the image clearly, but a 100% sRGB panel is better at showing the colours the image was meant to have," notes the technical documentation from Laptop LCD Screen.[4]

This compression disproportionately affects highly saturated hues, pulling deep reds toward orange and dulling vibrant greens. The display is technically functioning perfectly, but it is rendering a mathematically compressed version of the original file.

The Internet's Default Color Language

To understand what is missing, one must look at the standard that defines digital color. In 1999, the International Electrotechnical Commission formalized sRGB under the IEC 61966-2-1 standard. This specification established a universal color language for monitors, cameras, and the World Wide Web, ensuring that a photograph edited on one device looks identical on another.[1][5]

The sRGB standard defines its colors using specific coordinate points on the CIE 1931 chromaticity diagram. This diagram, created by the International Commission on Illumination, maps all the colors visible to the human eye into a horseshoe shape. The sRGB color space forms a specific triangle within that horseshoe, covering about 35% of human visual perception.[2][3]

For a display to achieve 100% sRGB coverage, its red, green, and blue sub-pixels must be capable of emitting light that exactly matches the three corners of that triangle. If the physical hardware cannot reach those exact chromaticity coordinates, the triangle shrinks. The display simply cannot generate the most saturated colors located at the edges of the standard space.

Why Manufacturers Use an Analog Standard

Instead of advertising that a budget laptop covers only a fraction of the modern web standard, manufacturers often list its color gamut as 45% NTSC. The National Television System Committee (NTSC) established its color space in 1953 for early analog color television broadcasts. It is a significantly wider color triangle than sRGB, extending much further into the deep greens.

Because the 1953 NTSC triangle is so large, covering 45% of its total area sounds like a reasonable specification to an uninformed buyer. However, the two color spaces do not perfectly overlap. The 45% NTSC gamut is not just smaller; it is shifted, meaning its available colors do not align perfectly with the sRGB triangle that digital media actually uses.

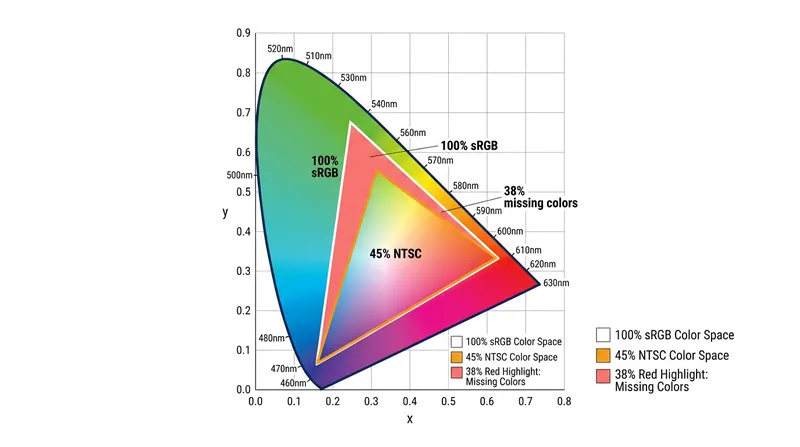

When mapped geometrically onto the CIE 1931 diagram, the area of a 45% NTSC panel translates to roughly 62% of the sRGB color space. This leaves a 38% deficit in the standard digital color palette. The panel physically lacks the sub-pixel purity required to reach the outer 38% of the colors that web designers and video editors rely on.[3]

"Manufacturers sometimes use NTSC because the number looks smaller, implying lower end, or it's a traditional labeling convention," explains testing methodology from ScreenTester.[3]

By using a percentage of an obsolete analog standard, the specification masks the fact that the display fails to meet the baseline requirements for modern digital content. The metric allows brands to avoid printing a failing grade on their specification sheets.

How Missing Colors Blunt Everyday Media

The practical impact of this 38% deficit becomes obvious during everyday media consumption. When a user watches a movie or views a photograph, the media file requests specific sRGB color values. If the requested color falls outside the laptop's 62% coverage area, the operating system's color management system must intervene.

The software performs a process called gamut mapping, taking the unrenderable color and shifting it to the closest hue the panel can actually produce. Because the 45% NTSC gamut is particularly weak in the red and green spectrums, a vibrant crimson sports car will be rendered as a muted brick red. Lush forest greens are similarly compressed into flat, lifeless olive tones.

"Colours on a 45% NTSC/62.5% sRGB coverage panel will look washed out due to the more limited colour gamut coverage," notes a hardware analyst on the GamingLaptops forum.[6]

"For example a red on a 100% sRGB coverage panel might look more like orange if the same image was displayed on a 45% NTSC coverage panel," the analyst explains.[6]

This compression flattens the overall contrast and vibrancy of the image, leading to the dull look commonly associated with cheap laptops. No amount of software calibration or brightness adjustment can force the hardware to display a color it physically cannot generate. The limitation is permanently baked into the screen's color filters.

The Hardware Economics of Budget Panels

The persistence of 45% NTSC panels in the market comes down to strict manufacturing economics. Producing a liquid crystal display that hits 100% sRGB requires higher-quality color filters and more precise LED backlighting. These premium components increase the bill of materials, which cuts into the tight profit margins of entry-level machines.

To keep retail prices below $600, manufacturers source cheaper Twisted Nematic or basic In-Plane Switching panels that use standard white LED backlights. These budget panels are mass-produced by the millions, specifically designed to meet the 45% NTSC target as a baseline for basic office productivity and text-based tasks.

For coding, spreadsheet management, and reading text, the 38% color deficit is entirely irrelevant. Black text on a white background requires no color saturation, and basic interface elements remain perfectly legible. The hardware trade-off makes economic sense for enterprise fleets and educational deployments where color accuracy carries no functional value.

Identifying True Color Capabilities

For consumers who prioritize media consumption or light creative work, identifying a laptop's true color capability requires looking past the primary marketing materials. Unless a laptop explicitly advertises "100% sRGB" or "100% DCI-P3" on its specification sheet, it almost certainly uses a 45% NTSC budget panel. Manufacturers rarely hide premium screen specifications.

Some mid-range laptops offer 100% sRGB panels as an optional upgrade during the configuration process, often for a modest premium of $50 to $100. This upgrade replaces the standard screen with a higher-quality panel that utilizes superior color filters. For anyone watching streaming video or editing photographs, this hardware upgrade provides the most noticeable improvement in daily use.

External monitors provide another solution for users stuck with a 45% NTSC laptop screen. Because the color limitation exists entirely within the laptop's built-in LCD panel, connecting the machine to a 100% sRGB desktop monitor bypasses the problem entirely. The laptop's graphics processor is fully capable of outputting the complete color space to an external display.

The Shift Toward Wider Gamuts

While budget laptops remain anchored to the 45% NTSC standard, the broader display industry is rapidly moving past sRGB entirely. Premium laptops and modern smartphones now routinely target 100% of the DCI-P3 color space, a standard originally developed for digital cinema projection. DCI-P3 encompasses roughly 25% more color volume than sRGB.

When a user accustomed to a 100% DCI-P3 smartphone screen views the same photograph on a 45% NTSC laptop, the visual downgrade is jarring. The smartphone is displaying over twice the total color volume of the budget laptop. This massive disparity highlights why understanding physical gamut limitations is crucial for modern hardware purchasing decisions.

Ultimately, the 45% NTSC specification serves as a reliable indicator of a machine built for utility rather than visual fidelity. By recognizing that this rating translates to a 38% deficit in standard web colors, buyers can accurately weigh the cost savings against the permanent loss of media vibrancy. The internet is broadcast in full color, but the hardware dictates how much of it actually reaches the eye.
