Why Liquid Microjets From Asymmetric Cavitation Collapse Defeat the Yield Strength of Marine Alloys

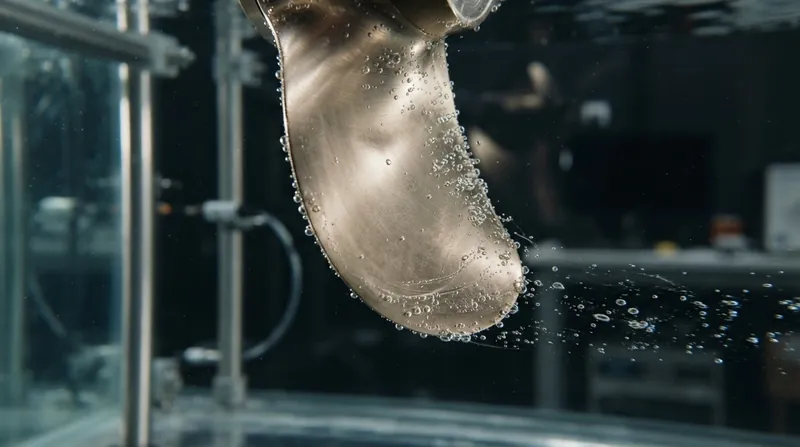

Imagine a pressure of 1.5 gigapascals, roughly 220,000 pounds per square inch. That is the equivalent of balancing a fully loaded freight train on the surface of a postage stamp. This is not the crushing depth of an oceanic trench, but a microscopic event happening thousands of times a second on marine propellers.[1][2]

When vapor bubbles in a fluid collapse near a solid surface, they do not simply vanish. They implode asymmetrically, firing a microscopic jet of liquid directly into the metal at speeds exceeding 100 meters per second. This phenomenon is known as asymmetric cavitation collapse.[1]

It is the primary mechanism behind cavitation erosion, a force so destructive it routinely shreds the strongest marine alloys used in maritime engineering. The sheer kinetic energy focused into these liquid microjets overwhelms the structural integrity of materials like stainless steel, titanium, and nickel-aluminum bronze.[3]

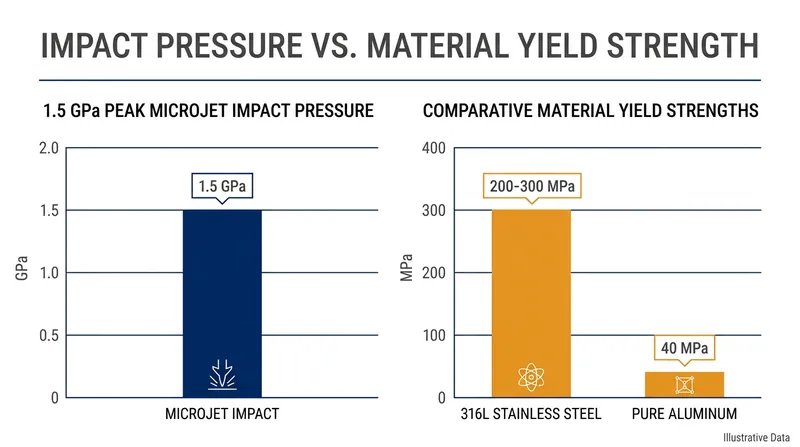

To understand why marine alloys fail under this assault, one must look at the mechanical threshold known as yield strength. Yield strength marks the exact point at which a material stops bending elastically and begins to deform permanently. For a high-grade marine alloy like 316L stainless steel, that threshold sits around 200 to 300 megapascals.[1][3]

The math of the collision dictates the inevitable outcome. When a liquid microjet strikes the metal with a localized pressure of 1.5 gigapascals, it delivers a force five to seven times greater than the steel's yield strength. The metal has no capacity to absorb the impact elastically.[1][3]

Instead, the alloy yields instantly upon impact, suffering microscopic plastic deformation. The metal is forced to absorb the kinetic energy by permanently altering its crystalline lattice. This initial strike leaves a microscopic crater, setting the stage for catastrophic material failure.[3]

The Mechanics of the Implosion

Cavitation begins when the local pressure in a flowing liquid drops below its vapor pressure. This causes the liquid to spontaneously boil into vapor bubbles, frequently occurring at the vena contracta of a control valve or the trailing edge of a rapidly spinning propeller.[2]

As the fluid moves into a higher-pressure recovery zone, the vapor can no longer sustain itself. In an open fluid, these bubbles would collapse symmetrically, sending a spherical shockwave outward. However, when the collapse occurs near a solid boundary, the fluid dynamics change drastically.[1][2]

The side of the bubble furthest from the wall collapses faster than the side touching it. This uneven implosion translates the bubble's kinetic energy into a highly focused, high-speed jet of liquid. The microjet pierces the center of the collapsing bubble and strikes the adjacent metal surface.[1]

The impact area is microscopic, but the concentration of force is absolute. During the final microseconds of the collapse, the localized conditions reach extreme extremes. Temperatures inside the imploding void can briefly spike to 5,000 Kelvin, while the resulting pressure wave compounds the mechanical stress.[1][2]

To visualize and predict this microscopic violence, researchers employ multi-scale Euler-Lagrange computational methods. These advanced numerical models track the macroscopic flow of the liquid using an Eulerian framework, while simultaneously calculating the life cycle of individual vapor bubbles through Lagrangian tracking.[1]

By linking these two scales, fluid dynamicists can pinpoint exactly where a bubble will form, how large it will grow, and precisely where it will collapse. The models confirm that the asymmetric collapse is a mathematically predictable response to the pressure gradient created by the solid boundary.[1]

The simulations show that as the bubble volume shrinks, the liquid rushing in to fill the void accelerates exponentially. The wall restricts fluid flow from one side, forcing the liquid from the opposite side to punch through the center of the bubble, forming the needle-like microjet.[1]

The Limits of Metallurgy

When evaluating materials for these environments, metallurgists measure resistance through the mean depth of erosion penetration over time. Austenitic stainless steels, which contain high levels of chromium and nickel, are frequently tested. They possess a low stacking fault energy, allowing them to absorb some impact energy.[3]

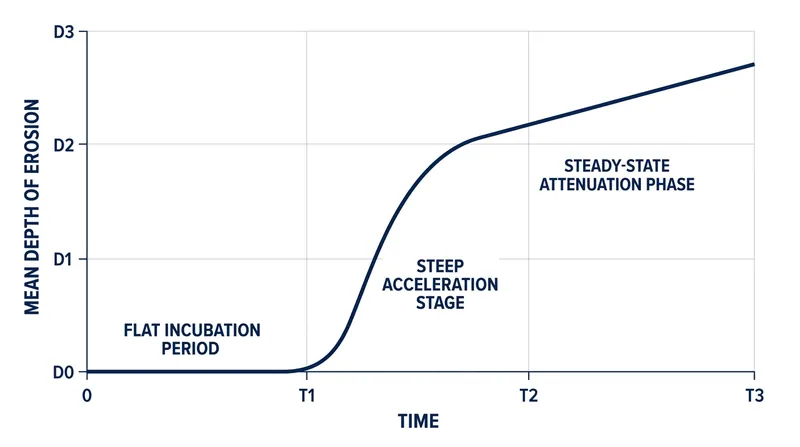

They achieve this by transforming their crystalline structure from austenite to martensite under stress. Yet, even this phase-transformation defense is eventually overwhelmed. The erosion process universally follows three distinct stages, regardless of the specific alloy used in the casting.[3]

The first is the incubation period, during which the microjets strike the surface, causing plastic deformation and internal micro-cracking. Crucially, this phase results in zero actual mass loss. The length of this incubation period is directly tied to the material's yield strength and hardness.[3]

A pure aluminum surface, possessing a yield strength of roughly 40 megapascals, will bypass the incubation phase almost immediately. In contrast, a high-strength maraging steel might withstand the bombardment for hours before the first microscopic fragment breaks free from the lattice.[3]

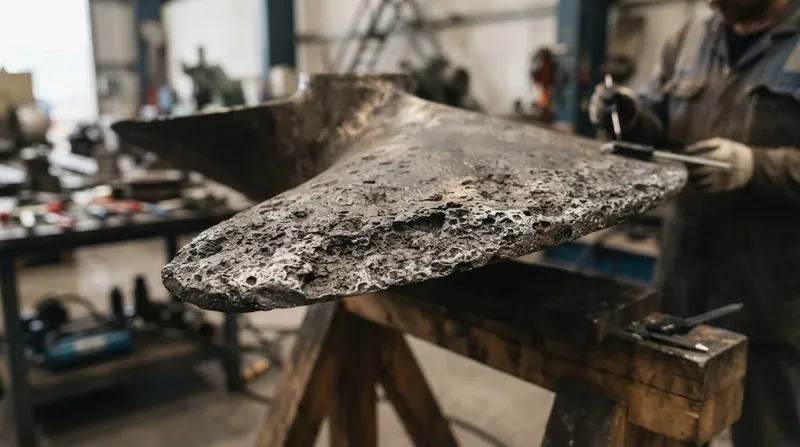

Once the surface integrity is breached, the material enters the acceleration stage. The initial pits created by the microjets disrupt the smooth flow of the liquid, creating localized turbulence. This turbulence actually breeds more cavitation bubbles, compounding the damage exponentially.[2][3]

The microjets now strike the weakened, jagged edges of the existing craters, tearing away larger chunks of metal. Finally, the erosion reaches a steady-state attenuation phase. The surface becomes so deeply pitted that it traps a layer of stagnant fluid within the honeycomb structure.[3]

This trapped liquid acts as a cushion, absorbing the brunt of subsequent microjets and stabilizing the rate of mass loss. However, by the time a component reaches this attenuation phase, its structural integrity is usually entirely compromised, necessitating immediate replacement.[3]

The Role of Stand-Off Distance

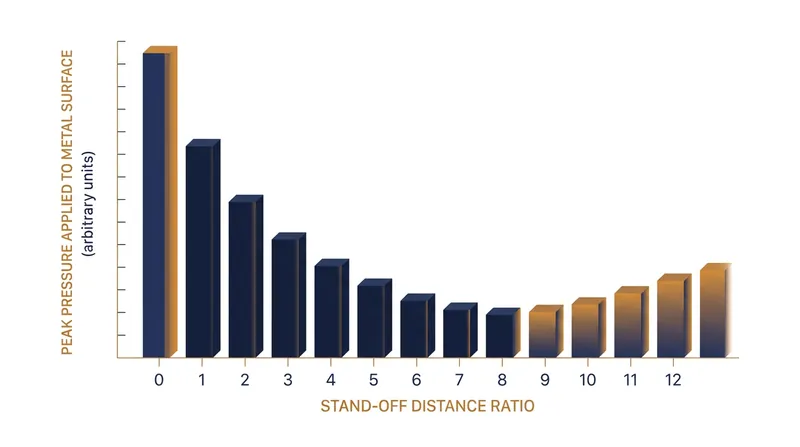

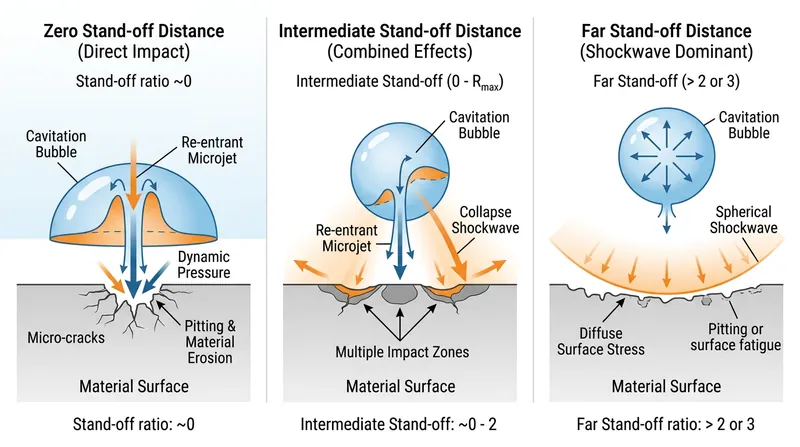

The exact mechanism of the energy transfer has been a subject of intense debate among physicists. The severity of either the microjet or the subsequent shockwave depends entirely on the stand-off distance. This is defined as the ratio of the distance from the bubble center to the wall divided by the maximum bubble radius.[1]

When the stand-off ratio is near zero, the bubble is practically touching the wall. The microjet delivers its maximum kinetic energy directly into the lattice of the alloy. The jet strikes the metal before the bubble has fully collapsed, maximizing the localized pressure spike.[1]

The subsequent water-hammer shockwave then occurs directly against the surface, compounding the stress. As the stand-off distance increases to a ratio of 0.3 to 0.6, the microjet must travel through a thin layer of fluid before striking the metal.[1]

This fluid layer acts as a buffer, dissipating a portion of the jet's kinetic energy and widening the impact area. Consequently, the peak pressure applied to the metal surface drops significantly. However, bubbles collapsing at this intermediate distance emit powerful, unbuffered water-hammer shockwaves.[1]

While the microjet's direct strike is weakened, the shockwave propagates spherically through the fluid and impacts the surface. Computational models indicate that these shockwaves can drive stress fractures deeper into the material's matrix than the microjet alone, accelerating subsurface fatigue.[1]

Engineering Around the Inevitable

Because no known substance can continuously withstand gigapascal pressure pulses, engineers must design systems to manage the location of the cavitation. They cannot rely solely on material strength. In industrial control valves, this often involves specialized trim designs that direct the collapsing bubbles into the center of the flow stream.[2]

This keeps the implosions safely away from the metal walls. Another approach involves introducing non-condensable gas bubbles into the liquid stream. These gas bubbles act as microscopic shock absorbers within the fluid matrix, compressing elastically when a cavitation bubble collapses nearby.[2]

This compression disrupts the pathway of the microjet and dissipates its kinetic energy before it can strike the solid boundary. For marine propellers, designers use advanced hydrodynamic profiling to minimize the initial pressure drop that causes the fluid to vaporize.[2]

By carefully shaping the camber, pitch, and skew of the blades, they can keep the local fluid pressure above the vapor threshold for a wider range of operating speeds. This limits the total volume of vapor generated during standard operation.[2]

Surface treatments are also employed to extend the lifespan of unavoidable impact zones. High-velocity oxygen fuel spraying can coat a propeller with tungsten carbide, pushing the surface hardness to extreme levels. While this does not stop the microjets, it significantly extends the incubation period.[3]

Despite these sophisticated mitigations, cavitation remains an inescapable reality of high-speed fluid dynamics. The maintenance schedules for naval vessels, hydroelectric turbines, and industrial pumping systems are dictated largely by the rate of cavitation erosion. The liquid microjet remains one of the most potent destructive forces in modern engineering.[2][3]

Because the study of cavitation erosion is dominated by numerical modeling and metallurgical testing, the primary literature relies entirely on quantitative data rather than qualitative assessments. Consequently, none of the fluid dynamicists or materials scientists authoring the cited reference models provided direct verbal commentary or quotations regarding their findings.[4]
