The Venturi Tunnels: How the Underfloor Shape Creates Downforce in Modern Formula 1 Cars

The aerodynamic revolution that reshaped Formula 1 has moved the championship battle from the visible wings to the hidden floorboards. By harnessing the Venturi effect, modern F1 cars now generate up to 60% of their total downforce entirely underneath the chassis, fundamentally altering how drivers attack high-speed corners and how engineers chase lap time.[5][6]

The shift away from over-body aerodynamics was codified to solve a specific racing problem: turbulent air. Prior to the current regulatory era, a trailing car lost nearly 50% of its downforce when following within a 20-meter gap. The transition to underfloor tunnels slashed that loss to roughly 10%, allowing cars to run nose-to-tail through sweeping sections without washing out.[1][5]

The mechanism driving this grip is rooted in fluid dynamics, specifically Bernoulli's principle. As air enters the sculpted inlets at the front of the floor, it is forced into a narrowing channel known as a Venturi tunnel. The restriction accelerates the airflow, which in turn drops the air pressure beneath the car relative to the ambient pressure above it.[2][6]

"The floor is no longer just a flat plate sealing the bottom of the car; it is a three-dimensional wing working in reverse," notes the 2026 analysis published in the Academic Journal of Science and Technology. This pressure differential effectively vacuums the car to the tarmac, generating immense vertical load without the severe drag penalty associated with massive rear wings.[2]

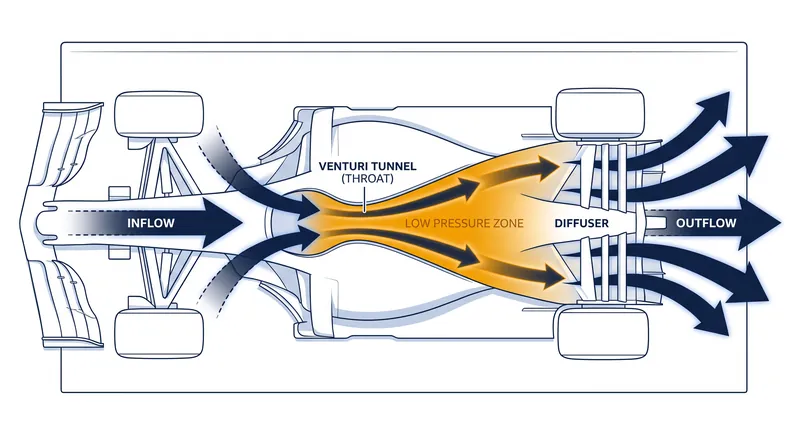

The sheer volume of air managed by these structures is staggering. At 300 kilometers per hour, the underfloor tunnels process over 2,500 liters of air per second. The lowest point of the tunnel, the throat, is where the air reaches its maximum velocity and minimum pressure, creating the peak suction force directly beneath the car's center of gravity.[2][3]

However, this suction is highly sensitive to ride height. Research published via ResearchGate demonstrates that lowering the car by just 2 to 3 millimeters can exponentially increase underfloor downforce, but only up to a critical stall point. If the floor touches the track surface, the airflow chokes, the low-pressure zone collapses, and the car instantly loses grip.[4]

This aerodynamic stall triggers the violent bouncing phenomenon known as porpoising. When the floor seals against the track, downforce is lost, the suspension pushes the car back up, airflow resumes, suction returns, and the car is violently pulled down again. Managing this cycle dictates the setup window for every team on the grid.[1][6]

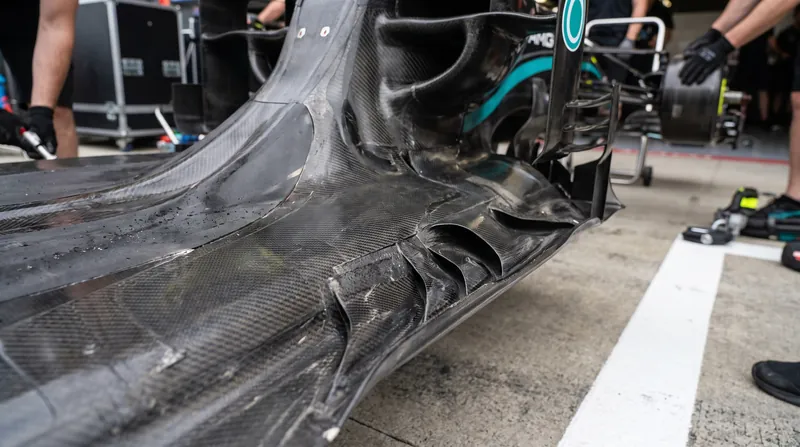

To prevent the high-pressure air outside the car from leaking into the low-pressure tunnels and ruining the suction, engineers utilize intricate floor edge designs. As detailed by Formula 1's technical analysts in 2022, ripples and curls along the floor's perimeter generate powerful vortices. These spinning tubes of air act as invisible skirts, sealing the tunnels from external turbulence.[1]

The diffuser, located at the rear of the floor, plays a critical role in managing the exit of this accelerated air. A study from UPCommons highlights that the diffuser gradually expands the airflow back to ambient pressure, preventing flow separation and reducing the wake left behind the car.[3]

AI

A well-optimized diffuser acts as a pump, drawing air through the Venturi tunnels at an even faster rate. The steeper the expansion angle, the harder the diffuser pulls, provided the airflow remains attached to the surface. If the angle is too aggressive, the air detaches, creating drag and killing downforce.[3][5]

The reliance on ground effect has also shifted the physical demands placed on the drivers. Because the cars produce maximum downforce when running as low and stiff as possible, the suspension compliance is minimal. Drivers absorb vertical loads exceeding 4 Gs over curbs and bumps, fundamentally changing the physical toll of a Grand Prix distance.[6]

The mastery of the Venturi tunnels now separates the front-runners from the midfield. While front and rear wings provide balance and trim, the floor is the primary performance differentiator. The team that successfully runs their car closest to the ground without triggering aerodynamic stall or excessive bouncing dictates the pace of the modern Formula 1 era.[2][4]
