Negative Differential Pressure Drives One-Liter Flushes Through Slopeless Conduits to Cut Cruise Ship Blackwater by 85%

As maritime regulators enforce strict zero-discharge compliance mandates across coastal zones in 2026, the cruise industry has entirely abandoned traditional gravity-fed plumbing. The shift relies on negative differential pressure systems that transport human waste using air rather than water. By replacing the standard flush with a high-velocity vacuum mechanism, modern vessels have fundamentally altered their fluid management strategies.

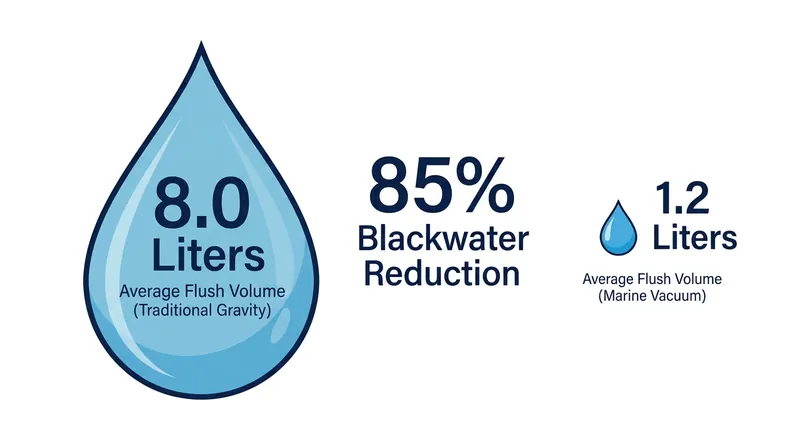

The core of this transformation is the marine vacuum toilet, a technology that reduces per-flush water consumption by up to 85 percent. Traditional gravity toilets require between six and nine liters of freshwater to clear the bowl and push waste down a sloped pipe. In contrast, vacuum systems manufactured by marine engineering firms use as little as 0.5 to 1.2 liters per flush.

This massive reduction in freshwater demand directly impacts a ship's operational endurance. A standard 5,000-passenger mega-ship generates up to 1,000 cubic meters of total wastewater daily. By cutting the toilet flush volume to a fraction of a liter, naval architects can shrink the required blackwater holding tanks, freeing up valuable hull space for other technical systems.[1]

The technology also allows vessels to remain in zero-discharge zones for significantly longer periods. Without the rapid accumulation of blackwater associated with gravity flushing, a ship can operate for days without needing to pump out its holding tanks or run its onboard membrane bioreactors at maximum capacity.[2]

The Mechanics of Negative Pressure

The system operates on a closed-loop vacuum paradigm maintained by a central generation unit. Instead of relying on the weight of water to move effluent, the piping network is kept under constant negative pressure by heavy-duty vacuum pumps located deep in the ship's engineering spaces.

When a passenger presses the flush button, a pneumatic or electronic flush control unit actuates a sealed ball valve at the base of the ceramic bowl. Because the cabin is at normal atmospheric pressure and the piping is under a vacuum, the pressure differential instantly forces the bowl's contents into the pipe.

The waste is pulled through the network at extremely high velocities, typically traveling 10 to 20 meters with a single flush. A small injection of freshwater—roughly 0.4 to 1.2 liters—rinses the bowl and maintains the hygienic seal on the valve, while the air itself acts as the primary transport medium.

During each flush, the system also extracts up to 60 liters of ambient air from the bathroom cabin. This rapid air extraction removes aerosolized bacteria, viruses, and odors directly from the bowl, making the vacuum toilet significantly more hygienic than a standard residential unit.

Eliminating the Gravity Constraint

The reliance on differential pressure rather than gravity fundamentally changes how naval architects design cruise ship interiors. Traditional plumbing requires a continuous downward slope—typically a one-to-two percent grade—to ensure waste flows reliably to the collection tank.

Vacuum systems utilize slopeless conduits, meaning the narrow-diameter pipes can be routed horizontally or even vertically upward to bypass structural bulkheads. This flexibility allows engineers to place bathrooms anywhere on the vessel, regardless of where the central blackwater collection units are located.

Because the waste is actively pulled rather than passively draining, the pipe diameters are substantially smaller than those used in terrestrial buildings. The reduced pipe size saves significant weight and material costs, which translates to better fuel efficiency for the vessel over its operational lifespan.

The system also prevents catastrophic leaks within the passenger decks. If a vacuum pipe develops a crack or a failed seal, the negative pressure draws ambient air into the pipe rather than allowing raw blackwater to leak out into the ship's interior.

The Blackwater Volume Equation

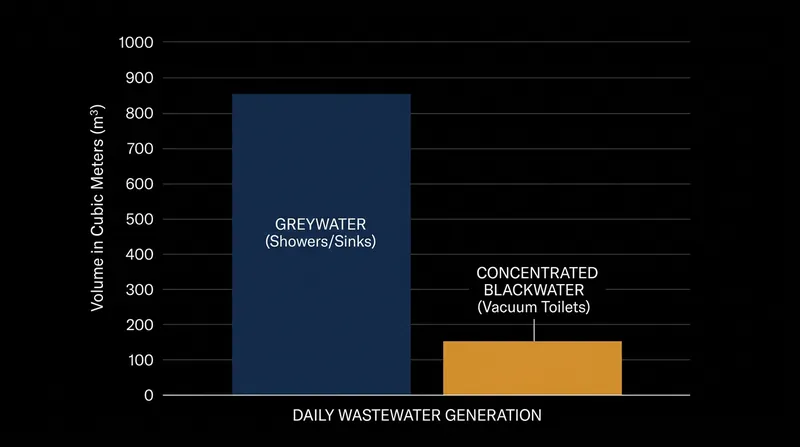

Wastewater on a cruise ship is strictly segregated into two streams: greywater from sinks, showers, and galleys, and blackwater from toilets and urinals. Because blackwater contains high concentrations of pathogens and organic solids, it requires intensive biological treatment before it can be discharged.[1]

By limiting the flush volume to roughly one liter, the vacuum system ensures that the blackwater stream remains highly concentrated. This concentration makes the subsequent treatment process in the ship's biological reactors significantly more efficient, as the bacteria in the aeration chamber do not have to process millions of liters of unnecessary dilution water.[1]

The separation of these streams also opens the door for onboard water recycling. With the blackwater safely isolated in the vacuum network, the much larger volume of greywater can be treated and reused for technical purposes, such as deck washing or cooling machinery, further reducing the ship's freshwater consumption.

According to marine engineering data, the combination of vacuum toilets and strict source separation reduces the total volume of sewage requiring advanced biological treatment by up to 80 percent compared to older vessels that mixed all wastewater into a single gravity-fed holding tank.

Maintenance and the Macerator Reality

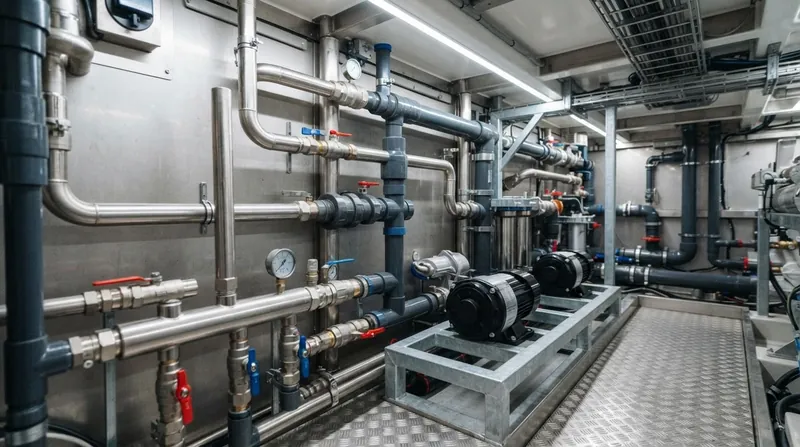

Despite their efficiency, vacuum sanitation networks are highly sensitive to foreign objects. The system relies on inline macerator pumps that pulverize organic waste and toilet paper before it reaches the main holding tanks.

If a passenger flushes a wet wipe, a sanitary pad, or heavy plastics, the macerator blades can jam, stalling the vacuum generator and causing a pressure drop across an entire deck zone. Cruise operators frequently deploy specialized descaling teams to maintain the network while the ship remains in service.

Over time, uric acid and hard water minerals calcify on the interior walls of the narrow vacuum pipes, gradually restricting the bore diameter. Maintenance crews combat this by injecting controlled doses of citric acid or specialized descaling chemicals into the network every few days to dissolve the buildup.

Early warning signs of a restricted pipe include slow-flushing toilets, gurgling noises in the cabin, or frequent low-vacuum alarms on the bridge. By addressing these symptoms proactively, engineers prevent isolated blockages from cascading into a system-wide failure during a voyage.

Zero-Discharge Compliance

The ultimate driver behind the universal adoption of vacuum toilets is the tightening web of international maritime law. Under global regulations, vessels are strictly prohibited from discharging untreated blackwater within 12 nautical miles of land, and treated effluent faces increasingly rigid testing standards.[2]

In designated special areas like the Baltic Sea, the discharge of even treated blackwater is heavily restricted, forcing ships to hold their waste until they reach a port reception facility. The 85 percent reduction in flush water provided by vacuum systems is the only mechanical pathway that makes these extended holding periods physically possible.[2]

As the cruise industry scales up to vessels carrying over 7,000 passengers, the mathematics of wastewater management dictate that gravity plumbing is obsolete. "We are constantly developing our products to support our customers in complying with environmental regulations and addressing the needs of their end users," says Lauri Aalto, Product Line Manager at Evac Group.

Negative differential pressure is no longer just a water-saving feature. It is the foundational technology that allows modern mega-ships to operate legally in the world's most protected waters, ensuring that the sheer scale of human travel does not overwhelm fragile marine ecosystems.[2]
