Huawei Patents Ternary Logic Chip, Signaling Major Shift from Binary Computing Paradigm

The short version: Huawei has patented and begun detailing a "ternary" logic chip—a processor that computes using three states instead of the traditional binary two. By moving beyond the 1s and 0s that have defined computing for 80 years, the Chinese tech giant claims it can cut power consumption by 60% and reduce transistor counts by 40%.[1]

But before declaring the death of binary computing, it is crucial to separate the architectural blueprint from the silicon reality. What Huawei has produced is a comprehensive patent and technical framework, not a commercially shipping processor. The announcement is a signal of intent, revealing how companies cut off from the bleeding edge of traditional manufacturing are attempting to rewrite the rules of hardware entirely.[4]

To understand the breakthrough, one must look at the mechanism of modern computation. For decades, chips have relied on binary logic: a transistor is either off (0) or on (1). Every piece of digital information, from text messages to complex AI models, is encoded in these two states.[2]

Ternary logic introduces a third state. In Huawei's patented design, the system uses a balanced ternary approach: -1, 0, and +1. At the hardware level, this is achieved through three-threshold transistors that map input signals to specific voltage layers—for example, 0 volts for the 0 state, 1.65 volts for +1, and 3.3 volts for -1.[1]

This seemingly simple addition of a third state drastically increases information density. In a binary system, representing the decimal number 128 requires eight bits. In a ternary system, it requires only five "trits." Because each logic gate carries more information, the chip requires fewer physical pathways to process the same amount of data.[2]

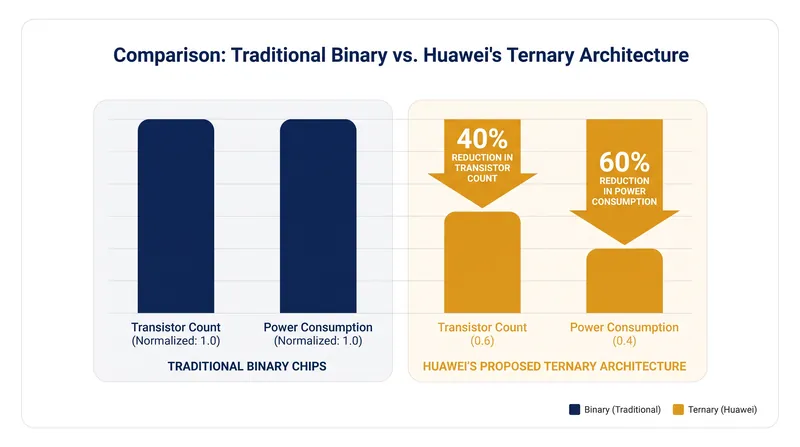

Huawei's documentation claims that this architecture allows a chip to operate with 40% fewer transistors than a binary equivalent. Fewer transistors mean less physical distance for signals to travel and less resistance, which translates directly to the company's claim of a 60% reduction in power consumption and a 20% increase in processing speed.[3]

The timing of this architectural pivot is not a coincidence. Advanced chip manufacturing is rapidly approaching physical limits, making it increasingly difficult to shrink transistors further without severe energy leakage. Furthermore, US export controls have restricted Huawei's access to extreme ultraviolet (EUV) lithography machines, the critical tools needed to manufacture sub-5-nanometer binary chips.[1][4]

Unable to rely on brute-force node shrinking, Huawei is seeking efficiency gains through fundamental architectural changes. If a 7-nanometer ternary chip can process information as efficiently as a 3-nanometer binary chip, the manufacturing bottleneck becomes far less relevant.[2]

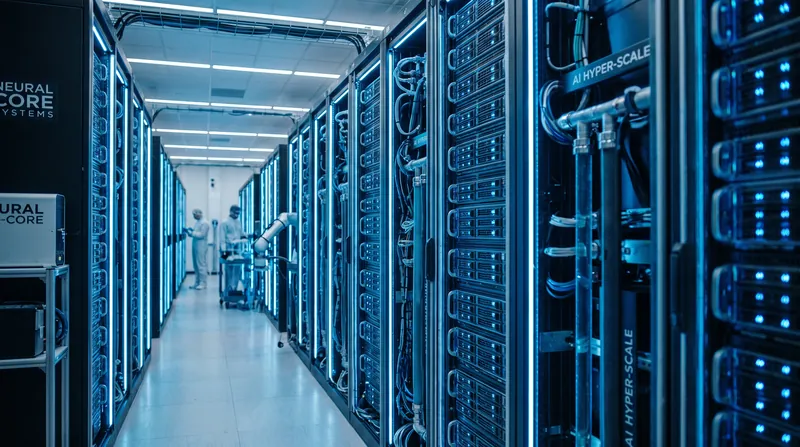

The primary target for this technology is artificial intelligence. Training large language models requires tens of thousands of GPUs and consumes massive amounts of electricity. A chip that inherently slashes power consumption by more than half could fundamentally alter the economics of AI data centers, allowing for faster training times at a fraction of the energy cost.[1][2]

However, the history of ternary computing offers a cautionary tale. The concept is not new; the Soviet Union successfully built a balanced ternary computer called the Setun in 1958. While the Setun was highly efficient, it ultimately failed to scale because the entire global technology ecosystem—from compilers to software applications—was standardizing on binary.[3][4]

This is the primary uncertainty surrounding Huawei's patent. Building a ternary chip is only the first step. To make it useful, the entire computing stack must be rewritten. Logic gates, adders, memory controllers, and operating systems must all be redesigned to handle three states instead of two.

Huawei is uniquely positioned to attempt this, given its control over its own HarmonyOS operating system and Ascend AI software stack. But bridging the gap between a patented hardware concept and a fully functioning, commercially viable ecosystem will require years of development and massive capital investment. Until independent benchmarks of physical ternary silicon are available, the binary paradigm remains safely on its throne.[3]
