How the Ancient Engineering System at Dahshur Rewrites Our Understanding of Pyramid Construction

For over a century, archaeologists assumed the two massive stone lines cutting across the desert southwest of Egypt's Red Pyramid were simply transport ramps. It made intuitive sense: to build a mountain of limestone, you need roads to haul the rock. Yet, a closer examination of the site's hydrology reveals we may have been looking at the wrong answer all along. The Dahshur plateau today is a bone-dry expanse of sand and rock, making the idea of a massive water-management system seem almost absurd. But look closer at the topography, and the landscape starts to tell a different story of a wetter, wilder ancient Egypt.[4]

Built around 2590 BCE during the reign of Pharaoh Sneferu, the Red Pyramid is widely recognized as Egypt's first successful smooth-sided pyramid. The sheer volume of material required for its construction was staggering, and the logistical puzzle of moving millions of tons of stone has dominated Egyptology for decades. The two linear structures stretching across Wadi Dahshur, each measuring between 600 and 700 meters long, were naturally pegged as the infrastructure needed to solve that puzzle.[1][2]

But the transport ramp theory has always carried uncomfortable anomalies. Ramps designed for hauling heavy stone sleds need to be as straight and smooth as possible. The western structure at Dahshur, however, features a peculiar zigzag pattern that would actively hinder the dragging of massive limestone blocks. Furthermore, the embankments are anchored deeply into the valley flanks, effectively blocking the natural drainage route of the wadi. If these were merely roads, their placement was an engineering blunder that invited washouts during seasonal storms.[1][4]

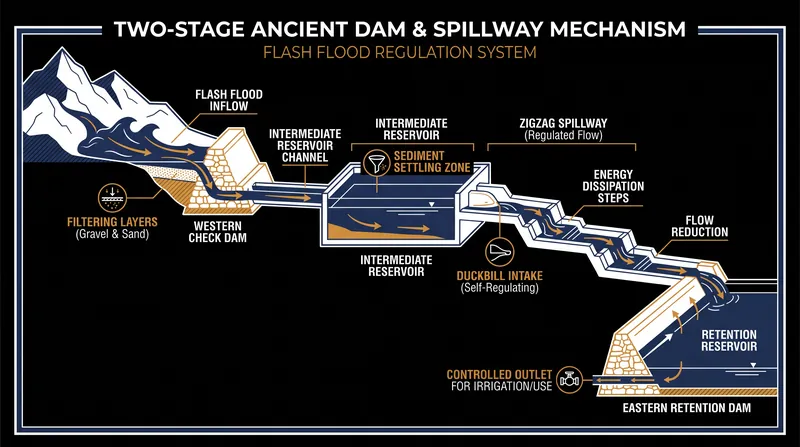

When viewed through the lens of fluid dynamics rather than stone transport, those anomalies suddenly transform into brilliant engineering solutions. Hydrological modeling of the Wadi Dahshur catchment area suggests these structures are actually a sophisticated, two-stage hydraulic dam system. In this model, the eastern structure functioned as a main water-retention dam, while the western structure acted as a check dam.[1][4]

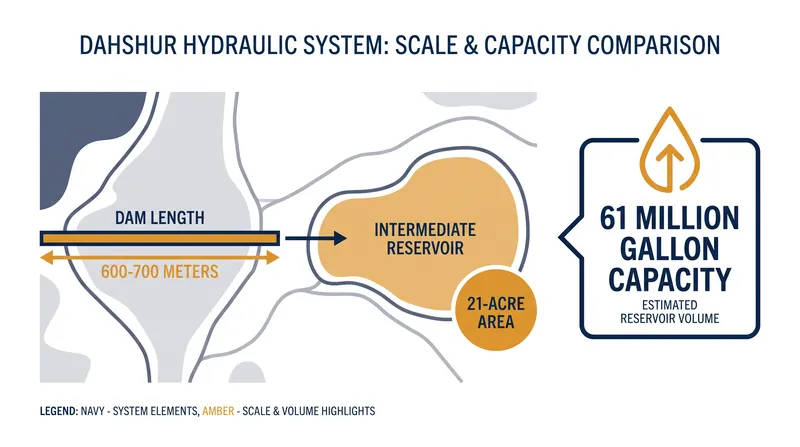

The scale of this proposed system is breathtaking. The space between the two dams covers approximately 21 acres and would have served as an intermediate basin. This reservoir could have temporarily held an estimated 61 million gallons of water, slowing the violent force of desert flash floods and allowing heavy sediment to settle before the cleaner water moved downstream.[1][4]

The most striking piece of evidence for the hydraulic theory lies in that anomalous zigzag shape on the western structure. In modern dam engineering, this configuration is known as a "duckbill" spillway. By folding a long crest into a narrow footprint, a duckbill spillway can release more than twice as much water as a straight wall of the same width. This design prevents floodwater from pouring uncontrollably over the top of the dam, a catastrophic failure mode that ancient engineers knew all too well.[1][4]

Just 12 miles east of Dahshur lie the ruins of Sadd el-Kafara, widely regarded as one of the world's oldest large dams. Built during the same broad period, Sadd el-Kafara was ultimately destroyed by a massive flash flood. Researchers have long hypothesized that its failure was due to the lack of an adequate spillway. The presence of an advanced triangular spillway at Dahshur suggests that Sneferu's engineers learned from the Sadd el-Kafara disaster and adapted their designs to handle extreme water volumes safely.[1][3]

Controlling the water was only half the battle; harnessing it was the other. The hydraulic system wasn't just about protecting the construction site from washouts. A diversion channel running remarkably close to the western side of the Red Pyramid indicates that the trapped water was put to work. While it may not have been deep enough to sail large barges directly from the Nile, a controlled water supply would have been invaluable for mixing the massive quantities of mortar required for the pyramid, sustaining the workforce, and potentially operating water-assisted sleds or hydraulic lifts.[1][4]

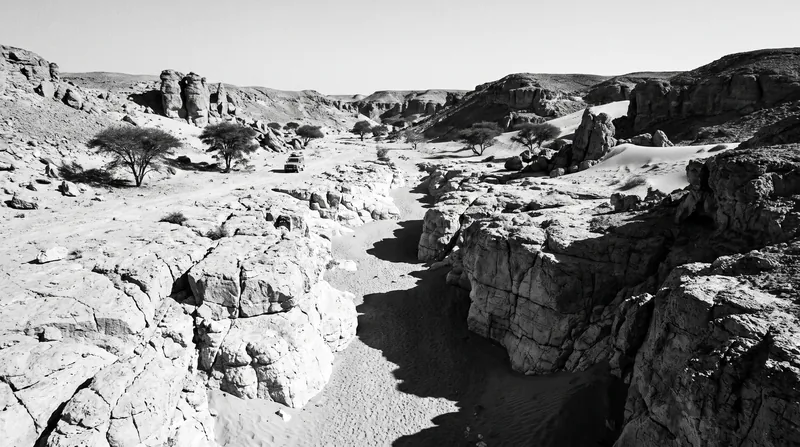

To understand why such a system was necessary, one must look at the paleoclimate of the Old Kingdom. While the Sahara was already undergoing a drying phase 4,600 years ago, seasonal rainfall was substantially higher than it is today. Rare but intense storms could produce powerful flash floods racing through the normally dry wadis. For a project as monumental as the Red Pyramid, leaving the site vulnerable to these sudden deluges was not an option.[1][2][4]

The shift from viewing the Dahshur structures as ramps to recognizing them as dams fundamentally changes our understanding of ancient Egyptian capabilities. It suggests that their mastery of the physical world extended far beyond the static stacking of stone. They were actively terraforming their environment, manipulating fluid dynamics, and executing state-level flood risk management millennia before the Romans or the modern era.[1][4]

Despite the compelling topographical and hydrological evidence, the dam theory remains a hypothesis awaiting physical confirmation. The structures at Dahshur currently sit within a restricted military zone, and no modern archaeological excavation has yet probed their depths. Until researchers can drill into the sand to find waterborne sediment layers or traces of ancient mortar sealing the rocks, the debate will continue.[1][4]

Yet, even as a hypothesis, the Dahshur hydraulic system forces a necessary reevaluation of how we look at ancient monuments. The pyramids were not built in a vacuum, nor were they constructed solely through the brute force of millions of dragging hands. They were the centerpieces of vast, engineered landscapes, supported by invisible infrastructure that was just as innovative as the tombs themselves.[1][2][4]
