The 37-Gear Calculation: How the Antikythera Mechanism Predicted Eclipses and Olympic Games Cycles

A modern mechanical watch or a 14th-century cathedral clock relies on a precise train of interlocking gears to track time. The Antikythera mechanism did exactly this, but with one glaring difference: it was constructed more than 1,400 years before the first European clock towers, sitting quietly at the bottom of the Aegean Sea while the Roman Empire rose and fell.[3][4]

Discovered in 1901 by sponge divers off the Greek island of Antikythera, the artifact initially resembled a shoebox-sized lump of corroded rock and wood. It was recovered alongside luxury goods—bronze statues, marble figures, and amphorae—from a Roman merchant vessel that sank around 60 BCE. The calcified mass was largely ignored until 1902, when Greek archaeologist Valerios Stais noticed a gear wheel embedded in the rock at the National Archaeological Museum in Athens.[3][4]

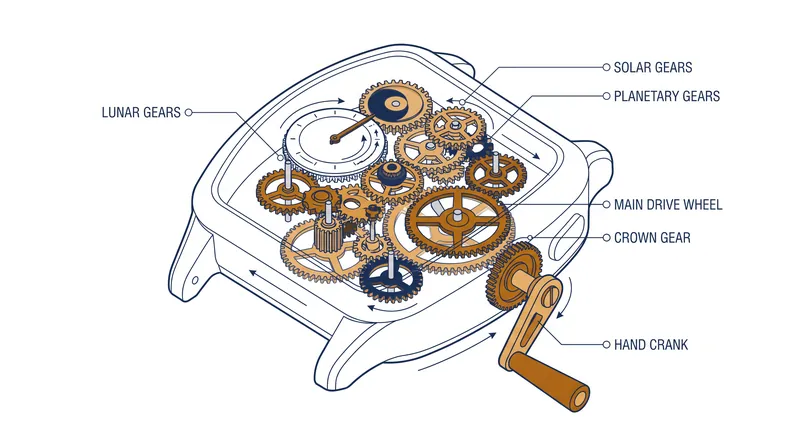

The device's internal workings remained obscured by two millennia of marine corrosion until the advent of high-resolution X-ray tomography in 2006. Led by Mike Edmunds and Tony Freeth at Cardiff University, the imaging scans revealed the true internal architecture. They exposed a staggering 37 meshing bronze gears, precision-cut with triangular teeth, packed into a wooden case measuring roughly 34 by 18 by 9 centimeters.[4][5]

The mechanism functioned as a hand-cranked analog computer, designed to model the cosmos. "It seems that the device could be used to predict the positions of the sun, moon, and planets on any specific day in the past or future," noted mathematician Tony Freeth. By turning a small hand crank on the side, a user drove a crown gear that set the entire 37-gear train into simultaneous, proportional motion.[4][5]

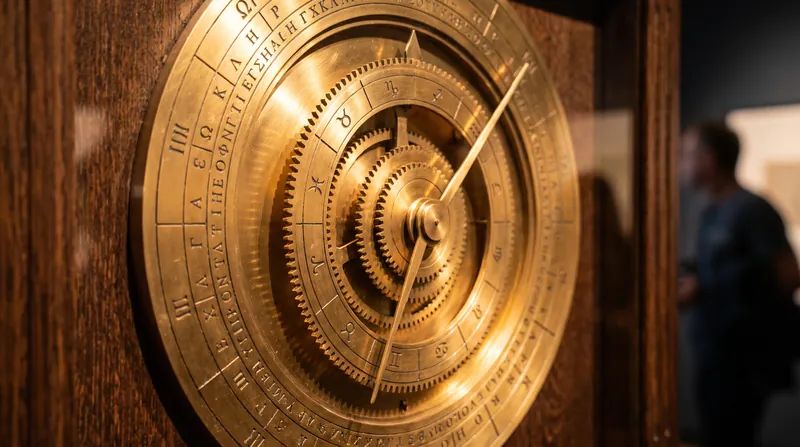

The front dial of the device served as a celestial map. It featured two concentric scales: an outer ring representing the 365-day Egyptian calendar and an inner ring displaying the signs of the zodiac. Pointers tracked the position of the Sun, the Moon, and likely the five planets known to antiquity—Mercury, Venus, Mars, Jupiter, and Saturn.[3][4]

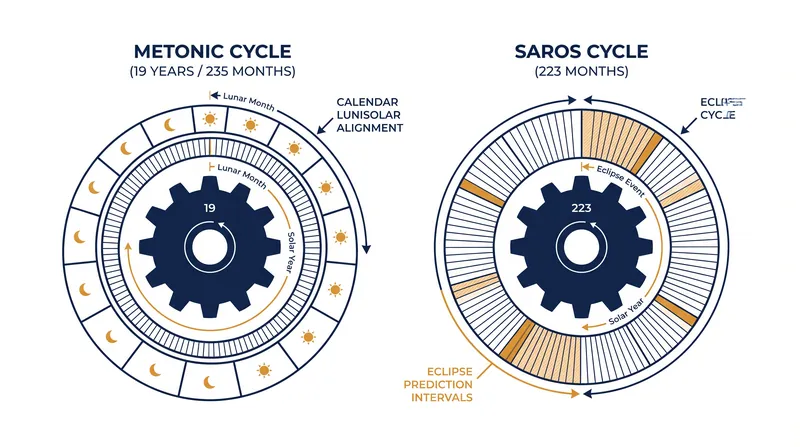

But the true mathematical genius of the Antikythera mechanism lay on its rear face, which housed two large spiral dials dedicated to complex astronomical cycles. The upper dial calculated the Metonic cycle, a period of 19 solar years that exactly equals 235 lunar months. This cycle was essential for aligning lunar calendars with the solar year, ensuring agricultural and religious festivals remained in season.[1][4]

The lower spiral dial tracked the Saros cycle, a 223-lunar-month interval used to predict solar and lunar eclipses. The largest gear in the mechanism, measuring 13 centimeters in diameter, featured exactly 223 teeth to drive this specific calculation. Glyphs engraved on the dial indicated not only the month an eclipse would occur but also its time of day and the direction of the shadow.[1][4]

Nestled within these massive astronomical calculations was a smaller, profoundly cultural subsidiary dial. This four-year indicator tracked the Panhellenic Games, including the ancient Olympics. It demonstrated that the Greeks did not separate the mechanics of the cosmos from the rhythms of their civic life; the same gears that predicted the shadow of the Earth also dictated when athletes would gather at Olympia.[1][3]

The engineering required to achieve this synthesis was unprecedented. To account for the Moon's elliptical orbit—which causes it to move faster at perigee and slower at apogee—the mechanism employed a sophisticated epicyclic gearing system. A pin-and-slot mechanism mounted on epicyclic gears mechanically replicated this variable speed, a feature that stunned modern engineers who believed such differential gears were invented in the Middle Ages.[4][5]

The dating of the device has shifted as imaging techniques have improved. While early estimates placed its construction around 85 BCE, a 2014 analysis of the Saros dial's start-up date suggested the machine was calibrated to an eclipse in 205 BCE. This pushes the mechanism's origins closer to the era of Archimedes, whose work in Syracuse may have laid the mathematical groundwork for such devices.[2][4]

Despite its brilliance, the technology did not survive antiquity. The shipwreck that claimed the Antikythera mechanism took with it a lineage of mechanical engineering that simply vanished from the historical record. It would take a millennium and a half for similar geared complexity to reappear in the astronomical clocks of 14th-century Europe.[3][4]

Today, the 82 surviving fragments rest in Athens, a testament to a lost Hellenistic scientific revolution. The 37 gears of the Antikythera mechanism force a profound recalibration of historical timelines, proving that the ancient world possessed not just the theoretical geometry to understand the heavens, but the mechanical precision to hold them in the palm of a hand.[4][6]
