How the 2026 National Electrical Code Restructures Home Wiring and Safety Standards

When a homeowner decides to add an electric vehicle charger, upgrade to a heat pump, or renovate an older property, the hidden math inside their electrical panel dictates the cost. If the home's existing service cannot support the new equipment, a simple appliance upgrade can suddenly trigger a $3,000 to $5,000 heavy-up of the entire electrical system.[5]

The 2026 National Electrical Code (NEC) introduces the most significant structural reorganization of American electrical standards in decades, directly altering how that math is calculated. Published by the National Fire Protection Association (NFPA), the NEC serves as the foundational rulebook adopted by municipalities nationwide to ensure safe electrical installations.

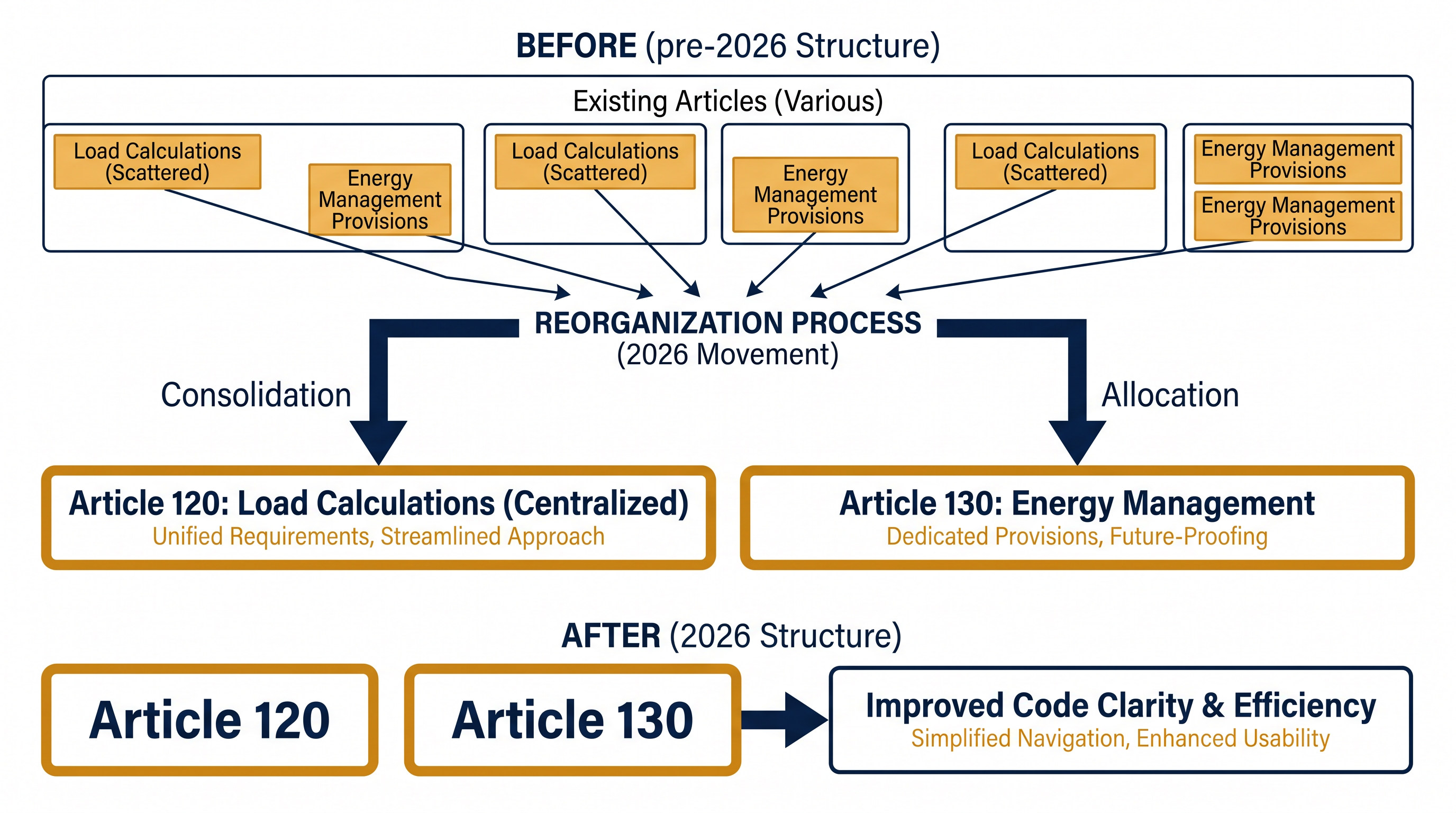

For years, electricians and engineers had to flip through scattered chapters and disparate sections of the code to calculate whether a home's service could handle new loads. The 2026 edition resolves this fragmentation by consolidating branch-circuit, feeder, and service load calculations into a single, centralized location known as Article 120.[3]

This structural shift extracts calculation requirements that were previously buried in sections covering dwelling units, farms, and marinas, placing them at the very beginning of the code where they apply universally. By streamlining the multi-table structure into a simplified format, the update drastically reduces the administrative friction involved in planning residential retrofits.[3]

Beyond reorganization, the code adjusts the underlying assumptions about how modern homes consume power. Because highly efficient LED lighting has almost entirely replaced incandescent bulbs, the 2026 NEC reduces the general lighting load calculation for dwelling units from 3 volt-amperes (VA) to 2 VA per square foot.[2][4]

While a 1 VA reduction may sound like a minor technicality, it has profound implications for homeowners. By lowering the assumed power draw of the home's lighting, the calculation frees up "invisible" capacity within the existing electrical panel, making it easier to legally add high-draw appliances like induction stoves or electric water heaters without exceeding the service limit.[3][5]

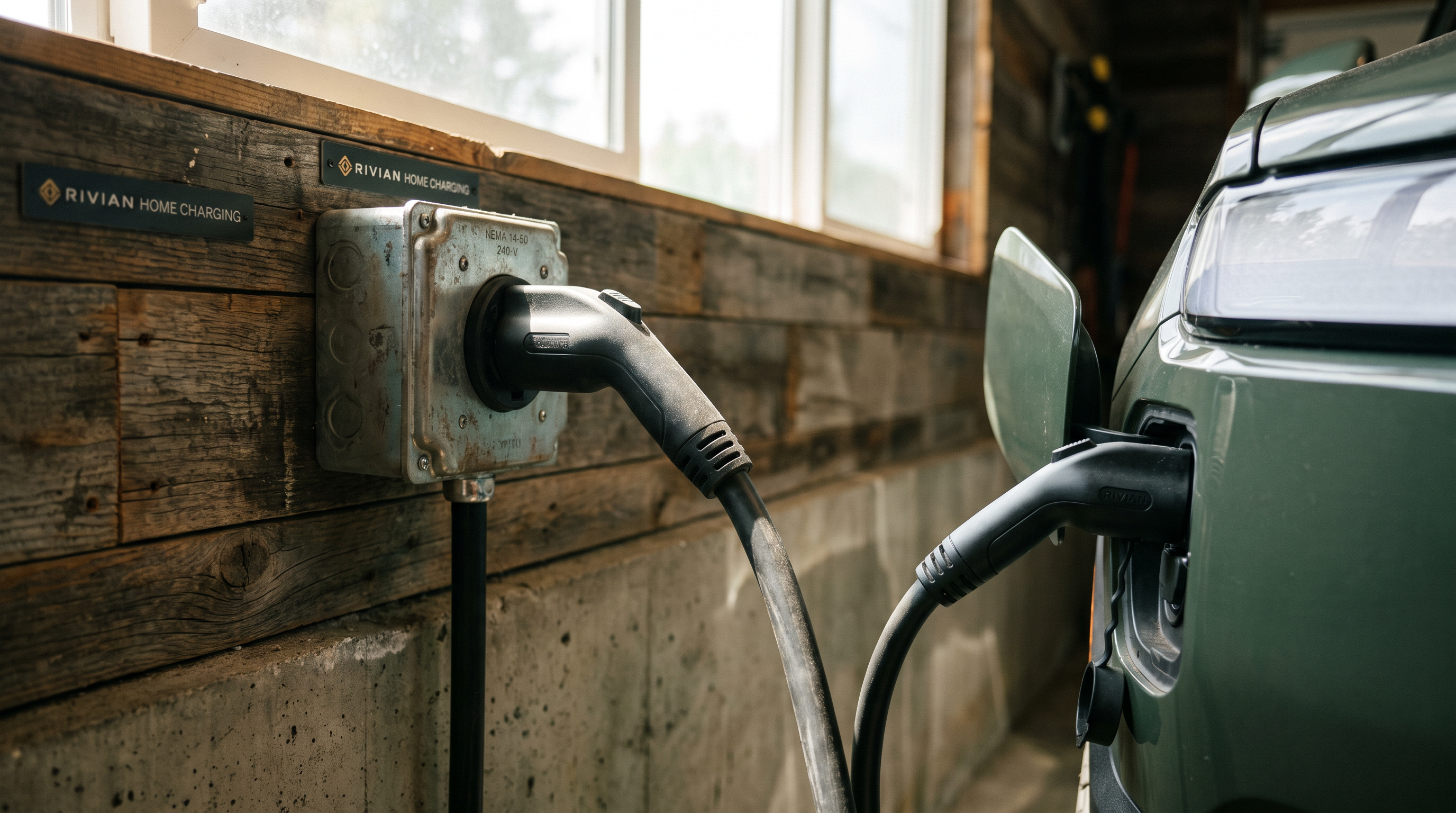

The code also overhauls how electric vehicle supply equipment (EVSE) is treated, reflecting the massive, continuous load that EVs place on residential infrastructure. Receptacles rated at 30A, 50A, and 60A that are used for EV charging must now be specifically listed for EVSE applications, a measure designed to prevent the thermal damage and melting sometimes seen when standard dryer outlets are subjected to hours of continuous maximum draw.[4]

Furthermore, the 2026 update clarifies that EVSE loads can be calculated at 100% of their rating rather than 125% when supported by specific nameplate data. The code also adds explicit language reinforcing that permanently installed EV charging equipment must be installed by a qualified person, formalizing the professional standards surrounding residential charging infrastructure.[3]

As homes increasingly generate and store their own power, the NEC has elevated the rules governing these technologies. Energy Management Systems (EMS)—the hardware and software that actively route power between solar panels, home batteries, and the grid—have been moved from a specialty section into a foundational new Article 130.[4]

Safety mandates have also been expanded, particularly concerning Ground-Fault Circuit Interrupters (GFCI). The 2026 code expands GFCI protection requirements to outdoor HVAC units, a mandate that will take full effect on September 1, 2026.[4]

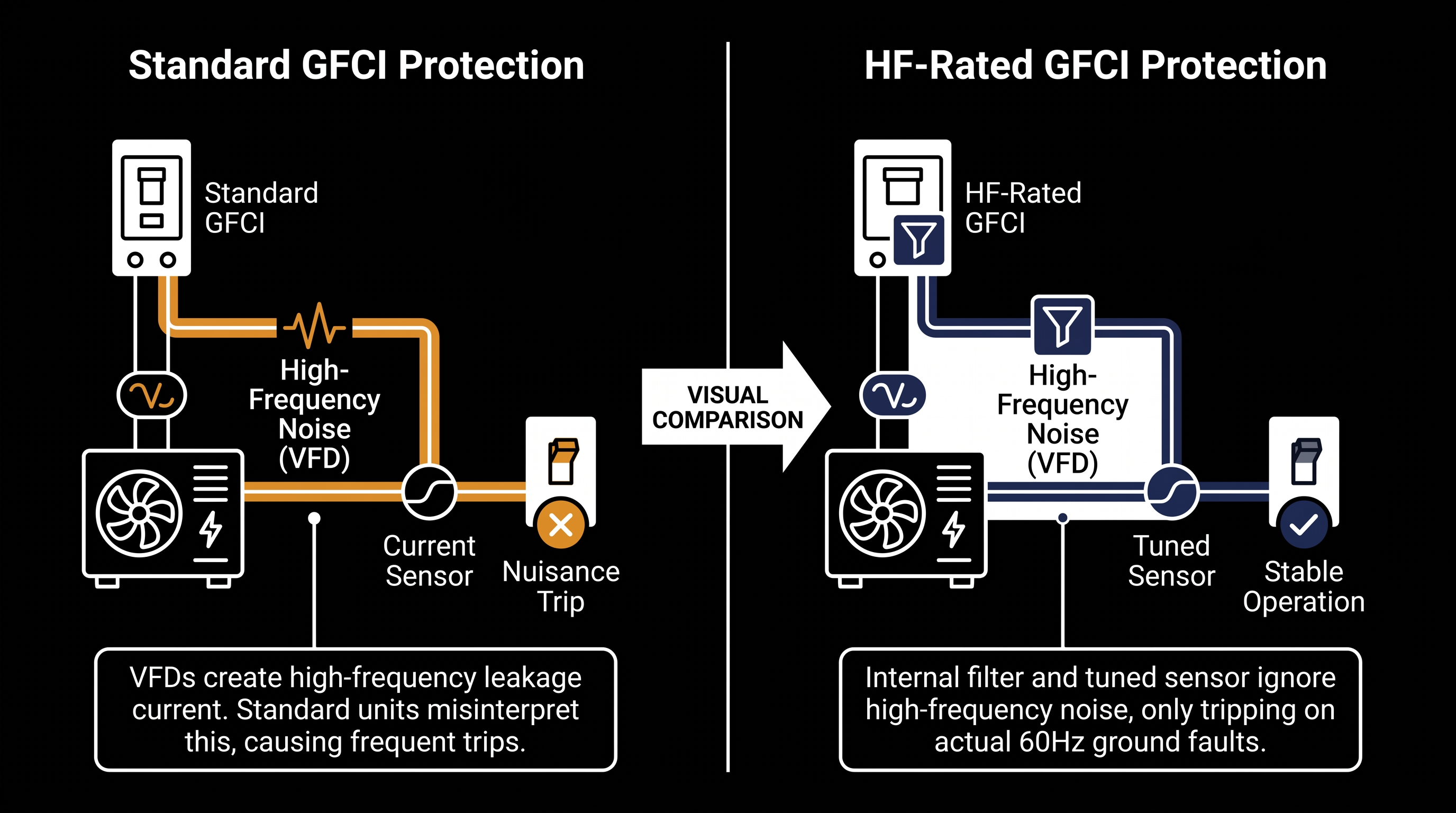

This HVAC requirement addresses a known friction point in the industry: nuisance tripping. Because modern variable frequency drive (VFD) HVAC systems can generate high-frequency noise that causes standard GFCIs to trip falsely, the new code allows for the use of Class A GFCIs marked for high-frequency (HF) leakage current to provide protection without interrupting normal operation.[4]

For multi-family and commercial buildings, the 2026 NEC tightens arc-flash safety protocols. The previous threshold that limited certain arc-flash labeling requirements to equipment rated at 1,000 amps or more has been removed.[4]

Now, a much wider range of non-dwelling service equipment—including smaller switchboards and panelboards—must feature detailed hazard labels. These labels are required to clearly identify the nominal system voltage, the arc flash boundary, the required personal protective equipment (PPE), and the date of the safety assessment.[4]

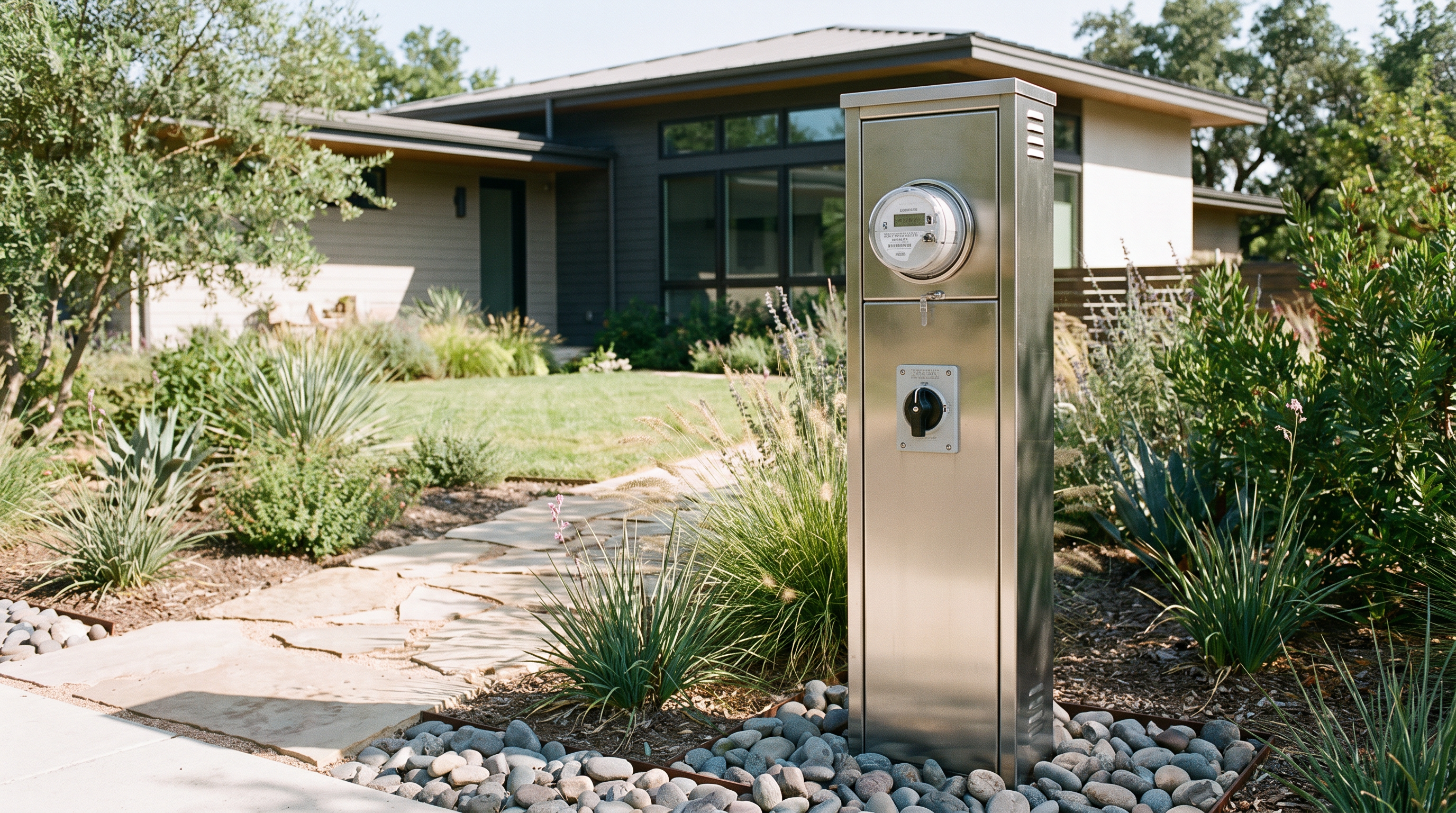

The 2026 code also introduces new flexibility for the placement of service and feeder equipment. Disconnects for feeders that serve a building no longer need to be physically attached to the structure they serve; they can now be located up to 50 feet away, provided they remain in sight of the building, offering significant design flexibility for multi-family housing and complex residential layouts.[1]

Finally, the code integrates Chapter 8, which covers communications systems, into the broader framework of Chapters 1 through 4. Previously, communications wiring operated under its own standalone rules, but as data cables increasingly carry power—and power systems increasingly rely on data networks—the NEC has unified their foundational requirements.[4]

While the NFPA finalizes and publishes the 2026 NEC, the new rules do not become law overnight. Municipalities and states adopt the code on their own legislative schedules, meaning these structural changes and safety mandates will roll out gradually across the country over the coming years, reshaping the baseline of American home construction.[5]
