The Mechanics of Foundation Cracks: How to Tell Structural, Settlement, and Shrinkage Cracks Apart

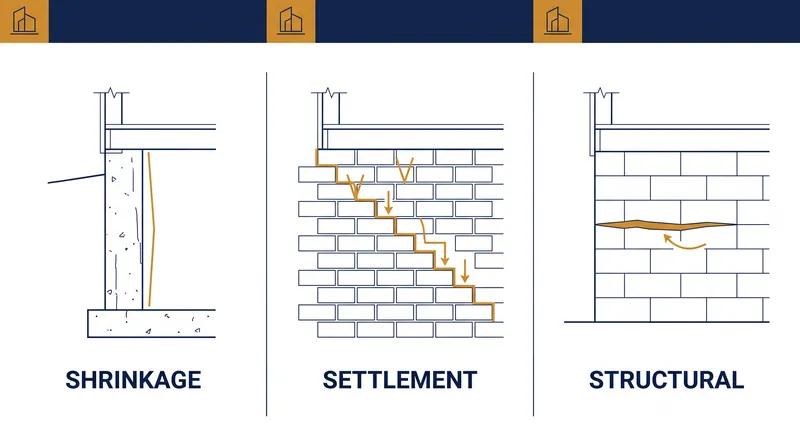

Not all foundation cracks mean your house is falling down. In fact, the vast majority are entirely harmless. Shrinkage cracks are a natural byproduct of curing concrete; settlement cracks happen as the soil beneath your home compresses; and structural cracks indicate a wall is actively failing under pressure. Knowing the difference dictates whether you need a $50 tube of epoxy or a $15,000 excavation.[7]

For a prospective homebuyer staring at a jagged line in a basement wall, the immediate instinct is panic. Real estate deals routinely fall apart over foundation concerns, often driven by a misunderstanding of how building materials actually behave in the real world. Appraisers and mortgage lenders are equally cautious, frequently flagging any visible masonry defect for further review.[5]

To understand why foundations crack, you first have to understand the nature of concrete. There is an old adage in the construction industry: there are only two guarantees with concrete—it gets hard, and it cracks. Concrete is exceptionally strong under compression, meaning it can support immense downward weight, but it is remarkably weak under tension, meaning it easily pulls apart.[1]

This tension begins the moment a foundation is poured. As concrete cures, the water inside the mixture slowly evaporates, causing the overall volume of the material to shrink. Because the foundation is pinned to the ground and restricted by its own geometry, this shrinkage creates internal stress. Eventually, the concrete relieves that stress by tearing itself apart, resulting in a shrinkage crack.[1][2]

Shrinkage cracks are almost always vertical or slightly diagonal, and they typically appear within the first year of a home's life. They are usually uniform in width—rarely wider than a hairline, or about 1/16th of an inch—and they do not grow over time. They are most commonly found in the middle third of a long foundation wall, where the curing stress is highest.[2]

From a structural standpoint, a shrinkage crack is a cosmetic non-issue. The wall is still fully capable of supporting the house above it. However, from a practical standpoint, any crack that penetrates the full thickness of a foundation wall is a potential highway for groundwater. Left unsealed, they can lead to damp basements, mold growth, and damaged interior finishes.[4]

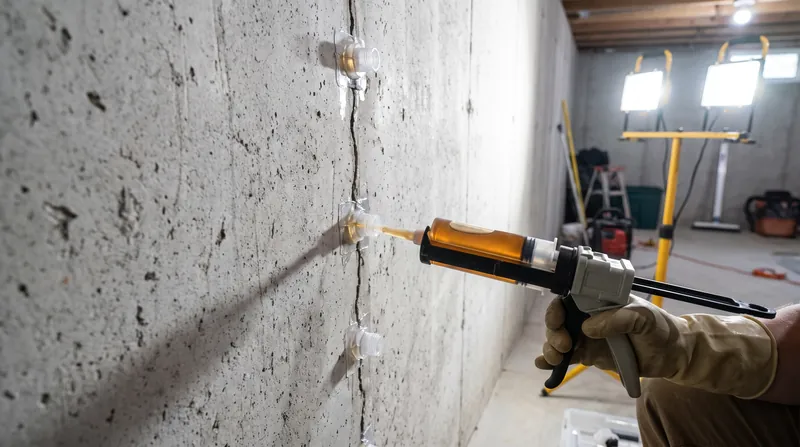

The American Society of Concrete Contractors notes that while shrinkage cracks do not compromise load-bearing capacity, they must be sealed to prevent moisture intrusion. The standard repair is a low-pressure injection of polyurethane foam or epoxy, which fills the void entirely and remains flexible enough to handle minor seasonal temperature shifts without breaking the seal.[3]

Settlement cracks represent a different mechanism entirely. When a house is built, its massive weight compresses the soil beneath it. If the soil compresses evenly, the entire house sinks a fraction of an inch uniformly, and nothing breaks. But if the soil beneath one corner of the house is softer or wetter than the rest, that corner sinks further—a process known as differential settlement.[6]

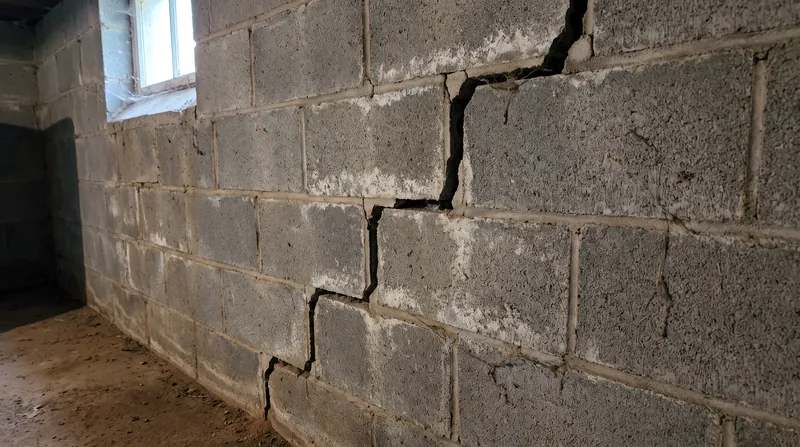

Differential settlement literally bends the foundation. Because concrete cannot bend, it snaps. Settlement cracks are often V-shaped, meaning they are wider at the top than at the bottom, indicating that the wall is pivoting downward. In homes with cinder block or brick foundations, these cracks often follow the mortar joints in a distinct "stair-step" pattern.[2][4]

A minor settlement crack is not necessarily a crisis. Many homes settle slightly in their first decade and then stop moving entirely as the soil reaches maximum compaction. The critical factor is whether the settlement is active or dormant. If a homeowner patches a settlement crack and it reopens a year later, the soil is still shifting, and intervention is required.[6]

When settlement is active and severe, sealing the crack is useless. The underlying soil must be stabilized. This usually involves underpinning—driving steel piers deep into the earth until they hit bedrock or stable soil, and then using hydraulic jacks to lift and support the foundation. It is a highly invasive and expensive process, fundamentally altering the home's connection to the earth.[4]

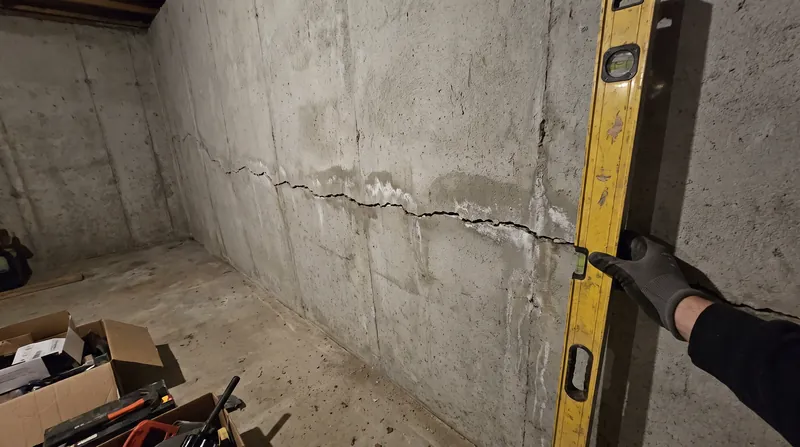

The third and most dangerous category is the structural crack. While shrinkage and settlement cracks are typically vertical or diagonal, structural cracks are almost always horizontal. They appear parallel to the floor, usually midway up a basement wall, and are a glaring red flag for any homeowner or buyer.[5][6]

Horizontal cracks are caused by hydrostatic pressure. When the soil outside a foundation becomes saturated with water—often due to poor drainage, clogged gutters, or improper grading—it expands and becomes incredibly heavy. This wet soil presses laterally against the foundation wall with thousands of pounds of force.[6]

Concrete walls are designed to hold up the house, not to act as retaining walls against lateral earth pressure. When that pressure exceeds the wall's tensile strength, the wall bows inward and snaps horizontally. If left unaddressed, a bowing wall with a horizontal crack will eventually collapse inward, compromising the entire structure above.[4][6]

Repairing a structural crack requires neutralizing the outside pressure and reinforcing the inside wall. Contractors often install carbon fiber straps or steel I-beams vertically along the wall to halt the bowing. In severe cases, they must excavate the exterior soil, straighten the wall, and install tie-back anchors deep into the yard to hold the foundation in place.[4][5]

For buyers navigating the real estate market, distinguishing between these three types of cracks is critical. A hairline vertical crack should trigger a request for a minor epoxy injection, not a reason to walk away from a deal. Conversely, a horizontal crack with visible inward bowing is a material defect that requires a massive price concession or immediate seller remediation.[5]

The ultimate arbiter in these disputes should never be a foundation repair salesperson, whose financial incentive is to prescribe the most expensive fix. Instead, homeowners and buyers should hire an independent structural engineer. For a flat fee, an engineer will measure the walls, assess the soil, and provide an unbiased, stamped report detailing exactly what the crack is and whether it actually matters.[7]
