How Git Stores Commits, Trees, and Blobs as Content-Addressable Objects in a Directed Acyclic Graph

In a traditional filesystem like Windows NTFS or macOS APFS, a document is retrieved by asking the operating system for a specific file path, such as `C:\project\main.py`. Git, however, discards the concept of location entirely. At its core, the world's most ubiquitous version control system is not actually a version control system at all, but rather a pure content-addressable database. When a developer asks Git for a file, they are not asking for a location; they are asking for a 40-character cryptographic hash that represents the exact contents of that file at a specific millisecond in time.[1][4]

While modern developer platforms market themselves with promises of seamless collaboration and intelligent versioning, the actual capability driving the global software industry is remarkably unglamorous. Most developers interact with Git through porcelain commands like `git diff` or `git log`, creating the illusion that the software stores a chronological sequence of changes—a base file followed by a list of additions and deletions. This is how older systems from the 1990s, such as Subversion and CVS, operated.[2][5]

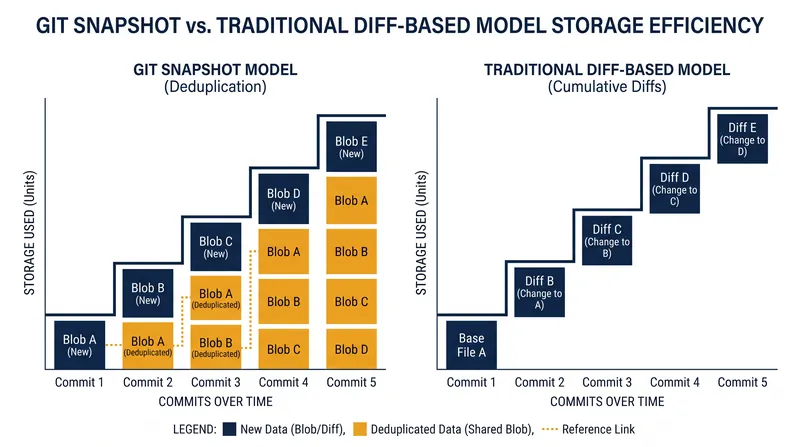

The reality of Git's architecture is entirely different. Git stores snapshots, not diffs. Every time a user commits a change, Git takes a complete picture of what all files look like at that exact moment. If a file has not changed, Git does not store a redundant copy; it simply links to the previous identical file already stored in its database. This approach trades the computational overhead of generating diffs on the fly for absolute data integrity and instantaneous snapshot retrieval.[4][5]

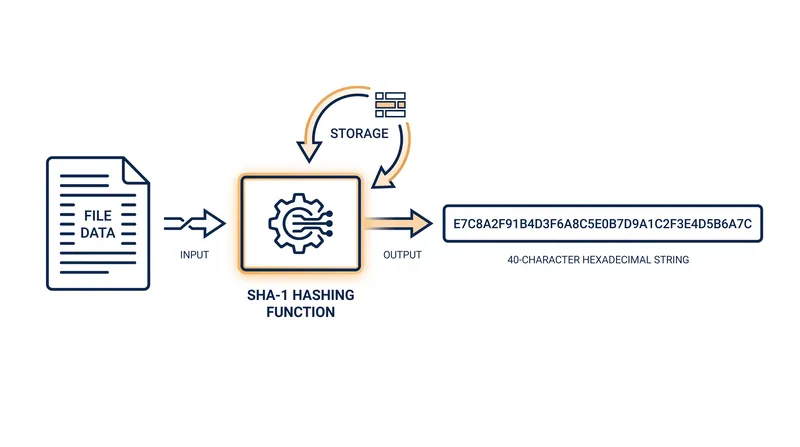

This mechanism relies entirely on content-addressable storage. "Git is a content-addressable filesystem," the official Git SCM documentation explains. "It means that at the core of Git is a simple key-value data store." In this model, the name of a piece of data is derived directly from the data itself using a cryptographic hashing function, specifically the 160-bit SHA-1 algorithm.[1][2]

When a file is added to a Git repository, the system calculates a 40-character hexadecimal string based on the file's contents and a brief header. This hash becomes the file's permanent identity. If a single comma is altered in a 10,000-line codebase, the hash changes completely, ensuring 100 percent data integrity. Because the hash is derived from the content, two identical files in different directories will produce the exact same hash and be stored only once.[2][3]

This brings us to the four fundamental object types that populate Git's hidden `.git/objects` directory. The most basic of these is the "blob," an acronym for Binary Large Object. A blob stores nothing but raw file data. It does not know its own file name, its creation date, or its permissions. It is purely the raw bytes of the content, compressed using zlib and named by its SHA-1 hash. Because blobs lack metadata, two files with different names but identical contents will hash to the exact same blob, saving significant storage space.[1][5]

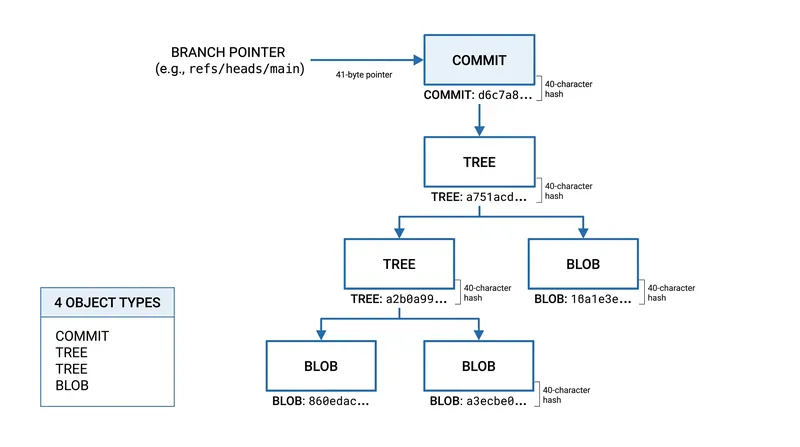

Because blobs lack structural context, Git requires a second object type to reconstruct a project's directory hierarchy: the "tree." A tree object functions much like a folder in a standard operating system, organizing blobs and sub-trees. A tree contains a list of pointers. Each entry in a tree object includes a file mode, an object type (either another tree or a blob), the SHA-1 hash of that object, and the human-readable file name. By linking trees to blobs and other nested trees, Git maps out the entire directory structure of a project at a given point in time.[1][3]

Yet, trees and blobs alone only describe a static state frozen in time. To track history and attribute changes to specific authors, Git introduces the third and most familiar object type: the "commit." A commit object is surprisingly lightweight, acting merely as a wrapper around a specific state. It contains a pointer to the top-level root tree object that represents the project's entire directory structure, metadata such as the author's name and email, a timestamp, and a commit message explaining the context of the change.[2][4]

Crucially, a commit also contains a pointer to its parent commit. The initial commit in a repository has zero parents. A standard sequential commit has exactly one parent, while a merge commit has two or more parents. This parent-child linkage is what transforms isolated snapshots into a continuous, navigable timeline. Without these parent pointers, a repository would just be a disconnected pile of historical states with no chronological order.[4][5]

Together, these commits form a Directed Acyclic Graph (DAG). In graph theory, a DAG is a network of nodes connected by edges that flow in one direction and never loop back on themselves. In Git's DAG, the nodes are the commit objects, and the directional edges are the parent pointers. Because cryptographic hashes are immutable, history can only flow forward. You cannot alter a past commit without fundamentally changing its hash, which would sever its connection to all subsequent commits and require rewriting the entire downstream graph.[3][5]

This strict immutability is the bedrock of Git's reliability across distributed teams. When a developer attempts to rewrite history using commands like `git rebase` or `git commit --amend`, they are not actually editing existing commits. Instead, the software is generating entirely new commit objects with new hashes and abandoning the old ones. The original commits remain untouched in the local database, completely orphaned, until they are eventually permanently deleted by Git's internal garbage collection routines. This ensures that destructive operations rarely result in immediate data loss.[4][5]

The final piece of the core architecture is the "tag" object, which provides a permanent, human-readable label to a specific commit hash, often used to mark release versions like `v1.0.0`. What developers commonly refer to as "branches" are not complex structural entities within the DAG. A branch in Git is simply a 41-byte text file containing the 40-character SHA-1 hash of a commit, plus a newline character. When a new commit is made on a branch, the text file is simply overwritten with the new hash.[1][5]

This architectural separation between the immutable object database—comprising blobs, trees, and commits—and the mutable pointers like branches and tags is what allows Git to perform complex operations with near-instantaneous speed. Creating a new branch does not duplicate files or require heavy computation; it merely creates a 41-byte pointer to an existing node in the graph. Switching branches simply updates the working directory to match the tree referenced by that pointer, making context switching a trivial operation rather than a heavy filesystem copy.[4][5]

While the software industry often hypes new AI-assisted coding tools and cloud-based collaboration platforms, the underlying mechanics of Git have remained largely unchanged since Linus Torvalds designed the system in 2005. The true capability driving modern development lies not in complex diffing algorithms, but in the elegant simplicity of the Directed Acyclic Graph. By treating code history as a mathematical graph of immutable snapshots rather than a fragile sequence of edits, Git solved the distributed collaboration problem permanently.[2][6]

Understanding this hidden plumbing layer strips away the magic of the user-facing porcelain commands. When a merge conflict occurs or a repository enters a detached HEAD state, it is not a catastrophic system failure, but simply a matter of graph traversal and pointer alignment within a content-addressable key-value store. Developers who grasp the mechanics of the Directed Acyclic Graph stop memorizing opaque command syntax and start manipulating the graph directly, transforming a confusing version control system into a highly predictable, transparent database.[5][6]
