How Write Barriers Preserve Dijkstra's Tri-Color Invariant During Concurrent Garbage Collection

Modern web servers and interactive applications no longer freeze for seconds at a time while the system cleans up discarded memory. The elimination of these "stop-the-world" pauses represents one of the most significant engineering shifts in modern runtime design. Software now cleans up after itself while continuing to execute user commands.[1][3]

This simultaneous execution introduces a severe synchronization hazard between the application and the memory manager. If the application rearranges its data structures while the collector is actively scanning them, the collector can easily lose track of live data. Deleting data that the application is still using causes immediate, catastrophic software crashes.[2]

To prevent these crashes without halting the application, language designers rely on a mechanism called a write barrier. This microscopic snippet of code intercepts every attempt the application makes to update a memory pointer. It forces the application to inform the concurrent collector about the change before the reassignment completes.[7]

The theoretical foundation for this interception was established in 1978 by computer scientist Edsger W. Dijkstra. His paper on "on-the-fly" garbage collection introduced a mathematical model that proved a concurrent collector could operate safely alongside a running program. That model, known as the tri-color abstraction, remains the basis for nearly every modern memory manager.[2]

Sorting memory into three colors

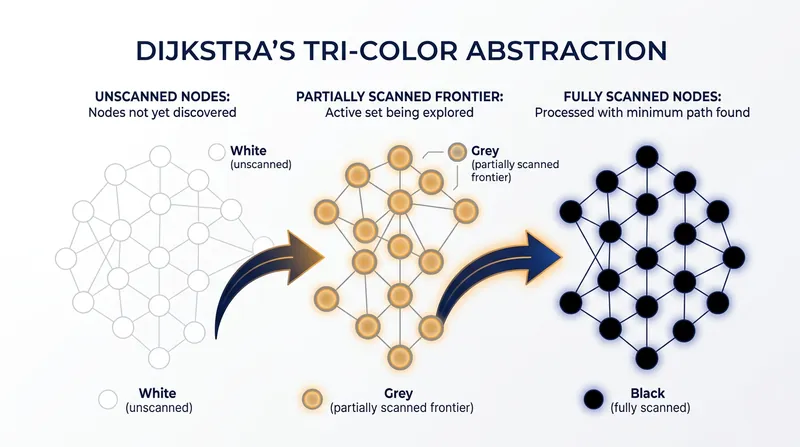

Dijkstra's abstraction sorts every object in the computer's memory into one of three colors: white, grey, or black. White objects are those the collector has not yet examined, meaning their survival is uncertain. If an object remains white at the end of the collection cycle, the system reclaims its memory.[2][6]

Grey objects are those the collector has discovered but has not yet fully processed. The collector knows these objects are alive, but it has not checked the other objects they point to. The grey set acts as the active frontier of the memory scan, expanding as the collector traverses the data graph.[2]

Black objects have been completely processed by the collector. The system has verified that the black object is alive and has also successfully scanned every other object it references. A black object is considered entirely safe, and the collector will not examine it again during the current cycle.[2]

The collection process begins by coloring a few root objects, like active variables in the current execution stack, grey. The collector then repeatedly picks a grey object, colors all of its immediate children grey, and finally turns the original object black. This loop continues until no grey objects remain in the system.[2][6]

When the application outruns the collector

In a stop-the-world collector, this coloring process is perfectly safe because the application is paused. The data graph remains entirely static while the collector works through the grey frontier. Once the grey set is empty, the collector can confidently delete every remaining white object, knowing nothing points to them.[6]

Concurrent collection breaks this static guarantee by allowing the application, often called the mutator, to run simultaneously. The mutator constantly creates new objects, deletes old ones, and rewires the connections between them. This constant rewiring can easily hide a live white object from the advancing garbage collector.[2][3]

The fatal error occurs if the mutator takes a white object and attaches it exclusively to a black object. Because the collector has already finished scanning the black object, it will never look at it again. The white object is now actively used by the application, but the collector has no way to find it.[2][4]

"The mutator is essentially playing a shell game with the collector," explained Rick Hudson in his 2015 presentation on the Go programming language's garbage collector. "If the mutator moves a white object behind a black object, the collector will sweep it away, and the program will panic."[3]

Enforcing the invariant

To prevent this fatal scenario, Dijkstra defined a strict mathematical rule known as the strong tri-color invariant. The invariant states that a black object must never be allowed to hold a direct pointer to a white object. As long as this rule holds true, the collector is mathematically guaranteed to find all live data.[2]

This is exactly where the write barrier steps in to protect the system. The compiler automatically injects the write barrier code into the application immediately before any pointer reassignment. When the mutator attempts to write a new pointer, the barrier pauses the operation for a fraction of a nanosecond to check the colors.[7]

If the barrier detects that the mutator is trying to attach a white object to a black object, it intervenes. The barrier typically resolves the violation by immediately coloring the white object grey. This satisfies the invariant and ensures the collector will eventually scan the newly attached object.[4][7]

Alternatively, the barrier can revert the black object back to grey. This forces the garbage collector to rescan the black object and discover the newly attached white object during its next pass. Both approaches successfully preserve Dijkstra's invariant, though different programming languages choose different implementations based on their specific performance goals.[3][6]

Paying the throughput tax

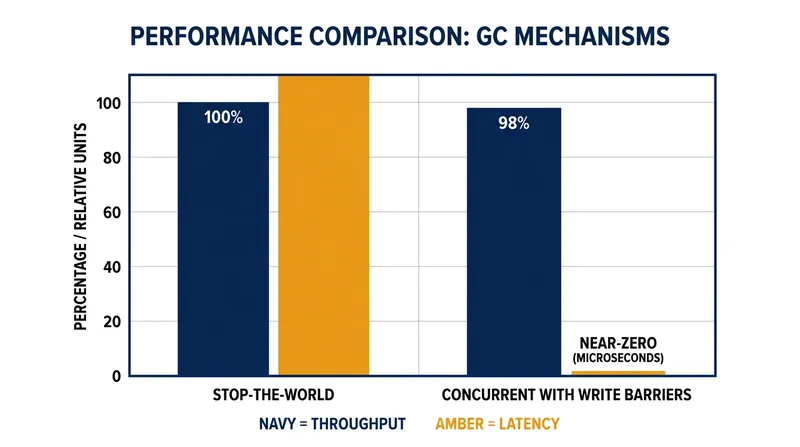

While write barriers eliminate long application freezes, they introduce a continuous performance penalty. Because the barrier must execute every single time a pointer is updated, it runs millions of times per second. This constant checking consumes CPU cycles that would otherwise be used to execute the application's actual logic.[7]

Computer scientists refer to this penalty as the write barrier tax, and it directly reduces the application's overall throughput. According to a 2004 study by researchers Stephen Blackburn and Antony Hosking, write barriers typically consume between two and five percent of a program's total execution time. The application runs slightly slower overall, but it never stops completely.[7]

"You are trading raw throughput for predictable latency," notes the V8 development team in their 2018 documentation on the Orinoco garbage collector. "By paying a small, continuous tax on every pointer write, we avoid dropping frames in web animations or causing audio to stutter during complex JavaScript execution."[4]

The exact cost of the barrier depends heavily on how efficiently the compiler can implement it. Modern compilers use highly optimized assembly instructions to perform the color check in just two or three clock cycles. If the check passes without violating the invariant, the barrier exits almost instantly, minimizing the disruption to the mutator.[3][7]

How modern engines apply the barrier

The V8 JavaScript engine, which powers Google Chrome and Node.js, relies heavily on a Dijkstra-style write barrier. When a JavaScript program modifies an object property during a concurrent collection cycle, the barrier intercepts the write. It ensures that any newly referenced object is marked grey, keeping the web page responsive.[4]

The Go programming language takes a slightly different approach, utilizing a hybrid barrier design introduced in version 1.5. Go's barrier combines Dijkstra's insertion rules with a deletion barrier originally proposed by Taichi Yuasa in 1990. This hybrid approach allows Go to achieve its aggressive sub-millisecond pause time targets even on massive, multi-gigabyte server heaps.[3]

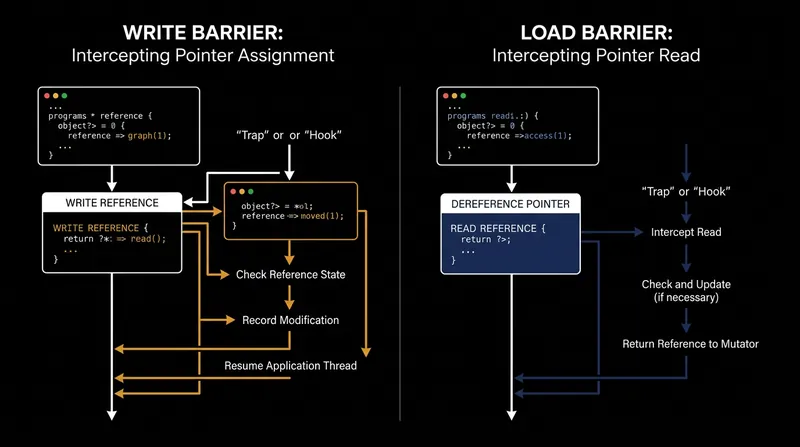

Java's Z Garbage Collector, introduced in OpenJDK 11, flips the paradigm entirely by using load barriers instead of write barriers. Rather than intercepting pointer writes, ZGC intercepts pointer reads, checking the color of an object every time the application accesses it. This requires more frequent checks but allows the collector to move objects in memory concurrently.[5]

Regardless of the specific implementation, the fundamental goal remains identical across all these modern runtimes. The barrier exists solely to maintain a mathematical invariant while the application and the collector race through the same memory space. It is the synchronization mechanism that makes concurrent memory management physically possible.[1][6]

Achieving sub-millisecond pauses

The transition to concurrent collection via write barriers has fundamentally changed how developers architect large-scale software. A decade ago, allocating a 100-gigabyte memory heap in Java or Go would guarantee periodic application freezes lasting several seconds. Today, those same heaps can be collected with pauses measuring less than 500 microseconds.[3][5]

This predictable latency is critical for modern infrastructure, from high-frequency trading platforms to real-time multiplayer game servers. When an application cannot afford to drop a single network packet, a two-second stop-the-world garbage collection pause is indistinguishable from a server crash. Write barriers ensure the server remains responsive under heavy load.[1][3]

The engineering trade-off is permanently settled in favor of latency over raw throughput. Hardware has become fast enough that sacrificing a few percent of CPU capacity to write barriers is a highly profitable exchange. The cost of the barrier is invisible to the user, while a frozen application is immediately obvious.[1][7]

Future runtime designs continue to refine barrier implementations to reduce their overhead even further. Hardware manufacturers are exploring dedicated silicon instructions designed specifically to accelerate pointer color checks. Until those hardware solutions arrive, the software write barrier remains the critical mechanism keeping modern applications running smoothly.[1][7]
