Card Tables Track Cross-Generational Pointers to Spare Garbage Collectors Full Old-Generation Scans

Software evangelists often claim that modern programming languages manage memory flawlessly in the background, rendering manual memory allocation obsolete. But this abstraction hides a mathematically brutal triage operation that constantly threatens to halt the entire application.[4]

Without a highly specific data structure called a card table, that seamless background process would freeze your software multiple times a second. The illusion of infinite memory relies on a garbage collector, a background process that sweeps the application's memory to reclaim abandoned data.

To keep these sweeps fast, modern collectors rely on the generational hypothesis, which observes that most objects die young. By dividing memory into a small young generation and a massive old generation, the collector can focus its efforts where the most trash accumulates.[1]

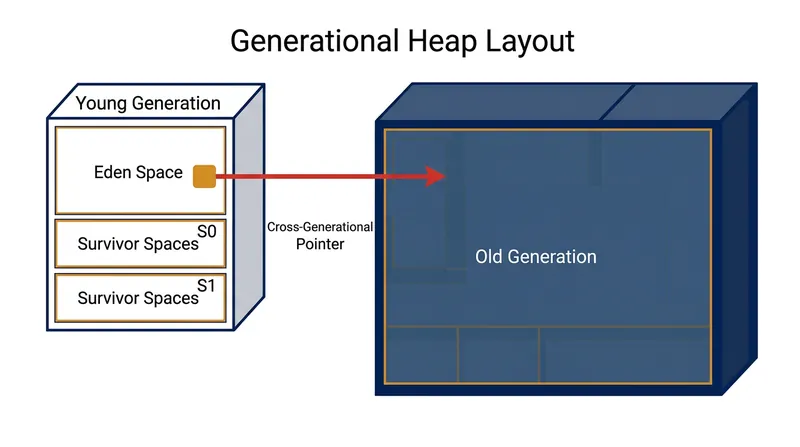

This division creates a catastrophic edge case that threatens the entire system's performance. If an object in the massive old generation is updated to point to a newly created object in the young generation, the garbage collector has an immediate tracking problem.

When it sweeps the young generation, it must know about this incoming reference. If it misses the cross-generational pointer, it will mistakenly delete the new object while the application is still actively using it, causing a fatal crash.[4]

The write barrier tax

Finding that single incoming reference using brute force requires scanning the entire old generation. For an enterprise application with a 64-gigabyte heap, scanning millions of old objects just to safely clean up a few megabytes of new objects takes several seconds.[1]

That delay manifests as a frozen user interface, a dropped network connection, or a stuttering video game frame rate. To solve this, language runtimes like the Java Virtual Machine and the V8 JavaScript engine do not search for these pointers after the fact.[1][2]

Instead, they track them at the exact moment they are created. They achieve this by injecting a microscopic snippet of code, known as a write barrier, into every single pointer assignment the application executes.

"The write barrier is a tax paid by the application mutator to subsidize the garbage collector," explains the Garbage Collection Handbook, a foundational text published in 2023. Every time a developer writes a pointer assignment, the runtime executes extra assembly instructions.

These instructions check if an old object is pointing to a young one. Tracking every individual pointer would consume too much memory and overwhelm the CPU cache, so the runtime uses a card table to compress the data.[4]

Marking the dirty cards

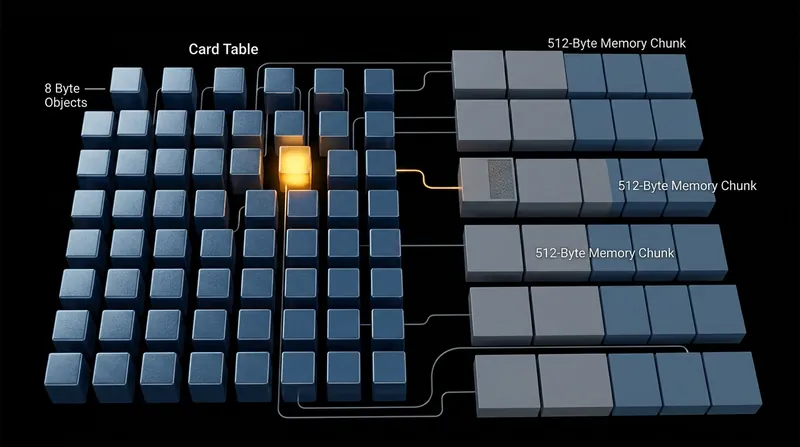

The card table divides the massive old generation into fixed-size chunks, typically 512 bytes each, called cards. The table itself is simply a continuous array of bytes, where each byte corresponds to one 512-byte card in the application's heap.[1][3]

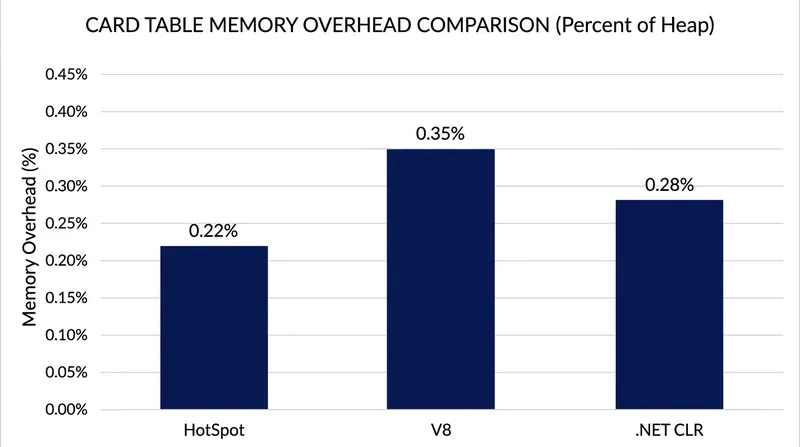

If an application has a one-gigabyte old generation, its card table requires only two megabytes of memory. This 0.2 percent overhead is small enough to remain permanently locked in the processor's fastest cache layers.[4]

When the write barrier detects that an old object has been updated, it does not record the exact memory address of the modified pointer. It simply calculates which 512-byte card contains the updated object and changes the corresponding byte.

The runtime flips that specific byte in the card table from clean to dirty. This operation requires just a bitwise shift and a single byte write, adding almost zero latency to the application's execution thread.[1][2]

"By reducing the tracking granularity to 512 bytes, we avoid the overhead of maintaining complex pointer graphs during application execution," notes the Oracle HotSpot documentation. The application continues running at full speed, leaving behind a trail of dirty cards.[1]

Hardware cache line constraints

When the young generation fills up, the runtime pauses the application to perform a minor garbage collection. Instead of scanning the entire 64-gigabyte old generation for incoming pointers, the collector simply scans the two-megabyte card table.[4]

It looks exclusively for the bytes marked as dirty. For every dirty card it finds, the collector jumps to the corresponding 512-byte chunk of the old generation and scans only the objects within that specific block.

It identifies any pointers crossing into the young generation, updates its reference graph, and then resets the card to a clean state. The specific size of these cards is not an arbitrary software choice; it is dictated by physical silicon.[4]

A 512-byte card strikes the optimal balance between the memory overhead of the table and the time required to scan the dirty chunks. If the cards were smaller, the card table would grow too large to fit efficiently in the CPU cache.[1][3]

If the cards were larger, the garbage collector would waste too much time scanning irrelevant objects within the dirty cards during the pause phase. This convergence highlights a fundamental reality of high-level programming and memory abstraction.[4]

False sharing and concurrency

Card tables are incredibly efficient, but they introduce a subtle concurrency bug known as false sharing. Modern processors load memory into the cache in 64-byte chunks, meaning a single cache line holds the state for 32 kilobytes of application memory.

If multiple application threads simultaneously update different objects that map to the same cache line in the card table, the processor's cache coherency protocol goes into overdrive. The CPU cores constantly invalidate and reload the same cache line.[4]

This destroys the application's multi-threaded performance even though the threads are not actually sharing data. To mitigate this, modern runtimes implement conditional card marking, adding an extra read instruction to check if the card is already dirty.[1][2]

"The choice between conditional and unconditional card marking often depends on the specific memory ordering guarantees of the underlying processor architecture," details the V8 project's Orinoco specifications. On strict architectures, the read instruction is cheaper than the cache penalty.[2]

The evolution of region collectors

While traditional card tables solved the cross-generational pointer problem for decades, modern heap sizes have begun to expose their limitations. When an enterprise application allocates a terabyte of memory, even a 0.2 percent card table consumes two gigabytes of RAM.[1]

To handle massive heaps, newer garbage collectors like Java's G1 abandon the strict two-generation model. Instead, they divide the entire heap into thousands of smaller, equal-sized regions that dynamically act as either young or old generations.[1]

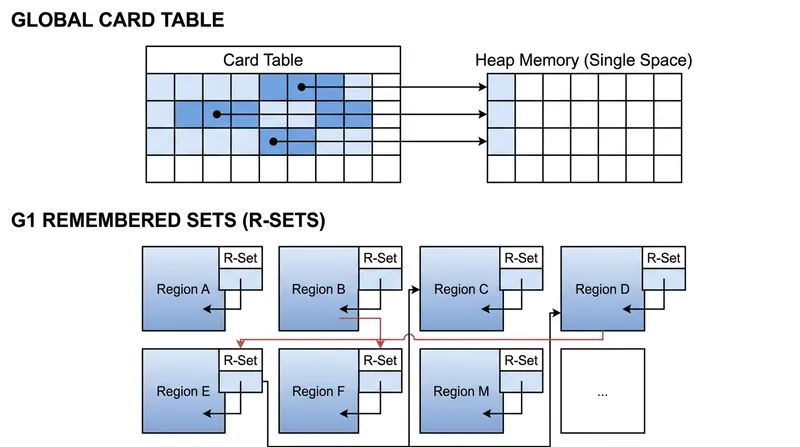

In this region-based model, a single global card table is replaced by Remembered Sets, which are localized card tables attached to each individual region. This allows the garbage collector to evacuate and clean a single region independently.[1]

Colored pointers and the future

The most advanced low-pause collectors, such as Java's ZGC and Shenandoah, are abandoning card tables entirely. Instead of tracking cross-generational pointers in a separate data structure, they embed the tracking information directly into the 64-bit memory addresses themselves.[1]

"Colored pointers allow the garbage collector to perform concurrent compaction without ever pausing the application threads to scan a card table," states the ZGC architectural overview. This shifts the performance cost from write operations to read operations.[1]

Since its formalization in 1989, the card table has proven its elegant simplicity. By sacrificing byte-level precision for a 512-byte granularity, it reduces an impossible scanning problem into a trivial array lookup, keeping modern software running smoothly.[4]
