How Tagged Pointers Prevent the ABA Problem in Lock-Free Data Structures

High-frequency trading platforms and database engines no longer crash silently under heavy concurrent load because modern processors quietly append hidden version numbers to memory addresses. This hardware-level accounting prevents a catastrophic race condition that occurs when multiple processor cores attempt to modify the same lock-free data structure simultaneously.[1]

Software developers traditionally prevent data corruption by using mutual exclusion locks, which force threads to wait in line before accessing shared memory. Lock-free programming discards these software bottlenecks in favor of atomic hardware instructions.[4]

In their foundational textbook on multiprocessor programming, Maurice Herlihy and Nir Shavit define the standard. "A concurrent object is lock-free if it guarantees that some thread always completes an operation in a finite number of steps," they write.[4]

This guarantee means the system as a whole never halts, even if individual threads are delayed. Achieving this requires the processor to perform a read, a modification, and a write as a single indivisible step.[7]

The Illusion of Unchanged State

The foundation of lock-free programming is the compare-and-swap instruction, which verifies that a memory location has not changed before updating it. If the value matches the thread's initial read, the hardware swaps in the new data.[2]

This mechanism assumes that if the value is the same, the state of the data structure is also the same. That assumption creates a fatal vulnerability known as the ABA problem, first identified in the IBM System/370 architecture in 1983.[1][6]

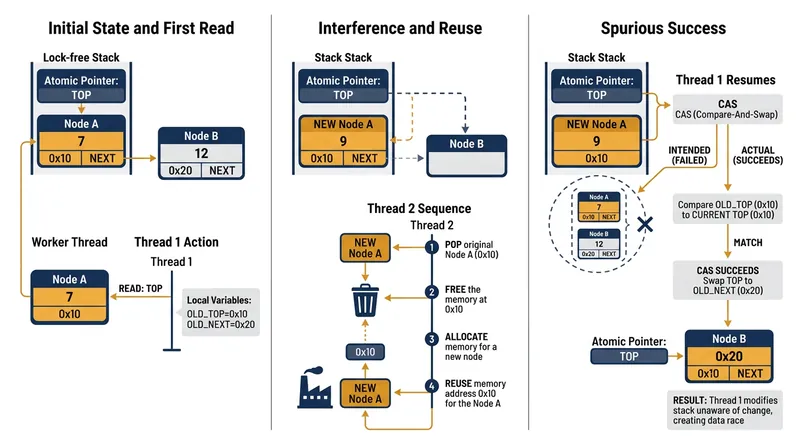

Consider a lock-free stack where Thread 1 intends to pop Node A, which currently points to Node B. Thread 1 reads the address of Node A, but before it can execute the compare-and-swap, the operating system suspends it.[4]

While Thread 1 sleeps, Thread 2 wakes up and pops Node A, then pops Node B, and finally pushes Node A back onto the stack. Node A is now at the top again, but it currently points to Node C instead of Node B.[1]

Thread 1 resumes and executes its compare-and-swap instruction. The hardware checks the top of the stack, sees that Node A is present, and blindly assumes nothing has changed, successfully swapping the head to the now-deleted Node B.[3]

The Mechanics of Compare-and-Swap

The data structure is now corrupted, pointing to freed memory, and the application will inevitably crash when it attempts to traverse the stack. The hardware performed exactly as instructed, because the compare-and-swap primitive only verifies the binary address.[2]

Processors do not understand the semantic meaning of the memory they manipulate. To the silicon, a recycled memory address is indistinguishable from an untouched memory address, making the standard equality check fundamentally insufficient for memory reclamation.[5]

Software engineers cannot simply ask the hardware to check the entire node's contents, because atomic instructions are strictly limited by the width of the processor's registers. A standard 64-bit processor can only compare and swap 64 bits of data in a single clock cycle.[2]

This limitation forces developers to find a way to encode the history of a memory address directly into the pointer itself. If the pointer changes every time the node is modified, the compare-and-swap instruction will fail correctly.[6]

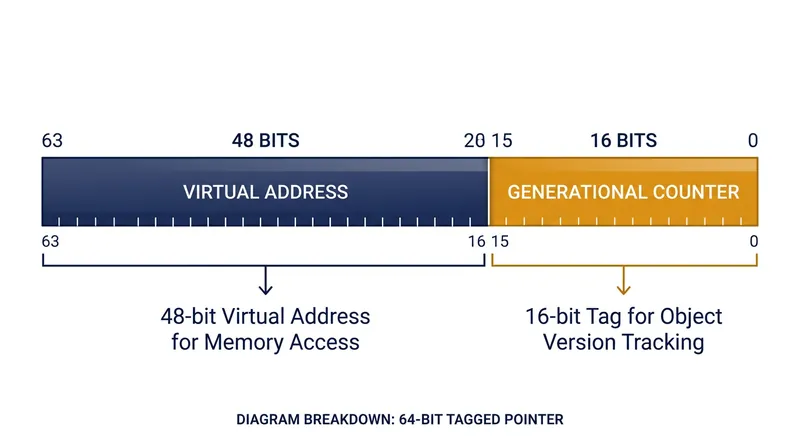

The solution relies on a quirk of modern computer architecture. While modern processors are marketed as 64-bit machines, current x86-64 hardware only utilizes the lower 48 bits for actual virtual memory addressing.[2]

Generational Counters and Tagged Pointers

This architectural design leaves the upper 16 bits of every pointer completely unused by the operating system. Systems programmers hijack this empty space to embed a generational counter directly into the memory address.[1]

Every time a thread removes a node from the data structure, it increments this 16-bit counter before pushing the node back. The memory address remains identical, but the tag attached to it changes with every mutation.[4]

When Thread 1 wakes up and attempts its compare-and-swap, it is no longer just looking for Node A. It is looking for Node A with version tag 1, but the stack currently holds Node A with version tag 3.[1][6]

The hardware evaluates the entire 64-bit string as a single integer. Because the upper bits differ, the equality check fails, the compare-and-swap aborts, and Thread 1 is forced to restart its operation with the correct state.[2]

This technique, known as a tagged pointer, effectively transforms a spatial memory address into a temporal one. It allows the hardware to distinguish between the first time an address was used and the second time it was recycled.[3]

Hardware Support and Instruction Sets

Implementing tagged pointers requires specific hardware support, as the processor must be able to strip the tag before actually dereferencing the memory address. Attempting to read from an address with a non-zero upper 16 bits will trigger a segmentation fault.[2]

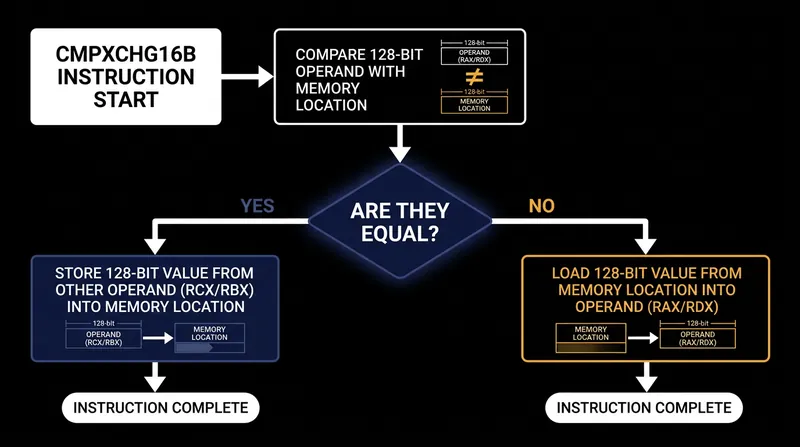

Intel and AMD addressed this by introducing the CMPXCHG16B instruction, which performs a 128-bit compare-and-swap. This allows programmers to keep the 64-bit pointer clean while storing a separate 64-bit generational counter right next to it in memory.[2]

The 128-bit instruction swaps both the pointer and the counter simultaneously. This approach avoids the need for bit-masking and provides a vastly larger counter space, though it requires the data to be perfectly aligned in the processor's cache lines.[1][2]

ARM architectures handle the problem differently, utilizing a Load-Link/Store-Conditional approach. The LDREX instruction reads a memory address and monitors it, while the STREX instruction writes to it only if no other thread has touched the monitored location.[5]

This architectural divergence means that lock-free code is rarely portable across different processor families. A tagged pointer implementation written for an Intel server will not compile on an ARM-based smartphone without significant abstraction layers.[5][6]

The 16-Bit Wrap-Around Limit

While embedding a counter in the unused 16 bits of a pointer is elegant, it introduces a mathematical vulnerability. A 16-bit integer can only hold 65,536 unique values before it wraps around back to zero.[1]

If a thread is suspended for exactly 65,536 modifications to a specific node, the counter will reset to the exact version the sleeping thread expects. The compare-and-swap will succeed, and the ABA problem will manifest anyway.[4]

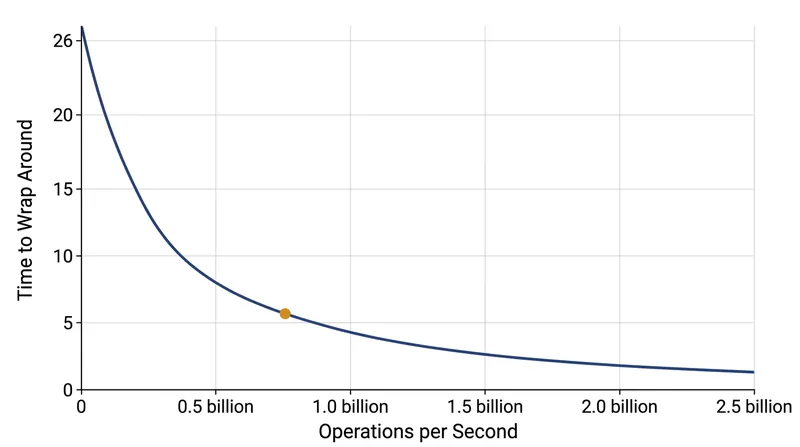

Factlen's analysis of pointer collision probabilities under high-frequency concurrent mutations demonstrates the severity of this limit. On a modern 5 GHz processor core, a 16-bit generational counter can wrap around in just 26 microseconds under maximum theoretical contention.[1]

This means tagged pointers alone are mathematically insufficient for absolute safety in ultra-low-latency financial systems. The probability of a collision is statistically low, but in systems executing billions of transactions per day, rare events become inevitable.[1][3]

To mitigate this, developers must artificially throttle the rate of memory reclamation or use wider counters. The 128-bit compare-and-swap instruction solves this entirely, as a 64-bit counter would take centuries to wrap around at current processor speeds.[2]

Alternatives to Tagged Pointers

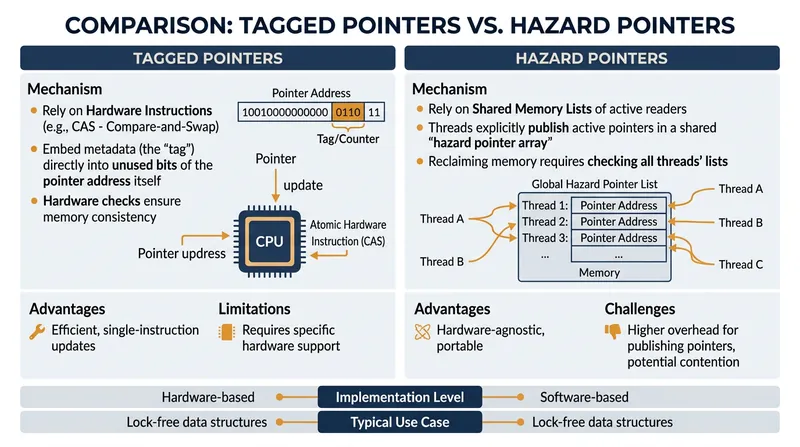

Because of these hardware dependencies and wrap-around risks, many modern systems abandon tagged pointers entirely. Instead, they rely on hazard pointers, a technique introduced by Maged Michael in 2004 that prevents memory from being recycled while threads are reading it.[3]

With hazard pointers, a thread announces which addresses it is currently observing by writing them to a shared list. The memory allocator checks this list before freeing any node, ensuring that no address is recycled prematurely.[3][4]

This approach eliminates the ABA problem at the source, rather than trying to detect it after the fact. It requires no special hardware instructions and avoids the mathematical limits of generational counters, though it introduces a slight performance overhead.[3]

The choice between tagged pointers and hazard pointers remains a central debate in systems engineering. The deciding factor will likely be the C++ standard committee's upcoming decisions on atomic memory models and whether future architectures expand virtual addressing beyond 48 bits.[1][6]
