Global Unichip Unveils 16 Gbps HBM4E Memory Interface on TSMC 2nm Process for Next-Generation AI

Hardware engineers designing the next wave of artificial intelligence accelerators can now route data at 16 gigabits per second per pin, following the release of a new memory interface built on TSMC's 2-nanometer manufacturing node. Global Unichip Corporation (GUC), a Taiwan-based custom silicon designer, announced Tuesday that its HBM4E physical layer (PHY) and controller intellectual property is design-ready and has already been adopted by early customers. The release gives chipmakers the immediate ability to widen the data pipelines feeding large language models, addressing the primary bottleneck in modern AI compute.[1][2]

The new intellectual property block is implemented on TSMC's N2P process, the foundry's cutting-edge 2-nanometer fabrication technology. By providing a pre-verified blueprint for the memory interface, GUC allows companies building custom AI application-specific integrated circuits (ASICs) to drop the 16 Gbps connection directly into their designs without engineering the complex physical layer from scratch. The technology has successfully taped out on TSMC's CoWoS-L advanced packaging platform, proving its viability for mass production.[1][3][4]

The 16 Gbps data rate represents a substantial throughput increase over the previous generation. GUC's prior silicon-proven HBM4 interface, built on TSMC's 3-nanometer N3P process, topped out at 12 Gbps. Pushing the transfer speed by 33 percent across all signed-off operating conditions allows AI accelerators to ingest training data and serve inference requests significantly faster, while the transition to the 2-nanometer node maintains an ultra-compact area footprint and industry-leading power efficiency.[1][2]

Beyond raw speed, the HBM4E release introduces a structural shift in how memory and compute are physically combined. The IP includes a specialized "face-up" variant engineered specifically to serve as the bottom die in TSMC's SoIC-X 3D stacking architecture. Rather than placing the memory controller next to the compute logic on a flat interposer, engineers can now stack the compute die directly on top of the interface.[1][3]

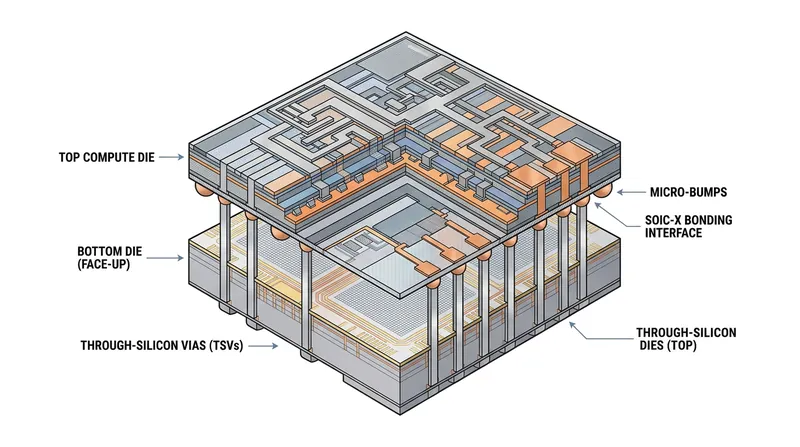

To make this vertical integration work, the face-up variant integrates dedicated Through-Silicon Vias (TSVs). These microscopic vertical copper channels punch directly through the silicon, pulling signals out and feeding power through to the top dies. This establishes a seamless, high-density path for complex three-dimensional integration, shortening the physical distance data must travel and thereby reducing latency and power consumption.[1][2]

Because stacking multiple chiplets vertically introduces severe thermal and mechanical stresses, ensuring signal integrity is critical. To address this, GUC integrated interconnect monitoring technology from proteanTecs directly into the HBM4E IP. This embedded telemetry provides deep visibility during the physical testing and characterization phases, allowing engineers to measure the health of the microscopic connections inside the package.[1][4]

The telemetry remains active even after the chip is deployed in a data center, maximizing in-field performance and system reliability by detecting degradation before a failure occurs. "HBM4E marks a major leap forward in bandwidth and system-level performance for next-generation AI accelerators," said Igor Elkanovich, Chief Technology Officer at GUC. "Reaching 16 Gbps on TSMC's N2P process underscores GUC's ability to quickly turn leading-edge process and packaging technology into production-ready HBM solutions."[1][2]

The availability of off-the-shelf 2-nanometer IP fundamentally alters the timeline for custom AI silicon. Foundries like TSMC and Samsung are aggressively ramping up their 2-nanometer capacities, with TSMC securing commitments from major players like Qualcomm and Apple for their flagship processors. By offering a design-ready HBM4E controller, GUC enables smaller ASIC developers and hyperscale cloud providers to compete at the bleeding edge of semiconductor manufacturing without bearing the entire research and development burden of the memory interface.[4]

As artificial intelligence models continue to scale into the trillions of parameters, the semiconductor industry is increasingly relying on heterogeneous integration—stitching together specialized chiplets—to bypass the physical limits of traditional monolithic chip design. The successful tape-out of a 16 Gbps HBM4E interface on a 2-nanometer process proves that the foundational building blocks for the next generation of AI hardware are now ready for deployment.[1][3]
