Optical Reticle Limits Cap AI Dies at 858 Square Millimeters, Forcing Multi-Die Packaging
The physical size of a single silicon chip is hard-capped by the exposure field of lithography machines. As artificial intelligence models demand more compute than a single maximum-size die can hold, chipmakers are abandoning monolithic designs to stitch multiple chips together inside massive advanced packages.
By Harper Lane
In short
- The 858-square-millimeter reticle limit is the maximum area a lithography machine can expose, creating a hard physical cap on single-die processor sizes.
- Nvidia's Blackwell B200 bypasses this limit by stitching two maximum-size compute dies together, achieving 208 billion transistors on a single package.
- TSMC's advanced CoWoS packaging now acts as the primary engine for Moore's Law, with plans to scale interposers to 14 times the reticle limit by 2029.
For years, the artificial intelligence industry operated on a straightforward assumption: to train larger models, manufacturers would simply print larger, denser silicon chips. That monolithic approach drove the first wave of generative AI, culminating in processors that stretched the limits of fabrication.
But that era of monolithic scaling has collided with a hard physical boundary inside the factories that make the hardware. The constraint is not thermal, and it is not a failure of transistor design.
Instead, the ceiling is optical. The photolithography machines that print microscopic circuits onto silicon wafers can only expose a specific maximum area in a single flash of light, creating a hard cap on how large a single chip can be.
The Physics of the Reticle Limit
This boundary is known in the semiconductor industry as the reticle limit. To understand why it exists, it helps to look at how modern microchips are actually manufactured inside a foundry.[5]
Photolithography machines act like highly advanced slide projectors. They shine extreme ultraviolet light through a photomask, or reticle, which holds the blueprint of the chip's circuitry, projecting that pattern onto a silicon wafer.
The optics inside these machines can only project an image of a certain size without losing focus or introducing distortion at the edges. For current-generation extreme ultraviolet lithography, that maximum exposure field is a rectangle measuring 26 millimeters by 33 millimeters.[1]

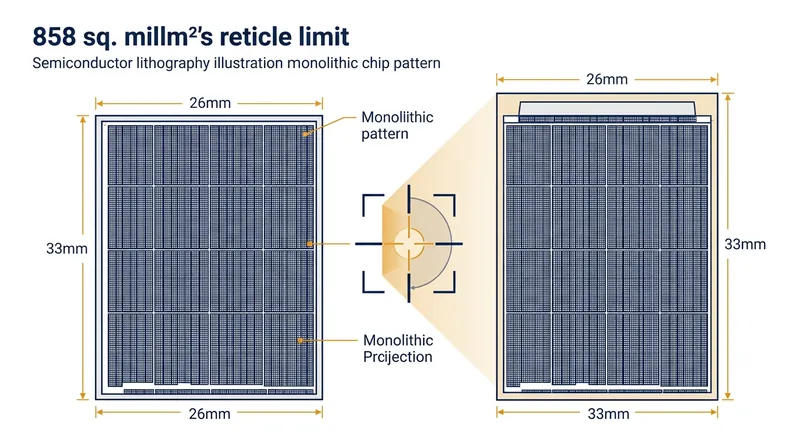

That geometry yields a maximum printable area of exactly 858 square millimeters. A foundry cannot print a single piece of logic silicon larger than this 858-square-millimeter rectangle, because the scanner physically cannot expose a larger area in one step.[1][3]
Hitting the Transistor Wall
For decades, this optical ceiling was irrelevant because chips were small enough to fit dozens of dies inside a single exposure field. But the insatiable compute demands of large language models changed the math entirely.[1][4]
Frontier AI accelerators grew massive to accommodate more processing cores and wider memory interfaces. Nvidia’s Hopper generation, which powered the artificial intelligence boom through 2023 and 2024, pushed right up against this optical boundary.[2]
A single monolithic die at the reticle limit can only hold as many transistors as the underlying process node allows. On TSMC’s 4-nanometer class process, an 858-square-millimeter die maxes out at roughly 104 billion transistors.[2][6]
"At 4nm feature sizes, reticle limits cap the maximum die area a fab can produce," notes an architectural analysis by Packet AI. "A single Blackwell compute die at roughly 104 billion transistors is already at or near that reticle limit."[2]
But next-generation models require vastly more compute than 104 billion transistors can provide. Because the optical exposure field cannot be enlarged, chip designers realized that the monolithic AI accelerator had reached its final form.[6]
The Multi-Die Chiplet Transition
To break past the 858-square-millimeter barrier, the industry is abandoning single-die designs entirely. Instead of trying to print one impossibly large chip, engineers are printing multiple maximum-size dies and stitching them together.[5]
Nvidia’s Blackwell B200 architecture represents the most prominent shift to this multi-die approach. Rather than a single piece of silicon, the B200 utilizes a chiplet design featuring two separate compute dies.[2]

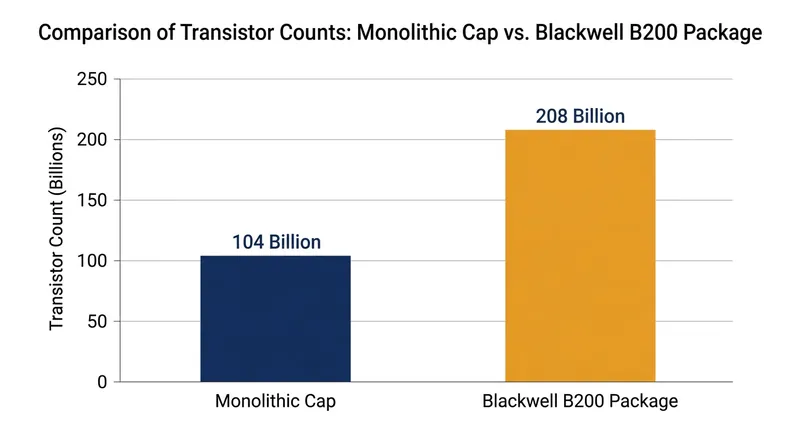

Each of those two dies pushes the reticle limit, holding roughly 104 billion transistors. By mounting them side-by-side, Nvidia achieves a total of 208 billion transistors per processor, completely bypassing the optical constraints of a single exposure.[2][6]
The challenge of a multi-die design is ensuring the separate chips act as a single unified processor. To achieve this, the two Blackwell dies are connected by a custom chip-to-chip interconnect that transfers data at 10 terabytes per second.[2]
Advanced Packaging as the New Engine
Stitching these massive dies together requires a foundation that standard circuit boards cannot provide. This is where advanced packaging technologies, particularly TSMC’s Chip-on-Wafer-on-Substrate, or CoWoS, become the critical bottleneck in AI hardware.[1][3]

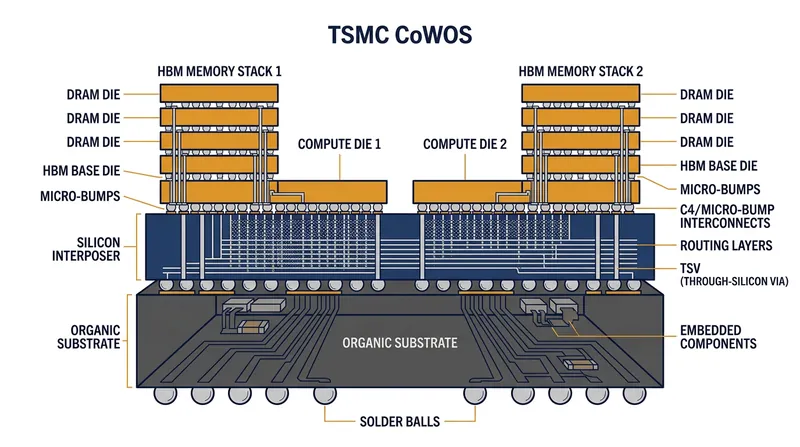

CoWoS packaging places the compute dies and stacks of high-bandwidth memory onto a silicon interposer. This interposer acts as a microscopic bridge, packed with high-density wiring that allows the chiplets to communicate with massive bandwidth.[4]
While the compute dies themselves are strictly capped at 858 square millimeters, the interposer underneath them is manufactured differently and can scale much larger. This allows the total package footprint to dwarf the standard reticle limit.[1]
TSMC’s CoWoS-S technology currently accommodates interposers up to 3.3 times the reticle size, or roughly 2,700 square millimeters. The newer CoWoS-L variant, which carries Nvidia’s Blackwell chips, scales up to 5.5 times the reticle limit.[3]
"Such gargantuan multi-chiplet processors show that advanced packaging is now the de facto scaling engine for the industry," reports Tom's Hardware. The publication notes that TSMC's lateral packaging enables faster transistor growth than traditional Moore's Law scaling.[1]
The Yield Economics of Chiplets
Even if lithography machines could magically project a larger image, the economics of silicon manufacturing would still force a transition to multi-die packaging. The reason comes down to defect density and manufacturing yields.[5]
Silicon wafers inevitably contain microscopic imperfections. If a single defect lands on a massive 858-square-millimeter monolithic die, the entire expensive chip is ruined and must be discarded.[5]
As dies get larger, the probability of a defect ruining the chip increases exponentially. A chip twice the size is significantly more than twice as likely to fail during the manufacturing process.[6]
By splitting a massive processor into two or more smaller chiplets, foundries drastically improve their yield. If one smaller die fails, they only discard that specific piece, saving the other functional chiplets for assembly.[5]
"Modular chiplet design improves yield, reduces development costs, enables process-node flexibility, accelerates time-to-market, and simplifies product customization," explains Tessolve, an engineering firm specializing in semiconductor packaging.[5]
Expanding the Package Footprint
With the monolithic era over, the roadmap for AI performance now depends entirely on how large these advanced packages can grow. TSMC has laid out an aggressive timeline to expand its CoWoS capabilities over the next five years.[1][3]

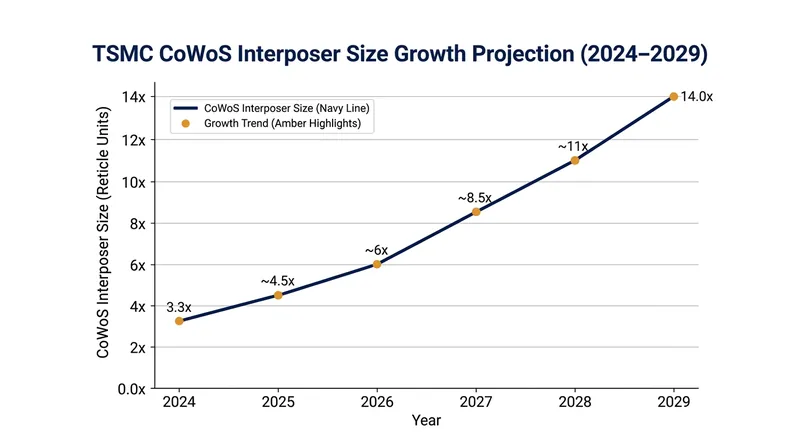

By 2027, TSMC plans to produce a 9.5-reticle-sized interposer capable of supporting 12 high-bandwidth memory stacks. This massive package will require a substrate measuring 120 millimeters by 150 millimeters.[1][4]
The roadmap stretches even further by 2029, when TSMC expects to manufacture interposers larger than 14 times the reticle limit. A 14-reticle package would cover over 12,000 square millimeters, roughly the size of a compact disc.[1][3]
These deep-space packages will host a full buffet of computing power. A single 14-reticle unit could carry up to 24 three-dimensional stacked compute chiplets alongside two dozen memory modules, delivering 48 times the compute transistors of a 2024 package.[1][4]
The High-NA EUV Complication
While packaging scales up, the optical reticle limit itself is actually poised to shrink. The next generation of lithography equipment, known as High-NA EUV, introduces a new optical complication for chip designers.[6]
To print even finer transistors, High-NA EUV machines use larger mirrors that change the angle of the light. This optical shift requires halving the exposure field from 26 by 33 millimeters down to 26 by 16.5 millimeters.[6]
As a result, the reticle limit for next-generation High-NA nodes will drop to just 429 square millimeters. This physical reduction will force chipmakers to slice their architectures into even smaller, more numerous chiplets.[6]
As a result, the reticle limit for next-generation High-NA nodes will drop to just 429 square millimeters.
The 858-square-millimeter boundary has fundamentally altered the trajectory of computing. The future of artificial intelligence hardware is no longer about printing a bigger chip, but mastering the complex art of stitching smaller ones together.[6]
