Equal Impedance to Ground Cancels Audio Cable Interference Without Inverted Signals

In June 1995, the Journal of the Audio Engineering Society published a paper that dismantled a foundational myth of sound engineering. Bill Whitlock, then president of Jensen Transformers, proved that balanced audio lines do not require equal and opposite signal voltages to reject interference.[2]

The paper, "Balanced Lines in Audio: Fact, Fiction, and Transformers," demonstrated that signal symmetry contributes exactly zero decibels to noise rejection. The only mechanism that actually cancels electromagnetic interference is the equal impedance of both conductors to ground.[2]

That revelation shifted the industry's understanding of signal transmission and eventually shaped the AES48-2005 grounding standard. It proved that a circuit driving audio down only one wire could perfectly reject noise, provided the silent wire matched the driven wire's resistance and capacitance.[3]

"What defines a system as balanced is that the impedances from pin-2 to ground and from pin-3 to ground are both equal," notes the technical support team at Sound Devices. "The signal appearing at the output pins has nothing to do with whether the output stage is balanced or not."[1]

The Illusion of Symmetry

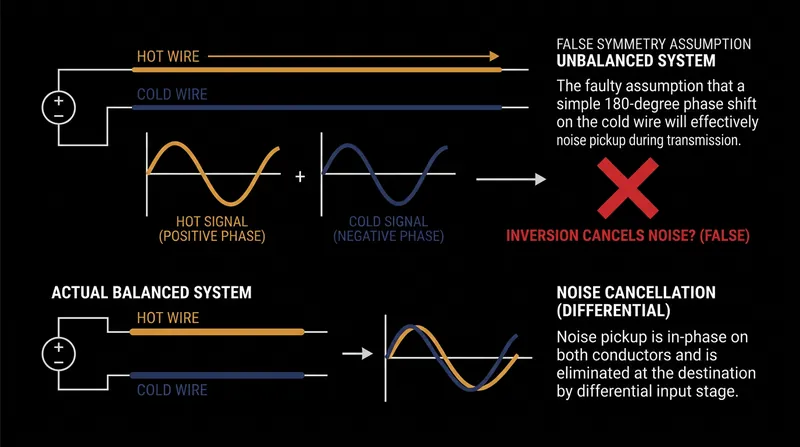

For decades, audio technicians assumed that a balanced line required a differential drive. In this traditional model, the source equipment splits the audio into a positive phase on the hot wire and a negative phase on the cold wire.

Because the two signals are inverted, the receiver can flip the cold wire's phase and sum the two halves back together. Engineers logically assumed this inversion process was the mechanism that eliminated the 60-hertz hum picked up from nearby power cables.[6]

That assumption was mathematically backwards, confusing the audio payload with the interference rejection mechanism. The receiver does not flip and sum the signals; it operates as a differential amplifier that strictly subtracts the cold voltage from the hot voltage.

When electromagnetic interference strikes a cable, it induces a voltage spike. If both the hot and cold wires present the exact same impedance to ground, the interference generates the exact same voltage on both conductors simultaneously.[6]

This identical interference is known as common-mode noise. When the differential receiver subtracts the cold wire from the hot wire, the common-mode noise is subtracted from itself, leaving a remainder of zero and a perfectly silent background.[6]

The Mathematics of Cancellation

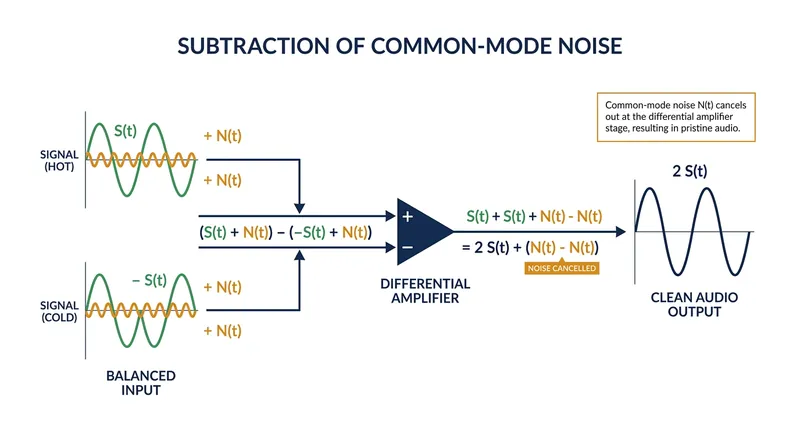

The subtraction equation proves that the audio signal's amplitude is irrelevant to the noise rejection. If the hot wire carries +1 volt of audio and +1 volt of noise, and the cold wire carries -1 volt of audio and +1 volt of noise, the receiver calculates the difference.[5]

Subtracting the cold leg (-1 + 1) from the hot leg (+1 + 1) yields exactly +2 volts of clean audio. The +1 volt of noise drops out of the equation entirely before the audio signal is even evaluated.[5]

Whitlock realized that this math works just as perfectly if the cold wire carries no audio at all. If the hot wire carries +1 volt of audio and +1 volt of noise, and the cold wire carries 0 volts of audio and +1 volt of noise, the subtraction still works.[2][5]

Subtracting the cold leg (0 + 1) from the hot leg (+1 + 1) yields exactly +1 volt of clean audio. The noise is still perfectly canceled, proving mathematically that the inverted signal is completely unnecessary for interference rejection.[5]

The Impedance Balanced Output

This realization popularized the "impedance balanced" output topology across the professional audio industry. Instead of using a second amplifier to drive an inverted signal down the cold wire, the manufacturer simply ties the cold wire to ground through a passive resistor.[1]

As long as that resistor exactly matches the output impedance of the amplifier driving the hot wire—typically between 10 and 100 ohms—the line is perfectly balanced. The induced noise will remain identical on both conductors.[1][4]

"Impedance balanced is really a misnomer—it is simply a truly balanced output stage," the Sound Devices engineering team explains. The topology eliminates the stability issues that plague cross-coupled active outputs and requires fewer components, increasing long-term reliability.[1]

It also prevents the 6-decibel signal loss that occurs when a standard active balanced output is connected to an unbalanced input. If the cold pin is grounded by an unbalanced cable, an impedance-balanced output simply ignores the short and drives the hot pin normally.[1]

The Role of the Differential Receiver

The effectiveness of this cancellation is measured as the Common-Mode Rejection Ratio, or CMRR. A higher CMRR indicates that the differential receiver is more thoroughly suppressing the interference and preserving the integrity of the audio payload.

In a real-world environment, perfect cancellation is impossible because physical components have manufacturing tolerances. If the source resistors are mismatched by even 1 percent, the impedance to ground will differ, and the induced noise voltages will no longer match perfectly.[2][4]

When the noise voltages differ, the receiver's subtraction operation leaves a remainder. This residual voltage leaks directly into the audio path, degrading the CMRR and introducing an audible hum or buzz into the studio monitors.[4]

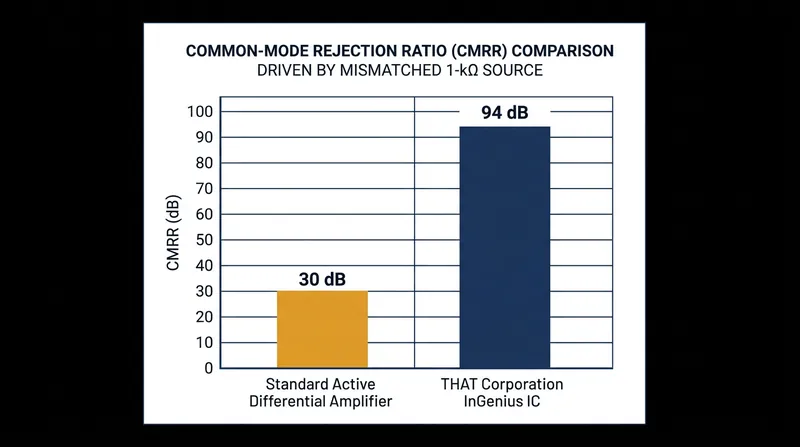

To combat this, engineers must raise the common-mode input impedance of the receiver. A standard active differential amplifier might offer a CMRR of only 30 decibels when driven by an unbalanced source, leaving the system highly vulnerable to ground noise.[2]

In 1996, Whitlock and THAT Corporation introduced the InGenius integrated circuit to solve this exact vulnerability. The chip used a patented bootstrapping technique to raise the receiver's common-mode input impedance to over 10 megaohms at audio frequencies.[4]

This massive impedance made the receiver virtually immune to slight mismatches at the source. The IC could maintain an astonishing 94 decibels of noise rejection even when driven by an unbalanced 1-kiloohm consumer output, preserving high dynamic range.[4]

Real-World Cable Geometry

The physical construction of the cable is just as critical to this process as the circuitry at either end. For the impedances to remain balanced, both conductors must be exposed to the exact same electromagnetic fields over the entire run.[6]

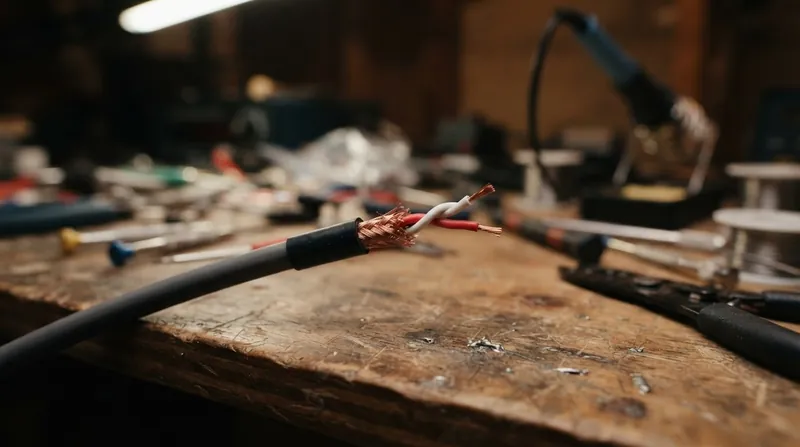

This requirement dictates why balanced cables use a twisted pair geometry. By tightly twisting the hot and cold wires together, the cable ensures that neither wire is consistently closer to the interference source than the other, keeping the induced voltages identical.[6]

Shielding provides a secondary line of defense by draining high-frequency radio interference to ground. However, shielding is largely ineffective against low-frequency electromagnetic fields, such as the 60-hertz hum from mains power, which relies entirely on the impedance balance to cancel out.[6]

The Legacy of AES48

The industry's evolving understanding of impedance balance culminated in the AES48-2005 standard. Ratified in March 2005, the document established strict rules for grounding and electromagnetic compatibility in active audio equipment to protect the differential receiver.[3]

The standard specifically addressed the "Pin 1 problem," a widespread design flaw where manufacturers routed the cable shield's ground current through the internal audio signal reference. This shared path created a common-coupling impedance that injected noise directly into the audio circuit.[3]

AES48 mandated that the shield contact must connect directly to the metal chassis via the lowest possible impedance path, entirely bypassing the internal signal ground. This isolated the interference currents from the delicate differential receiver and preserved the impedance balance.[3]

By separating the shield from the signal path and relying on equal conductor impedance for noise rejection, modern audio systems achieve pristine clarity. The mathematics of subtraction allow engineers to transport high-dynamic-range signals across hundreds of feet of cable without audible contamination.[3][4]
