Why Positive End-Expiratory Pressure Diverts Pulmonary Blood by Compressing West Zone 2 Alveoli

The intensive care unit is split on a fundamental dial: how much positive pressure to push into failing lungs. One camp chases oxygenation, cranking up Positive End-Expiratory Pressure to force collapsed air sacs open.[1]

The opposing camp warns that this pressure is a double-edged sword that crushes the very blood vessels needed to transport that oxygen. They argue that blindly chasing a number on a pulse oximeter often sacrifices systemic perfusion and stresses the heart.[5]

The core of this clinical debate lies in a microscopic battleground known as West Zone 2. Here, the delicate interplay between air pressure and blood pressure dictates whether a patient actually absorbs oxygen or merely ventilates dead space.

"Inappropriate high PEEP may cause alveolar overdistension and hemodynamic instability," notes a recent respiratory physiology review. The mechanical expansion acts as a tourniquet on the pulmonary capillaries, stripping the highest-oxygenated alveoli of their blood flow.[4]

The Architecture of Pulmonary Blood Flow

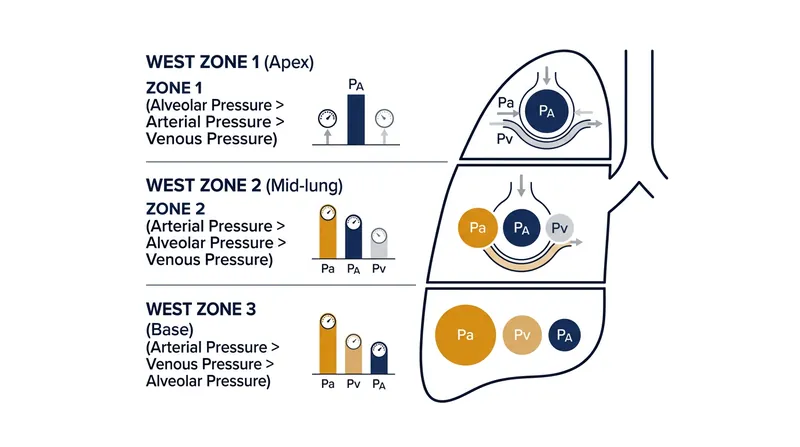

To understand the trap of high PEEP, one must look at how gravity divides the human lung. In 1964, physiologist John West mapped the lung into distinct zones based on the shifting balance of three pressures.[1]

These pressures are arterial pressure driving blood in, alveolar pressure pushing back from the air sacs, and venous pressure draining blood away. Because the pulmonary circuit operates at a low pressure—typically 25/8 millimeters of mercury—gravity heavily influences where blood settles.[1]

At the lung bases, gravity pools the blood, creating West Zone 3. Here, arterial and venous pressures both exceed alveolar pressure. Blood flows continuously through the capillaries, creating the ideal conditions for steady gas exchange.

At the apex of the lung, the opposite occurs. If alveolar pressure exceeds both arterial and venous pressures, the capillaries are squeezed shut. This is West Zone 1, a state of pure alveolar dead space where ventilation is entirely wasted.[1]

Between these two extremes lies West Zone 2, the transitional middle tier. In this region, arterial pressure is higher than alveolar pressure, but alveolar pressure remains higher than venous pressure. This creates a precarious hemodynamic balancing act.

The Starling Resistor Effect

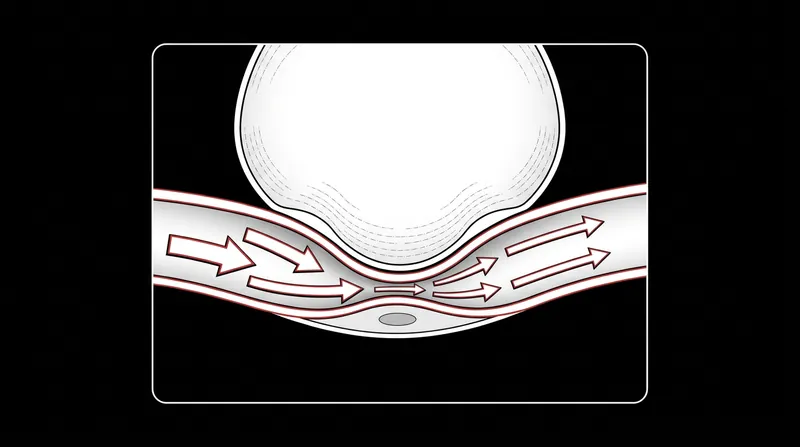

In West Zone 2, the pulmonary capillary behaves like a Starling resistor, which is a collapsible tube running through a pressurized chamber. Blood flow through this region is no longer driven by the standard arterial-to-venous pressure gradient.

Instead, perfusion is determined by the difference between the arterial driving pressure and the surrounding alveolar pressure. Because systolic pulmonary arterial pressure exceeds alveolar pressure, blood successfully pushes through the capillary during the heart's active contraction.

However, as the heart relaxes into diastole, the arterial pressure drops below the alveolar pressure. The inflated air sac pinches the venous end of the capillary shut, meaning blood only flows intermittently, pulsing with each heartbeat.

This delicate systolic flow is easily disrupted by mechanical ventilation. When a ventilator applies Positive End-Expiratory Pressure, it artificially raises the alveolar pressure across the entire lung, fundamentally altering the Zone 2 pressure gradients.[1]

A classic 1988 animal model by Nieman et al. demonstrated this effect visually. When 15 centimeters of water of PEEP was applied, the researchers noted that "microscopically, alveolar capillaries appeared compressed and flattened by PEEP."

The Dead Space Paradox

As PEEP climbs, the inflated alveoli expand and crush the surrounding capillary beds. The Zone 2 regions are effectively converted into Zone 1 conditions, where alveolar pressure exceeds arterial pressure and microvascular collapse occurs.[4]

This creates a physiological paradox: the alveoli that are the best ventilated are now the worst perfused. The ventilator successfully delivers oxygen to the air sac, but the compressed capillary cannot transport it into the bloodstream.[4]

This wasted ventilation is known clinically as alveolar dead space. A recent volumetric capnography study on acute respiratory distress syndrome models quantified this exact shift, measuring how dead space fractions scale directly with rising ventilator pressures.[3]

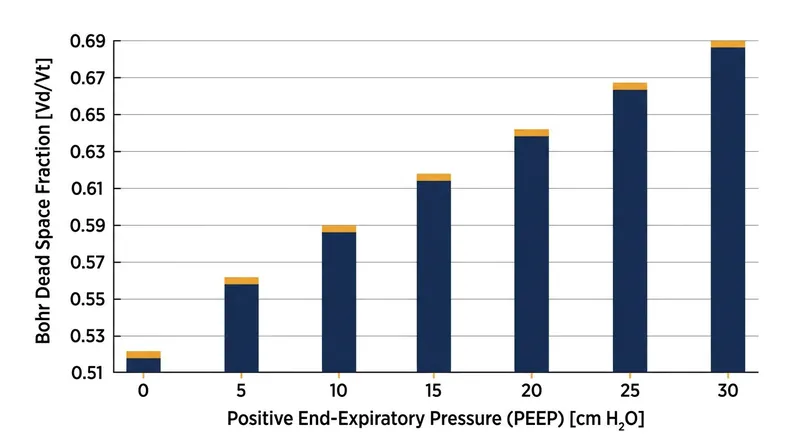

The researchers found that Bohr dead space—a measure of wasted ventilation—sat at a 0.51 fraction when no PEEP was applied. When PEEP was increased to 30 centimeters of water, the dead space fraction surged to 0.69.[3]

"Bohr dead space was associated to lung stress," the researchers concluded. By aggressively chasing alveolar recruitment with high pressures, clinicians inadvertently create large pockets of the lung that contribute absolutely nothing to systemic oxygen delivery.[3]

The Illusion of Oxygenation

The monitor at the patient's bedside often masks this microvascular collapse entirely. When PEEP is increased, the pulse oximeter may show a rising oxygen saturation, leading clinicians to falsely believe the respiratory intervention is succeeding.[4]

However, oxygen saturation only measures the percentage of hemoglobin currently carrying oxygen, not the total volume of blood actually reaching the tissues. If the pulmonary capillaries are heavily compressed, the total cardiac output drops significantly.[4]

A patient with a 99 percent oxygen saturation but a severely depressed cardiac output is in a state of hidden shock. The tissues starve for oxygen while the lungs are perfectly inflated, creating a dangerous clinical illusion.[5]

This is why relying solely on arterial blood gases can be fatal. The blood that does manage to pass through the uncompressed Zone 3 capillaries is well-oxygenated, but there simply is not enough of it to sustain the vital organs.[5]

The Right Ventricular Toll

The blood diverted away from these crushed Zone 2 capillaries does not simply vanish. It is forced downward into the gravity-dependent Zone 3 regions, which are often poorly ventilated or collapsed in injured lungs.[1]

This diversion worsens the ventilation-perfusion mismatch, as blood floods into dependent areas without adequate oxygen. More critically, the widespread capillary compression drastically increases pulmonary vascular resistance, forcing the heart to work significantly harder.[1]

The right ventricle, a thin-walled chamber designed for a low-pressure circuit, must now pump against this artificially high resistance. As alveolar pressure becomes the outflow pressure for the right heart, the afterload spikes dangerously.[2]

"Under both conditions, alveolar pressure becomes the outflow pressure for the RV and can considerably increase RV afterload," notes a National Institutes of Health review. This strain is particularly lethal in septic or post-surgical patients.[4]

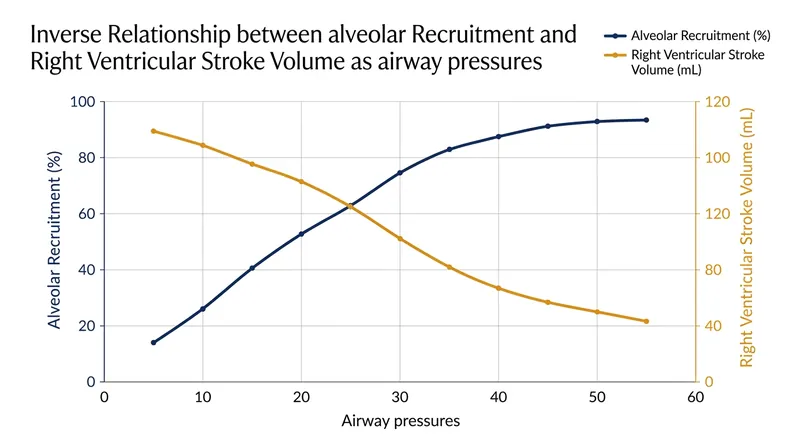

Clinical data backs this mechanical theory. Studies by Osman and Slobod demonstrate that right ventricular afterload increases proportionally with rising tidal volumes and plateau pressures, frequently precipitating acute right heart failure in vulnerable intensive care patients.[2]

Finding the Hemodynamic Sweet Spot

The realization that PEEP diverts capillary blood flow has forced a reckoning in critical care. The goal is no longer simply maximizing the numbers on the ventilator screen, but optimizing the actual delivery of oxygen to the tissues.[5]

Modern lung-protective strategies now emphasize a delicate physiological compromise. Clinicians must find the precise PEEP level that keeps injured alveoli open without crossing the pressure threshold that crushes the surrounding microvasculature.[5]

This requires looking beyond oxygen saturation. Advanced monitoring now tracks the gradient between arterial and end-tidal carbon dioxide, using it as a real-time surrogate for dead space to detect when capillaries are being pinched shut.[1]

Echocardiography is also deployed to watch the right ventricle for signs of dilation or septal bowing. If the right heart struggles, the PEEP must be dialed back, even if it costs a fraction of lung recruitment.[5]

Mechanical ventilation remains a blunt instrument operating on a microscopic scale. Recognizing that positive pressure acts as a tourniquet on West Zone 2 alveoli forces clinicians to treat the lungs and the heart as a single, inseparable circuit.[5]
