Why the Coandă Effect Pulls Fluid Jets Toward Convex Surfaces Instead of Diverging

The outcome of a high-speed fluid jet is determined the moment its lateral entrainment is physically blocked. When a jet fires into open air, shear forces drag surrounding molecules along with it, pulling replacement fluid equally from all sides.[1]

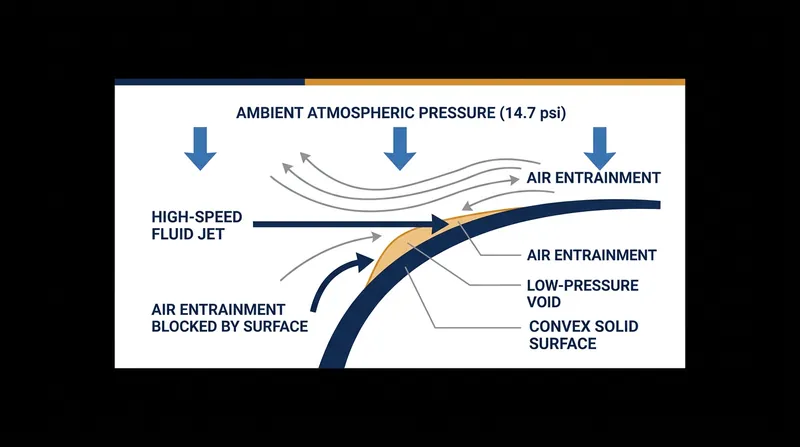

But when a solid surface is introduced on one side, it physically blocks new air from rushing in to replace the entrained molecules. This starvation creates a localized low-pressure void between the jet and the wall, dictating everything that follows.[1]

Because the jet continues to sweep away the fluid trapped between itself and the surface, the pressure in that narrow gap plummets. The surrounding atmosphere, sitting at a baseline pressure of 14.7 pounds per square inch, suddenly has nothing pushing back against it from the wall side.[1][3]

The jet does not inherently possess a tendency to stick to the surface. Rather, the unbalanced atmospheric pressure crushes the high-speed flow against the solid barrier, pinning it there as long as the velocity is maintained.[1][3]

Bending Around Convex Curves

This pressure differential is so powerful that it forces the fluid to bend. If the surface curves away from the jet's initial trajectory—a convex geometry—the higher external pressure provides the exact centripetal force required to wrap the flow around the curve.[1]

Romanian engineer Henri Coandă first documented this in 1910 during the testing of his experimental motor-jet aircraft. He noticed that the exhaust flames hugged the plywood fuselage instead of shooting straight backward, producing 220 kilograms-force of thrust but nearly incinerating the plane.

Coandă realized that the flames were not magically attracted to the wood. Instead, the fuselage was restricting the entrainment of ambient air on one side of the exhaust jet, creating the low-pressure zone that pulled the 1,000-degree Celsius gases against the aircraft.

He formally patented the phenomenon in 1934, and aerodynamicist Theodore von Kármán officially named it the Coandă effect. As Coandă himself stated, "when a jet of fluid is passed over a curved surface, it bends to follow the surface, entraining large amounts of air as it does so."

The Geometry of Detachment

The fluid will only follow the curve as long as the pressure gradient can overcome the jet's outward momentum. The critical metric is the ratio of the jet's thickness to the surface's radius of curvature, known in fluid dynamics as the height-to-radius ratio.[1]

If this height-to-radius ratio exceeds 0.5, the atmospheric pressure is no longer sufficient to bend the mass of the fluid. In this scenario, the jet separates from the wall after turning just 18 degrees, breaking the adhesion entirely.[1]

When the geometry is kept within this limit, the flow remains remarkably stable. In experiments using a flat plate inclined away from the jet, the flow will separate, form a low-pressure separation bubble, and reattach to the plate as long as the angle is less than 62 degrees.[1]

Beyond that precise 62-degree threshold, the jet breaks free entirely. It mixes rapidly with the ambient air, losing the wall-adhesion effect and reverting to the behavior of a standard free jet that diverges straight ahead into the atmosphere.[1]

Multiplying Lift in Aviation

Aerospace engineers exploit this forced adhesion to manipulate fluid trajectories without relying on moving parts. In aviation, routing jet exhaust over the convex upper surface of a wing dramatically increases the velocity gradient within the boundary layer.[1]

This accelerates the air downward, lowering the local pressure by over 1,000 pounds per square foot. Because the top of the wing already creates approximately 67 percent of a conventional aircraft's total lift, augmenting this flow with engine exhaust yields massive performance gains.[1]

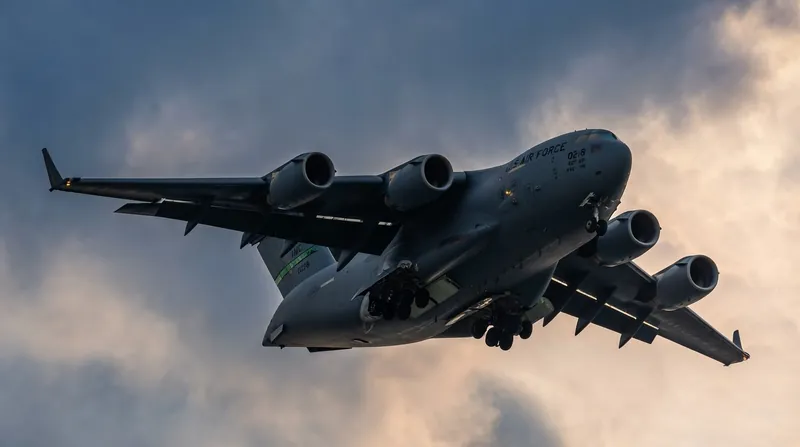

The Boeing C-17 Globemaster III utilizes this principle through externally blown flaps. Part of the engine thrust passes through slots in the flaps and is turned over the top surfaces by the Coandă effect, allowing the massive cargo plane to land on remarkably short runways.[1]

The NOTAR, or No Tail Rotor, helicopter system relies entirely on this pressure gradient for anti-torque control. A fan inside the tail boom pressurizes air, which exits through two longitudinal slots and wraps around the cylindrical boom.

This creates a boundary layer flow that pulls the downwash from the main rotor sideways. The resulting aerodynamic lift on the tail boom counteracts the torque of the main rotor, eliminating the need for an exposed, noisy tail blade.

Deep-Sea Mining and Fluidics

The physical effect scales across completely different fluid environments, including heavy underwater applications. Because water is incompressible, a submerged water jet entraining surrounding water creates an identical pressure gradient against a convex surface, driving similar adhesion.[2]

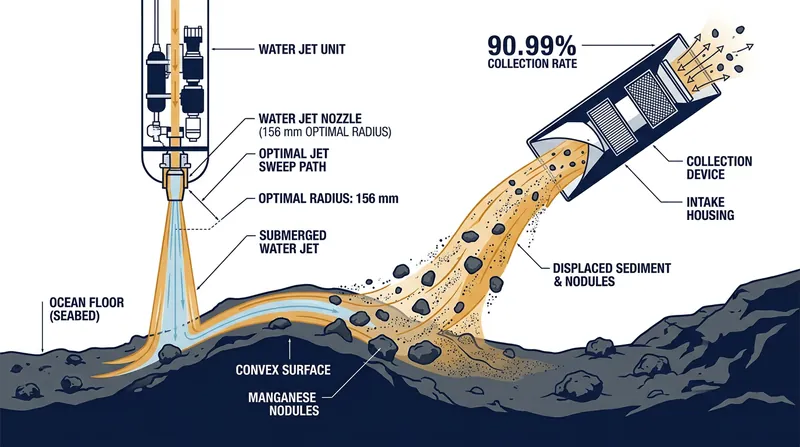

Recent deep-sea mining prototypes use a convex Coandă surface to generate a pressure gradient that lifts manganese nodules from the ocean floor. The high-speed fluid sweeps upward along the wall, establishing a persistent low-pressure entrainment zone that vacuums up the heavy minerals.[2]

By optimizing the surface radius to exactly 156 millimeters, researchers at the American Institute of Physics achieved a maximum collection rate of 90.99 percent. This proved that the pressure differential could overcome significant gravitational and drag forces in a dense fluid environment.[2]

In the field of fluidics, the Coandă effect allows for logic gates and switches that operate entirely without moving parts. A jet of air or liquid can be toggled between two diverging convex walls simply by introducing a tiny control pulse of air to disrupt the low-pressure bubble on one side.[1]

Thermodynamics and Heat Transfer

The forced adhesion does more than just redirect momentum; it fundamentally alters how heat transfers between the fluid and the solid. Because the jet remains pinned to the cylinder or convex wall, the thermal boundary layer is compressed, accelerating the rate of energy exchange.

Industrial engineers utilize this compression to cool high-temperature components rapidly. Studies show that the Coandă effect causes the jet to adhere to the cylinder so tightly that the associated heat transfer can be increased by up to 20 percent compared to a free-flowing jet.

This thermal efficiency is why Coandă profiles are frequently machined into the flare stacks of oil refineries. By entraining massive volumes of ambient air into the combustion zone, the convex geometry ensures a cleaner, cooler burn that reduces smoke and radiant heat output.

The Misunderstood Spoon

The most common demonstration of the Coandă effect is also the most frequently misunderstood. Holding the convex back of a spoon under a running tap causes the water to wrap around the metal, a phenomenon routinely cited in textbooks as a classic Coandă pressure gradient.[1]

However, because water flowing through air does not entrain the surrounding gas effectively, the primary force bending the water is actually surface tension. The water molecules cohere to each other and adhere to the metal, pulling the stream around the curve.[1]

True Coandă adhesion requires a fluid to entrain the same phase of fluid surrounding it, such as air jetting into air or water jetting into water. If the surface tension of the tap water were reduced to zero—such as when it reaches boiling temperature—it would behave like a gas and rely entirely on the pressure gradient.[1]

The ultimate proof of the underlying mechanism lies in the theoretical vacuum test. Because the Coandă effect relies entirely on the ambient atmosphere to crush the jet against the surface, removing that atmosphere destroys the phenomenon completely.[3]

In a perfect vacuum, where no ambient pressure exists to push back against the jet, the entrainment starvation creates no pressure differential. Without the 14.7 pounds per square inch of atmospheric force, the Coandă effect ceases to exist, and the jet diverges straight ahead.[3]
