Quadratic Joule Heating Outpaces Linear Peltier Absorption, Capping the Maximum Temperature Drop of Thermoelectric Coolers

Engineers pushing solid-state coolers to absolute zero hit a hard thermal wall long before they freeze the target chip. The very electrical current used to pump heat out of a device eventually turns around and cooks it. This inescapable physical ceiling dictates how everything from laser diodes to portable refrigerators is designed.

A thermoelectric cooler, or Peltier module, operates without moving parts, refrigerants, or compressors. When direct current flows through alternating pillars of bismuth-telluride semiconductors, it forces charge carriers to absorb thermal energy at one junction and release it at the other. This phenomenon, known as the Peltier effect, effectively pumps heat from the cold ceramic face to the hot one.[4]

The cooling power of the Peltier effect scales linearly with the electrical current applied. If you double the current, you double the rate at which heat is evacuated from the cold side. This straightforward relationship suggests that achieving cryogenic temperatures requires nothing more than a sufficiently massive power supply.

However, the semiconductor materials conducting this current are not perfect superconductors. They possess internal electrical resistance, which inevitably generates waste heat as electrons force their way through the lattice. This waste energy is known as Joule heating, and it obeys a fundamentally different mathematical law than the cooling effect.

The quadratic trap of Joule heating

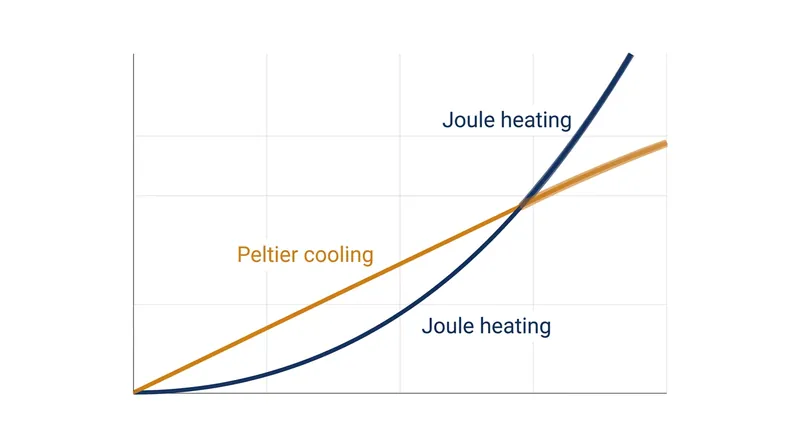

While Peltier cooling grows linearly, Joule heating scales with the square of the current. Doubling the electrical input multiplies the internal waste heat by a factor of four. At low power levels, the linear cooling effect easily outpaces the quadratic heating, resulting in a net temperature drop at the cold face.[3]

As the current continues to rise, the exponential curve of Joule heating rapidly catches up to the straight line of Peltier cooling. Eventually, the module reaches an optimal current threshold where the internal waste heat perfectly cancels out any additional heat pumping. Pushing the current beyond this point actively warms the cold side.

The exact point of diminishing returns is dictated by the electrical resistance of the bismuth-telluride pillars. As the module cools, the semiconductor's resistance actually changes, creating a dynamic thermal environment. Engineers must constantly calculate the shifting balance between the linear heat extraction and the quadratic heat generation.

This mathematical intersection creates a strict physical limit on the maximum temperature drop a single-stage module can achieve. For standard bismuth-telluride coolers operating at room temperature, this ceiling sits at approximately 65 to 70 degrees Celsius. No amount of additional electrical power can force a single module colder.

The situation is further complicated by Fourier conduction, the natural tendency of heat to flow from a warm area back to a cold one. As the hot side of the module heats up, thermal energy constantly leaks back through the semiconductor pillars. This back-conduction continuously erodes the net cooling capacity.

The burden on the heat sink

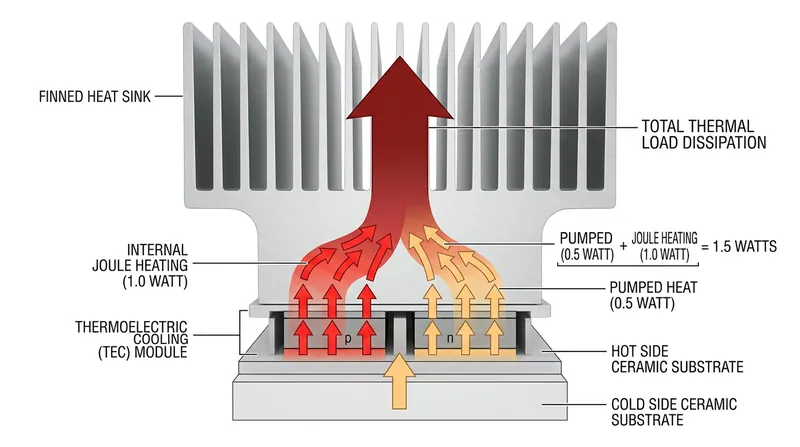

To maintain the temperature drop, the hot side of the module must reject a massive amount of thermal energy. It has to dissipate both the heat actively pumped from the cold side and the entirety of the internal Joule heating. If the heat sink is undersized, the hot side temperature spikes, accelerating back-conduction and collapsing the cooling effect.

This dual thermal burden destroys the module's Coefficient of Performance at high currents. A typical thermoelectric cooler might operate with a coefficient of 0.5, meaning it consumes 1 watt of electricity to pump just 0.5 watts of heat. The heat sink must therefore shed 1.5 watts of total thermal energy.

"The single most important system equation is that the hot side must reject everything," notes a 2026 technical analysis from Analog Technologies. "Size your heat sink for the total rejected heat, not just the cooling load." Ignoring this principle is the most common reason solid-state cooling systems fail in the field.

If the heat sink relies on passive convection, the surrounding air quickly saturates with thermal energy, choking off the heat transfer. This is why high-performance Peltier systems almost universally require active cooling. They utilize high-RPM fans or liquid cooling loops to forcibly strip the rejected heat away from the hot ceramic face.

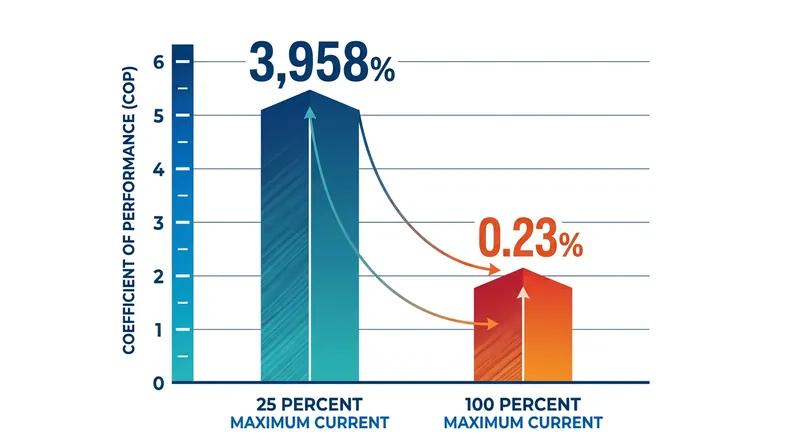

Because of the quadratic penalty of Joule heating, running a Peltier module at its maximum rated current is highly inefficient. Engineers instead rely on the Goldilocks rule, operating modules at roughly 20 to 35 percent of their maximum current. At this lower threshold, Peltier pumping dominates, maximizing efficiency and minimizing hot-side dissipation.

Bypassing the single-stage limit

When an application requires a temperature drop greater than 70 degrees Celsius, engineers cannot simply apply more current to a single module. Instead, they physically stack multiple thermoelectric coolers on top of one another. This cascaded configuration allows each successive stage to pump heat into the one below it.

In a cascaded system, the bottom module must be significantly larger than the top one, as it must pump both the original thermal load and the Joule heat generated by the upper stages. By distributing the thermal lift across multiple layers, cascaded bismuth-telluride systems can achieve temperature drops exceeding 130 degrees Celsius.

The geometry of a cascaded cooler resembles a pyramid, with a tiny cooling surface at the apex and a massive heat-rejection footprint at the base. This physical shape is a direct visual representation of the compounding Joule heat penalty. Every watt of cooling at the top demands exponentially more power at the bottom.[5]

While cascading solves the temperature drop problem, it exacerbates the efficiency issue. The overall coefficient of performance of a multi-stage cooler drops precipitously, requiring massive electrical input and substantial hot-side heat sinks to maintain cryogenic temperatures. This limits cascaded systems to specialized applications like cooling infrared sensors or scientific instruments.[3]

There is, however, one method to briefly cheat the quadratic limit of Joule heating: transient pulse cooling. This technique relies on the fact that Peltier cooling and Joule heating occur at different locations and propagate at different speeds within the semiconductor lattice.[1]

The transient pulse loophole

Peltier cooling occurs instantaneously directly at the semiconductor junction on the cold face. In contrast, Joule heating is generated volumetrically throughout the entire length of the semiconductor pillar. It takes a fraction of a second for this internal waste heat to physically diffuse through the material and reach the cold side.[1]

By applying a massive, short-duration current pulse, engineers can temporarily spike the Peltier cooling effect before the resulting wave of Joule heat arrives. This time separation creates a brief window where the cold face drops significantly below its steady-state limit.[1]

"Peltier cooling begins very quickly at the thermoelectric junction, while Joule heat is generated throughout the thermoelectric elements and takes more time to diffuse," explains a 2018 study from Applied Thermoelectric Solutions. This transient advantage is highly sought after in pulsed electronics and laser systems.[1]

The effectiveness of pulse cooling depends heavily on the thermal mass of the object being cooled. If the target chip is too massive, the brief spike in Peltier cooling will barely register before the delayed Joule heat overwhelms the system. It requires precise synchronization between the electrical pulse and the device's heat generation.[1]

The loophole is strictly temporary. Once the pulse ends, the delayed Joule heat finally reaches the cold face, causing a severe temperature spike known as the transient penalty. The system must then recover at a lower steady-state current, meaning pulse cooling cannot provide continuous deep refrigeration.[1]

The search for better materials

The ultimate solution to the Joule heating trap lies in developing better thermoelectric materials. The efficiency of a module is governed by its figure of merit, which balances electrical conductivity, thermal conductivity, and the Seebeck coefficient.[2]

An ideal thermoelectric material would conduct electricity perfectly, eliminating Joule heating, while completely blocking thermal conduction, preventing heat from leaking back. In reality, materials that conduct electricity well also tend to conduct heat well, forcing a constant compromise in semiconductor design.[4]

Recent research into self-compatible Thomson coolers suggests that manipulating the material properties along the length of the semiconductor could alter the thermal dynamics. Theoretical models published in 2012 in Physical Review B indicate that optimized materials could shift the Fourier heat divergence, making the Thomson effect dominant over Joule heating.[2]

Until those advanced materials leave the laboratory, the quadratic law of electrical resistance remains absolute. Thermoelectric cooling will continue to be a balancing act between the linear power of the Peltier effect and the exponential punishment of Joule heating, capping the reach of solid-state refrigeration.[5]
