Why Hydraulic Jumps Turn Low-Head Dams Into Inescapable Drowning Machines

Low-head dams earn their lethal reputation because the water flowing over them creates a submerged hydraulic jump—a reverse-flowing roller that continuously pulls objects back into the dam face. Simultaneously, the plunging water injects so much air into the basin that humans lose their natural buoyancy and sink.[1][2][8]

This fluid dynamic trap is nearly impossible to escape by swimming, rendering even standard life jackets completely ineffective. Over the past 50 years, these structures have claimed more than 1,400 lives across the United States, according to data maintained by American Whitewater since 1972.[3][8]

Despite their unassuming appearance—often featuring a vertical drop of less than five feet—these weirs generate a violent, self-sustaining cycle. About 50 fatalities typically occur each year at low-head dams nationally, as the smooth upstream water masks the chaotic turbulence waiting below the crest.[4]

The Anatomy of a Drowning Machine

The hazard begins with a fundamental transition in fluid mechanics. As deep, slow-moving subcritical flow approaches the dam, it accelerates over the weir and becomes a shallow, high-velocity supercritical flow. When this fast water hits the slower tailwater below, it triggers a hydraulic jump.[1][2]

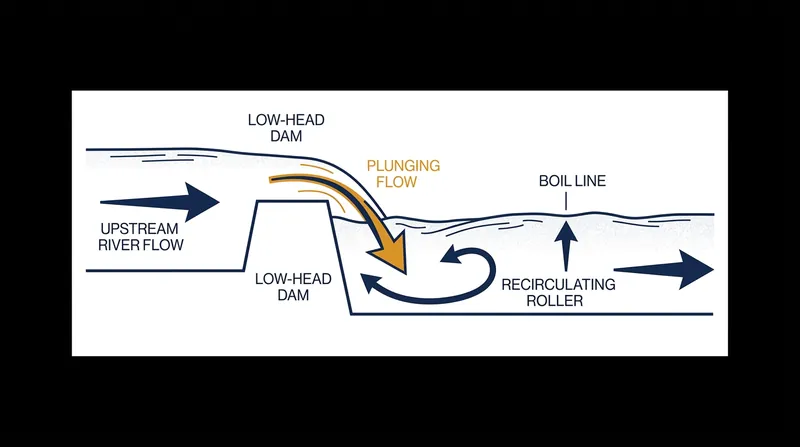

Instead of flowing smoothly downstream, the energy dissipates violently. The plunging water creates a depression at the base of the dam, forcing the downstream water to rush backward to fill the void. This creates a continuous, horizontal cylinder of rotating water known as a recirculating roller.[1][5]

"Some dams have a notorious history, going back more than 100 years," says Paul Schweiger, chair of the Association of State Dam Safety Officials' Public Safety Around Dams Committee. He notes that a single structure, the Dock Street Dam in Harrisburg, Pennsylvania, has claimed more than 30 lives.[4]

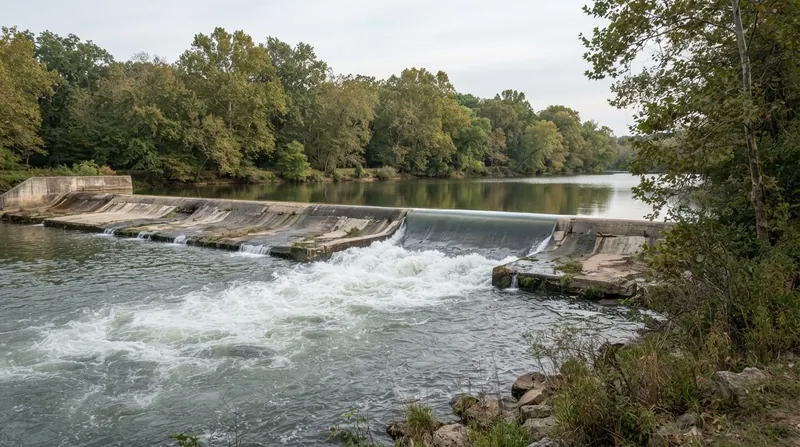

The surface of this phenomenon is marked by the boil line, a distinct boundary where highly aerated water bubbles up from the depths. Water downstream of the boil line flows safely away from the dam, but water upstream of it is relentlessly dragged back into the plunging falls.[4][7]

Victims caught upstream of the boil line are pushed underwater by the falling nappe, carried along the riverbed, and then pushed back to the surface, only to be pulled upstream again. This cyclical entrapment exhausts swimmers and batters them against the concrete face of the dam.[3][4]

How Aeration Destroys Buoyancy

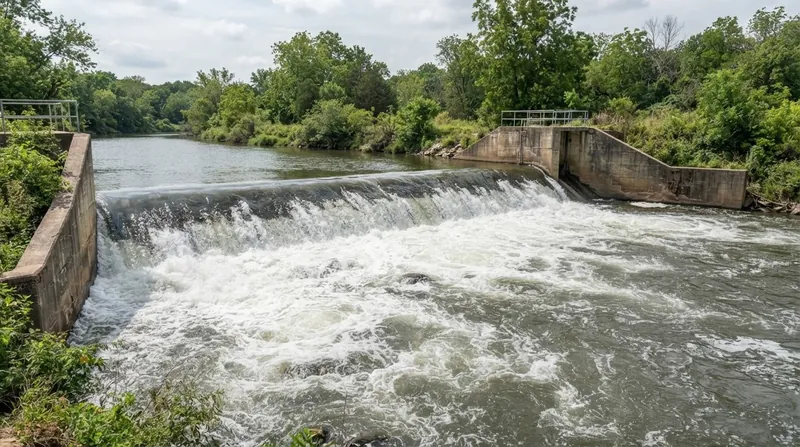

The mechanical force of the recirculating roller is only half of the trap. As the supercritical flow plunges over the crest, it drags massive volumes of air into the tailwater. This severe aeration fundamentally alters the physical properties of the fluid in the boil zone.[4][6]

High-resolution computational fluid dynamics simulations reveal that upstream flow aeration triggers extreme threshold effects. Research published in 2026 shows that air concentrations in these turbulent shear layers can easily exceed 40 percent, stretching the length of the recirculating roller by up to 34.9 percent.[6]

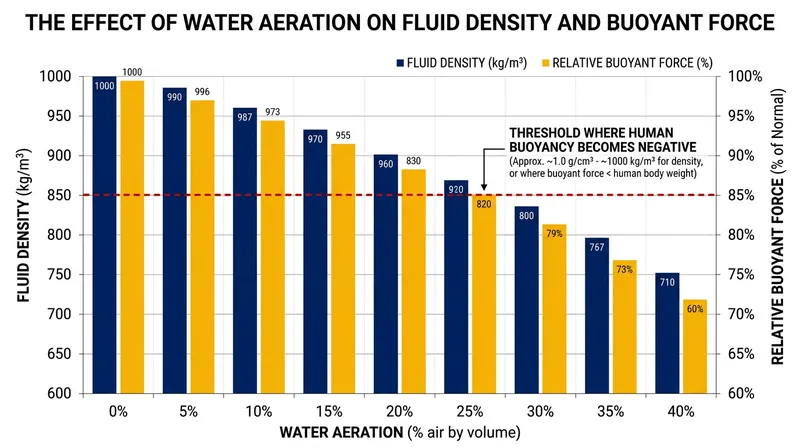

This air entrainment is what makes the hydraulic jump so deadly. Standard fresh water has a density of 1,000 kilograms per cubic meter, which provides enough upward buoyant force to keep a human body—averaging 985 kilograms per cubic meter—floating near the surface.[8]

When the water becomes 40 percent air by volume, the fluid density plummets to roughly 600 kilograms per cubic meter. In this highly aerated mixture, the human body is significantly denser than the surrounding fluid, causing the victim to sink like a stone regardless of their swimming ability.[6][8]

Even safety equipment fails under these conditions. A standard Type III personal flotation device provides about 15.5 pounds of buoyancy in normal water, but in a highly aerated hydraulic jump, that lift is entirely negated by the density collapse, leaving the victim with a net downward pull.[8]

The Counterintuitive Escape Strategy

Because the highly aerated water lacks the density to support a human body, instinctive survival reactions actually seal the victim's fate. The natural panic response is to kick upward toward the surface and attempt to swim downstream, away from the face of the dam.[8]

However, the surface water between the dam and the boil line is exactly where the reverse current is strongest. Swimming upward places the victim directly into the backwash, which immediately carries them back into the plunging water to be submerged again.[4][7]

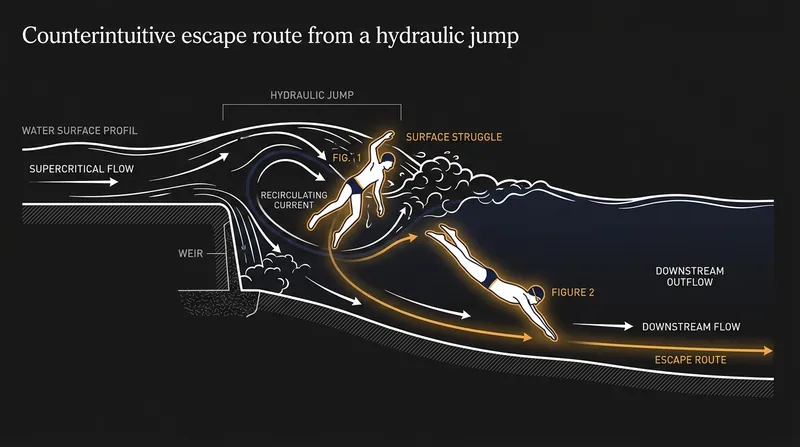

The only hydrodynamic exit requires a completely counterintuitive maneuver. Instead of fighting for the surface, a trapped swimmer must dive downward toward the river floor, curling into a ball to reach the lower boundary of the recirculating roller.[8]

At the bottom of the water column, the fluid dynamics shift. The high-velocity jet hugging the riverbed flows downstream, underneath the reverse surface current. By staying deep and moving along the bottom, a victim can pass beneath the boil line and surface in the safe outwash.[6][8]

The Danger to First Responders

Identifying which low-head dams produce these lethal conditions requires advanced modeling. "You could look at a low-head dam and say it's likely a hazard, but you can't prove it without some hydraulic engineering calculations," notes Karl Kingery, a project manager at Wright Water Engineers.[4]

Historically, engineers relied on physical scale models to study these complex three-dimensional flows. Today, three-dimensional computational fluid dynamics allows researchers to simulate the exact conditions that trap human prototypes, providing visual data to first responders and government officials.[5]

The computational models also simulate the trajectories of floating objects, mapping exactly how debris and human bodies move through the shear layers. These simulations prove that the recirculating currents are not perfectly uniform; they pulse and shift, occasionally ejecting objects past the boil line only to pull them back in if they remain near the surface.[5][6]

This unpredictable pulsing makes rescue operations extraordinarily dangerous. First responders cannot simply drive a boat into the boil zone, because outboard motors cavitate in the aerated water, losing all propulsion and leaving the rescue vessel at the mercy of the reverse current.[7][8]

Instead, swiftwater rescue teams must rely on shore-based rope systems, reach poles, or specialized tethered boats. If a victim is too exhausted to grab a thrown line, responders are often forced to wait until the hydraulic jump naturally ejects the person, which can take hours.[8]

Engineering Solutions and Dam Removal

Once a dam is confirmed to produce a dangerous hydraulic jump, mitigation strategies vary. The simplest approach involves establishing strict exclusion zones with warning buoys, as the structures are notoriously difficult for kayakers and boaters to spot from upstream.[5]

When exclusion is insufficient, engineers can implement structural modifications. Adding stepped spillways, concrete baffles, or rock ramps to the downstream face disrupts the uniform flow, breaking up the recirculating roller and allowing the energy to dissipate without creating a drowning machine.[5]

The sheer number of these hazards complicates nationwide mitigation efforts. Because low-head dams typically do not impound large volumes of water, they were historically excluded from the National Inventory of Dams maintained by the U.S. Army Corps of Engineers, leaving thousands of them undocumented and unmonitored.[3]

Ultimately, the most definitive solution is dam removal. Thousands of these structures were built over the past two centuries to power mills or divert irrigation water, and many no longer serve their original purpose, leaving removal as the safest way to restore natural river dynamics.[3]
