Air Watts vs. kPa: How Two Metrics Dictate a Vacuum Cleaner's Effective Suction and Cleaning Power

Shoppers who buy a vacuum based on a high kilopascal (kPa) rating often bring home a machine that struggles to pull pet hair from a medium-pile rug. The appliance industry has shifted toward advertising static pressure—the raw lifting force of a motor when the nozzle is completely blocked—because it produces a higher, more impressive number on the box. But that metric ignores airflow, leaving buyers with a motor that works hard in a sealed tube but fails to move debris across a floor. The actual cleaning capability of a vacuum is governed by Air Watts (AW), a composite metric that multiplies that raw lift by the volume of air moving through the system.[2]

The distinction between these two numbers dictates whether a $400 cordless stick vacuum actually replaces a corded upright or merely acts as an expensive dustpan. Kilopascals measure sealed suction, also known as water lift. If you place your hand flat over a vacuum hose, the resistance pulling against your skin is the static pressure, measured in kPa. A rating of 24 kPa means the motor can lift a column of water roughly 96 inches up a tube. This raw pulling force is necessary for extracting heavy debris like potting soil or cat litter from deep carpet fibers.[1]

However, a vacuum never operates completely sealed during normal use. If the nozzle is entirely blocked, no air moves, and no dirt travels into the dustbin. This is where cubic feet per minute (CFM), or airflow, becomes the second half of the equation. Airflow is the physical wind generated by the motor that carries the agitated dust from the floorhead, up the wand, and into the filtration system. A vacuum can possess a massive 30 kPa motor, but if its internal tubing is narrow or its filters are highly restrictive, the actual volume of air moving through the machine remains too low to clean a wide path.

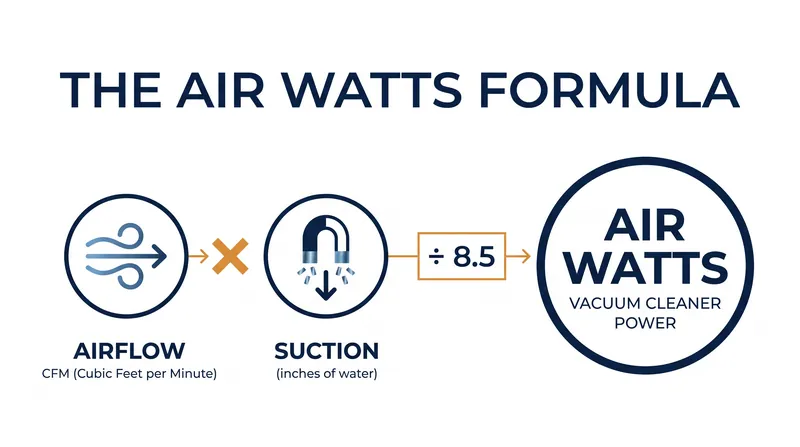

To prevent manufacturers from gaming the system with high-pressure, low-flow motors, the American Society for Testing and Materials (ASTM) established the Air Watts metric under the ASTM F558 standard. According to the ASTM F558 standard documentation, "the maximum air power (Air Watts) is the maximum value of the product of airflow and suction," establishing it as the only metric that captures the total aerodynamic work performed by the system. The formula multiplies the airflow (in CFM) by the suction (in inches of water), and divides the result by a constant of 8.5.[1]

This mathematical relationship explains why a budget vacuum boasting a 25 kPa rating often performs worse than a premium model rated at 18 kPa. The budget manufacturer installed a motor optimized for static pressure, which is relatively inexpensive to produce, but neglected the aerodynamic design of the floorhead and cyclonic separation system. When the premium model pairs its 18 kPa motor with a highly efficient, wide-diameter airflow system, it generates 240 Air Watts. The budget model, choked by poor internal airflow, might only generate 120 Air Watts despite its higher static pressure rating.[2]

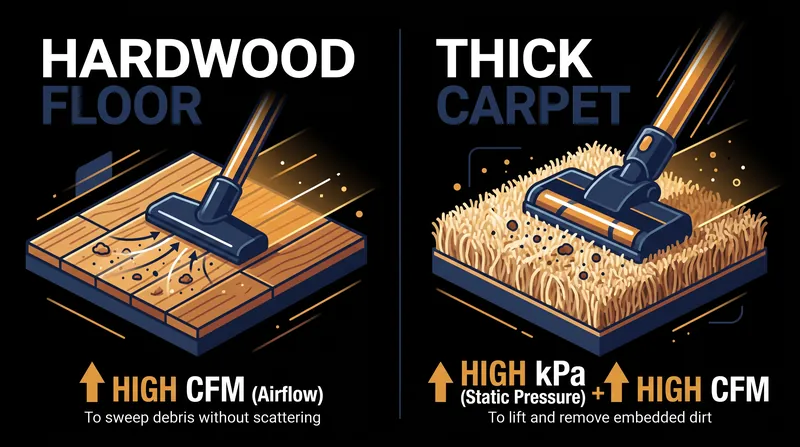

Independent testing laboratories rely almost exclusively on Air Watts and real-world pickup percentages rather than kPa. When evaluating a vacuum's ability to clear fine dust from hard floors, airflow (CFM) is actually more critical than static pressure. Hard floors do not require deep lifting force; they require a high volume of air to sweep the surface clean without scattering the debris. A machine optimized heavily for kPa at the expense of CFM will often push Cheerios or rice across a hardwood floor rather than pulling them in.

Conversely, medium and high-pile carpets demand a balance of both metrics. The static pressure (kPa) provides the necessary force to break the bond between pet hair and carpet fibers, while the airflow (CFM) transports that hair into the bin. An upright vacuum designed for thick carpets typically requires a minimum of 100 Air Watts at the floorhead to achieve a deep clean. Cordless stick vacuums, limited by battery output, often rely on motorized brush rolls to agitate the carpet, compensating for lower overall Air Watts by mechanically lifting the dirt into the airstream.[1][2]

The shift toward kPa in consumer marketing accelerated with the rise of direct-to-consumer electronics brands on major e-commerce platforms. Because Air Watts require standardized, third-party testing to verify under ASTM guidelines, many overseas manufacturers bypass the expense and simply list the motor's raw kPa output. This creates a spec-sheet arms race where brands advertise 30, 35, or even 40 kPa on handheld units that lack the battery capacity to sustain that pressure for more than a few seconds.[2]

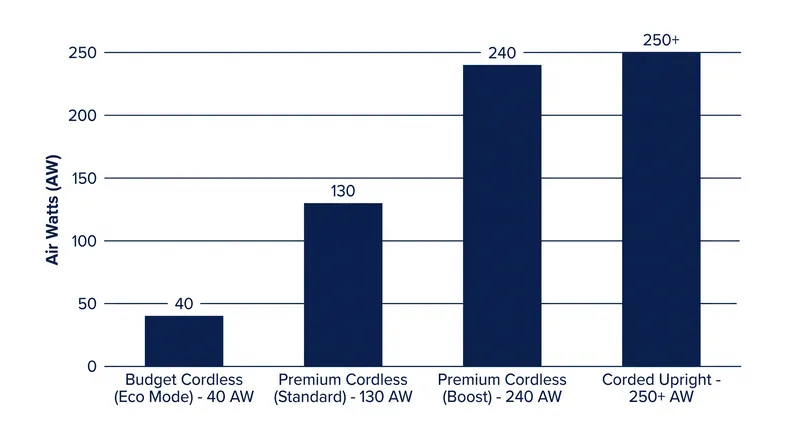

Battery chemistry directly limits how long a cordless vacuum can sustain high Air Watt output. Generating 200 or more Air Watts requires a massive electrical draw, which is why most premium cordless vacuums only offer their maximum suction mode for five to ten minutes. When these vacuums step down to their standard or "eco" modes to achieve a 40-minute runtime, their output often drops below 50 Air Watts. Buyers evaluating a cordless vacuum must look at the Air Watts generated in the standard cleaning mode, not just the heavily advertised boost mode.

The design of the filtration system also dictates how rapidly Air Watts degrade during a cleaning session. As a vacuum fills with dust, the pre-motor filters clog, restricting airflow. Because Air Watts are a product of both suction and airflow, a 20% drop in airflow results in a direct 20% drop in Air Watts, even if the motor continues to generate the exact same static pressure (kPa). Multi-cyclonic separation systems, which spin fine dust out of the airstream before it reaches the filter, maintain their Air Watt rating significantly longer than single-cyclone or bagged systems.[1]

To accurately compare two vacuums, shoppers must ensure they are looking at Air Watts measured at the cleaner head, not at the motor. Some manufacturers exploit a testing loophole by measuring the Air Watts directly at the motor intake, before the air travels through the wand, hoses, and filters. Every bend in the hose and every layer of HEPA filtration introduces resistance, reducing the final Air Watts delivered to the floor. A motor that generates 300 AW on a test bench might only deliver 150 AW at the motorized floorhead.[2]

The European Union previously attempted to regulate vacuum cleaner efficiency in 2017 by capping motor wattage and requiring standardized energy labels that graded dust pickup on carpets and hard floors. While those specific labels were eventually struck down in court over testing methodology disputes, the underlying engineering consensus remained unchanged. "A high-wattage motor pulling against a poorly designed nozzle wastes energy as heat rather than converting it into aerodynamic work," notes the International Electrotechnical Commission (IEC) in its guidelines for household appliance performance testing.

For consumers navigating the current appliance market, the rule of thumb is straightforward. If a manufacturer only advertises kilopascals (kPa) and refuses to publish an Air Watts (AW) specification, the machine is likely optimized for spec-sheet marketing rather than aerodynamic efficiency. A reliable cordless stick vacuum intended as a primary cleaner should specify at least 130 Air Watts, while a corded upright should exceed 200 Air Watts.[2]

The next generation of vacuum technology is shifting away from raw suction increases and toward intelligent power management. Sensors that detect floor type and dust concentration now adjust the motor speed dynamically, increasing the kPa and Air Watts only when the machine encounters heavy debris or thick carpet. This preserves battery life and maintains optimal airflow, proving that the smartest vacuums do not run at maximum pressure constantly, but rather deploy the exact ratio of lift and flow required for the surface beneath them.[2]
