Aerodynamic Stall Acts as a Structural Fuse: Maneuvering Speed Must Decrease as Aircraft Weight Drops to Prevent Airframe Overload

When a pilot encounters severe turbulence or must execute an abrupt avoidance maneuver, they control the single variable that determines the aircraft's survival: airspeed. The pilot decides how fast the plane hits the rough air, and that decision dictates whether a sudden pull on the yoke will safely stall the wing or permanently bend the airframe.[1]

The threshold that separates a safe stall from structural failure is known as design maneuvering speed, or Va. The Federal Aviation Administration (FAA) defines this as the maximum speed at which a pilot can apply a single, full control input without exceeding the aircraft's structural limits.[1][2]

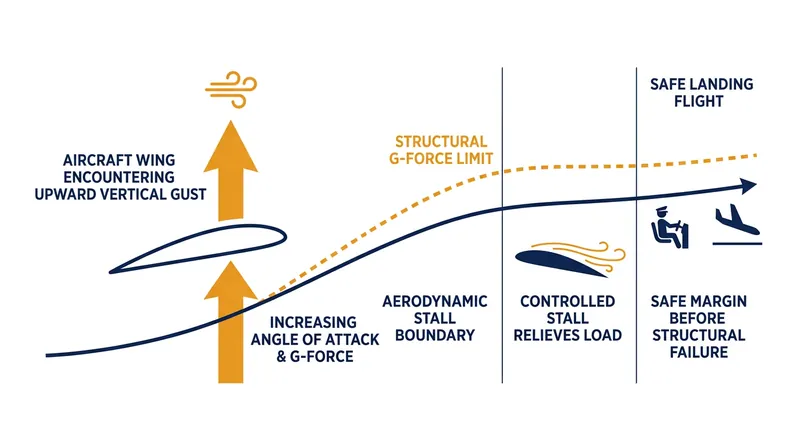

Aviation engineers design the aerodynamic stall to act as a built-in structural fuse. "I like to think of Va as the aircraft's 'structural fuse,'" notes flight training organization DuBois Aviation. If the aircraft is flying at or below this speed, the wing will reach its critical angle of attack and lose lift before it can generate enough force to break the airframe.[3]

However, this critical safety speed is not a fixed number, which is why it is never painted on a standard airspeed indicator. Maneuvering speed changes dynamically with the weight of the aircraft.[4]

The relationship between weight and maneuvering speed contains a counterintuitive trap that catches many aviators: as the aircraft gets lighter, its maneuvering speed must decrease.[5]

The Physics of the Structural Fuse

To understand why a lighter aircraft must fly slower in turbulence, one must look at the angle of attack—the angle between the wing's chord line and the oncoming air. An aircraft flying at its maximum gross weight requires a relatively high angle of attack just to maintain level flight.[6]

For example, a heavy aircraft cruising at 110 knots might need a 4.5-degree angle of attack to generate enough lift to stay level. If a sudden vertical gust hits the plane, it might push the wing past its critical angle of attack—typically between 16 and 20 degrees—causing a stall.[6]

Because the heavy aircraft is already flying at a high angle of attack, it does not take much of a gust to push it over the edge into a stall. The stall immediately dumps the lift, blowing the aerodynamic fuse and protecting the metal structure from absorbing excessive G-forces.[5][6]

Now consider the exact same aircraft flying at the exact same 110-knot speed, but with a significantly lighter load—perhaps carrying only one pilot and half a tank of fuel. Because it weighs less, it requires less lift to maintain level flight, meaning it flies at a shallower angle of attack, such as 3 degrees.[5]

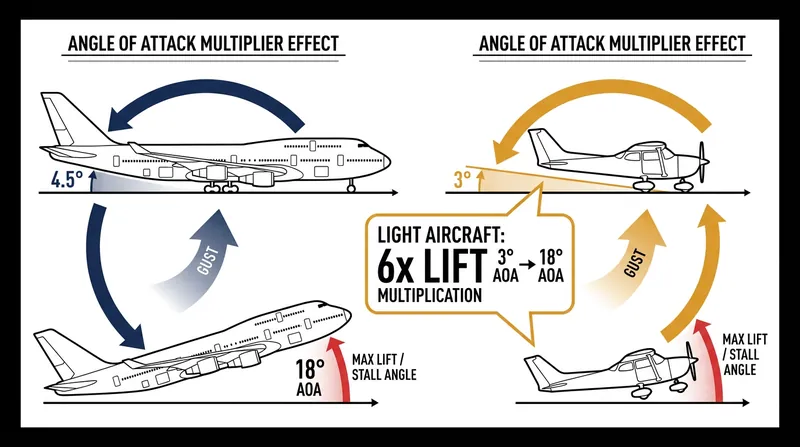

This shallower angle of attack creates a dangerous margin. If that light aircraft hits the same severe updraft, the wing's angle of attack can multiply dramatically—from 3 degrees to 18 degrees—before it reaches the stalling point.[5][6]

Multiplying the Load Factor

That multiplication is where the structural danger lies. In aerodynamics, lift increases proportionally with the angle of attack. If the angle of attack increases sixfold, the lift generated by the wings also increases sixfold, subjecting the airframe to a sudden 6-G load.[5]

The FAA categorizes aircraft based on their intended use, with each category carrying a different structural limit. Normal category aircraft are certificated to withstand +3.8 Gs, utility category to +4.4 Gs, and aerobatic aircraft to a robust +6.0 Gs.[5]

"Airplanes stressed up to but not beyond their limit-load factor should experience no structural damage," notes the Aircraft Owners and Pilots Association (AOPA). However, exceeding these limits can cause permanent deformation of the wing spars or catastrophic failure of the tail assembly.[5]

If a light aircraft experiences a 6-G load before the wing stalls, the structural fuse has failed to blow in time. The wings generate enough lift to overstress the airframe before the aerodynamic stall can intervene to save the aircraft.[3][5]

Furthermore, Sir Isaac Newton's second law of motion—force equals mass times acceleration—dictates that a lighter object will accelerate faster when subjected to the same force. "When we apply the same control force, but we decrease the mass of the aircraft, the resulting acceleration experienced by the aircraft will increase," explains Pilot Mall's aviation training guide.[2]

Adjusting for the Lighter Airframe

This concept frequently appears on FAA knowledge tests because it defies basic intuition. Most student pilots assume that a heavy, fully loaded aircraft is under more stress and therefore closer to breaking, leading them to believe that a lighter plane is inherently safer at high speeds.[4]

The reality is exactly the opposite. A heavy aircraft is sluggish and resists sudden changes in trajectory, while a light aircraft is easily flicked by a gust or a control input. That lack of inertia means the light aircraft accelerates into a high-G load much faster.[7]

To protect the lighter aircraft, the pilot must intentionally slow the plane down. Flying slower forces the aircraft to fly at a higher angle of attack to maintain level flight, pushing it closer to the critical stall angle and ensuring the aerodynamic fuse will blow before the limit is breached.[5]

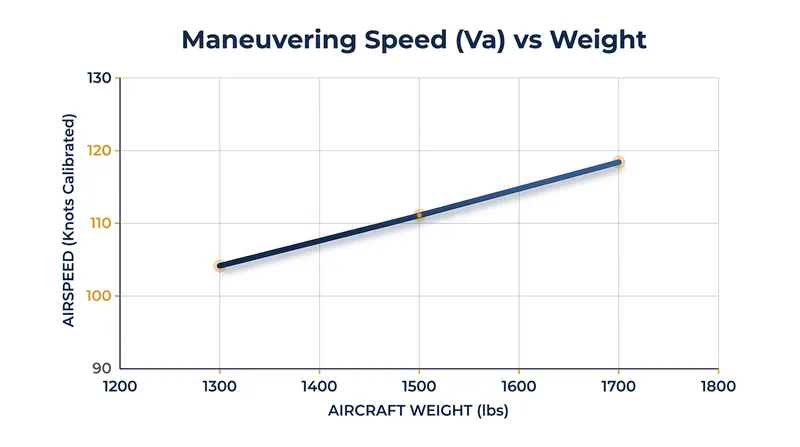

The mathematical formula for calculating this adjusted speed dictates that the new maneuvering speed equals the published maximum-weight speed multiplied by the square root of the actual weight divided by the maximum gross weight.[4]

Because calculating square roots in a turbulent cockpit is impractical, flight instructors teach a simpler rule of thumb. For every 2 percent reduction in aircraft weight below the maximum gross weight, the pilot should reduce the maneuvering speed by 1 percent.[5]

The Limits of the Structural Fuse

If a pilot ignores this adjustment and flies a light aircraft at the published maximum-weight maneuvering speed, they are operating stripped of their structural protection. The National Transportation Safety Board (NTSB) notes that over 15 percent of general aviation accidents between 2000 and 2020 involved in-flight structural failures or stall-spins during maneuvering.[3]

Even when properly adjusted for weight, maneuvering speed is not an invincible shield. The FAA explicitly warns in Advisory Circular 23-19A that Va "should not be interpreted as a speed that would permit the pilot unrestricted flight-control movement without exceeding airplane structural limits."[2]

The structural fuse concept only guarantees protection against a single, full control input in one axis. It does not protect the airframe against alternating inputs, such as yanking the yoke back and forth, or applying full rudder in one direction and then immediately reversing it.[2][7]

The danger of multiple inputs was tragically demonstrated in November 2001, when American Airlines Flight 587 crashed in New York. The pilot encountered wake turbulence and rapidly reversed the rudder pedals back and forth while flying below the aircraft's maneuvering speed.[7]

Those alternating rudder inputs created compounding aerodynamic loads that vastly exceeded the design limits of the Airbus A300's vertical stabilizer. The tail snapped off entirely, proving that flying below Va cannot save an airframe from aggressive, cyclical control reversals.[7]

Managing the Margin in Flight

Following that 2001 disaster, the FAA and aircraft manufacturers overhauled how maneuvering speed is taught to pilots. The updated training emphasizes that Va is a limit for a single, smooth application of controls, not a license to aggressively wrestle the aircraft in rough air.[1][7]

Modern Pilot's Operating Handbooks now frequently publish multiple maneuvering speeds on a placard right on the instrument panel. A typical four-seat Cessna might list 105 knots for a fully loaded cabin, but only 90 knots for a solo pilot.[5]

Understanding this dynamic relationship transforms maneuvering speed from a rote memorization figure into a practical tool. It requires the pilot to constantly evaluate their fuel burn and passenger load, adjusting their mental speed limits as the flight progresses.[4]

The aerodynamic stall remains the pilot's most reliable defense in severe turbulence. By managing airspeed to ensure the wing stalls before the metal bends, aviators rely on the fundamental laws of physics to protect the structural integrity of their aircraft, provided they respect the math that governs the margin.[2][3]
