Window Restrictor Stays Enforce a 100-Millimeter Limit to Block Toddler Head Passage: Why Hotel Windows Only Open Four Inches

The fundamental constraint of hotel window safety relies on a simple geometric absolute: if a child's skull cannot pass through a gap, their torso cannot follow. This physical reality governs the design of every upper-floor guest room. Engineers design window hardware to enforce this binding condition, ensuring the opening remains too narrow for a toddler to slip through.

Child anthropometric research establishes this critical threshold at exactly 100 millimeters, or approximately four inches. Building codes worldwide have adopted this measurement as the universal standard for fall prevention. When a hotel window hits this invisible wall, it is not a malfunction, but a strictly regulated safety mechanism engaging.[2]

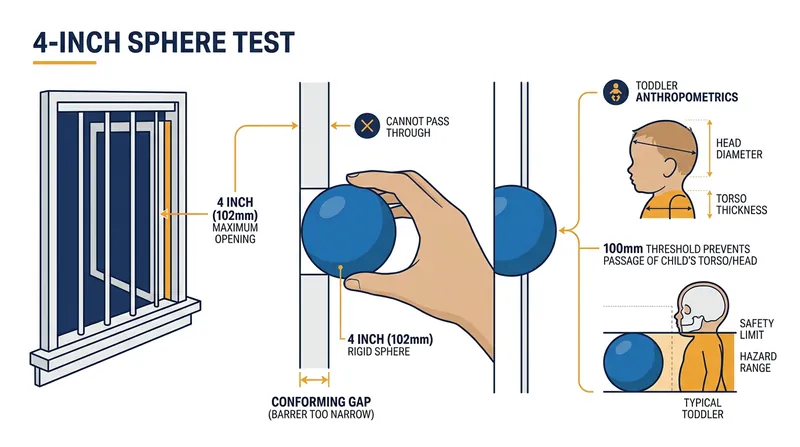

The International Building Code (IBC) codifies this requirement through the "4-inch sphere test." Inspectors literally attempt to push a four-inch-diameter rigid sphere through the maximum window opening. If the sphere passes through, the window fails the safety inspection and violates commercial building regulations.[1]

This strict limitation applies under specific architectural conditions. The 2021 IBC mandates restrictors on operable windows where the exterior drop exceeds 72 inches above the finished grade. Internally, the rule triggers if the window's sill sits less than 36 inches above the finished floor, putting it easily within a climbing toddler's reach.[1]

The Hardware Mechanics

To enforce this 100-millimeter limit, hotels install Window Opening Control Devices (WOCDs) or heavy-duty restrictor stays. These mechanisms physically arrest the window sash's movement along its track or hinge. They replace older, easily bypassed security chains with integrated, tamper-resistant engineering.

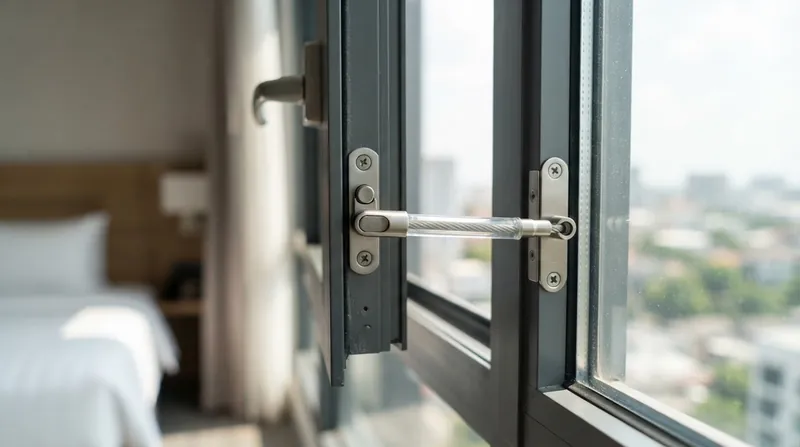

Modern WOCDs utilize concealed spring-loaded arms or flexible stainless steel cables. These components must survive rigorous stress testing to achieve certification. Under laboratory conditions, the hardware must withstand a 75-pound static load without snapping, bending, or yielding, simulating the full weight of a falling child.

The hardware must also accommodate various architectural profiles. Manufacturers utilize flex-fit technology that adjusts to window extrusion thicknesses ranging from 0.050 to 0.100 inches. This adaptability allows the same 100-millimeter restriction standard to apply across casement, double-hung, and sliding window designs.

While the primary goal is keeping children inside, the hardware must simultaneously solve the opposite problem. During a fire or structural emergency, occupants must be able to escape, and rescue personnel must be able to enter. A window permanently bolted to a four-inch gap becomes a lethal trap.

The Egress Paradox

This tension between fall prevention and emergency egress is resolved by the ASTM F2090 standard. First introduced in 2008, this specification dictates that window fall prevention devices must feature an emergency release mechanism. The restrictor must disengage entirely, allowing the window sash to open to its maximum architectural width.

Crucially, this emergency release cannot rely on keys, specialized tools, or proprietary knowledge. A key-locked window restrictor violates fire codes in sleeping rooms because a panicked guest cannot search for a key in a smoke-filled environment. The release must operate intuitively with bare hands.

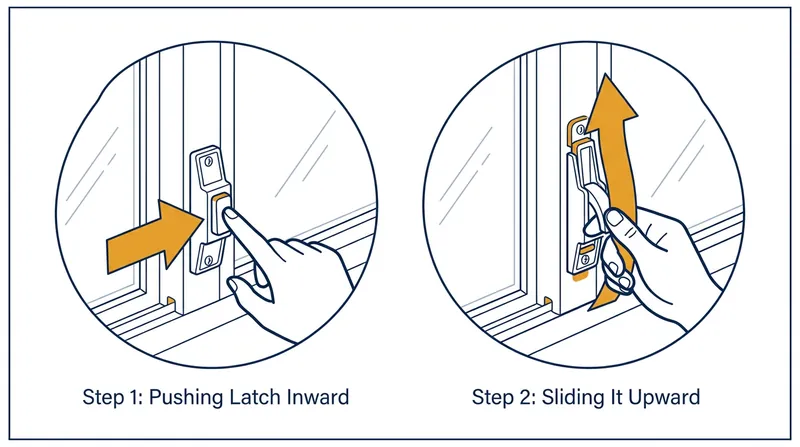

To prevent a curious toddler from accidentally triggering the release, ASTM F2090 requires a specific operational sequence. The device must demand either two independent single actions or one deliberate dual-action motion. For example, a user might need to push a red button toward the jamb while simultaneously sliding it upward.

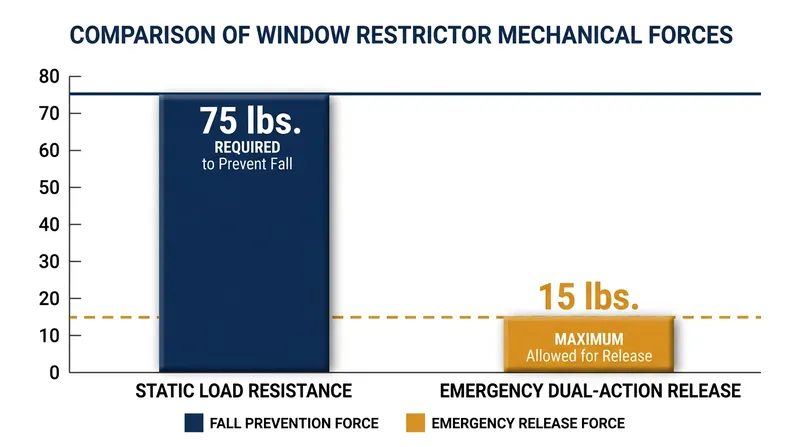

Engineers cap the maximum force required to execute this release at exactly 15 pounds. This precise calibration ensures that an adult or an older child can easily disengage the restrictor during a crisis. However, a toddler lacks both the physical strength and the cognitive dexterity to perform the dual-action sequence.

The Automatic Reset

For hotel operators, the most critical vulnerability occurs after the emergency has passed or the window has been cleaned. If a housekeeper disengages the restrictor and forgets to lock it, the next guest inherits an unprotected room. The hardware must eliminate this human error.

Consequently, compliant WOCDs feature an automatic reset function. According to specifications from manufacturer Andersen Windows, these mechanisms "are engineered to meet rigorous safety standards and automatically re-engage when the window is closed, providing consistent safety" for subsequent occupants.

This automatic re-engagement relies on built-in sash lifters and flexible connectors that guide the latch back into its housing. The stainless steel components are designed to resist bending or misalignment if accidentally bumped while the window is fully open, ensuring the reset sequence never jams.

The Evolution of Fall Prevention

Historically, hotels relied on simple friction hinges or basic chain locks to limit window travel. These legacy systems frequently failed under sustained pressure or degraded over years of heavy guest use. The transition to engineered WOCDs marked a fundamental shift from perceived security to quantifiable safety.

The push for standardized hardware gained momentum as pediatric injury data highlighted the inadequacy of standard insect screens. A common misconception among guests is that a tightly fitted bug screen provides structural support against a fall. In reality, standard screens are designed solely to keep insects out and will instantly tear under a toddler's weight.

To address this, the ASTM F2090 standard explicitly separates fall prevention devices from standard screens. If a property opts to use a screen for fall prevention rather than a WOCD, that specialized screen must pass the same 75-pound static load test. Because heavy-duty screens obscure views, most luxury hotels default to mechanical restrictor stays.

Rigorous Laboratory Testing

Before a WOCD reaches a hotel room, it undergoes exhaustive cycle testing to prove its durability. Laboratories subject the mechanisms to thousands of automated open-and-close cycles to simulate years of daily hospitality use. The internal springs and latches must not lose their tension or fail to re-engage.

The testing also accounts for environmental degradation. Because hotel windows are exposed to extreme temperature fluctuations, condensation, and varying humidity levels, the hardware is often constructed from marine-grade stainless steel. This prevents corrosion from seizing the dual-action release mechanism over time.

Installers must also follow strict positioning principles when mounting the hardware. Placing the restrictor closer to the friction stay hinge allows a wider opening, while positioning it further away reduces the gap. Technicians calibrate the exact mounting point to ensure the final opening strictly obeys the 100-millimeter limit regardless of the window's overall size.[2]

Ultimately, this invisible mechanical choreography protects millions of hotel guests every night. By balancing the 100-millimeter sphere test against a 15-pound egress release, engineers have created a fail-safe environment. The four-inch gap provides fresh air while maintaining an absolute barrier against tragedy.
