Mechanical Levers and Optical Beam Breaks Enable Any Plastic Card to Activate Hotel Room Switches

You arrive at your hotel room after a long flight, slide your key card into the wall slot, and the lights instantly hum to life. That small plastic box is the frontline of a massive operational strategy designed to cut hotel utility bills by up to 30 percent.[6]

By linking the room’s power supply directly to occupancy, hotels ensure that air conditioning and lighting are never left running in an empty room. The system is brilliantly simple, yet it relies on a physical interaction that resourceful travelers have learned to bypass.[6]

The hotel key card trick involves inserting a business card, an old transit pass, or a folded piece of cardboard into the slot to keep the room powered while the guest is out. This allows travelers to charge their devices or maintain a cool temperature, but it defeats the hotel's energy-saving goals.[6]

The effectiveness of this workaround depends entirely on the technology hidden behind the plastic faceplate. While modern properties are upgrading to smart systems, thousands of hotels still rely on legacy switches that use either a mechanical lever or an optical beam break to detect the card.[6]

The Mechanical Microswitch Mechanism

The oldest and most common type of energy-saving switch uses a miniature snap-action switch, commonly known as a microswitch. Invented in 1932, the microswitch is an electromechanical device that opens or closes an electrical circuit in response to a small physical force.[2]

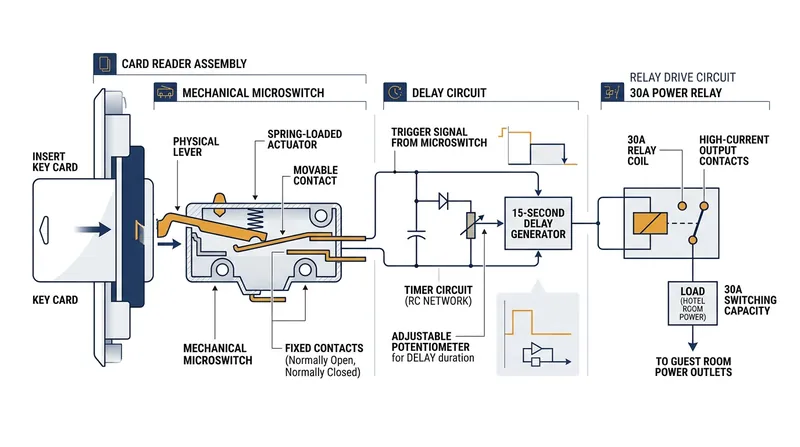

Inside the wall unit, a small mechanical lever or bump switch rests inside the card slot. When a guest inserts a card, the plastic edge physically pushes against the lever, applying enough force to trigger the microswitch's internal spring mechanism.[2]

This rapid snap-action movement closes the low-voltage control circuit, signaling the system that the room is occupied. "Known for its precision and reliability, the microswitch stands out for its snap-action mechanism, enabling instantaneous switching regardless of the actuation speed," explains Crouzet's technical documentation on electromechanical devices.

The simplicity of the mechanical switch makes it incredibly durable and cost-effective for hotels to install. However, this same simplicity creates the vulnerability that allows any rigid object to activate the room's power supply indefinitely.[6]

Optical Beam Break Detection

To reduce the wear and tear associated with moving mechanical parts, many manufacturers transitioned to photoelectric sensors. A photoelectric sensor uses a light transmitter, typically an infrared LED, and a corresponding receiver to detect the presence of an object without physical contact.[1][3]

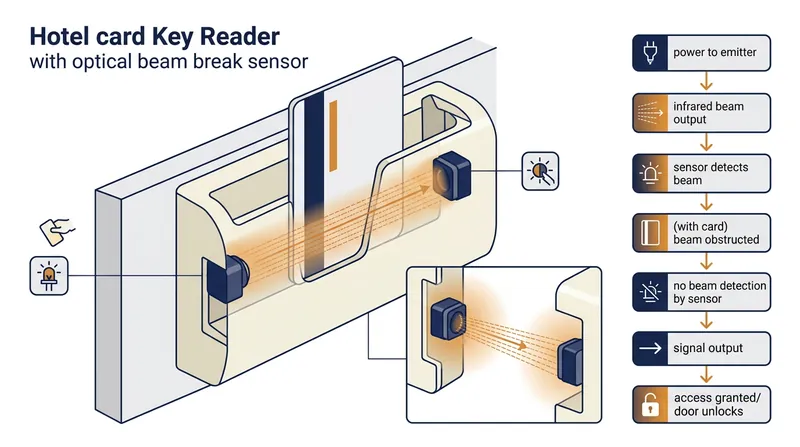

In a hotel key card switch, the sensor is configured in a through-beam or opposed arrangement. The infrared emitter and the receiver are mounted facing each other across the width of the card slot, creating an invisible column of light.[1][3]

When the slot is empty, the light beam travels uninterrupted from the emitter to the receiver, keeping the power circuit open. "Detection occurs when an object blocks the entire effective beam," notes Eaton's engineering guide on photoelectric sensors, explaining how through-beam arrangements operate in commercial settings.[3]

Like the mechanical microswitch, the photoelectric sensor is a dumb detector. It only verifies optical occlusion—whether an object is blocking the infrared light—meaning any opaque material, such as a dark business card or a loyalty card, will successfully trigger the system.[3][6]

The High-Voltage Power Relay

The microswitch or photoelectric sensor does not directly handle the massive electrical load of the hotel room. Instead, the low-voltage detection circuit is wired to a heavy-duty electromagnetic relay or contactor housed within the wall unit or a central electrical panel.[6]

These relays are typically rated for 30 to 40 amperes at 220 to 240 volts, allowing them to safely switch up to 8,800 watts of resistive and inductive loads. This massive capacity is necessary to simultaneously power the room's lighting loops, electrical outlets, and the primary air conditioning unit.[5][6]

When the card is removed, the room does not plunge into darkness instantly. The switch incorporates a built-in capacitor or timer circuit that provides a courtesy delay, usually lasting between 15 and 30 seconds.[5][6]

This delay gives the guest enough time to gather their belongings and safely exit the room before the relay opens and cuts the power. It also prevents nuisance tripping if a guest briefly removes the card to check the room number.[6]

The Shift to RFID Validation

The widespread knowledge of the physical bypass has forced the hospitality industry to rethink its energy management strategies. To close the business card loophole, modern hotels are rapidly upgrading to smart switches equipped with Radio-Frequency Identification technology.[6]

Unlike mechanical or optical switches, an RFID energy-saving switch contains an internal reader coil that actively interrogates the inserted card. The switch emits a radio frequency field that powers the microchip embedded inside the guest's specific room key.[6]

The switch will only close the 30-ampere relay if the card transmits a valid, encrypted 13.56 MHz Mifare or 125 kHz signal that matches the hotel's current access codes. If a guest inserts a standard business card or an expired key, the reader detects no chip, and the room remains dark.[6]

These smart switches can also integrate directly with the hotel's property management system. This allows the front desk to monitor real-time room occupancy and automatically adjust the HVAC thermostat to an energy-efficient baseline the moment the guest checks out.[4][6]

Integrated Energy Management Systems

Beyond simply cutting the power at the wall, modern RFID switches are increasingly tied into comprehensive building energy management systems. These networked platforms allow facility managers to monitor and optimize electricity consumption across hundreds of rooms simultaneously.[6]

When a guest removes their RFID card, the switch communicates with the central network to initiate a deep temperature setback. Rather than just shutting off the fan, the system allows the room temperature to drift to a highly efficient baseline, saving massive amounts of HVAC runtime.[6]

The moment the guest checks in at the front desk, the property management system can preemptively signal the room's thermostat to begin recovering the temperature. By the time the guest reaches the door and inserts their card, the room is already returning to a comfortable climate.[6]

This level of granular control eliminates the friction between guest comfort and environmental sustainability. It ensures that energy is only expended when it actively benefits the occupant, rendering the old mechanical bypass tricks entirely obsolete.[6]

While the classic plastic card hack remains effective in older properties, the era of the dumb switch is ending. As hotels prioritize sustainability and operational efficiency, the physical presence of a card is no longer enough to command the room's power.[6]
