Why Thermal Power Plants Hit a 45% Efficiency Wall and How Ultra-Supercritical Steam Pushes the Limit

Every thermal power plant on Earth—whether fueled by coal, nuclear fission, or concentrated solar—relies on a single thermodynamic constraint: the temperature differential between the steam entering the turbine and the water exiting the condenser. If that differential cannot be widened, the plant cannot convert more of its thermal energy into electricity. Currently, material science dictates that this constraint holds firm, capping the vast majority of the global fleet at a hard efficiency ceiling.[5]

This ceiling is governed by the Rankine cycle, the fundamental thermodynamic process that has driven industrial power generation for over a century. In a standard subcritical plant, water is boiled into steam, which expands against the blades of a turbine to spin a generator, before being cooled back into liquid water. The physics of this phase change require an enormous amount of latent heat—energy that goes into turning water into steam without actually raising its temperature.[5]

Because of that latent heat requirement, a conventional subcritical plant wastes between 60% and 65% of its total thermal energy. The heat is simply rejected into the atmosphere via cooling towers or into adjacent bodies of water. Consequently, the practical efficiency limit for these standard designs hovers around 35% to 38%, a figure that has barely moved since the late 1990s.[5]

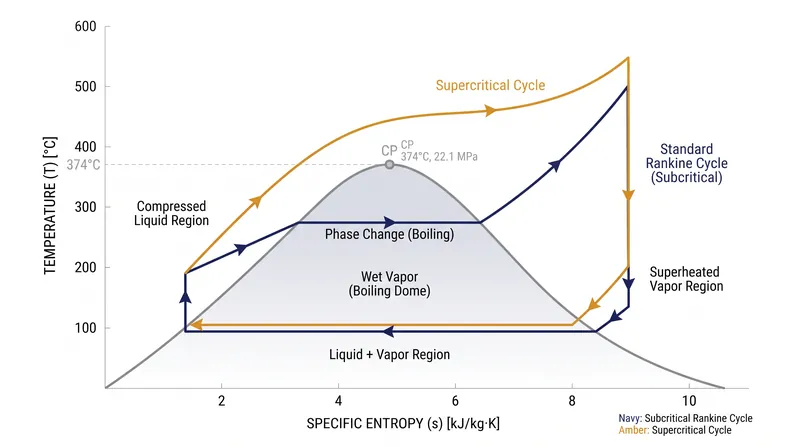

Pushing past that barrier requires eliminating the boiling phase entirely. This is achieved by operating the system above the critical point of water—specifically 374 degrees Celsius and 22.1 megapascals of pressure. At this extreme state, water becomes a supercritical fluid, possessing properties of both a liquid and a gas, and bypasses the latent heat penalty.[5]

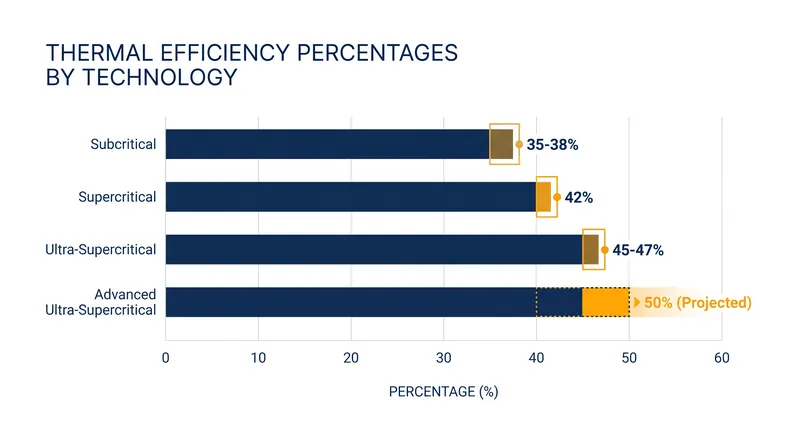

The Climate Technology Centre & Network (CTCN) tracks the deployment of these advanced systems, noting that "pulverised coal combustion with higher efficiency" is the primary mechanism for reducing the fuel intensity of baseload generation. By moving to supercritical parameters, plants can push their thermal efficiency to approximately 42%.[3]

The current state of the art, however, is the ultra-supercritical (USC) plant. These facilities operate at pressures exceeding 25 megapascals and temperatures up to 600 degrees Celsius. According to the IEA Clean Coal Centre, the deployment of "high efficiency low emissions plant" architecture allows these units to reach efficiencies of 45% to 47%.

The environmental leverage of these incremental gains is massive. The IEA Clean Coal Centre calculates that for every 1% increase in a plant's thermal efficiency, its carbon dioxide emissions drop by 2% to 3%. Across a gigawatt-scale facility operating 8,000 hours a year, that translates to hundreds of thousands of tons of avoided emissions annually.

Yet, maintaining that peak efficiency requires relentless operational precision. As outlined by Power Engineering, "maintaining maximum efficiency in power generation units" involves continuous monitoring of condenser vacuum pressure, feedwater heater performance, and turbine blade degradation. Even a millimeter of mineral scale on a boiler tube can insulate the metal, forcing the furnace to burn hotter and degrading the overall cycle efficiency by a full percentage point.[1]

The 45% efficiency threshold is not just a thermodynamic limit; it is a metallurgical one. The steel alloys traditionally used in boiler tubes and turbine rotors begin to lose their structural integrity and experience "creep"—slow, permanent deformation—when exposed to steam above 600 degrees Celsius for tens of thousands of hours.[5]

To reach the next frontier, known as Advanced Ultra-Supercritical (A-USC) generation, engineers are targeting steam temperatures of 700 to 760 degrees Celsius. Operating at these temperatures requires abandoning standard steels in favor of expensive nickel-based superalloys, similar to those used in aviation jet engines. The capital cost of these materials currently limits widespread commercial deployment in the 2026 market.[5]

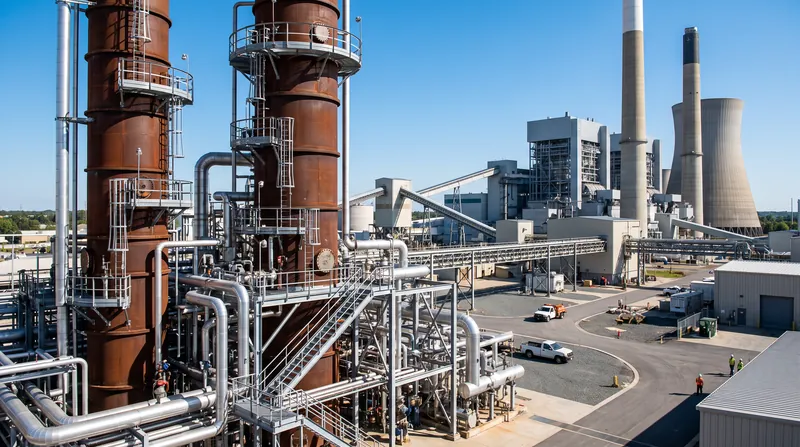

The efficiency gains of USC plants are also heavily contested by the requirements of carbon capture. A 2021 analysis published in MDPI examined an "advanced ultra-supercritical coal-fired power plant with post-combustion carbon capture." The researchers quantified the parasitic load of the capture equipment, which requires massive amounts of steam to regenerate the amine solvents used to trap CO2.[2]

The MDPI study found that this process introduces a severe "electricity penalty." Stripping the CO2 from the flue gas consumes so much of the plant's own thermal and electrical output that a facility operating at 45% efficiency drops back down to a net efficiency of roughly 35%. This parasitic drain effectively erases the thermodynamic gains achieved by decades of metallurgical advancements.[2]

Because of the limitations of steam, mechanical engineers are increasingly looking to alternative working fluids. A 2023 paper in the ASME Digital Collection provided a "techno-economic comparison of supercritical CO2, steam, and organic Rankine cycles" for waste heat recovery applications.[4]

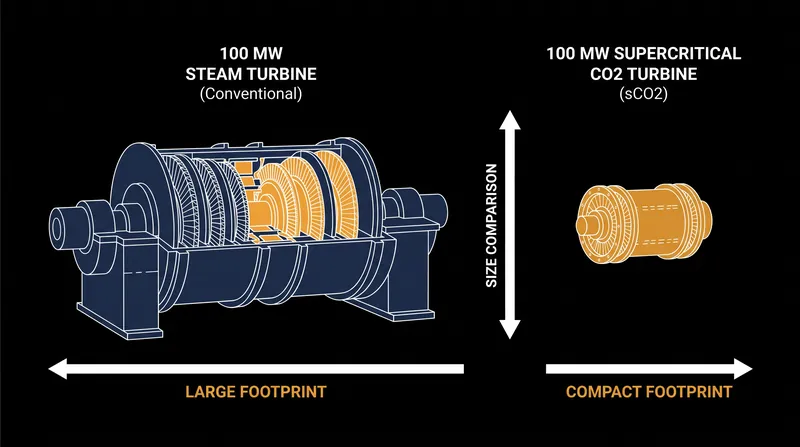

The supercritical carbon dioxide (sCO2) cycle, in particular, offers a compelling alternative to steam. Because sCO2 is significantly denser than steam, the turbomachinery required to extract work from it can be up to ten times smaller. This drastically reduces the physical footprint of the power block and allows the system to respond much faster to grid fluctuations.[4]

Furthermore, the sCO2 Brayton cycle does not suffer from the phase-change latent heat penalty that limits the Rankine cycle. While still in the pilot phase in 2026, sCO2 systems are being aggressively pursued for next-generation nuclear reactors and concentrated solar plants, where they could theoretically push thermal efficiencies past 50%.[5]

Until those alternative cycles reach commercial maturity, the global grid remains tethered to the physics of boiling water. The deciding factor for the next decade of thermal generation will not be a new thermodynamic theory, but whether the cost of nickel superalloys falls enough to make 700-degree steam economically viable for the plants currently on the drawing board.[5]
