Why Lithium-Ion Batteries Degrade Faster Above 80 Percent Charge

Inside a battery testing chamber at a materials laboratory, a mass spectrometer tracks the chemical exhaust of a standard lithium-ion cell. As the cell's charge crosses the 80 percent threshold, the internal voltage climbs past 4.1 volts. At this exact electrical pressure, the battery's internal chemistry fundamentally shifts.

The cathode, stripped of its lithium ions, becomes structurally unstable. Microscopic amounts of nickel and manganese begin to dissolve directly into the liquid electrolyte. Standard lithium-ion batteries lose roughly 20 percent of their total capacity after two years of daily maximum charging, primarily due to this exact mechanism.

The Electrochemical Threshold

Consumer device manufacturers universally recommend keeping batteries between 20 and 80 percent charge. This is not a software limitation or an arbitrary guideline. It is a hard physical boundary dictated by the electrochemical potential difference between the battery's two electrodes.

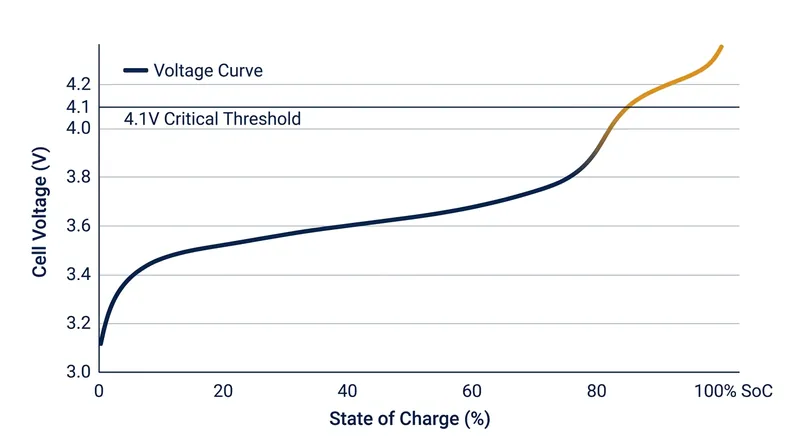

A lithium-ion cell stores energy by shuttling lithium ions from the cathode to the graphite anode during charging. Below 80 percent, this transfer happens along a relatively flat voltage curve. The electrical pressure required to move the ions remains stable, and the internal components experience minimal mechanical stress.

Pushing a battery to 100 percent requires forcing the cell voltage up to 4.2 or even 4.3 volts. "The mid-SOC region exhibits a relatively flat voltage curve, whereas the high- and low-SOC regions show steep voltage changes," notes a comprehensive review of battery degradation in Physical Chemistry Chemical Physics.[3]

At these elevated voltages, the cathode reaches a state of deep delithiation. Nearly all its lithium ions have been evacuated to the anode, leaving the underlying crystal lattice exposed. The transition metals that make up this lattice—like nickel, manganese, and cobalt—become highly reactive.[2]

Acid Generation and Metal Dissolution

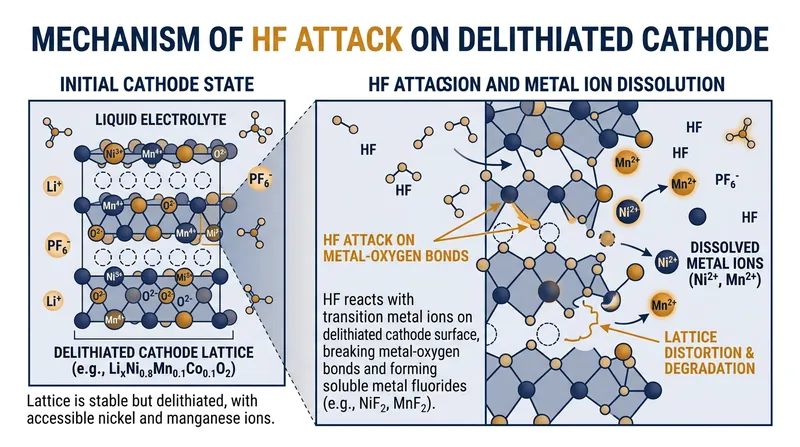

The degradation accelerates because the liquid electrolyte cannot withstand high voltages. Standard lithium-ion batteries use a lithium salt called LiPF6 dissolved in an organic carbonate solvent. When exposed to potentials above 4.1 volts, this solvent begins to oxidize and break down.[1]

This oxidation reaction generates trace amounts of hydrofluoric acid inside the sealed battery casing. The acid immediately attacks the delithiated cathode surface. This reaction promotes severe transition-metal dissolution, inducing corrosion defects and crack formation along the particle surface.[1]

Manganese is particularly vulnerable to this acidic attack. In high-voltage cathodes, a disproportionation reaction occurs where manganese ions split into different oxidation states, allowing them to detach from the crystal lattice entirely. Nickel-rich cathodes suffer a similar fate, shedding ions directly into the electrolyte pool.[2]

Once these transition metals dissolve, the cathode permanently loses a portion of its active material. The battery's absolute ceiling for energy storage drops. However, the damage inflicted by the dissolved metals does not stop at the cathode.

The Anode Crossover Effect

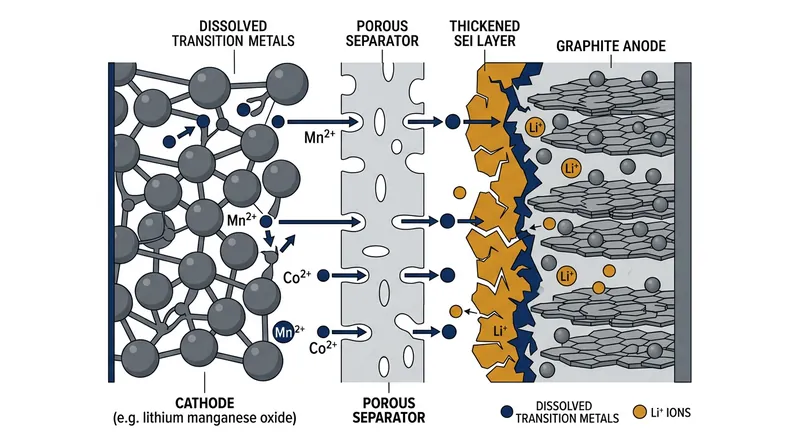

The dissolved nickel and manganese ions drift through the liquid electrolyte, eventually crossing the porous separator that divides the battery. They arrive at the graphite anode, which is packed with the lithium ions that were transferred during the charging process.[3]

Here, the transition metals deposit onto the anode's surface, triggering a secondary and far more destructive degradation mechanism. They act as catalysts, accelerating the uncontrolled growth of the Solid Electrolyte Interphase (SEI). The SEI is a protective crust that forms on the anode, but dissolved metals cause it to thicken continuously.[1]

As the SEI layer grows abnormally thick, it traps active lithium ions, permanently removing them from the battery's usable inventory. This surface film growth near the anode-separator interface greatly compromises passivation and hinders ion transport throughout the entire cell.[1]

This thickening also drives up the battery's internal electrical resistance, a condition known as power fade. The device not only holds less total energy, but it also struggles to deliver that energy quickly. This leads to sudden voltage drops and unexpected shutdowns under heavy processing loads.

Compounding Factors and Temperature

The rate of transition-metal dissolution is highly sensitive to temperature. Charging a battery past 80 percent while it is hot—such as leaving a phone on a dashboard mount in direct sunlight—compounds the chemical breakdown. Heat accelerates the electrolyte oxidation, generating more acid and dissolving more metal.[3]

At 60°C (140°F), the rate of manganese dissolution increases exponentially, doubling the speed of capacity fade compared to room temperature operation at 22°C. Fast charging exacerbates this cycle by pumping high current into a nearly full battery, generating excess internal heat right as the cell reaches its most vulnerable voltage threshold.[3]

Even calendar aging causes severe damage. A battery stored at 100 percent charge maintains a constant high voltage, allowing the acid generation and metal dissolution processes to proceed slowly but continuously over months of inactivity.

Engineering Defenses

Battery chemists are actively developing countermeasures to suppress this dissolution. One primary strategy involves applying microscopic protective coatings directly to the cathode particles. These atomic-level shields prevent the liquid electrolyte from making direct contact with the transition metals, blocking the acid attack.[2]

Another approach relies on specialized electrolyte additives. These chemical scavengers are designed to capture dissolved metal ions before they can cross the separator and poison the graphite anode. While effective in laboratory settings, these additives eventually deplete over the battery's lifespan.[3]

Until these advanced materials become standard in consumer electronics, voltage management remains the most effective defense. Modern laptops and electric vehicles now include built-in charge limiters that physically sever the charging current when the battery reaches 80 percent.

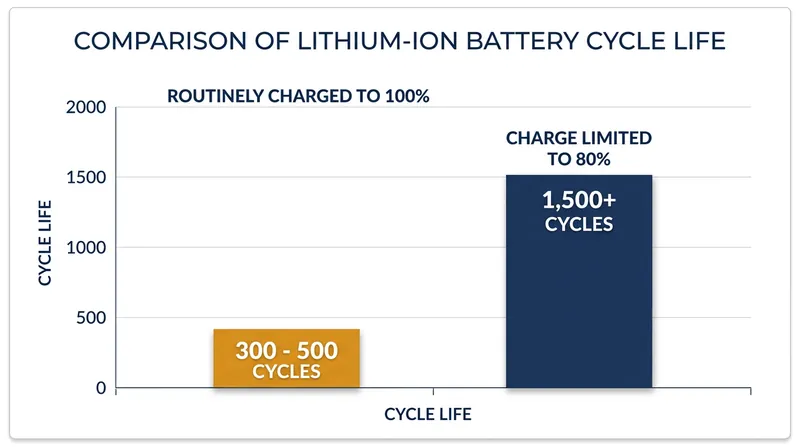

By understanding the chemical reality of transition-metal dissolution, users can make informed decisions about their charging habits. A battery kept between 20 and 80 percent can often deliver over 1,500 charge cycles, compared to just 300 to 500 cycles for one routinely pushed to 100 percent.

Chemistry Differences: NMC versus LFP

Not all lithium-ion batteries suffer from transition-metal dissolution equally. The vulnerability depends heavily on the specific metals used in the cathode. Most smartphones and laptops use Nickel Manganese Cobalt (NMC) or Lithium Cobalt Oxide (LCO) chemistries, which are highly susceptible to high-voltage structural decay.[1]

In contrast, Lithium Iron Phosphate (LFP) batteries operate at a naturally lower voltage. An LFP cell reaches full charge at around 3.6 volts, well below the 4.1-volt threshold where severe electrolyte oxidation and acid generation typically begin.

Because LFP cathodes do not contain nickel or cobalt, they bypass the most aggressive forms of transition-metal dissolution. This chemical stability is why LFP batteries can routinely withstand charging to 100 percent without suffering the rapid capacity fade seen in NMC cells.

However, even LFP batteries experience accelerated Solid Electrolyte Interphase growth if held at maximum voltage for extended periods. For any lithium-based chemistry, minimizing the time spent at maximum electrical pressure remains the most reliable way to extend cycle life.
