How Spatially Rotating Magnetic Dipoles Confine Refrigerator Magnet Adhesion to a Single Face

In December 1973, British physicist John C. Mallinson published a paper in the IEEE Transactions on Magnetics describing what he called a "magnetic curiosity." He demonstrated that a specific, spatially rotating arrangement of magnetic dipoles could force nearly all magnetic flux to exit one face of a planar structure, leaving the opposite side magnetically dead.[1][3]

At the time, Mallinson recognized the potential for this one-sided flux in magnetic tape recording, but the principle soon found its most ubiquitous application in the modern kitchen. The flexible refrigerator magnet relies entirely on this exact spatial rotation to hold paper against a steel door.[1]

If you flip a standard flexible magnet over and attempt to stick the printed side to a refrigerator, it will fall to the floor. The decorative face possesses almost no detectable magnetic field, a feature that protects the printed image and prevents the magnet from attracting stray metal dust.

This behavior contradicts the basic intuition that every magnet must have a north and a south pole of equal strength on opposite ends. The flexible magnet achieves its one-sided grip through a complex internal architecture known as a Halbach array, which manipulates magnetic superposition to cancel the field on the front and amplify it on the back.

The Anatomy of a Flexible Magnet

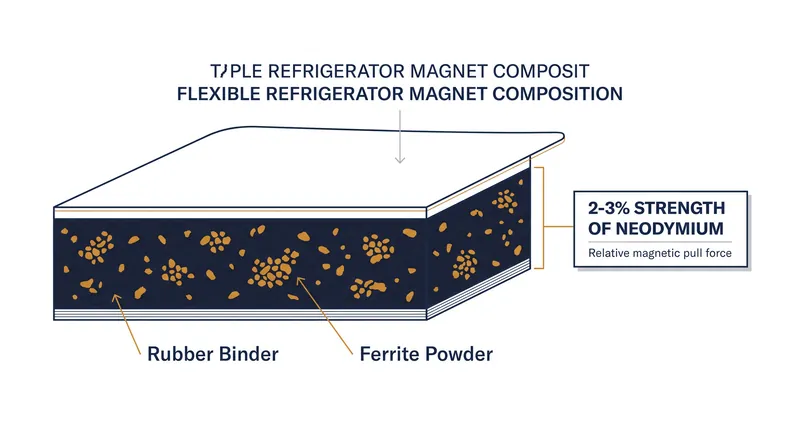

A flexible refrigerator magnet is not a solid piece of metal, but rather a composite material engineered for cost and versatility. It is made primarily of powdered ferrite, essentially iron rust, mixed into a liquid binding agent like plastic or synthetic rubber.

This mixture is extruded or rolled into thin, flexible sheets that can be easily cut and printed upon. On its own, the ferrite powder possesses a very low intrinsic magnetic strength, typically generating only 2 to 3 percent of the holding force of a modern neodymium rare-earth magnet.[2]

Because the base material is so weak, a conventional magnetization pattern—with a north pole on the back face and a south pole on the front face—would not generate enough force to hold the magnet's own weight. It certainly could not secure a thick stack of paper to a door.[2]

To solve this limitation, manufacturers must concentrate whatever limited magnetic flux the ferrite can produce and direct it entirely toward the steel surface of the refrigerator. They achieve this by altering how the magnetic dipoles are oriented within the rubber binder during the curing process.

A magnetic dipole is a microscopic configuration in which two equal but opposite magnetic charges are separated by a distance, creating a localized magnetic field. In a flexible magnet, millions of these dipoles are permanently locked into a specific, rotating alignment that dictates how the overall field behaves.[3]

The Physics of Spatially Rotating Dipoles

The secret to the refrigerator magnet's grip lies in the Halbach array, a configuration that rotates the magnetization direction of the dipoles progressively along the length of the material. This spatial rotation fundamentally changes how the magnetic fields interact with one another.[3]

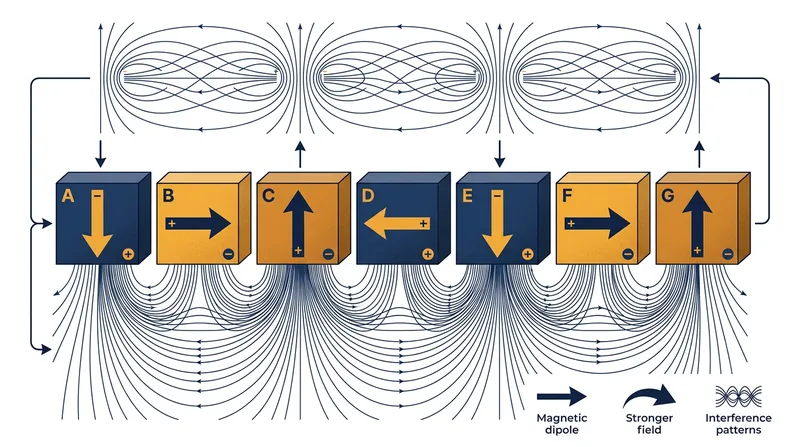

Instead of simply alternating north and south, the magnetization direction rotates by 90 degrees in each successive segment. The pattern moves from pointing up, to pointing sideways, to pointing down, to pointing sideways again, repeating indefinitely across the width of the magnetic sheet.

"It is shown that a previously unknown class of magnetization patterns exists in planar structures which have the unique property that all the flux escapes from one surface with none leaving the other side," Mallinson wrote in his 1973 abstract, perfectly describing the phenomenon.[1]

This rotating pattern creates two superimposed magnetic fields: one with vertical magnetization alternating up and down, and one with horizontal magnetization alternating left and right. Because these two patterns are offset by a quarter period, their fields interact through the principle of superposition.

On the back side of the magnet—the side facing the refrigerator—the vertical and horizontal fields are perfectly in phase. They add together constructively, augmenting the total magnetic flux directed outward and maximizing the attractive force against the steel surface.[3]

Canceling the Reverse Flux

On the front side of the magnet—the side carrying the printed image—the vertical and horizontal fields are in anti-phase. They interfere destructively, effectively canceling each other out and reducing the magnetic field on that surface to near zero.

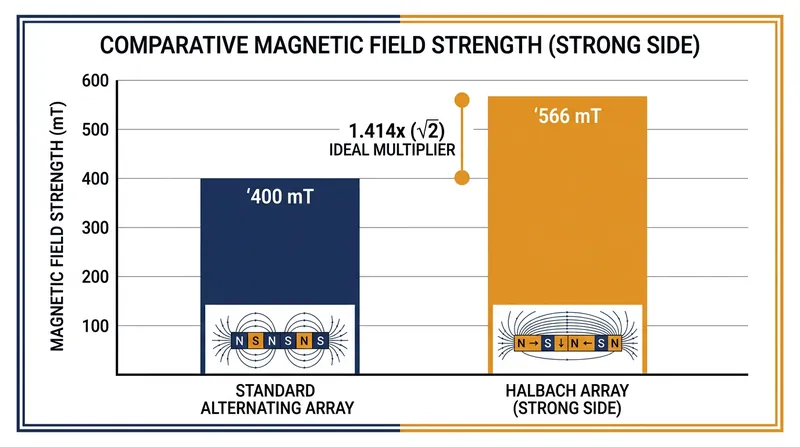

In an ideal, continuous Halbach array, this constructive interference increases the magnetic field strength on the strong side by a factor of the square root of two. This means the field is approximately 1.414 times stronger than that of a conventional alternating array of the exact same volume.

This one-sided flux distribution also provides a crucial structural advantage known as self-shielding. In a standard magnet, a heavy steel backing plate, or "back iron," is often required to route the magnetic flux from the back pole to the front pole and prevent stray fields from escaping.

The spatially rotating dipoles in a Halbach array build that return path directly into the magnetization pattern itself. The horizontal segments route the magnetic flux internally through the rubber matrix, eliminating the need for heavy steel backing and keeping the flexible magnet thin and lightweight.

The absence of a stray field on the printed side also ensures that the magnet remains magnetically quiet on its outward face. This prevents the flexible magnet from inadvertently erasing magnetic stripe cards or interfering with sensitive electronics that might brush against it.

Manufacturing the One-Sided Flux

Imprinting this complex Halbach pattern into a sheet of rubberized ferrite requires a specialized, highly controlled manufacturing process. The ferrite and binder mixture is heated and poured into a sheet mold, where the microscopic ferrite particles remain free to rotate within the liquid matrix.

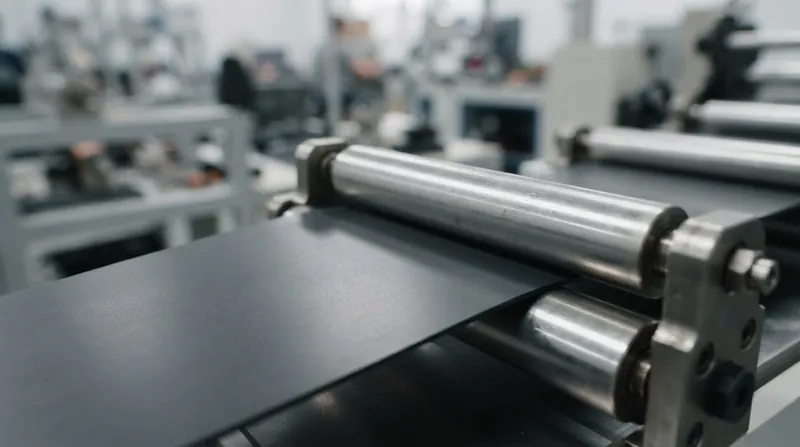

While the mixture is still hot and pliable, the sheet is passed through a strong, alternating magnetic field. This is typically achieved by rolling a line of powerful cylindrical permanent magnets, arranged with alternating poles, directly over the surface of the cooling sheet.[3]

The external field forces the north and south poles of the microscopic ferrite particles to align with the spatially rotating pattern. As the vinyl cools and solidifies, the dipoles are permanently locked into their 90-degree rotational sequence, freezing the Halbach array in place.

The resulting magnetic poles are spaced very closely together, typically on the order of 5 millimeters apart, though the exact distance varies by manufacturer. This tight spacing creates a dense, shallow magnetic field that grips strongly when in direct contact with a steel surface but drops off rapidly at a distance.[3]

You can physically feel this alternating pole structure by taking two identical flexible refrigerator magnets and sliding their magnetic faces against each other. As the poles pass one another, the magnets will alternately repel and attract, jumping from position to position in increments of a few millimeters.[3]

Beyond the Refrigerator

While Mallinson discovered the one-sided flux phenomenon, the configuration bears the name of Klaus Halbach, a physicist who independently invented the array in the 1980s. Working at the Lawrence Berkeley National Laboratory, Halbach realized the pattern could solve major engineering challenges in high-energy physics.[1][3]

Halbach used the rotating dipole arrangement to focus particle accelerator beams and free-electron lasers. These advanced applications required intense, highly directional magnetic fields without the bulk and weight of heavy steel shielding, making the self-routing flux of the array an ideal solution.[3]

Today, the same spatial rotation that holds a shopping list to a kitchen appliance drives some of the world's most advanced technologies. The Inductrack magnetic levitation train system relies on linear Halbach arrays to generate the massive lift required to float a train car above its conductive tracks.[2]

In consumer electronics, Apple's MagSafe system utilizes a circular Halbach array embedded in the back of the iPhone. This ring of magnets concentrates its flux outward to securely snap onto chargers and wallets, while the canceled reverse flux protects the phone's internal battery and processor from magnetic interference.[4]

Electric motor designers increasingly turn to Halbach cylinders to build lighter, more efficient motors for electric vehicles and drones. By eliminating the heavy iron cores traditionally used to guide magnetic fields, these arrays significantly increase the motor's power-to-weight ratio and overall efficiency.[2]

From a 1973 theoretical curiosity to a cornerstone of modern engineering, the spatially rotating magnetic dipole proves that manipulating the direction of a magnetic field can be just as powerful as increasing its raw strength. The humble refrigerator magnet remains its most accessible, everyday demonstration.[1]
