Why Bundling Transmission Conductors Expands Geometric Mean Radius to Suppress Corona Discharge

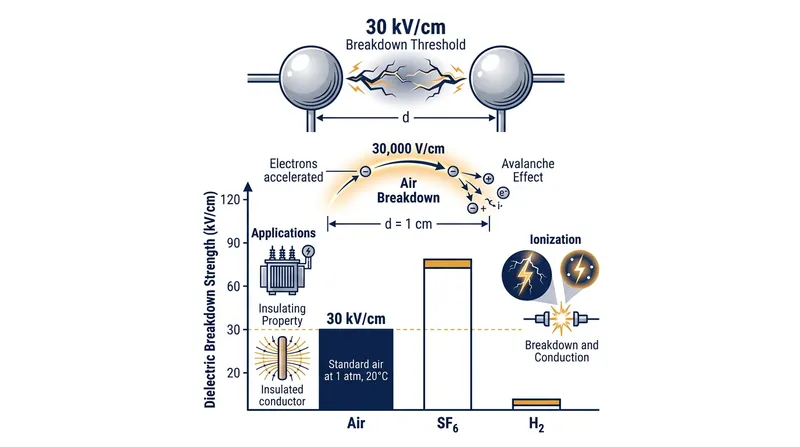

At 400,000 volts, the electric field surrounding a power line exerts a force of more than 30 kilovolts across every single centimeter of space—a magnitude that exceeds the natural insulating capacity of the atmosphere itself. When the potential gradient crosses this 30 kV/cm threshold, the air surrounding the metal ceases to act as an insulator.[2]

This localized electrical breakdown, known as corona discharge, bleeds energy directly into the sky. "The air gets ionized when the potential gradient at the conductor surface reaches the value of 30kV/cm at normal pressure and temperature," explains electrical engineer Abdur Rehman in a technical review of transmission line phenomena.[1][3]

"The ionized air act as a virtual conductor, producing a hissing sound with a luminous violet glow," Rehman notes. For extra-high-voltage transmission networks, this continuous leakage represents an economically devastating power loss that must be engineered out of the system.[1]

To prevent the atmosphere from ionizing, grid engineers must reduce the electric field intensity at the conductor's surface. The intensity of this electrostatic field is highly non-uniform, reaching its absolute maximum strength precisely at the boundary where the metal meets the air.[2]

The Radius and the Gradient

The surface potential gradient of a wire is inversely proportional to its radius. A thicker cable diffuses the electrical stress over a much larger surface area, lowering the peak field intensity. Consequently, the simplest theoretical way to prevent corona discharge is to increase the diameter of the transmission line.[1][2]

However, manufacturing and suspending a single solid cable thick enough to drop the field below the 30 kV/cm breakdown threshold is physically impossible. A solid copper or aluminum wire of that diameter would be too heavy for standard transmission towers to support.[1]

Even if the weight could be supported, a massive single conductor would be highly inefficient due to the skin effect. Alternating current naturally migrates to the outer surface of a conductor, leaving the dense center electrically underutilized. A giant solid wire would waste vast amounts of conductive material while generating excessive resistive heat.[3]

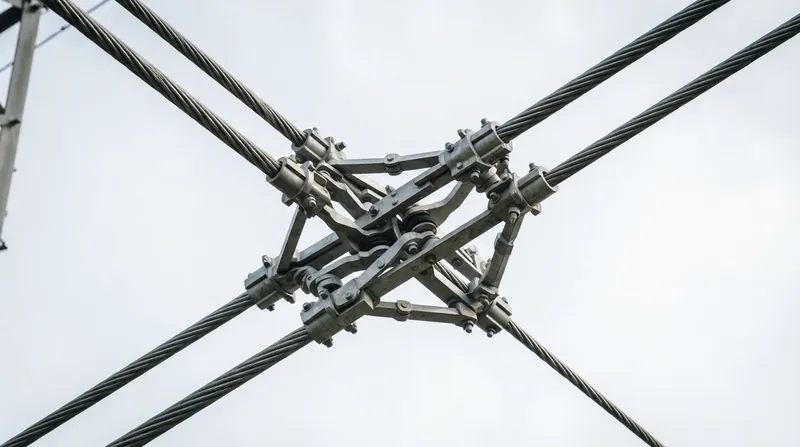

Instead of relying on a single massive wire, transmission lines operating above 220 kilovolts employ bundled conductors. This design splits the phase into two, three, or four smaller sub-conductors suspended in a geometric array. Spaced 0.2 to 0.6 meters apart by non-conductive spacer dampers, these parallel strands operate together as one phase.[1][3]

Expanding the Geometric Mean Radius

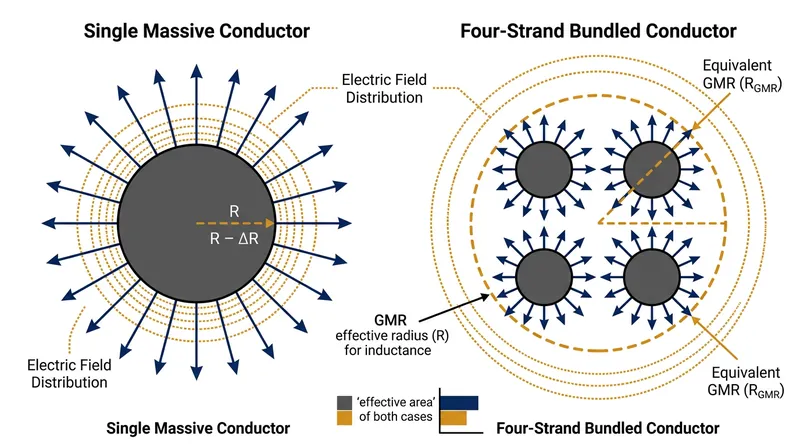

By separating the sub-conductors through empty space, engineers trick the electric field into behaving as though the wires form a single, massive cylinder. This effective electromagnetic size is mathematically defined as the geometric mean radius, or GMR. The GMR dictates how the magnetic and electric fields interact with the surrounding environment.[1]

Bundling drastically expands the GMR without adding the unsupportable weight of a solid conductor. Because the sub-conductors are spaced tens of centimeters apart, the overall footprint of the phase expands significantly. This spatial arrangement lowers the surface potential gradient on each individual strand, dropping the electric field intensity safely below the ionization limit.[1][3]

For a two-conductor bundle, the equivalent GMR is calculated using the square root of the product of the sub-conductor radius and the spacing distance. As the number of strands increases to three or four, the mathematical expansion of the GMR becomes even more pronounced.[1]

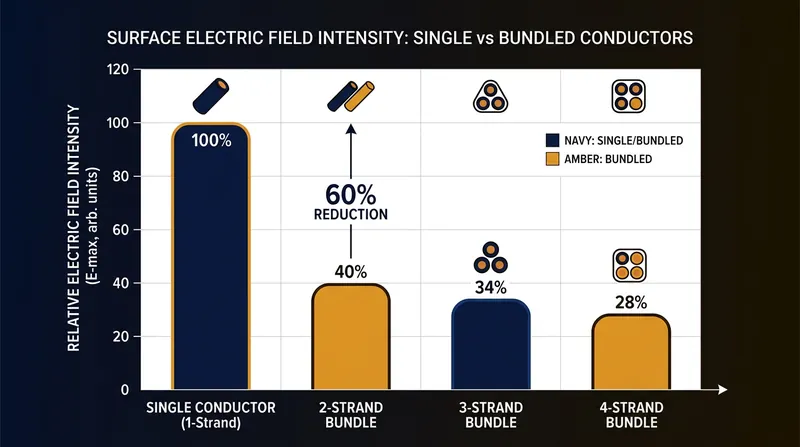

A 2020 engineering analysis published in the International Journal of Engineering and Advanced Technology demonstrated that a four-strand bundle can reduce the surface electric field by over 60 percent compared to a single wire. This geometric expansion suppresses corona discharge even at ultra-high voltages of 400 kV and 765 kV.[1]

Grid operators like PJM Interconnection and the National Grid rely on this geometric expansion to maintain efficiency. By keeping the surface gradient below 30 kV/cm, the bundled configuration prevents the cumulative ionization and recombination of air molecules. The energy that would have been lost as ultraviolet photons and heat remains safely within the grid.[1][2]

Inductance and Surge Impedance

Beyond suppressing corona losses, expanding the geometric mean radius fundamentally alters the line's electromagnetic properties. A larger GMR directly reduces the self-inductance of the phase. Because inductance creates a magnetic field that opposes the flow of alternating current, lowering it reduces the inductive reactance per unit length of the line.[1][3]

Minimizing inductive reactance is critical for long-distance power transmission. High reactance causes severe voltage drops along the corridor, limiting the amount of usable power that can reach the destination substation. By deploying bundled conductors, utilities can push significantly more current through the same right-of-way without suffering crippling voltage decay.[1][3]

Simultaneously, the expanded effective surface area of the bundle increases the line's capacitance to ground. The combination of lower inductance and higher capacitance reduces the characteristic surge impedance of the transmission corridor. A lower surge impedance directly translates to a higher surge impedance loading, which is the theoretical maximum power the line can deliver.[1]

This dual benefit makes bundled conductors mandatory for modern extra-high-voltage networks. Without the expanded GMR, a 400 kV line would not only bleed massive amounts of power into the air via corona discharge, but its high inductive reactance would choke the remaining current. Bundling solves both the dielectric and the magnetic constraints simultaneously.[1][2]

Atmospheric Density and Breakdown

While bundling controls the electric field under standard conditions, the 30 kV/cm breakdown threshold is not a static number. The dielectric strength of air is directly proportional to its density. Under standard conditions, this requires a barometric pressure of 76 centimeters of mercury and a temperature of 25 degrees Celsius.[2]

When the air density changes, the critical breakdown voltage of the atmosphere changes accordingly. At high altitudes, the thinner air provides less insulation, meaning corona discharge can initiate at a much lower potential gradient. Transmission lines crossing mountain ranges require even larger geometric mean radii to compensate for the reduced dielectric strength.[2][3]

Temperature also plays a critical role in the stability of the air. During extreme heatwaves, the air density drops, lowering the threshold for ionization. Engineers must calculate the required GMR expansion based on the worst-case atmospheric density expected along the line's route, ensuring the surface gradient remains suppressed even on the hottest days.[1][2]

Surface Irregularities and Weather

The theoretical calculations for geometric mean radius assume a perfectly smooth, polished conductor surface. In reality, transmission lines are exposed to the elements, and their surfaces degrade over time. Dust, industrial pollution, and oxidation create microscopic sharp points on the metal, which act as focal points for the electric field.[2][3]

These surface irregularities concentrate the electrical stress, locally pushing the gradient past the breakdown threshold even if the overall GMR is sufficient. To account for this, engineers apply an irregularity factor to their calculations. While a polished wire has a factor of 1.0, a dirty or stranded conductor drops the effective threshold by up to 20 percent.[1][2]

Weather introduces the most severe dynamic disruptions to the conductor's surface profile. Raindrops and snowflakes physically alter the shape of the wire, creating temporary sharp protrusions of water or ice. These protrusions intensely concentrate the electric field, which is why power lines often hiss loudly during heavy rainstorms.[2]

Even with heavily bundled conductors, severe weather can temporarily induce corona discharge. The geometric mean radius provides a massive safety margin, but it cannot entirely defeat the physics of water droplets in a 400 kV field. Consequently, bundling is designed to minimize these losses to an economically acceptable level, rather than eliminating them entirely.[1][2]
