The Physics of Liquid Rocket Propellants: Cryogenic, Hypergolic, and Storable Architectures

The selection of a liquid rocket propellant immediately locks a spacecraft into a rigid thermal and structural architecture. When engineers fuel a launch vehicle, the decision between liquid hydrogen and hydrazine dictates the mass of the tanks, the complexity of the turbopumps, and the operational timeline of the mission.[4]

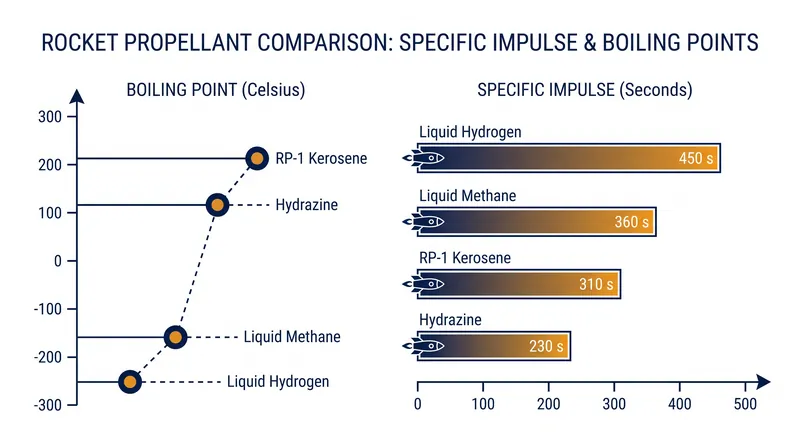

Cryogenic propellants, such as liquid hydrogen (LH2) and liquid oxygen (LOX), offer the highest specific impulse available to chemical rockets. LH2 provides a specific impulse of roughly 450 seconds in a vacuum, extracting maximum thrust per unit of mass and enabling heavy payloads to reach orbit.[4]

However, liquid hydrogen boils at −253 degrees Celsius (20 Kelvin). Managing these temperatures requires heavy insulation and continuous venting to prevent tank overpressurization while the vehicle sits on the launch pad.[1]

According to a 2024 review in PMC, "Cryogenic propellant management in space: open challenges and perspectives," the primary limitation for long-duration missions is boil-off. The authors note that without active cooling, boil-off can deplete a spacecraft's fuel reserves before it reaches its destination, stating that "efficient thermal control is the absolute prerequisite for deep-space cryogenic architectures."[1]

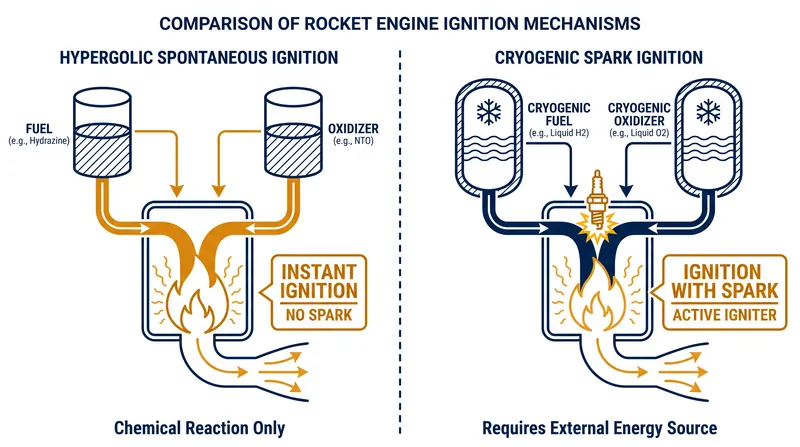

In contrast, hypergolic propellants ignite spontaneously upon contact. Combinations like monomethylhydrazine (MMH) and nitrogen tetroxide (NTO) require no ignition system, guaranteeing engine restarts in the vacuum of space.[2]

This reliability makes hypergolics the standard for orbital maneuvering systems and attitude control thrusters. The Journal of Propulsion and Energy's 2024 paper, "Guidelines for the Safe Handling of Hypergolic Propellants," notes that while highly reliable, these chemicals are acutely toxic and corrosive.[2]

The toxicity of hydrazine requires extensive ground support equipment and hazardous material protocols. These safety measures significantly increase turnaround times and operational costs at launch facilities, requiring technicians to wear fully encapsulated pressurized suits during fueling operations.[2]

To bridge the gap between the high performance of cryogenics and the storability of hypergolics, the aerospace industry is developing "green" or non-toxic storable propellants.[3]

The American Institute of Aeronautics and Astronautics (AIAA) detailed these efforts in "Non-Toxic Propellents for Future Advanced Launcher Propulsion Systems," highlighting hydroxylammonium nitrate (HAN) blends as a primary candidate for next-generation spacecraft.[3]

These HAN-based blends offer a 50 percent higher density-specific impulse than traditional hydrazine. This increased density allows for smaller tanks, reducing the overall dry mass of the spacecraft and leaving more room for scientific instruments or commercial payloads.[3]

The propellant choice cascades directly into manufacturing. ResearchGate's 2024 publication on the LVM3-M4/Chandrayaan-3 mission outlines how the Indian Space Research Organisation (ISRO) selected specific aluminum alloys and welding techniques to handle the severe thermal gradients of liquid propulsion systems.[5]

The European Space Agency's "Liquid propulsion" documentation emphasizes that no single propellant combination satisfies all mission requirements. A heavy-lift first stage relies on dense, high-thrust combinations like RP-1 (refined kerosene) and LOX, while upper stages utilize LH2/LOX for efficiency.[4]

The transition toward reusable architectures and deep-space habitats is forcing a reevaluation of these historical trade-offs. Liquid methane (CH4), which boils at −161 degrees Celsius, has emerged as a compromise, offering better specific impulse than RP-1 and easier thermal management than hydrogen.[6]

The next phase of orbital infrastructure relies on mastering zero-boil-off cryogenic storage and scaling non-toxic hypergolics. The propellant loaded on the pad establishes the absolute limits of where a vehicle can go and how long it can remain operational.[6]
