The Physics of Headphone Drivers: Comparing Dynamic, Planar Magnetic, and Electrostatic Technologies

The short version is simple: dynamic drivers are the reliable workhorses of the audio world, planar magnetic drivers offer a massive upgrade in clarity at the cost of weight, and electrostatic drivers deliver perfect acoustic detail but require specialized, expensive amplifiers to function. If you are buying headphones today, understanding how these three technologies move air to create sound is the only way to know exactly what you are paying for.[10]

At the core of every headphone is a transducer—a mechanical device designed to convert electrical audio signals into the physical sound waves your ears can process. While acoustic chamber design and ear pad materials heavily influence the final sound signature, the fundamental physics of the transducer set the absolute limits on a headphone's speed, distortion, and amplification requirements.[1][6]

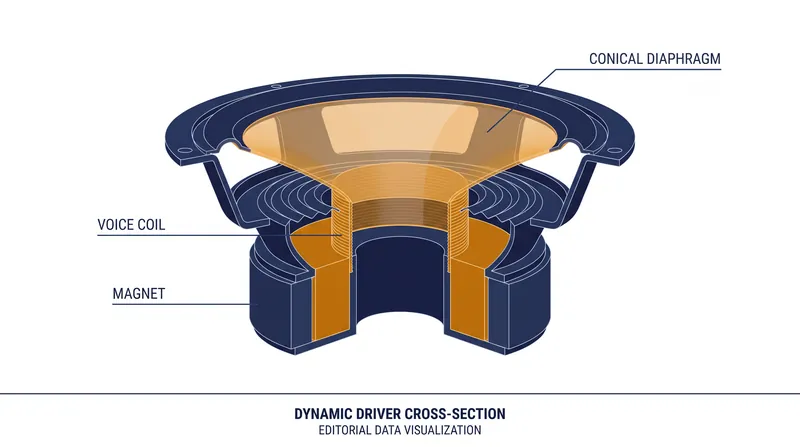

Dynamic drivers operate on the same fundamental physics as a traditional living room loudspeaker. A tightly wound voice coil is suspended in a magnetic field and attached to a stiff, lightweight cone or dome. When an electrical audio signal passes through the coil, electromagnetism forces it to move back and forth rapidly, pushing the diaphragm and displacing air to create sound waves.[3][6]

Because they are relatively simple to manufacture and highly efficient, dynamic drivers dominate the consumer market. They excel at moving large volumes of air, which translates to visceral, impactful bass response that you can physically feel. However, because the voice coil only drives the center of the diaphragm, the outer edges can flex or deform at high volumes, introducing harmonic distortion into the audio signal.[2][4]

Planar magnetic drivers solve this physical deformation problem by fundamentally changing the architecture. Instead of a conical diaphragm driven from the center, a planar driver uses an ultra-thin, flat film suspended between arrays of heavy magnets. The voice coil is not a separate component; it is printed directly onto the surface of the film itself in a serpentine pattern.[3][7]

When the electrical signal hits a planar driver, the electromagnetic force is distributed evenly across the entire surface of the diaphragm. This uniform driving force prevents the physical distortion seen in dynamic drivers, resulting in exceptional transient response—the ability of the driver to start and stop sound instantly, revealing micro-details in the music.[4][9]

The trade-off for this acoustic precision is physical weight. The large magnetic arrays required to suspend the diaphragm make planar magnetic headphones significantly heavier than their dynamic counterparts. This added mass can cause neck fatigue during long listening sessions, making them less ideal for portable use or commuting.[7]

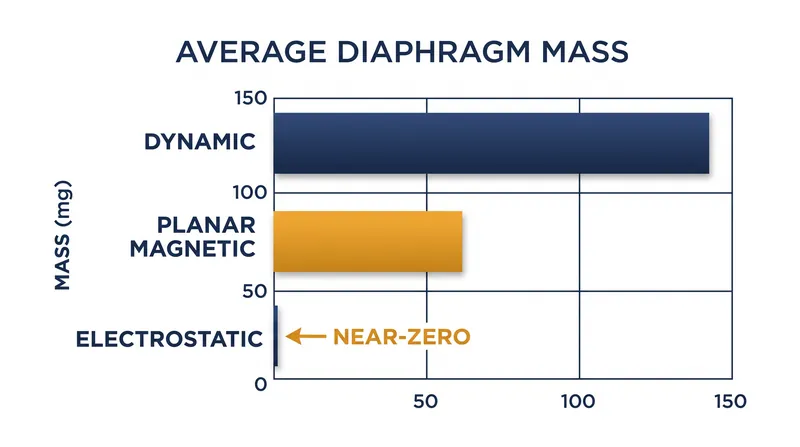

Electrostatic drivers abandon magnetism entirely. Instead, they use static electricity to move an impossibly thin membrane—often less than a tenth of the thickness of a human hair. This near-weightless membrane is suspended between two perforated metal plates called stators.[5][8]

To generate sound, a specialized amplifier applies a constant, high-voltage charge to the membrane, while the audio signal is fed to the stators. The fluctuating voltage in the stators rapidly attracts and repels the charged membrane. Because the membrane is virtually weightless and driven uniformly by static force, electrostatic drivers achieve near-zero distortion and unparalleled high-frequency detail.[8][9]

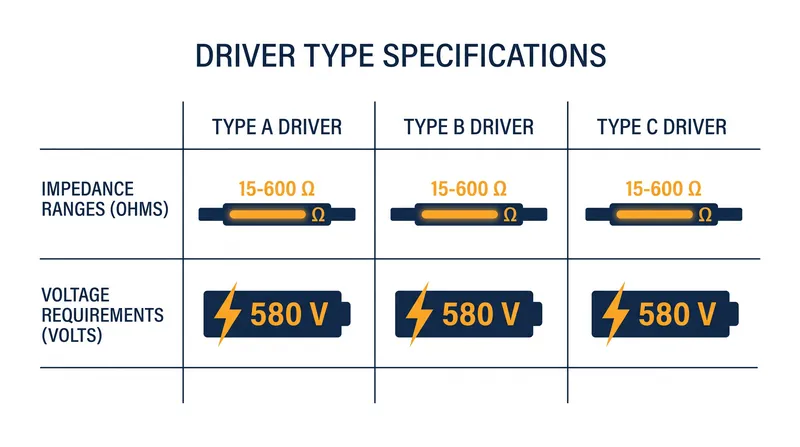

The utility catch with electrostatics is the extreme power requirement. You cannot plug electrostatic headphones into a standard smartphone, laptop, or conventional audio receiver. They require a dedicated "energizer" amplifier to supply the high-voltage bias (typically around 580 volts), making them strictly a stationary, high-budget listening experience.[5][8]

For dynamic and planar magnetic drivers, the amplification math is more accessible but still critical. Dynamic drivers often feature high impedance, requiring a dedicated headphone amplifier to reach proper listening volumes without clipping. Planar magnetic drivers typically have lower impedance but lower sensitivity, meaning they demand more current rather than more voltage to perform optimally.[3][9]

If you need headphones for commuting, travel, or casual listening, dynamic drivers remain the most practical choice due to their durability and efficiency. If you are building a desktop listening station and want high-fidelity sound without buying proprietary amplifiers, planar magnetic headphones offer the best price-to-performance ratio. Electrostatic systems remain the absolute pinnacle of acoustic resolution, reserved for audiophiles willing to invest in a dedicated, stationary ecosystem.[10]
